Introduction

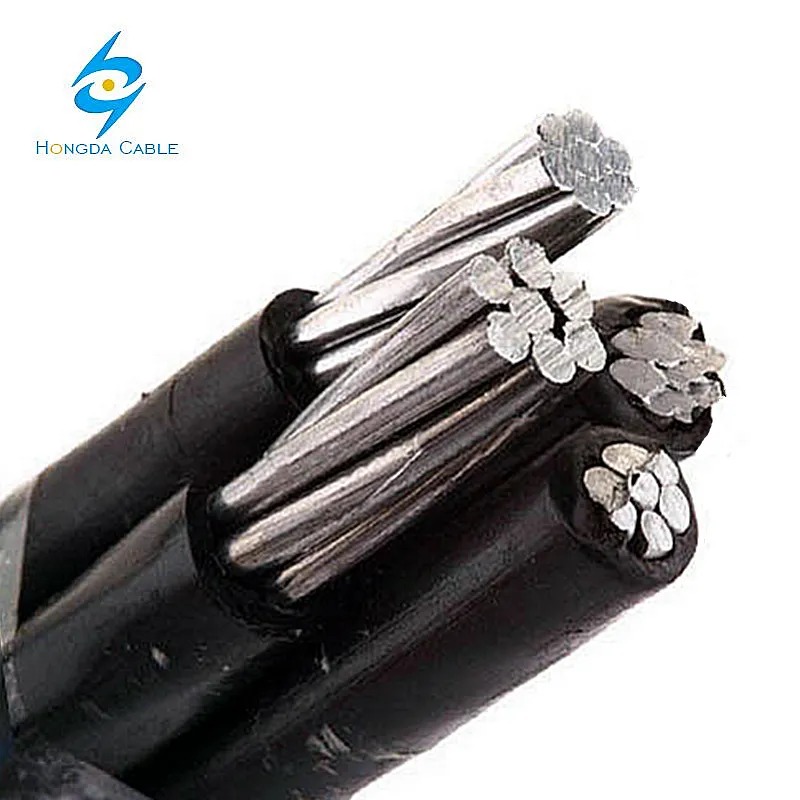

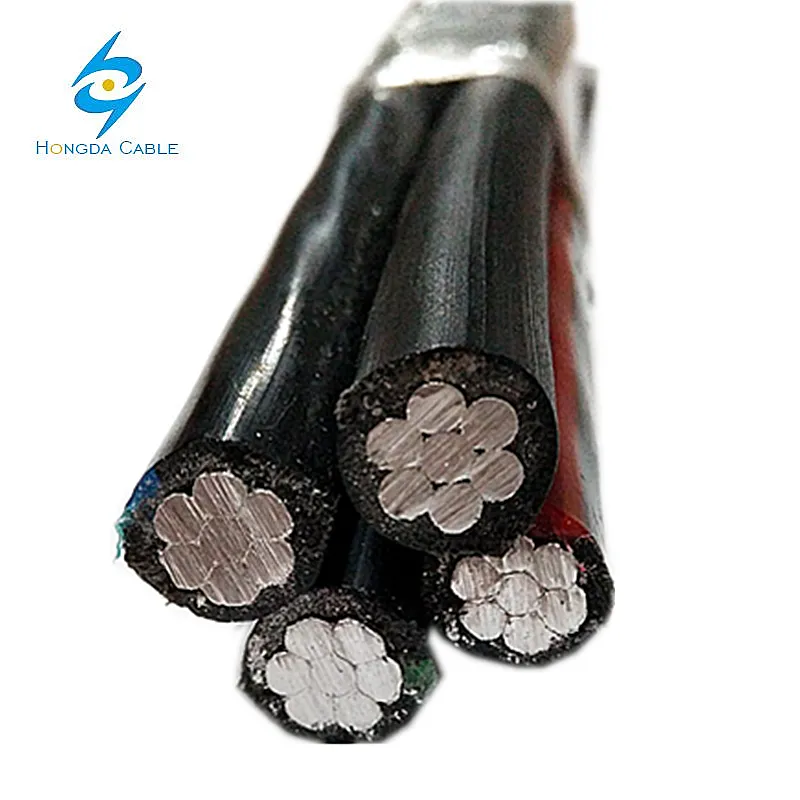

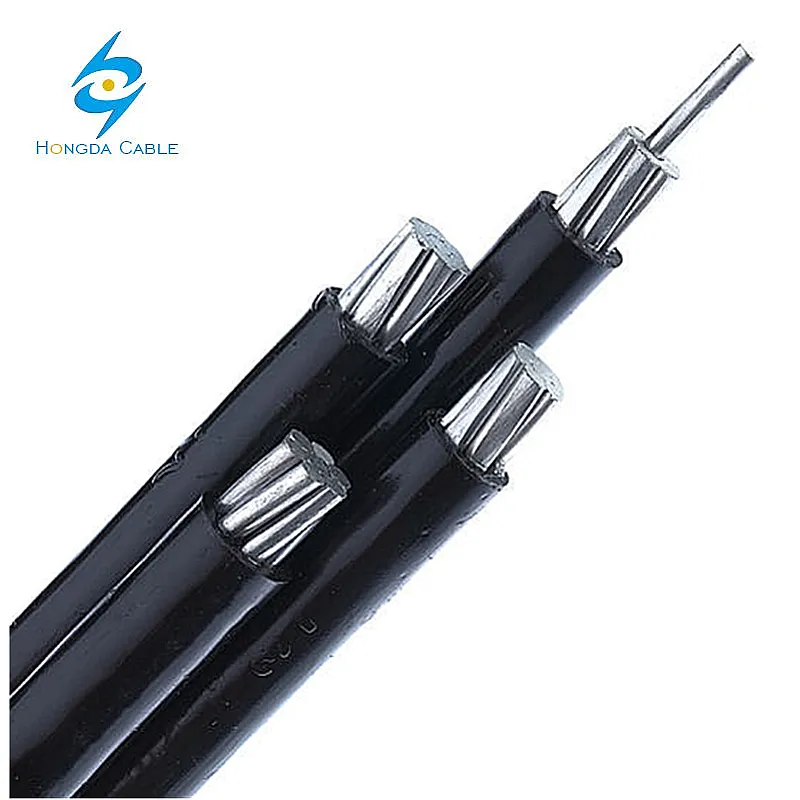

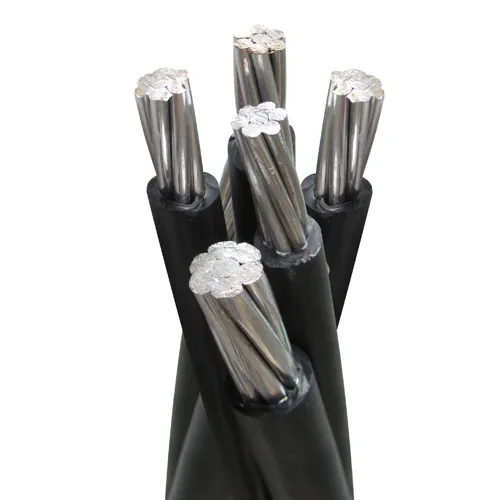

The aerial bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, AAC which the insulation aluminium phase conductors are helically wound over it. Can be used for fixed installation as overhead power lines up to 1000 V incl.
Type and Application
Specifications
X00/0-A / X00-A Self supporting cable bundles N1XD4-AR, NFA2X cable
STANDARD
HD 626 S1 SANS 1418 IEC60502
self supporting cable
X00/0-A / X00-A Self supporting cable bundles N1XD4-AR, NFA2X cable
| Equivalents: | X00-A, X00/0-A acc. to HRN HD 626 S1 |
|---|
| Nominal voltage U0 /U: | 0,6 / 1 kV |
|---|
| Temperature application: | from -30°C up to +85°C |
|---|
| Construction | • conductor: - phase - Al cl.2 acc. HD 383, stranded - neztral - AlMgSi cl. 2 acc. to HD 383, stranded - public lighting - Al cl. 2 acc. to HD 383, stranded • insulation: XLPE / TIX-2 or TIX-5 acc. to HD 626 S1 • cores: concentrically stranded |
|---|
| Minimum bending radius: | 15x cable diameter |
|---|
| Application: | for distribution of electricity in urban networks and industry as well as for air household connections, to be mounted on posts, on support brackets, on wood, iron constructions or those made of some other materia |
|---|
| PHASE CONDUCTOR | H68 condition aluminium conductor, round stranded compressed. |
| NEUTRAL OR MESSENGER CONDUCTOR | Alloy aluminium conductor, round stranded compressed. |
| STREET LIGHTING CONDUCTOR | H68 condition aluminium conductor, round stranded compressed. |
| INSULATION | XLPE |
| ASSEMBLY | The cable consists of insulated phase and street lighting aluminium conductors, shall be held firmly onto the insulated neutral messenger aluminium alloy conductor in a right hand (Z) lay. |

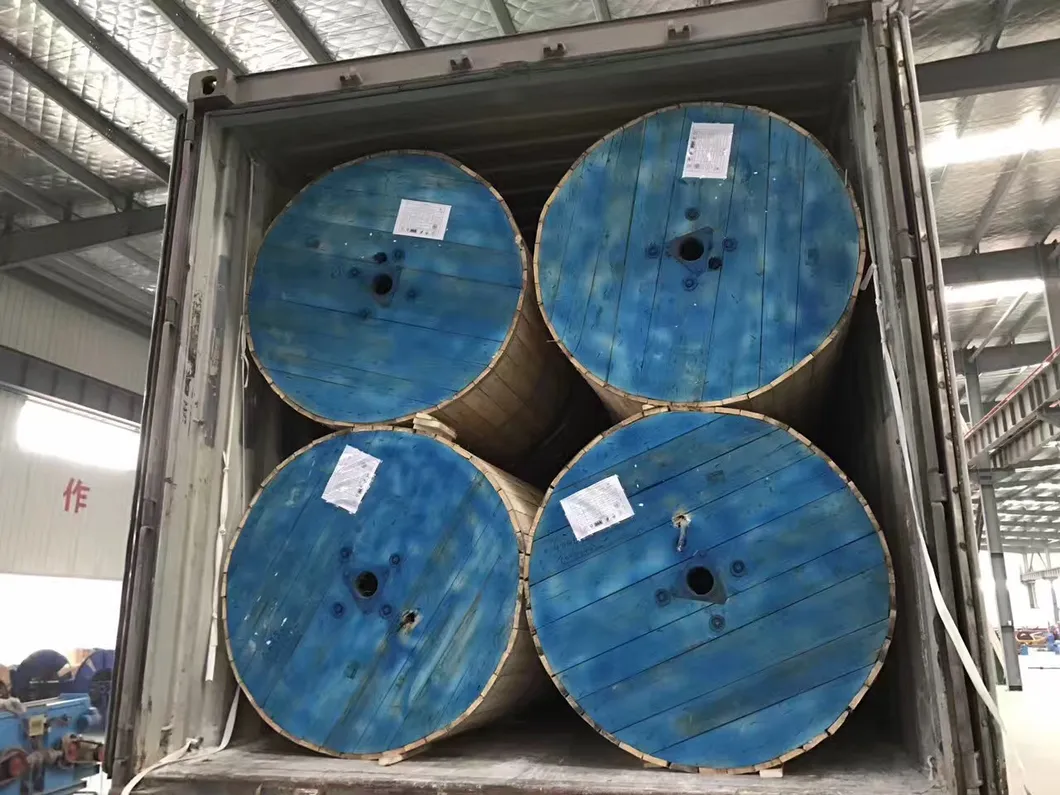

Packing shipping
Why Choose Us ?

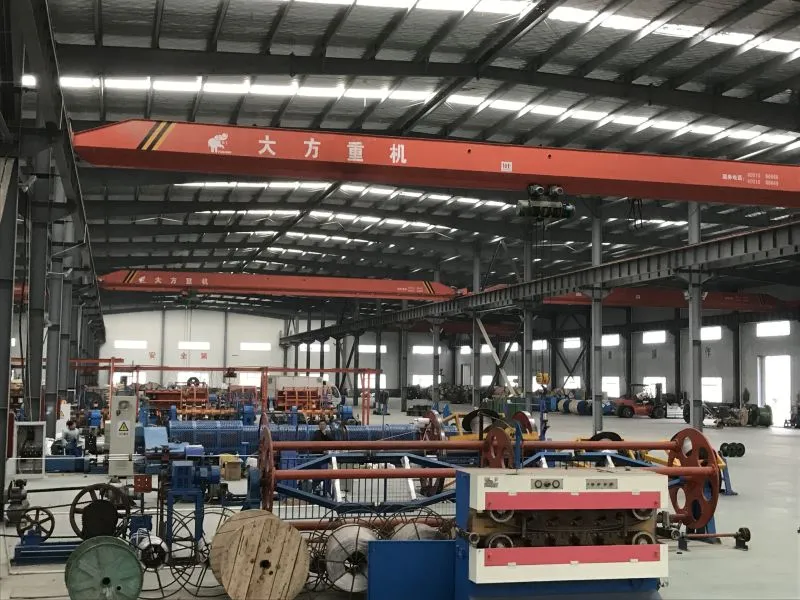

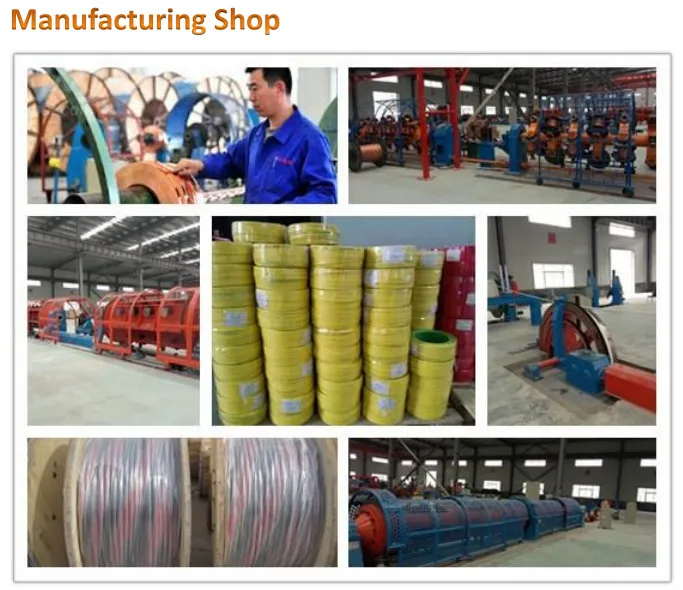

1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
If you have another question, pls feel free to contact us below
