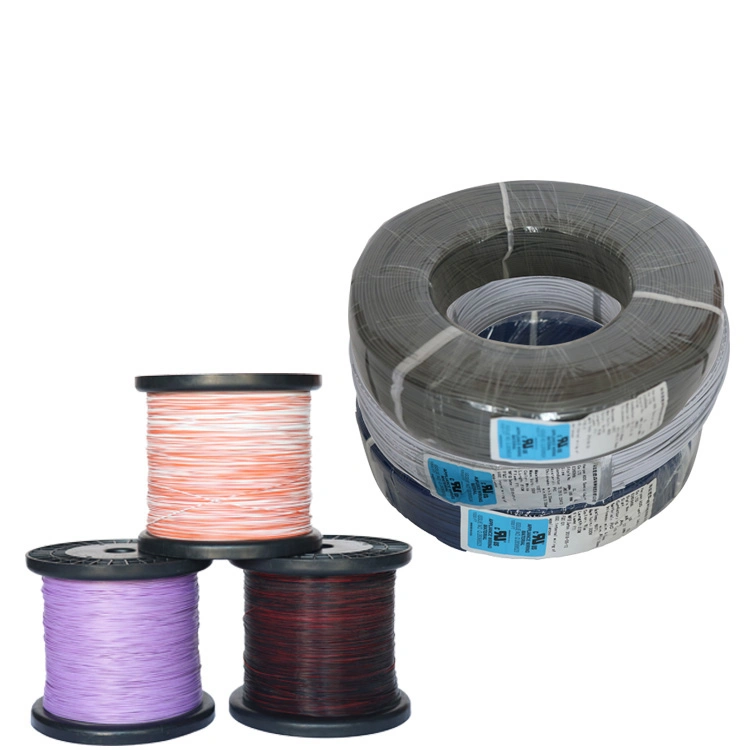

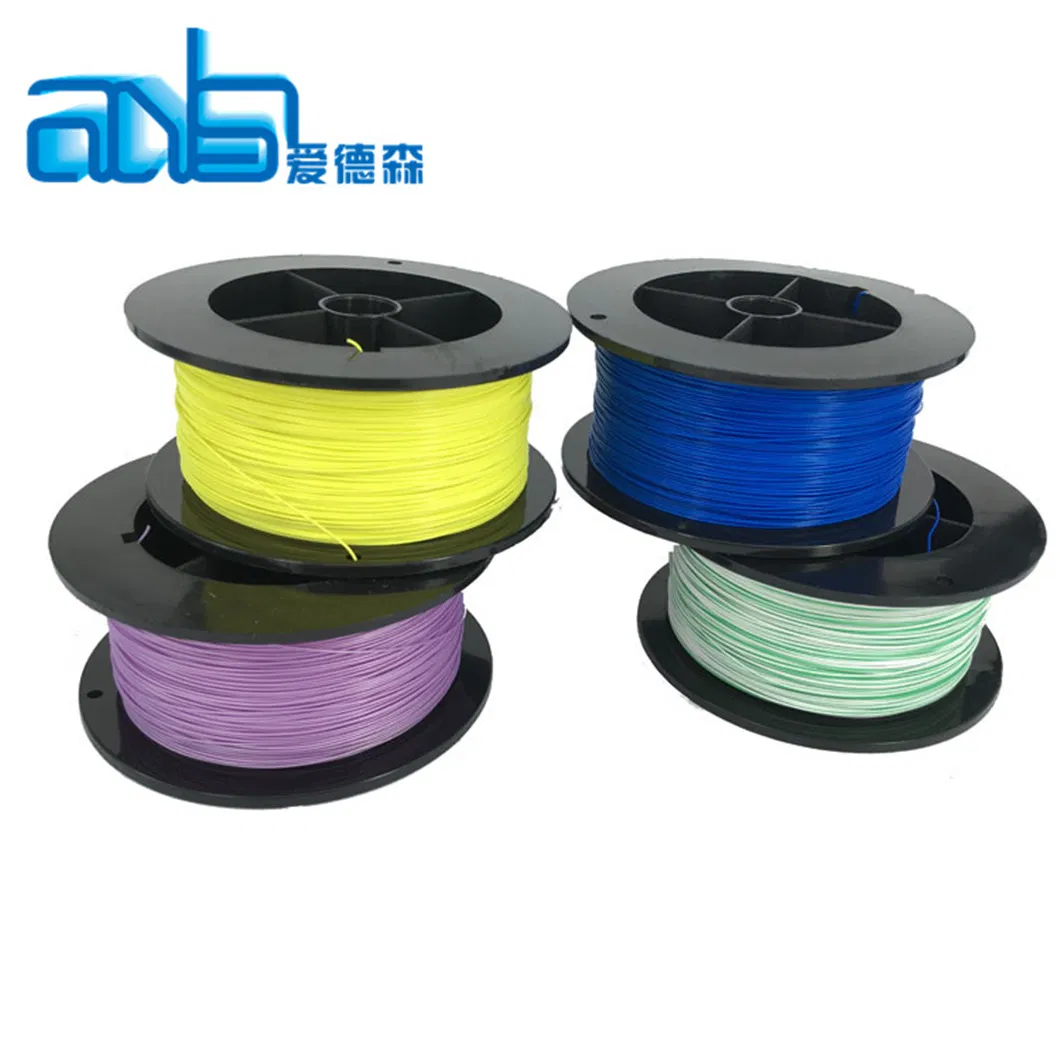

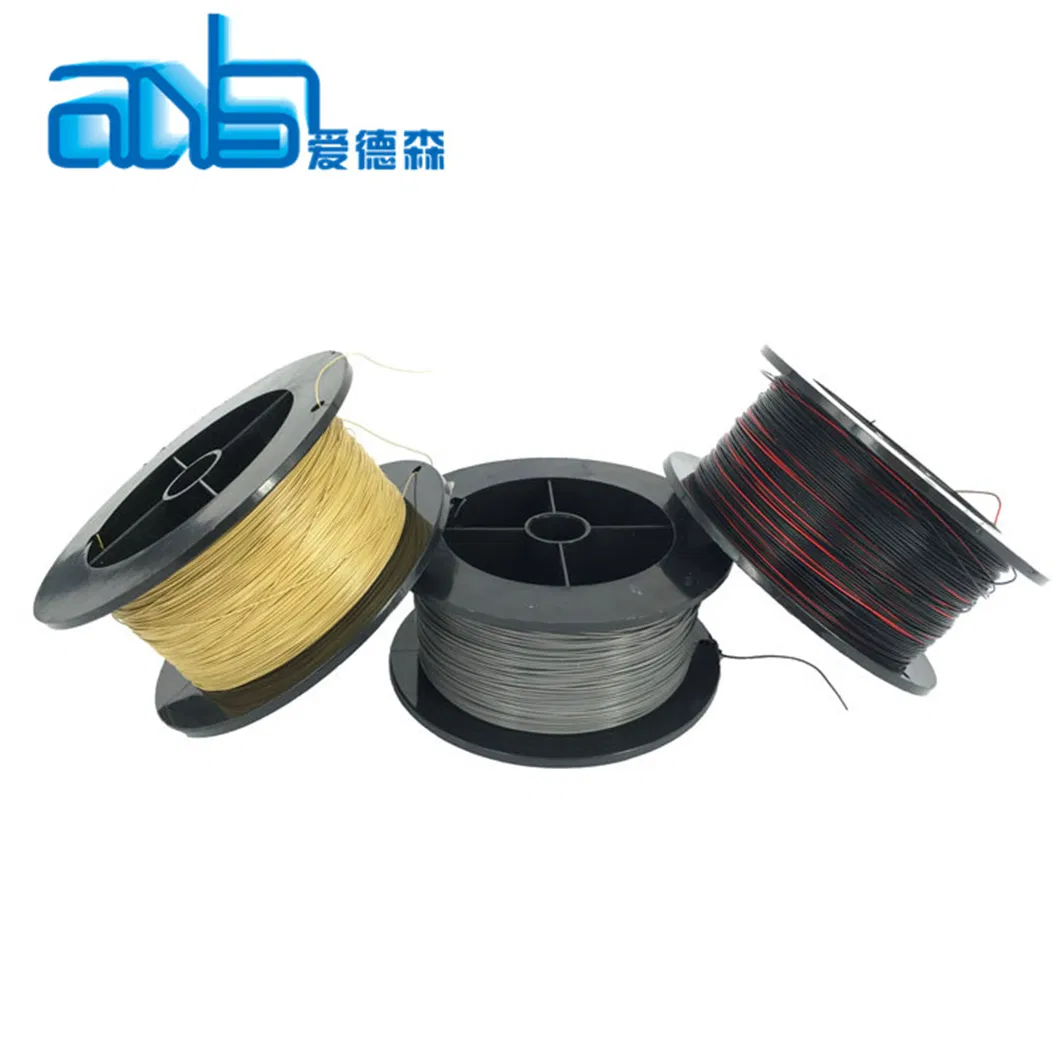

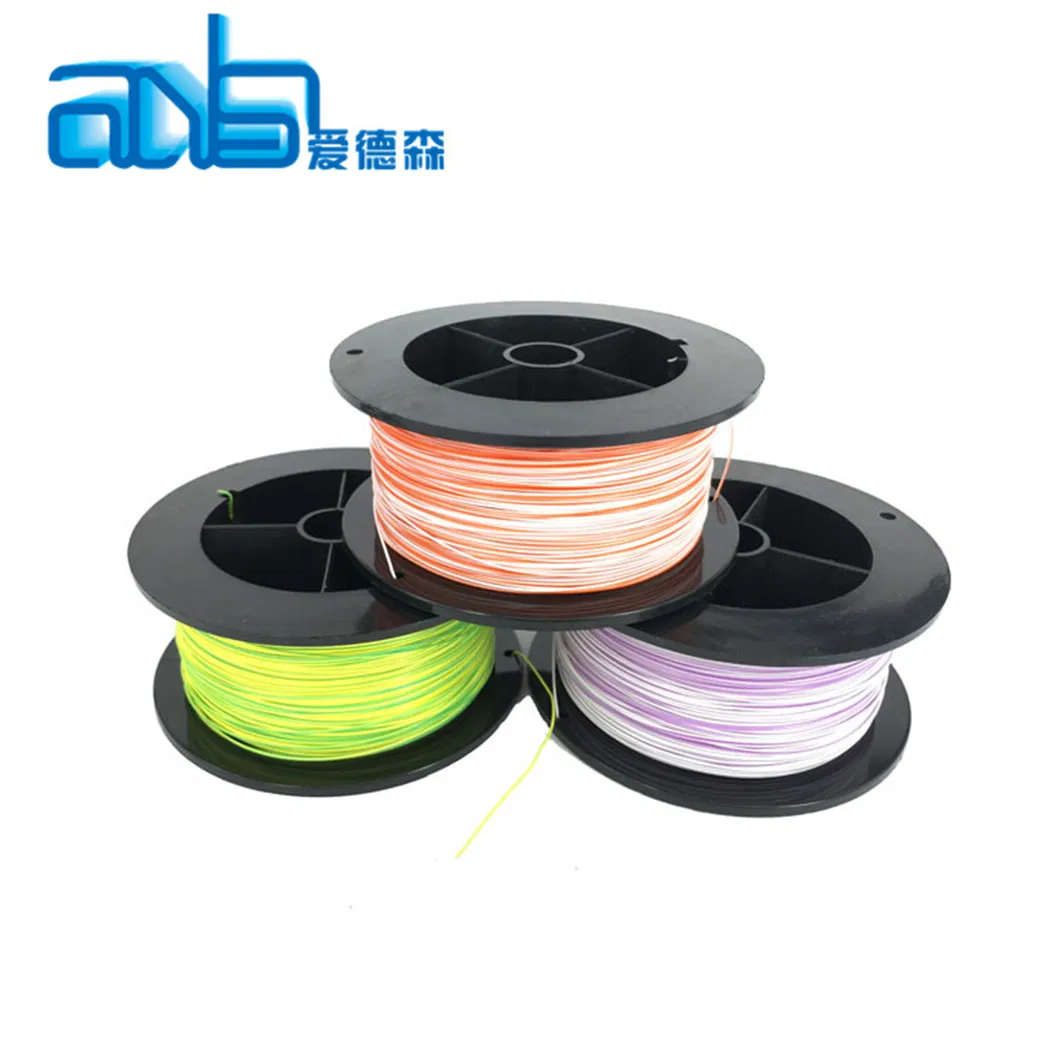

1331 24 AWG Single Core Copper PFA ETFE FEP Hook-up Wire
Product SpecificationColor: Style 1331 Single conductor with extruded insulation1.Rating: 150 deg C, 600 Vac, Horizontal flame. Optional - 60 deg C or 80 deg C Oil, Gasoline Resistant.2.Conductor: 30 AWG - 4/0 AWG solid or stranded or Litz cable conductor consists of magnet wire, R/C (OBMW2), rated......
Send Inquiry
Product Description
Product Specification
Color:
Style 1331 Single conductor with extruded insulation
1.Rating: 150 deg C, 600 Vac, Horizontal flame. Optional - 60 deg C or 80 deg C Oil, Gasoline Resistant.
2.Conductor: 30 AWG - 4/0 AWG solid or stranded or Litz cable conductor consists of magnet wire, R/C (OBMW2), rated a minimum of 150 deg C. Each single magnet wire strand is cabled together with the other magnet wire strands to form a conductor. AWG size to be determined by DC Resistance Test.
3.Insulation: Extruded FEP.
4.Covering: Optional - Extruded FEP, 2 mils minimum thickness, or glass braid, 7 mils minimum thickness.
5.Standard: Appliance Wiring Material UL 758.
6.Marking: General.
7.Usage: Internal wiring of appliances. Wires employing Litz conductors shall be plainly marked on the tag or reel as follows: "Litz conductors are manufactured using solderable magnet wire".

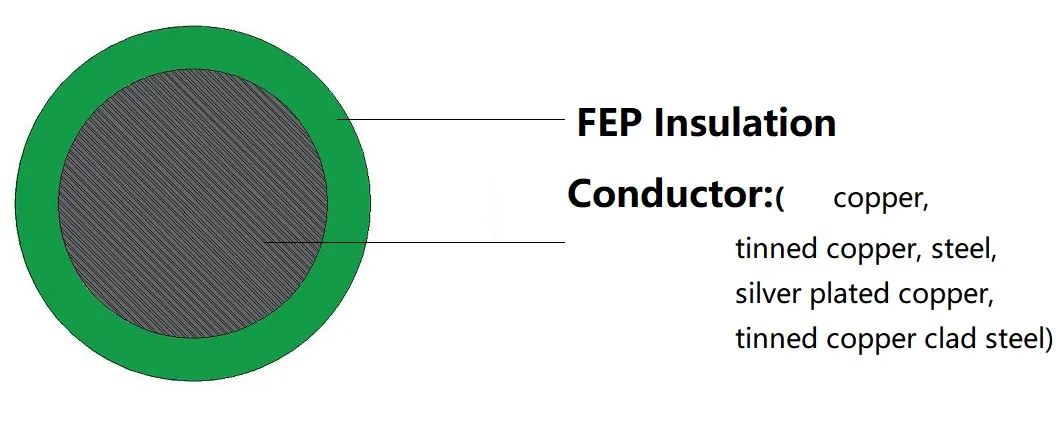

CABLE CONSTRUCTION
OEM Specification Are Also Welcome!

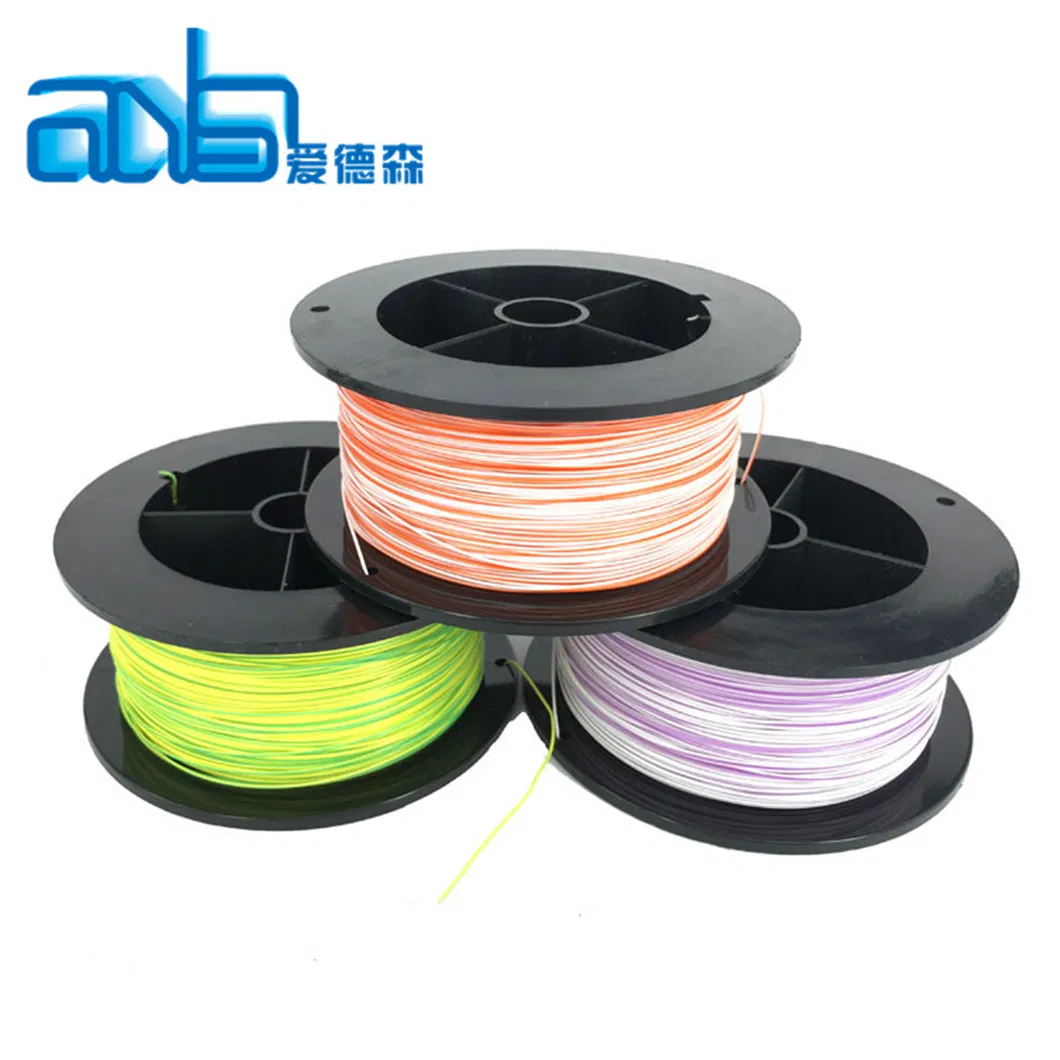

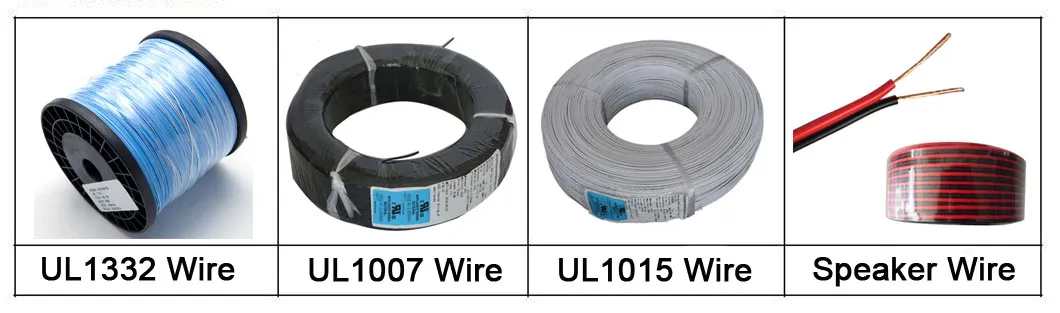

Main Product

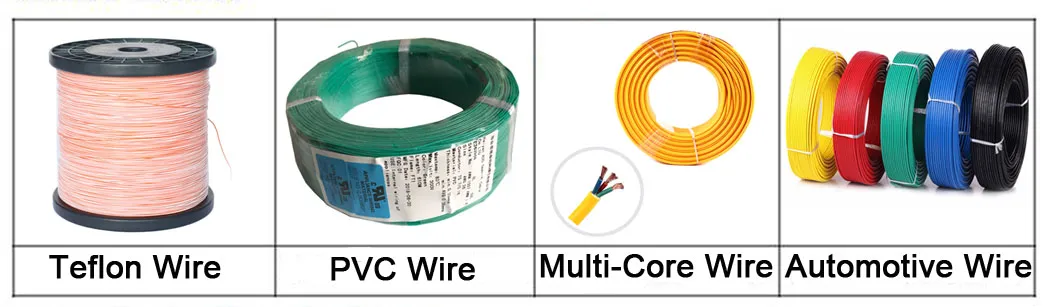

More Product Please See Below:
1.Speaker Cable
2.Control Cable
3.Shielded Cable
4.Microphone Cable
5.Battery Cable
Hot Product

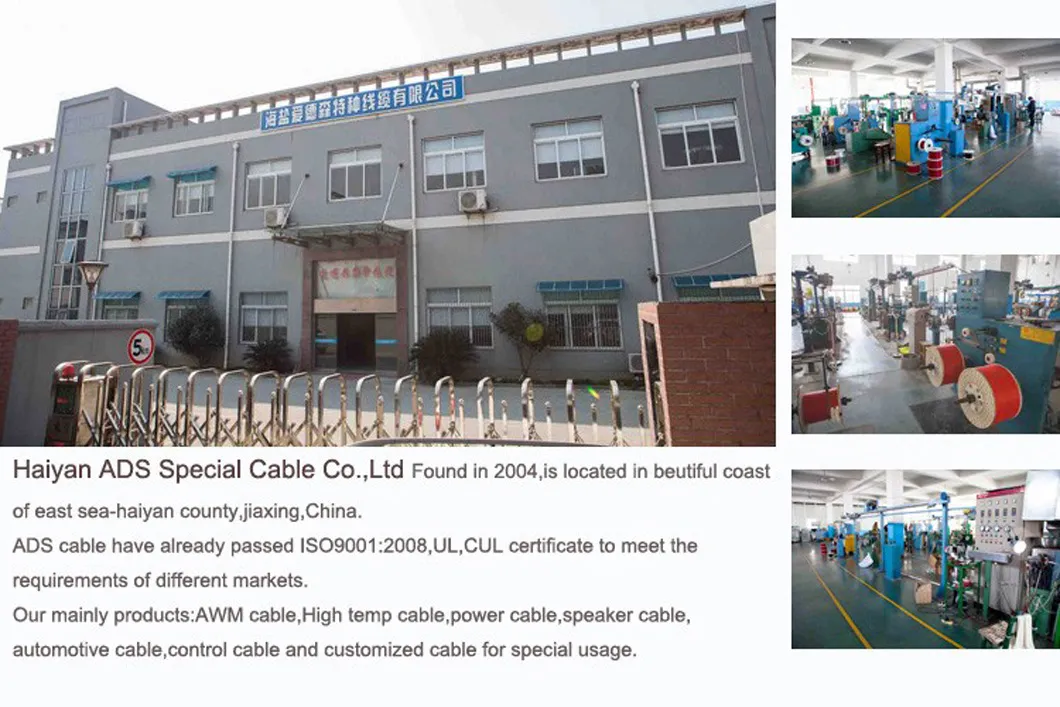

Company Intruction
Certification

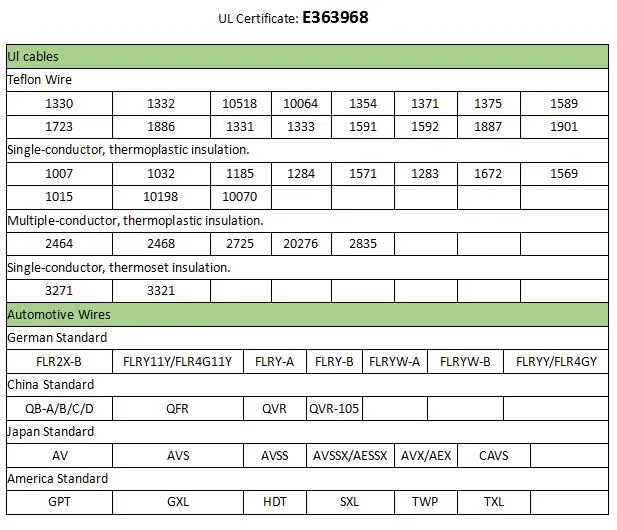

UL Certification
More Test report (Rohs,Reach,Flame Retardant),Pls contact us

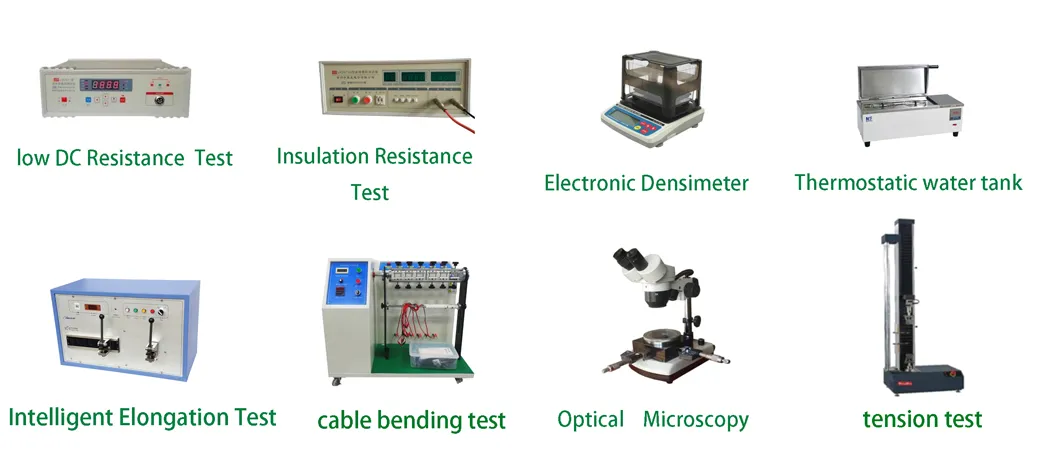

Test Equipment

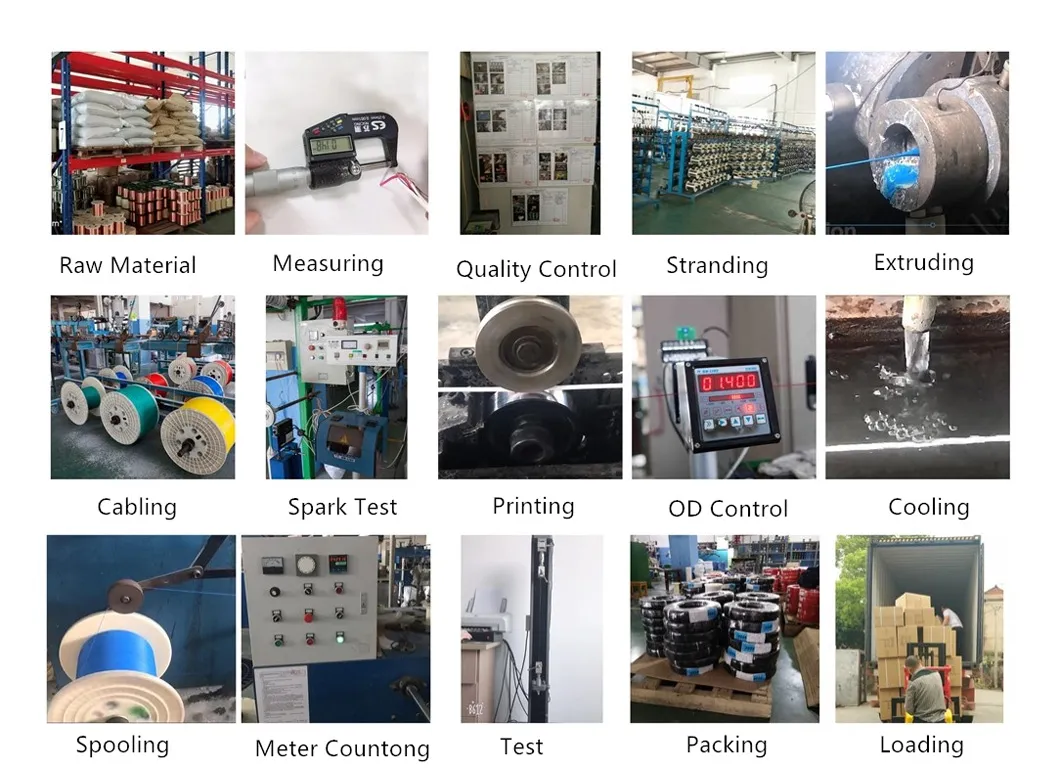

Production Process
Overseas Exibition
FAQ
Q:Are you a factory or a trading company
A:ADS company is a professional cable manufacturer with 15 years production experience.
Q:What's your company MOQ
A:Our company has MOQ requirements, but we also accept small quantity.
Q:Whether these products quality assured?
A:Most of cables are certificated. Also, we have strict QC, all products are 100% tested before delivery. Quality is assured.
Q:Can you send a sample for us to test?
A:1.If we have it in stock and the amount is small, it is free.
2.If we do not have it in stock, sample and freight cost have have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
Q:If I want to purchase, how to pay?
A: Generally we do T/T in 30% deposit before production, 70% balance before loading. Also payment terms are negotiable depending on customer's request.
Contact Us
Color:
Style 1331 Single conductor with extruded insulation
1.Rating: 150 deg C, 600 Vac, Horizontal flame. Optional - 60 deg C or 80 deg C Oil, Gasoline Resistant.
2.Conductor: 30 AWG - 4/0 AWG solid or stranded or Litz cable conductor consists of magnet wire, R/C (OBMW2), rated a minimum of 150 deg C. Each single magnet wire strand is cabled together with the other magnet wire strands to form a conductor. AWG size to be determined by DC Resistance Test.
3.Insulation: Extruded FEP.
4.Covering: Optional - Extruded FEP, 2 mils minimum thickness, or glass braid, 7 mils minimum thickness.
5.Standard: Appliance Wiring Material UL 758.
6.Marking: General.
7.Usage: Internal wiring of appliances. Wires employing Litz conductors shall be plainly marked on the tag or reel as follows: "Litz conductors are manufactured using solderable magnet wire".
CABLE CONSTRUCTION
| Conductor | Insulation | Max.Conductor Resistance DC 20ºC Ω/km | Packing | |||
| AWG | Conductor Construction No./dia.(mm) | Diameter (mm) | Insulation Thickness (mm) | Out Diameter (mm) | m/coil | |
| 30 | 1/0.254 | 0.25 | 0.51 | 1.27 | 361 | 305 |
| 7/0.1 | 0.3 | 0.51 | 1.32 | 381.00 | ||
| 19/0.06 | 0.30 | 0.51 | 1.32 | 381.00 | ||
| 28 | 1/0.32 | 0.32 | 0.51 | 1.34 | 227.0 | 305 |
| 7/0.127 | 0.38 | 0.51 | 1.40 | 239.0 | ||
| 19/0.08 | 0.40 | 0.51 | 1.42 | 239.0 | ||
| 26 | 1/0.404 | 0.4 | 0.51 | 1.42 | 143.0 | 305 |
| 7/0.16 | 0.48 | 0.51 | 1.50 | 150.0 | ||
| 19/0.1 | 0.50 | 0.51 | 1.52 | 150 | ||
| 24 | 7/0.02 | 0.60 | 0.51 | 1.62 | 94.2 | 305 |
| 19/0.12 | 0.60 | 0.51 | 1.62 | 94.2 | ||
| 22 | 7/0.254 | 0.76 | 0.51 | 1.78 | 59.4 | 610 |
| 19/0.15 | 0.75 | 0.51 | 1.78 | 59.4 | ||
| 20 | 7/0.32 | 0.96 | 0.51 | 1.98 | 36.7 | 610 |
| 19/0.19 | 0.95 | 0.51 | 1.98 | 36.7 | ||
| 18 | 7/0.404 | 1.21 | 0.51 | 2.23 | 23.2 | 610 |
| 19/0.235 | 1.18 | 0.51 | 2.23 | 23.2 | ||
| 16 | 19/0.3 | 1.50 | 0.51 | 2.52 | 14.6 | 610 |
| 14 | 19/0.37 | 1.85 | 0.53 | 2.90 | 8.96 | 610 |
| 12 | 19/0.475 | 2.38 | 0.51 | 3.40 | 5.64 | 610 |
| 10 | 37/0.43 | 3.01 | 0.51 | 4.03 | 3.546 | 610 |
