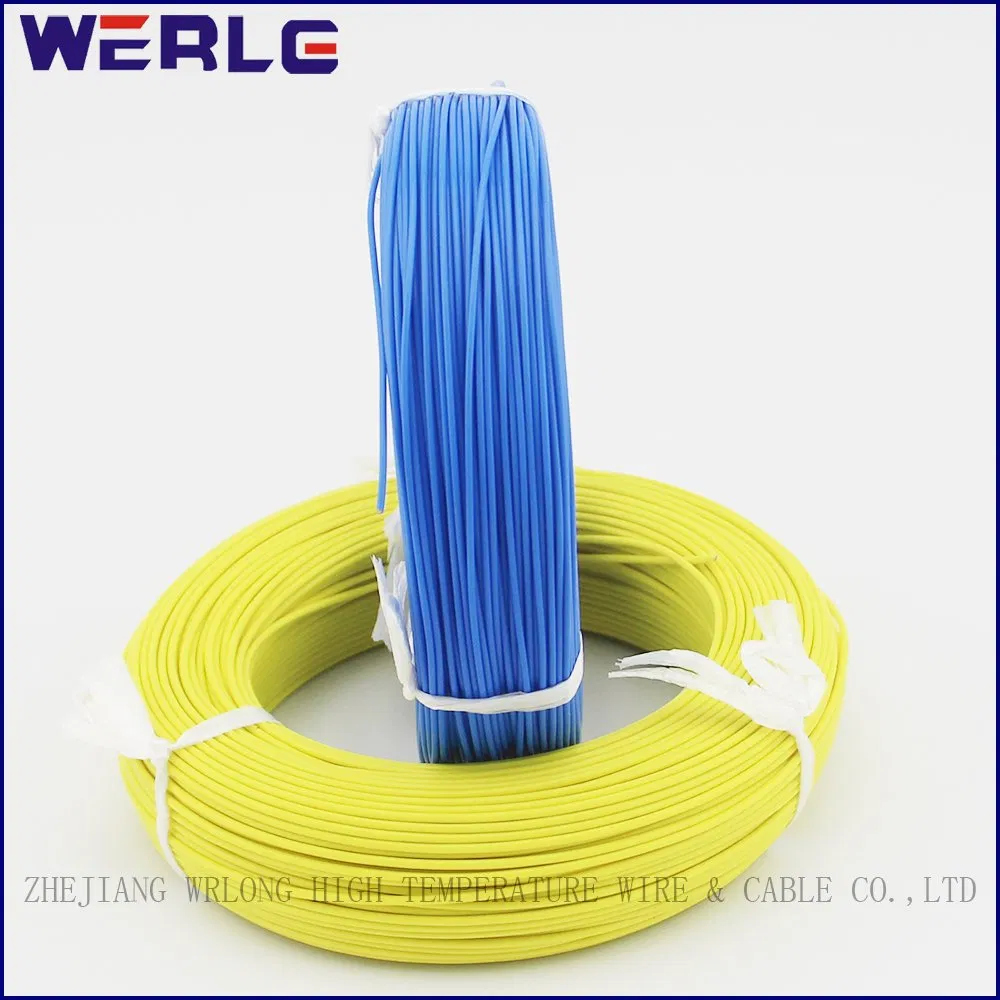

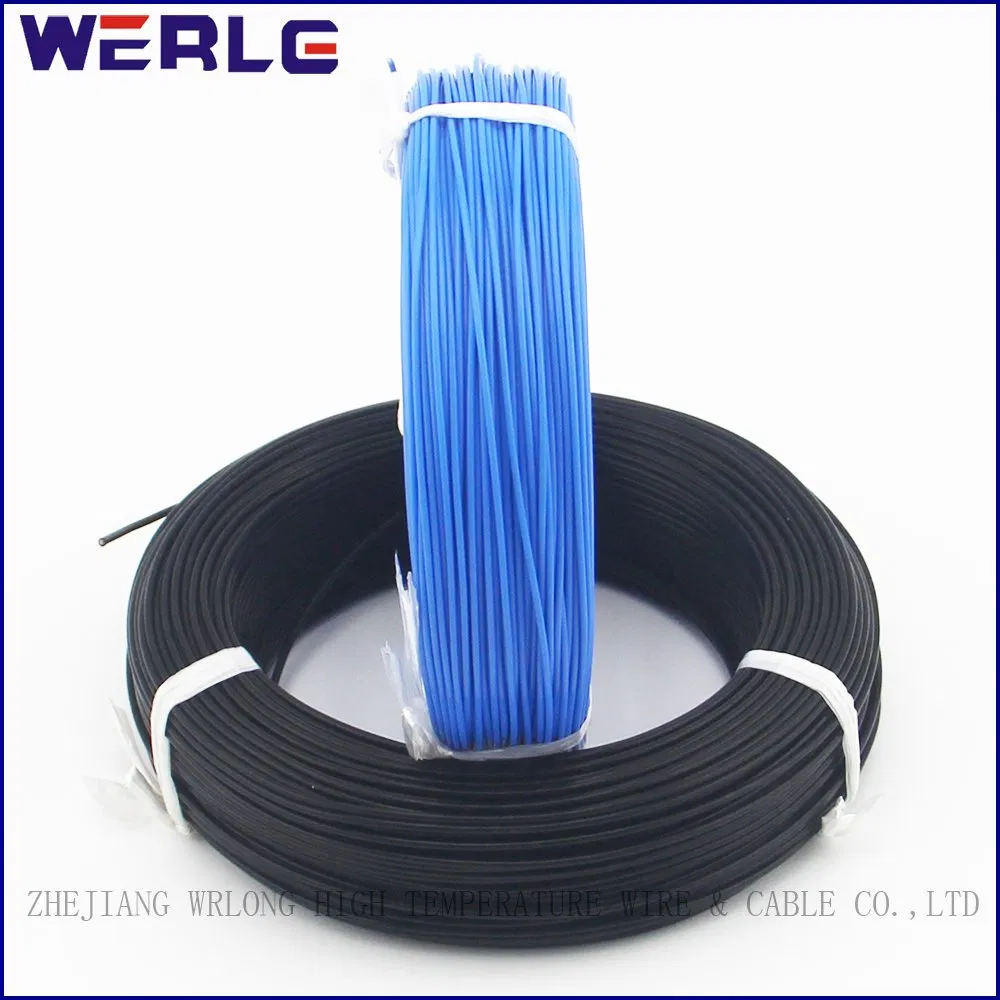

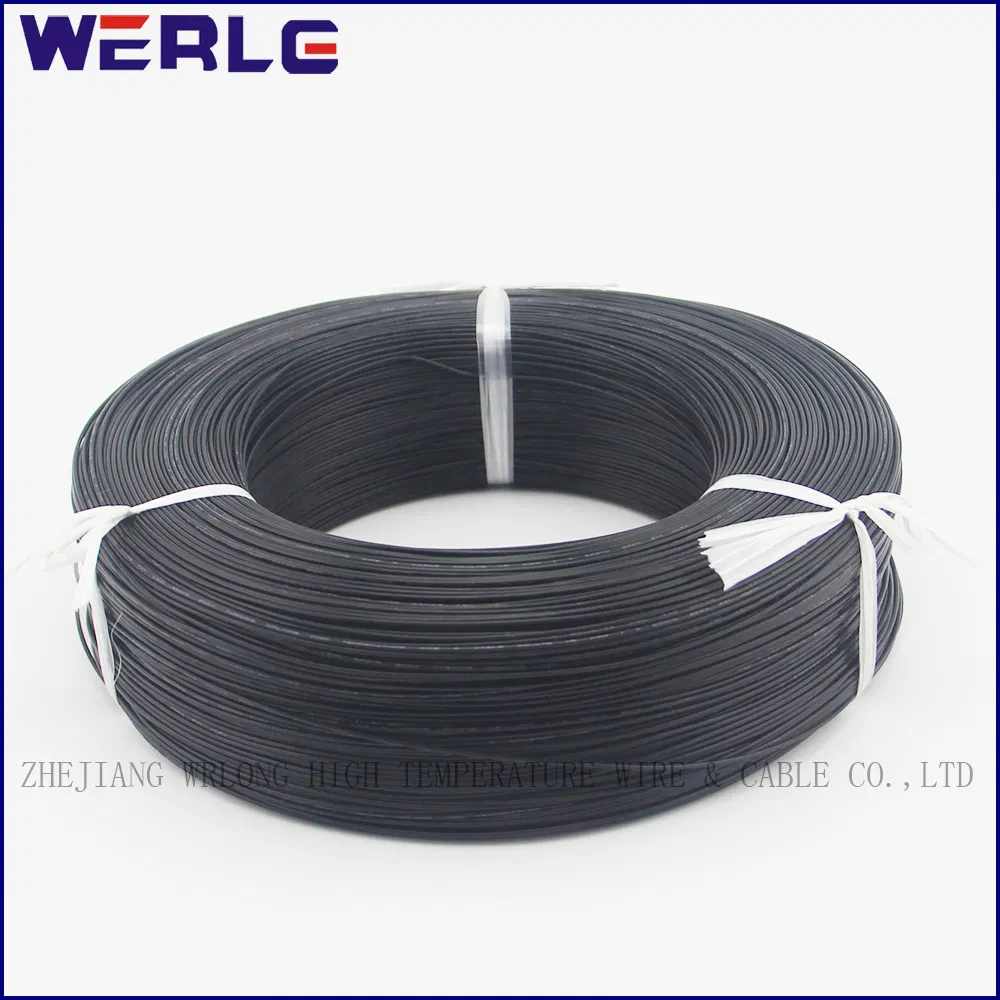

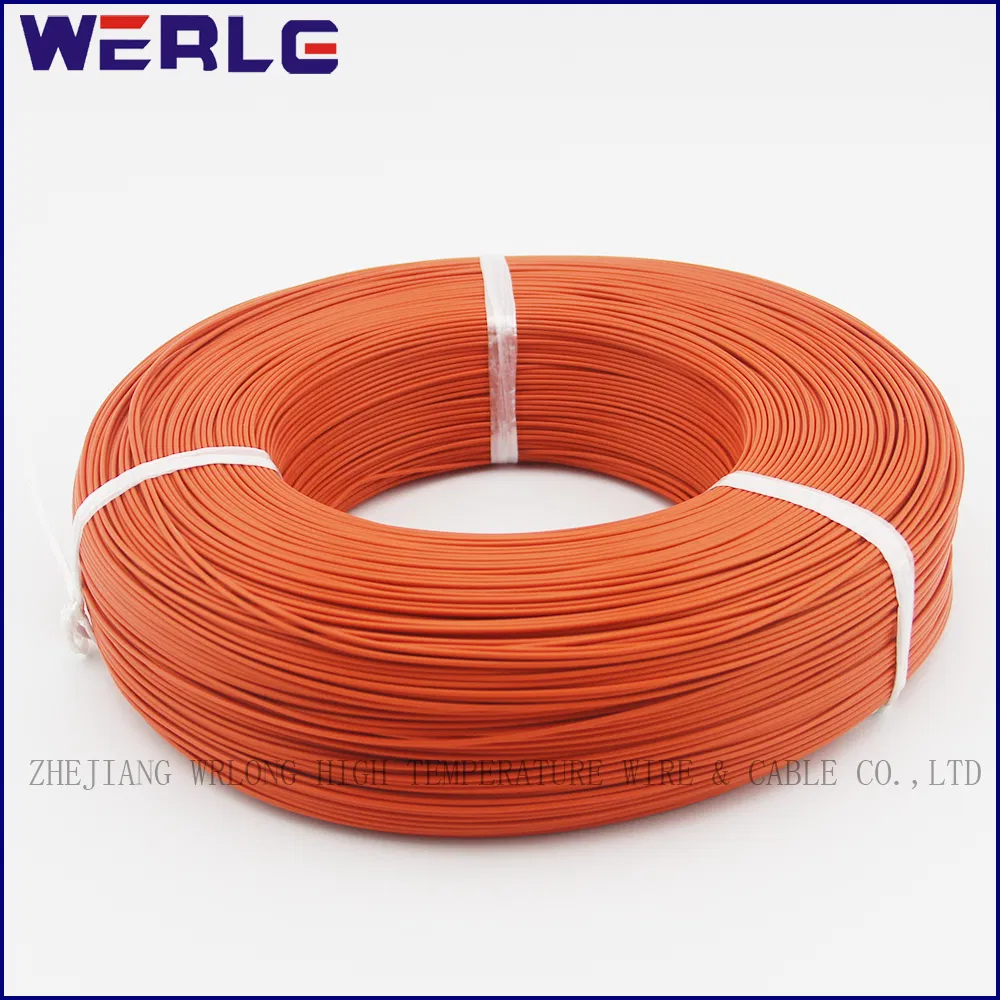

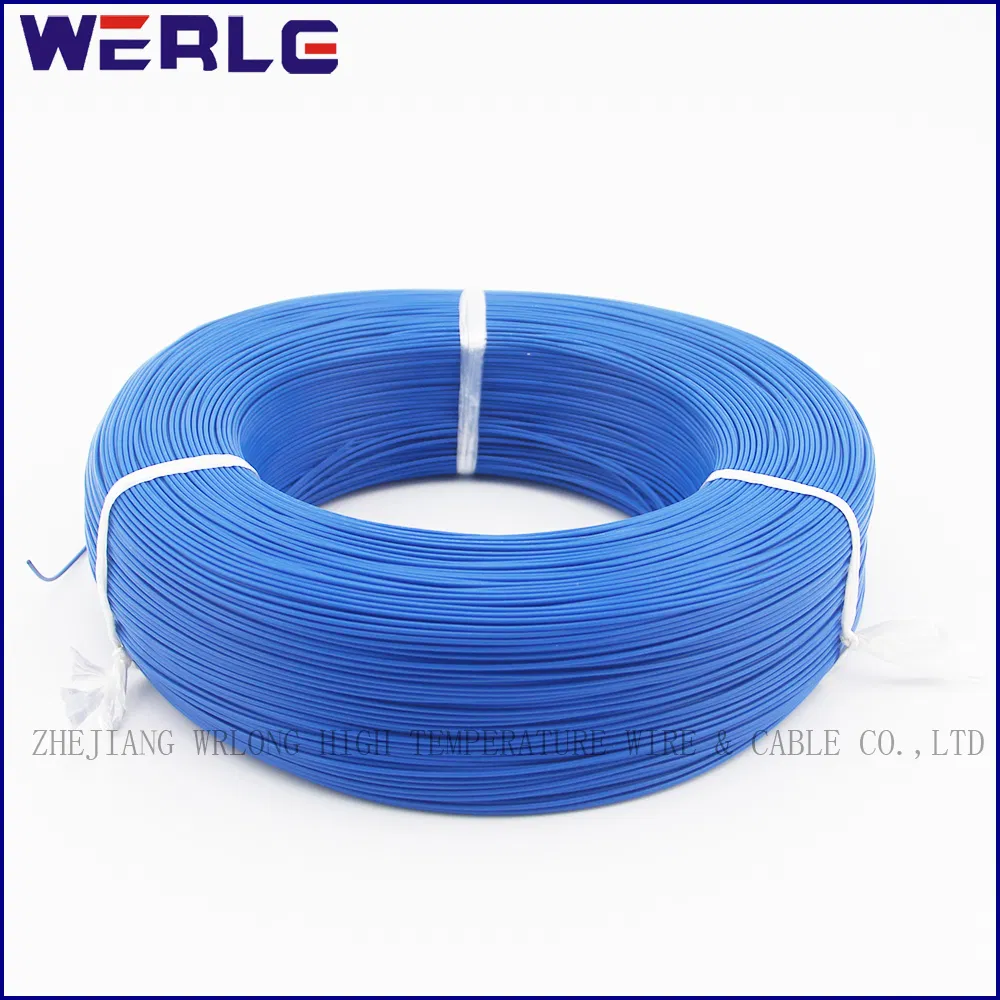

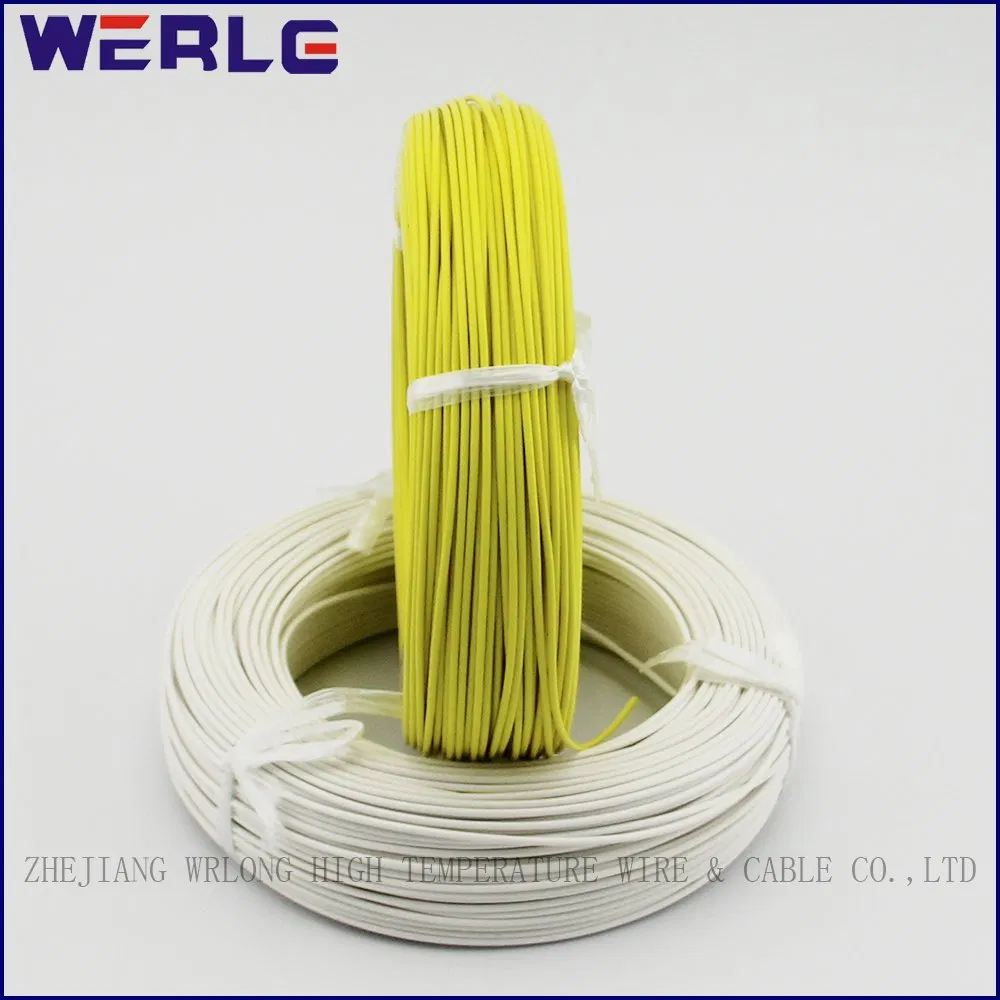

UL 1331 Approved 600V Tinned Copper FEP Teflon High Temperature 150 Degree Celsius Cable
Product DescriptionUL 1331 approved 600V tinned copper fep teflon High Temperature 150 Degree Celsius CableTECHNICAL DATANominal Voltage:600VTemperature Range:-100ºC~+150ºCConductor:Tinned CopperInsulator:FEP TEFLONO.D.Tolerance:±0.03mmTesting Volta:2500VColour: white, b......
Send Inquiry
Product Description
UL 1331 approved 600V tinned copper fep teflon High Temperature 150 Degree Celsius Cable
TECHNICAL DATA
Nominal Voltage:600V
Temperature Range:-100ºC~+150ºC
Conductor:Tinned Copper
Insulator:FEP TEFLON
O.D.Tolerance:±0.03mm
Testing Volta:2500V
Colour: white, blue, red, black, brown, orange, purple, gray, yellow, green, transparent, yellow-green, etc
CHARACTERISTIC
High temperature resistance, low temperature resistance, anti-acid, anti-oil, antisepsis and moistureproof, UL 758, RoHs compliance.
APPLICATION
Apply to household appliance, illumination & lighting & headlamp, electric machines, temperature sensor, military series, metallurgy chemical series, motor cars & ships electrical installation.
| UL1331 | Conductor | Over Diamter ±0.03mm | Insulator | Technical Data | Packing (m/roll) | ||||
| Size | Conductor Construction No./mm | Diameter mm | Material | Average Thickness mm | Colour | Temperature Range(ºC) | Nominal voltage | ||
| 30 AWG | 7/0.1 | 0.3 | 1.32 | FEP teflon | 0.507 | red,yellow, blue,green, black,white, purple,brown, orange, yellow-green, transparent | "-100ºC~ +150ºC | 600V | 610 |
| 1/0.254 | 1.27 | FEP teflon | 0.488 | 610 | |||||
| 28 AWG | 7/0.12 | 0.36 | 1.38 | FEP teflon | 0.507 | 610 | |||
| 1/0.32 | 1.34 | FEP teflon | 0.485 | 610 | |||||
| 26 AWG | 7/0.16 | 0.48 | 1.5 | FEP teflon | 0.506 | 610 | |||
| 1/0.4 | 1.42 | FEP teflon | 0.479 | 610 | |||||
| 24 AWG | 7/0.2 | 0.6 | 1.62 | FEP teflon | 0.504 | 610 | |||
| 19/0.12 | 0.6 | 1.62 | FEP teflon | 0.508 | 610 | ||||
| 22 AWG | 7/0.254 | 0.76 | 1.78 | FEP teflon | 0.502 | 610 | |||
| 19/0.16 | 0.75 | 1.77 | FEP teflon | 0.482 | 610 | ||||
| 20 AWG | 7/0.32 | 0.96 | 1.97 | FEP teflon | 0.496 | 610 | |||
| 19/0.19 | 0.95 | 1.97 | FEP teflon | 0.507 | 610 | ||||
| 18 AWG | 7/0.4 | 1.2 | 2.2 | FEP teflon | 0.489 | 610 | |||
| 19/0.235 | 1.18 | 2.2 | FEP teflon | 0.508 | 610 | ||||
| 16 AWG | 7/0.5 | 1.5 | 2.52 | FEP teflon | 0.496 | 305 | |||
| 19/0.3 | 1.5 | 2.52 | FEP teflon | 0.505 | 305 | ||||
| 14 AWG | 19/0.37 | 1.85 | 2.87 | FEP teflon | 0.504 | 305 | |||
| 12 AWG | 19/0.48 | 2.4 | 3.42 | FEP teflon | 0.502 | 305 | |||
| 10 AWG | 37/0.43 | 3.01 | 4.03 | FEP teflon | 0.504 | 305 | |||
| 8 AWG | 37/0.54 | 3.78 | 5.3 | FEP teflon | 0.753 | 305 | |||
| 6 AWG | 133/0.355 | 4.79 | 6.3 | FEP teflon | 0.786 | 305 | |||
| 2 AWG | 133/0.56 | 7.37 | 8.9 | FEP teflon | 0.72 | 305 | |||
