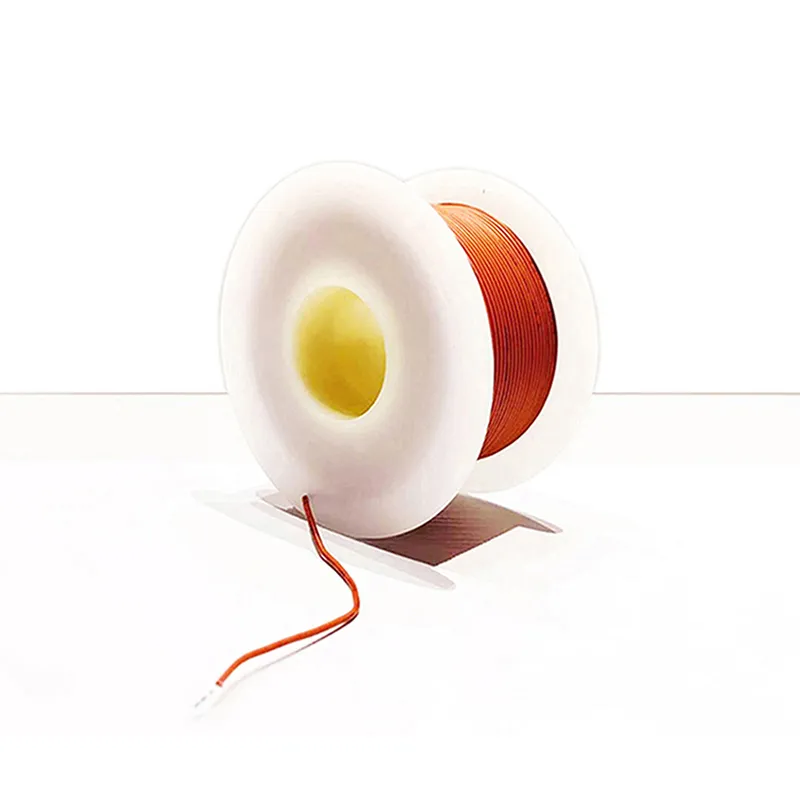

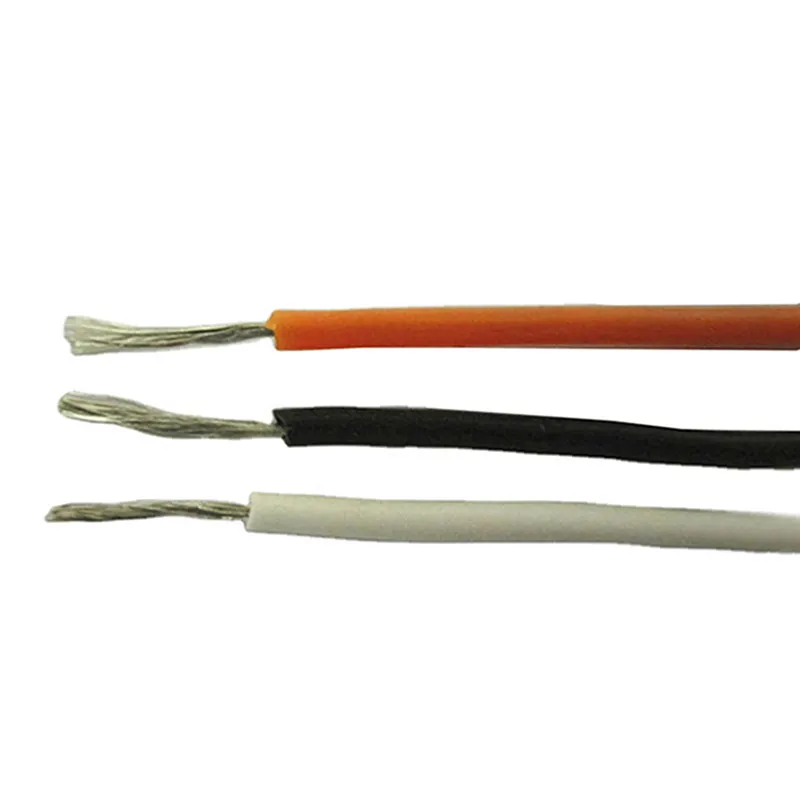

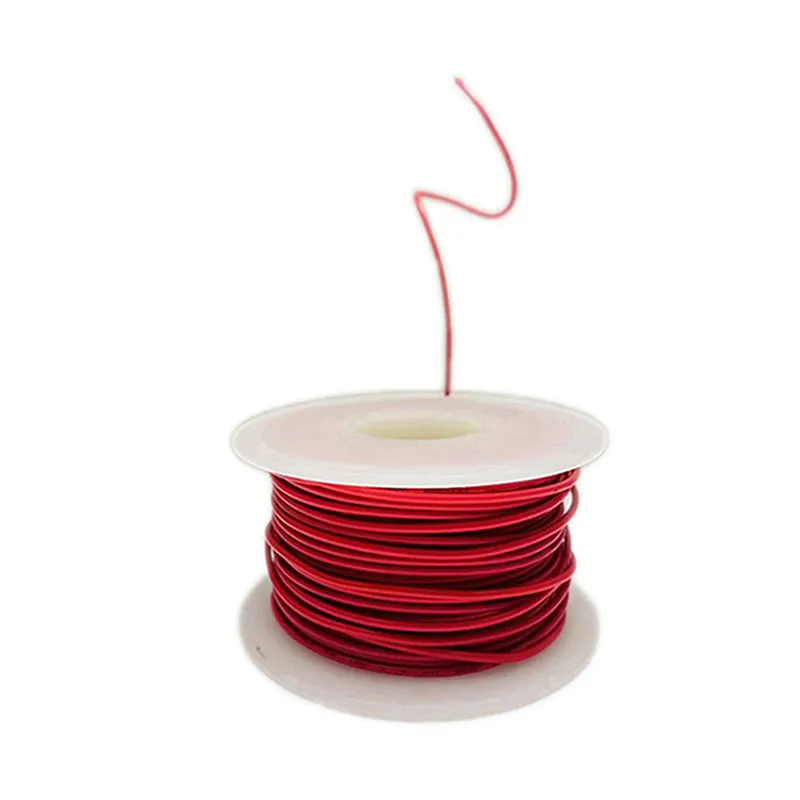

UL1331 FEP Wire Electric Cable for Lighting
UL1331 FEP Wire Electric Cable for LightingPRODUCT DESCRIPTION:Rated temperature:200ºCRated voltage:600VAccording to:UL Subject758,UL1581,C22.2 Nickle plating or tin/bare copper conductorFEP InsulationPasses UL VW-1&CSA FT1 vertical flame testUniform insulation thickness of wire to ensu......
Send Inquiry
Product Description
UL1331 FEP Wire Electric Cable for Lighting
PRODUCT DESCRIPTION:
★Rated temperature:200ºC
★Rated voltage:600V
★According to:UL Subject758,UL1581,C22.2
★ Nickle plating or tin/bare copper conductor
★FEP Insulation
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure
easy stripping and cutting
★For general purpose internal wiring of appliance
| AWG | NO.of Cond (mm) | Conductor resistance 20ºC (Ω/KM) | Conductor Dia (mm) | Insulation Thickness (mm) | Overall Diameter (mm) | ||
| Nom. | Min. | Nom. | Tol. | ||||
| 10 | 37/0.42 | 3.54 | 2.94 | 0.51 | 0.45 | 3.96 | ±0.15 |
| 10 | 105/0.254 | 3.54 | 3.00 | 0.51 | 0.45 | 4.02 | ±0.15 |
| 12 | 37/0.374 | 5.64 | 2.62 | 0.51 | 0.45 | 3.64 | ±0.15 |
| 14 | 19/0.361 | 8.96 | 1.85 | 0.51 | 0.45 | 2.90 | ±0.10 |
| 16 | 19/0.287 | 14.60 | 1.50 | 0.51 | 0.45 | 2.50 | ±0.10 |
| 18 | 19/0.235 | 23.20 | 1.18 | 0.51 | 0.45 | 2.20 | ±0.10 |
| 20 | 19/0.19 | 36.70 | 0.95 | 0.51 | 0.45 | 1.95 | ±0.10 |
| 22 | 19/0.15 | 59.40 | 0.76 | 0.51 | 0.45 | 1.75 | ±0.10 |
| 24 | 7/0.20 | 94.20 | 0.61 | 0.51 | 0.45 | 1.60 | ±0.10 |
| 26 | 7/0.16 | 150.00 | 0.48 | 0.51 | 0.45 | 1.50 | ±0.10 |
| 28 | 1/0.32 | 227.00 | 0.320 | 0.51 | 0.45 | 1.32 | ±0.10 |
| 30 | 1/0.254 | 361.00 | 0.254 | 0.51 | 0.45 | 1.26 | ±0.10 |
