UL1331 600V 150c FEP Wire
Product DescriptionUL1331 FEP Insulated Copper WireDescriptionName: FEP Insulated Copper WireModel: UL1331Size: 30~4/0AWGFeatureRatings Voltage: 600VRated Temperature: 150CStructureConductor: Tinned CopperInsulation: Extruded FEPStandard: UL758, UL1581 SizeAWGConductorConstruction (No./mm)Insulation......
Send Inquiry
Product Description

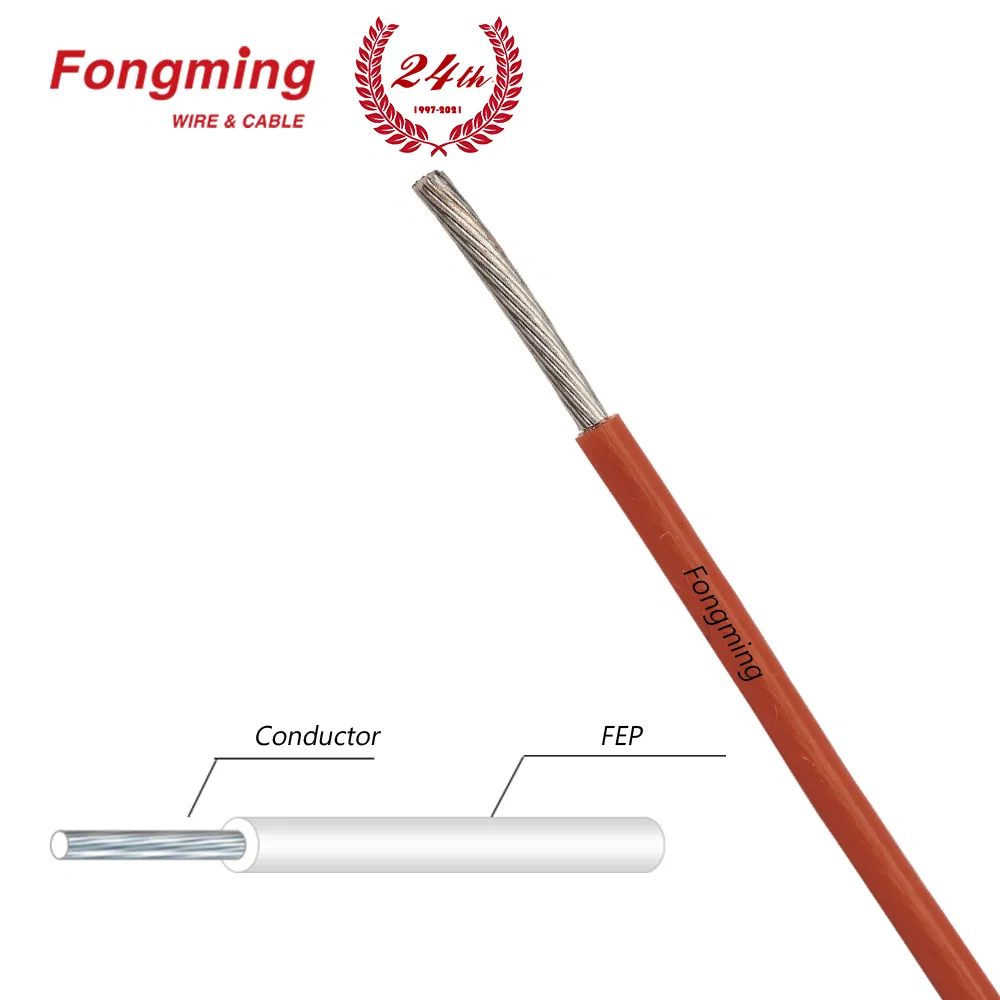

UL1331 FEP Insulated Copper Wire
Description
Name: FEP Insulated Copper Wire
Model: UL1331
Size: 30~4/0AWG
Feature
Ratings Voltage: 600V
Rated Temperature: 150C

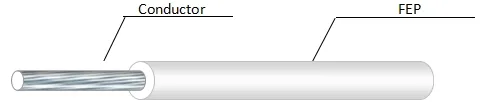

Structure
Conductor: Tinned Copper
Insulation: Extruded FEP
Standard: UL758, UL1581
| Size AWG | Conductor Construction (No./mm) | Insulation Thickness (mm) | Diameter (mm) |
| 30 | 7/0.1 | 0.51 | 1.35±0.05 |
| 28 | 7/0.127 | 1.45±0.05 | |
| 26 | 7/0.16 | 1.50±0.05 | |
| 24 | 7/0.2 | 1.65±0.05 | |
| 22 | 7/0.254 | 1.80±0.1 | |
| 20 | 7/0.32 | 2.00±0.1 | |
| 18 | 7/0.39 | 2.25±01 | |
| 16 | 19/0.3 | 2.60±0.1 | |
| 14 | 19/0.38 | 3.00±0.2 | |
| 12 | 19/0.48 | 3.50±0.2 | |
| 10 | 37/0.43 | 4.10±0.2 | |
| 8 | 57/0.43 | 0.76 | 5.50±0.3 |
| 6 | 67/0.5 | 6.60±0.3 | |
| 4 | 106/0.5 | 8.00±0.30 | |
| 2 | 168/0.5 | 9.70±0.30 | |
| 1 | 212/0.5 | 1.14 | 11.50±0.50 |
| 1/0 | 268/0.5 | 12.70±0.50 | |
| 2/0 | 342/0.5 | 14.00±0.50 | |
| 3/0 | 430/0.5 | 15.40±0.50 | |
| 4/0 | 538/0.5 | 17.00±0.50 |
