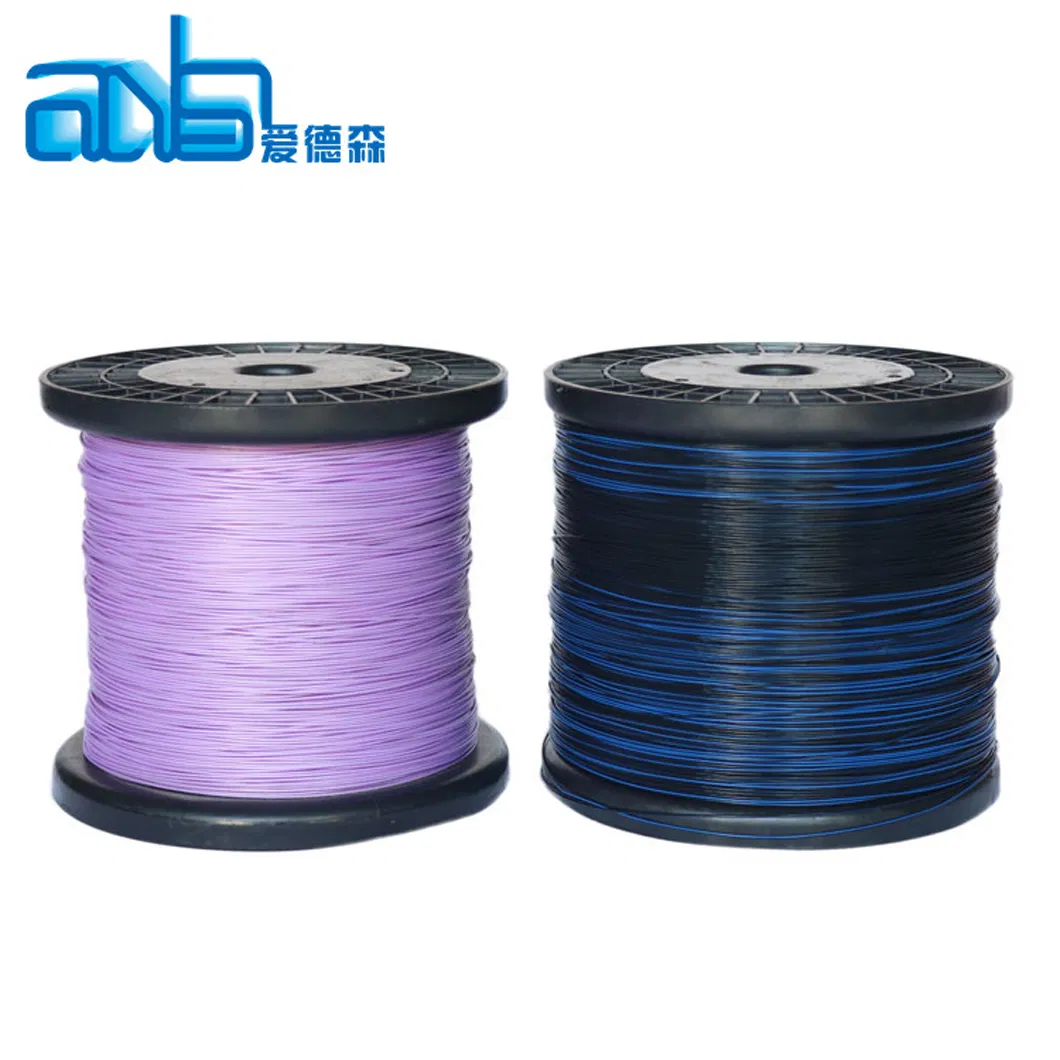

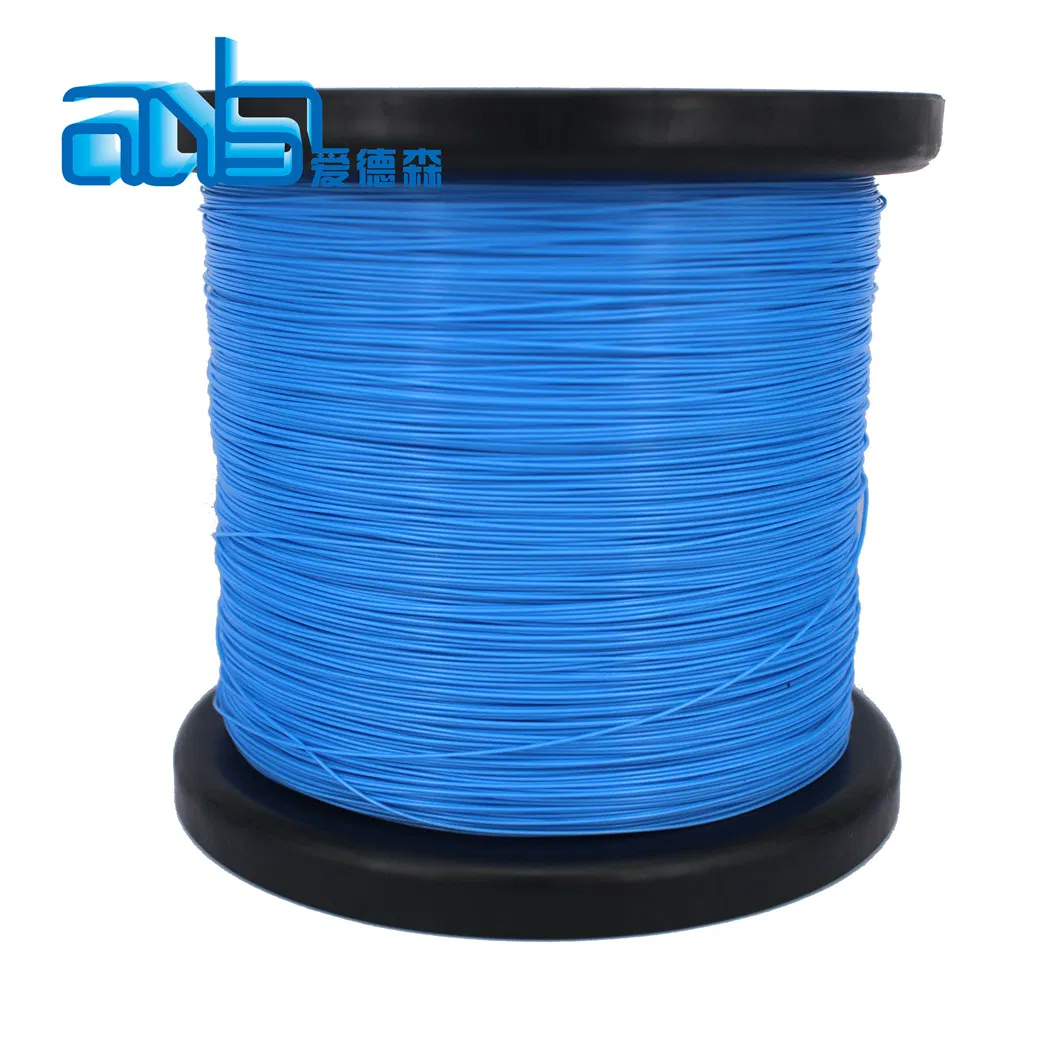

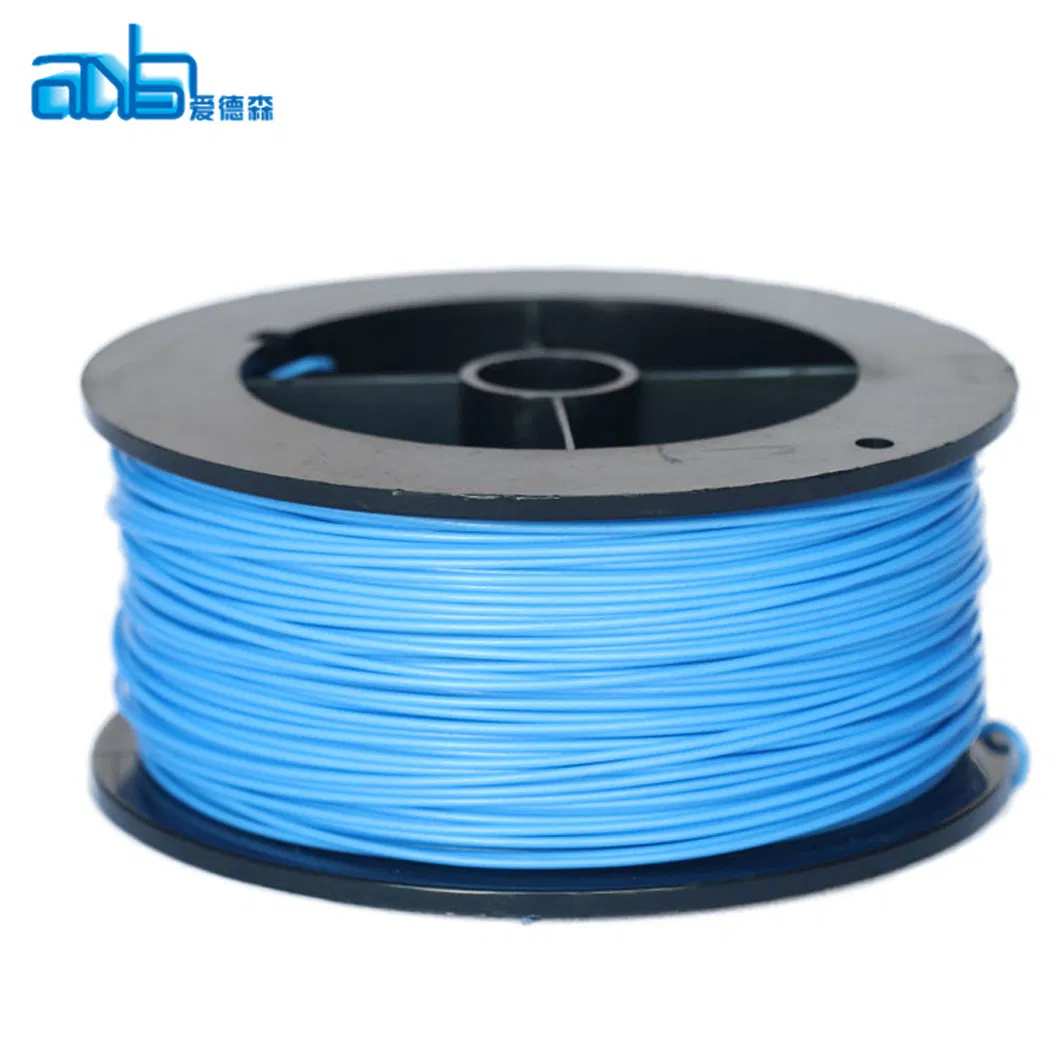

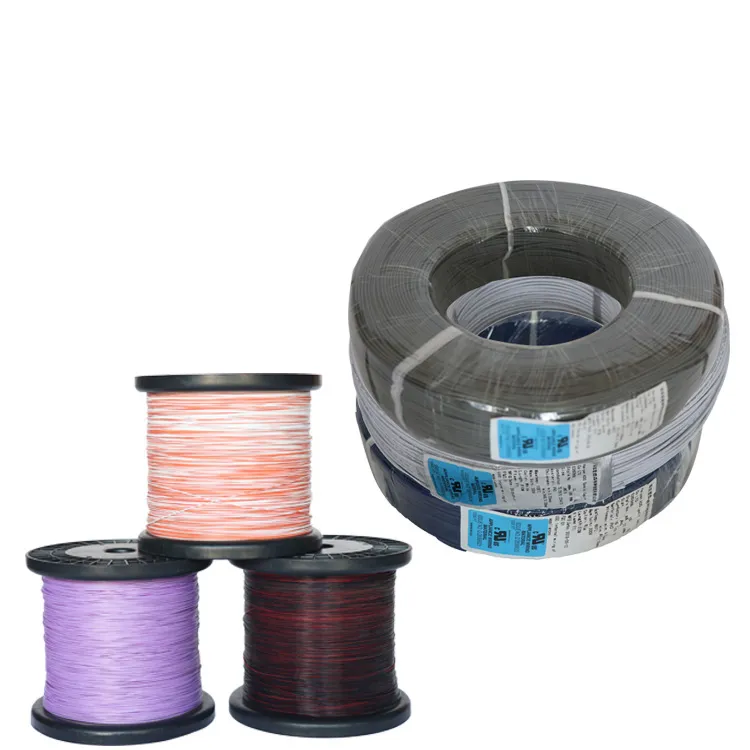

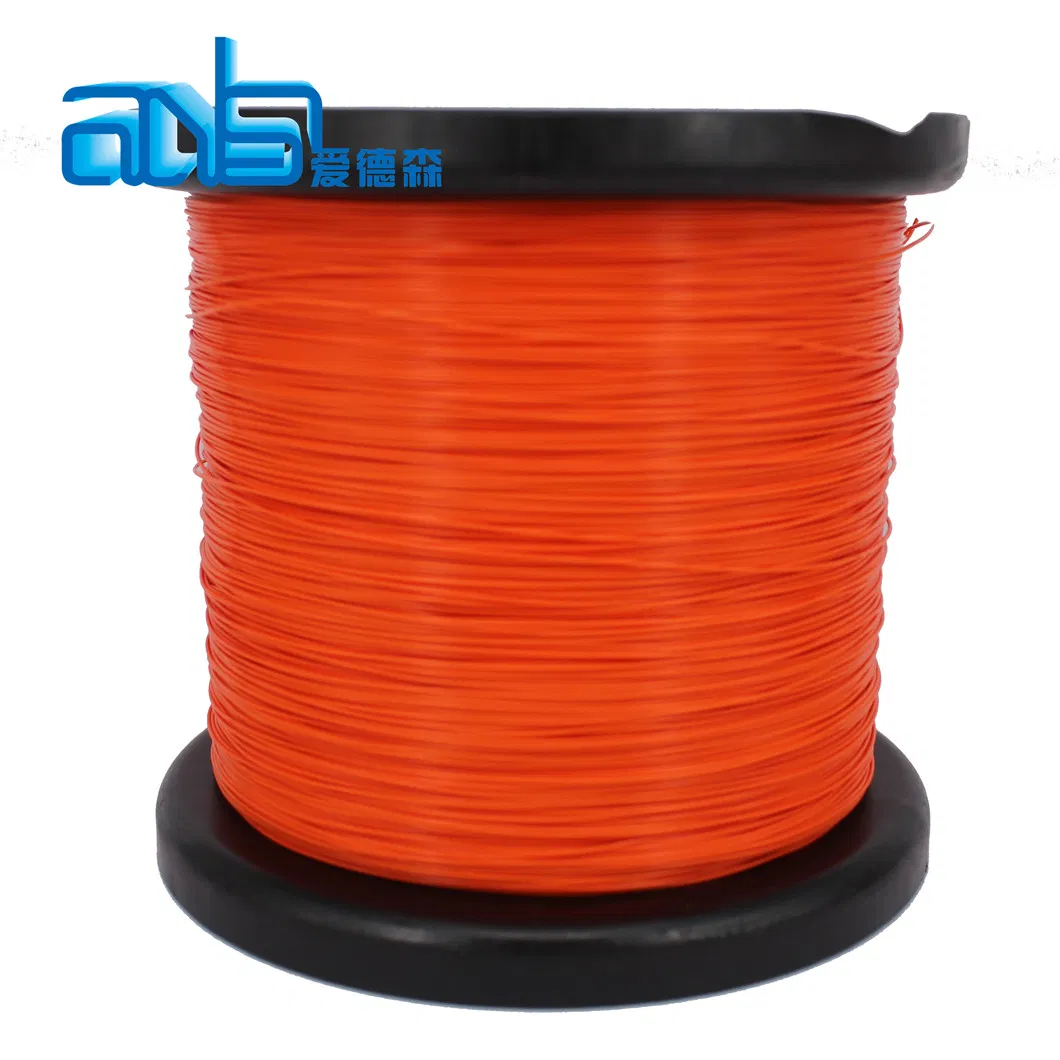

UL1330/ 1331 /1332/1333 FEP 1.5mm Electric Wire
PRODUCT DESCRIPTIONColors ConductorSolid or stranded , tinned or bare copper ,or silver plated copper conductor 30~4/0AWGInsulationFEP insulationRated Temperature105ºCRated voltage30VStandardUL758,UL1581TestVW-1 Horizontal flame TestCertificateUL ROHSColorWhite, blue, purple,red, black,y......
Send Inquiry
Product Description
PRODUCT DESCRIPTION

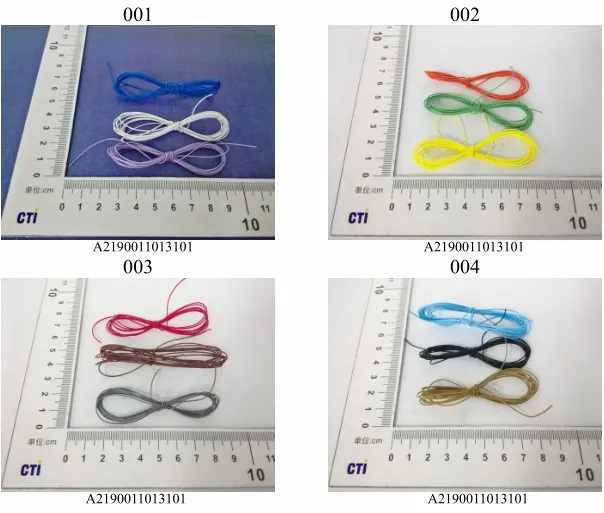

Colors
CABLE CONSTRUCTION
Packing

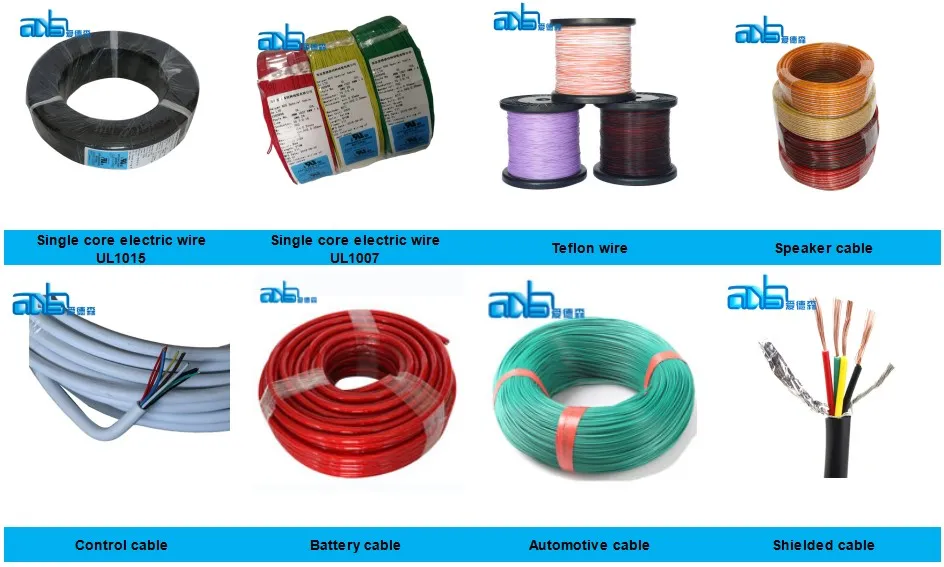

Main Products
Company Introduction
Certificate

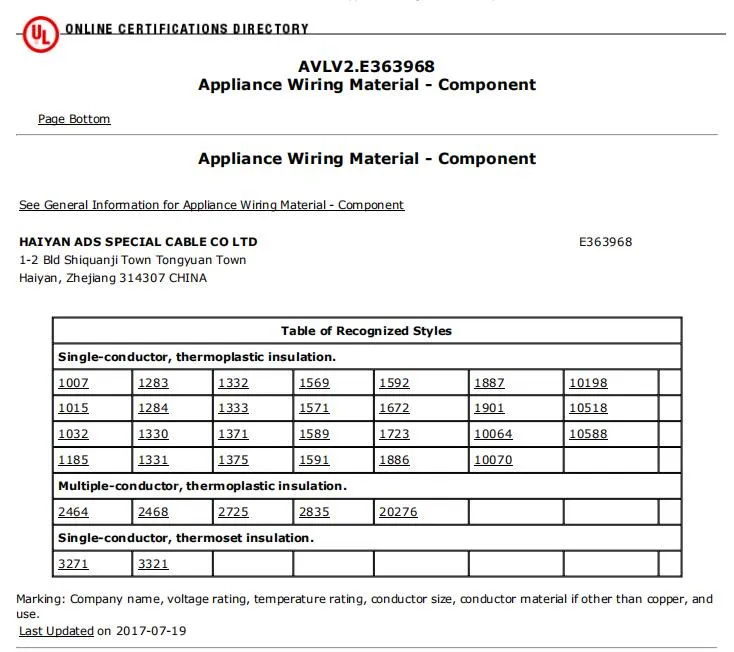

UL Certificate Items
More Test report (Rohs,Reach,Flame Retardant),Pls contact us
Test Equipment

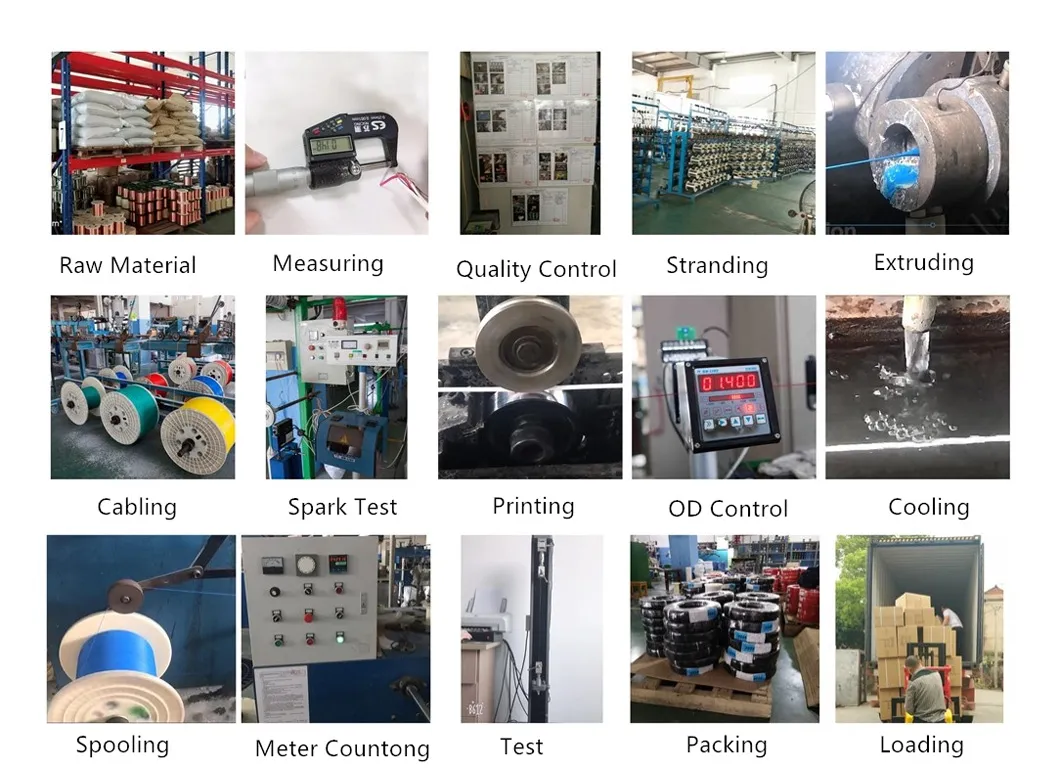

Production Process
Overseas Exibition
FAQ
Q; Are you factory or trading company?
A: We are factory has more than 10 years manufacturing experiences.
Q: Can I get some samples?
A: Yes, free samples with 10 meters if we have in stock, express fee on you which will be deducted from invoice value after order.
Q: Could I use my own LOGO (OEM) or design on goods?
A: Yes, Customized logo and designing on mass production are workable.
Q: Can I choose the color?
A: Yes, any color as you requirements.
Q: What is the delivery time?
A: Normally,within 2 weeks.But it need check with us when place order.
Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
Contact us
Colors| Conductor | Solid or stranded , tinned or bare copper ,or silver plated copper conductor 30~4/0AWG |
| Insulation | FEP insulation |
| Rated Temperature | 105ºC |
| Rated voltage | 30V |
| Standard | UL758,UL1581 |
| Test | VW-1 Horizontal flame Test |
| Certificate | UL ROHS |
| Color | White, blue, purple,red, black,yellow,green, transparent,orange,brown and etc. |
| Application | Home appliance, lightning lamps, small motors, temperature sensors elec tromagnetic coils,automotive interior cables,electronic appliance and etc. |

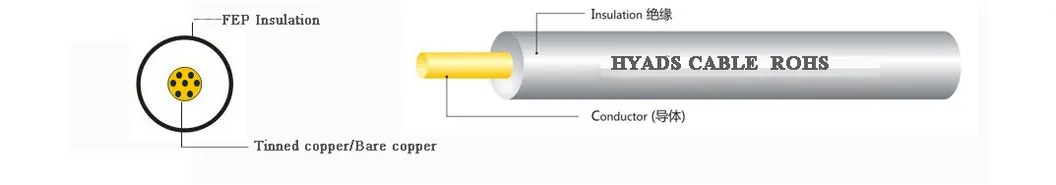

CABLE CONSTRUCTION
| Conductor | Insulation | Max.Conductor Resistance DC 20ºC Ω/km | Packing | |||
| AWG | Conductor Construction No./dia.(mm) | Diameter (mm) | Insulation Thickness (mm) | Out Diameter (mm) | m/coil | |
| 30 | 1/0.254 | 0.25 | 0.51 | 1.27 | 361 | 305 |
| 7/0.1 | 0.3 | 0.51 | 1.32 | 381.00 | ||
| 19/0.06 | 0.30 | 0.51 | 1.32 | 381.00 | ||
| 28 | 1/0.32 | 0.32 | 0.51 | 1.34 | 227.0 | 305 |
| 7/0.127 | 0.38 | 0.51 | 1.40 | 239.0 | ||
| 19/0.08 | 0.40 | 0.51 | 1.42 | 239.0 | ||
| 26 | 1/0.404 | 0.4 | 0.51 | 1.42 | 143.0 | 305 |
| 7/0.16 | 0.48 | 0.51 | 1.50 | 150.0 | ||
| 19/0.1 | 0.50 | 0.51 | 1.52 | 150 | ||
| 24 | 7/0.02 | 0.60 | 0.51 | 1.62 | 94.2 | 305 |
| 19/0.12 | 0.60 | 0.51 | 1.62 | 94.2 | ||
| 22 | 7/0.254 | 0.76 | 0.51 | 1.78 | 59.4 | 610 |
| 19/0.15 | 0.75 | 0.51 | 1.78 | 59.4 | ||
| 20 | 7/0.32 | 0.96 | 0.51 | 1.98 | 36.7 | 610 |
| 19/0.19 | 0.95 | 0.51 | 1.98 | 36.7 | ||
| 18 | 7/0.404 | 1.21 | 0.51 | 2.23 | 23.2 | 610 |
| 19/0.235 | 1.18 | 0.51 | 2.23 | 23.2 | ||
| 16 | 19/0.3 | 1.50 | 0.51 | 2.52 | 14.6 | 610 |
| 14 | 19/0.37 | 1.85 | 0.53 | 2.90 | 8.96 | 610 |
| 12 | 19/0.475 | 2.38 | 0.51 | 3.40 | 5.64 | 610 |
| 10 | 37/0.43 | 3.01 | 0.51 | 4.03 | 3.546 | 610 |
Packing
Main Products

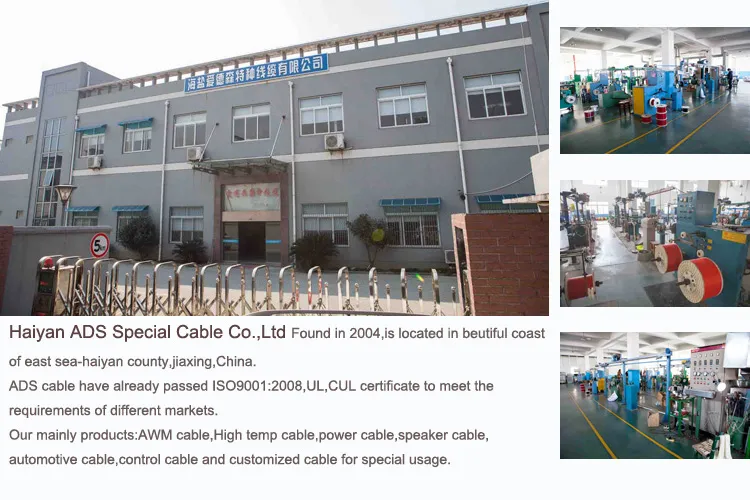

Company Introduction
Certificate
UL Certificate Items
More Test report (Rohs,Reach,Flame Retardant),Pls contact us

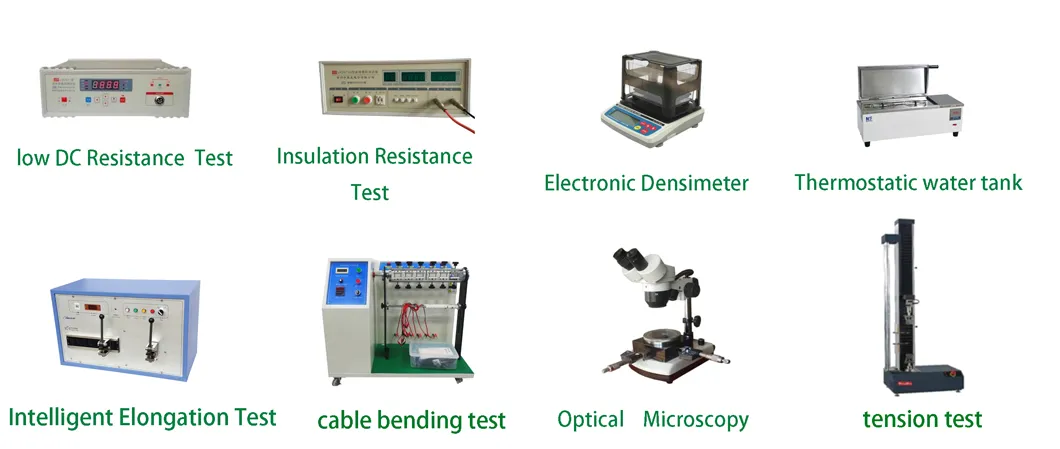

Test Equipment
Production Process
Overseas Exibition
FAQ
Q; Are you factory or trading company?
A: We are factory has more than 10 years manufacturing experiences.
Q: Can I get some samples?
A: Yes, free samples with 10 meters if we have in stock, express fee on you which will be deducted from invoice value after order.
Q: Could I use my own LOGO (OEM) or design on goods?
A: Yes, Customized logo and designing on mass production are workable.
Q: Can I choose the color?
A: Yes, any color as you requirements.
Q: What is the delivery time?
A: Normally,within 2 weeks.But it need check with us when place order.
Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
Contact us
Lansing (Sales manager)
Haiyan ADS Special Cable Co.,Ltd
Building 1-2, No.88 Huxi Street,Shiquan,Haiyan, Zhejiang, China,314300
Tel: +86 573 86031772
Fax: +86 573 86031770
Mob:+86 18969335382
Web:http://adscable.en.made-in-china.com.
