UL Standard FEP Insulated High Temp Cable

Product Description

UL Standard FEP Insulated High Temp Cable

1. Product Description

UL1330/1331 TEFLON WIRE
Insulation:FEP TEFLON
Conductor:Tinned Copper
Temperature Range:-100ºC - +200ºC/150ºC
Rated Voltage: 600V
O.D. Tolerance:+0.1mm

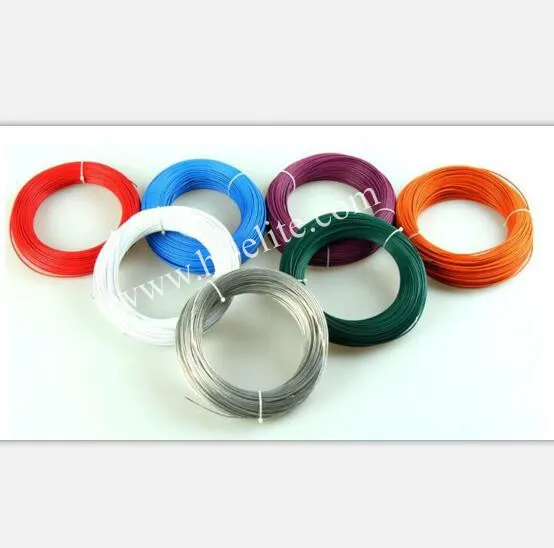

Color:White,Blue,Red,Black,Brown,Yellow,green,transparent,Yellow-green

2. Application

Household appliance
Illumination & lighting & headlamp
Electric machines
Temperature sensor
Military series,motor cars & ships,electrical installation,etc.

3. Advantages

Has excellent corrosion resistance, almost insoluble in any organic solvent, oil, acid, anti-alkali, strong oxidant, etc.
Has excellent electrical insulation properties, resistance to high voltage, high-frequency loss, does not absorb moisture, insulation resistance.
has excellent heat resistance, aging resistance, long service life.

4. Technical Parameter

Conductor			Insulation		Electrical Characteristic		Packing
AWG	Conductor construction NO.×mm	Diameter mm	Insulation Thickness mm	Over Diameter mm	Conductor Resistance 20°C ohm/km	Permissible ampacity 20°C -AMR	m/roll
30	1×0.254	0.25	0.33	0.91	361	0.66	610
28	1×0.32	0.32	0.33	0.98	227	1.06	610
26	7×0.160	0.49	0.33	1.15	143	1.68	305
26	19×0.100	0.50	0.33	1.16	143	1.68	305
24	7×0.200	0.61	0.33	1.27	89.3	26.9	305
24	19×0.120	0.60	0.33	1.26	89.3	26.9	305
22	7×0.250	0.76	0.33	1.42	56.4	4.26	305
22	19×0.150	0.76	0.33	1.42	56.4	4.26	305
20	7×0.310	0.95	0.33	1.61	35.2	6.82	305
20	19×0.190	0.96	0.33	1.62	35.2	6.82	305
18	7×0.390	1.19	0.33	1.85	22.2	10.81	305
18	19×0.235	1.18	0.33	1.84	22.2	10.81	305
16	7×0.500	1.53	0.33	2.19	14	17.14	305
16	19×0.300	1.51	0.33	2.17	14	17.14	305
14	19×0.370	1.86	0.33	2.52	8.78	27.33	200
12	19×0.460	2.32	0.33	2.98	5.53	43.4	200
10	37×0.430	3.02	0.33	3.68	3.48	68.97	100
