China UL 150 Degree FEP Teflon Insulated Wires

Product Description

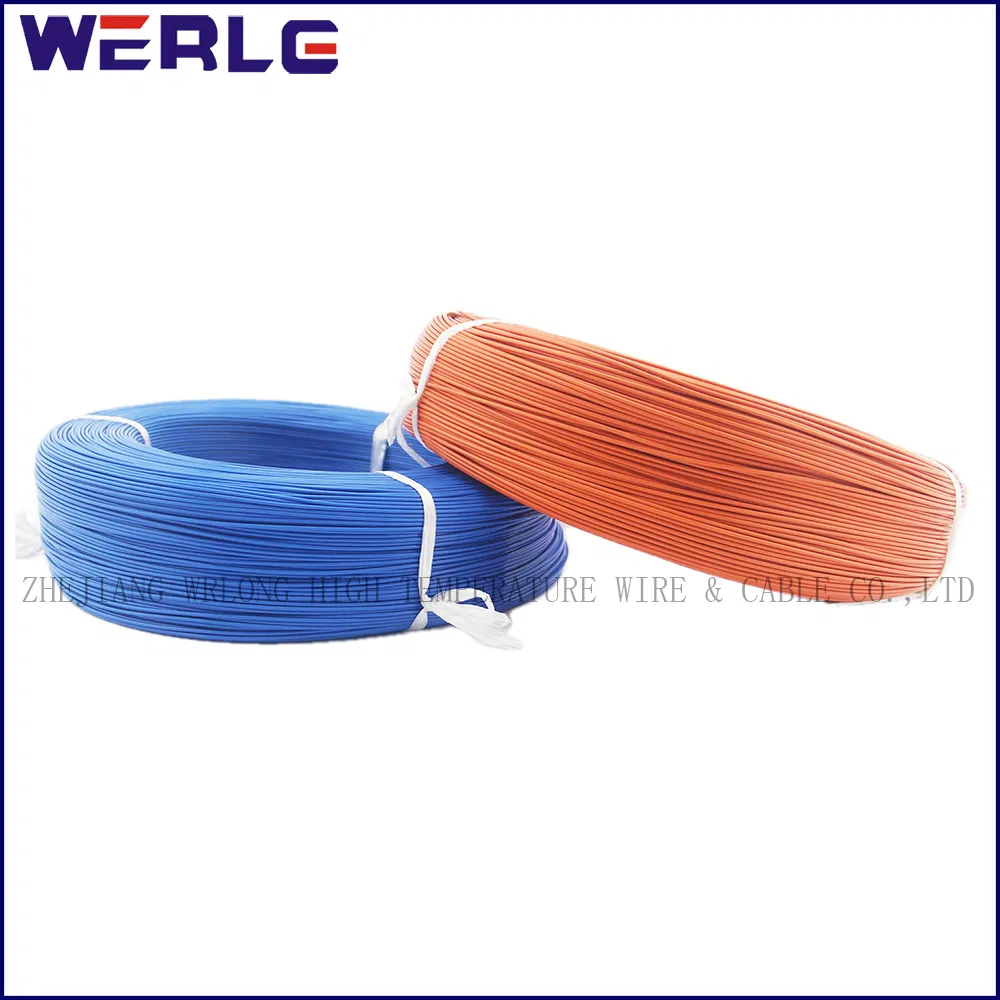

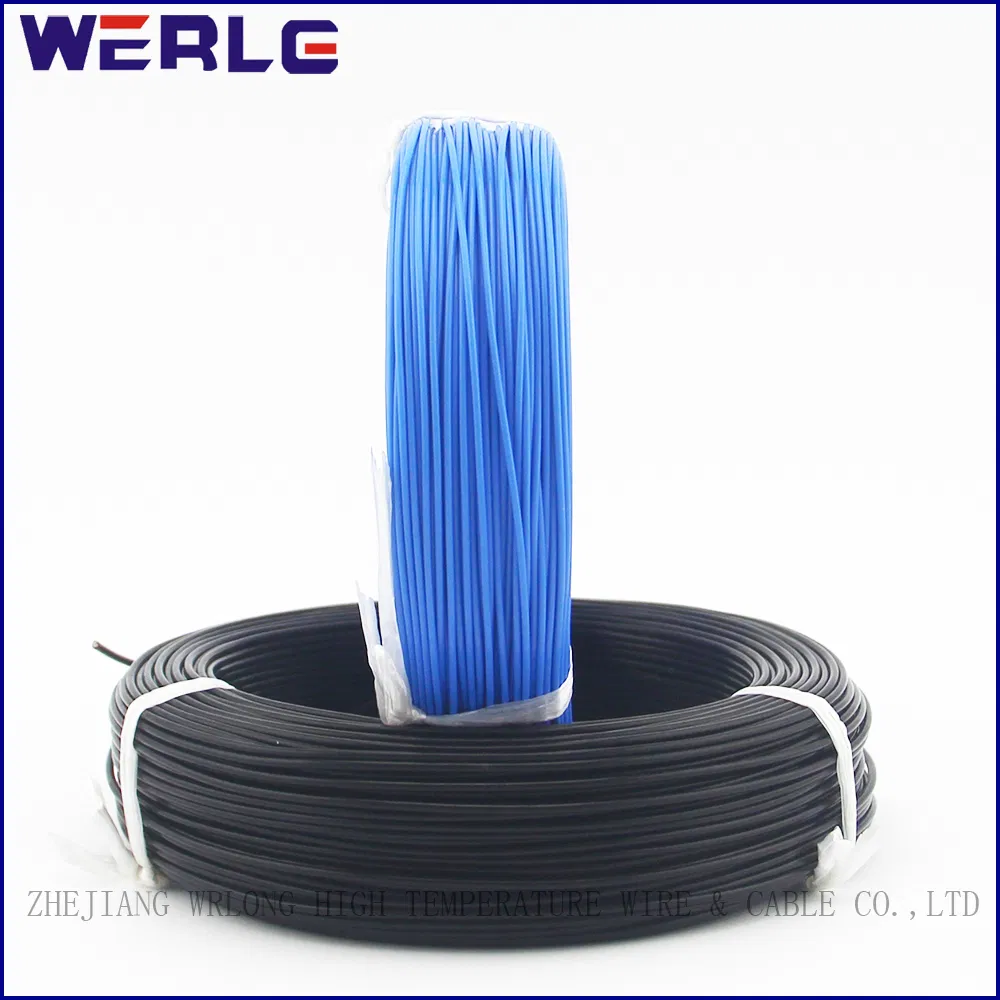

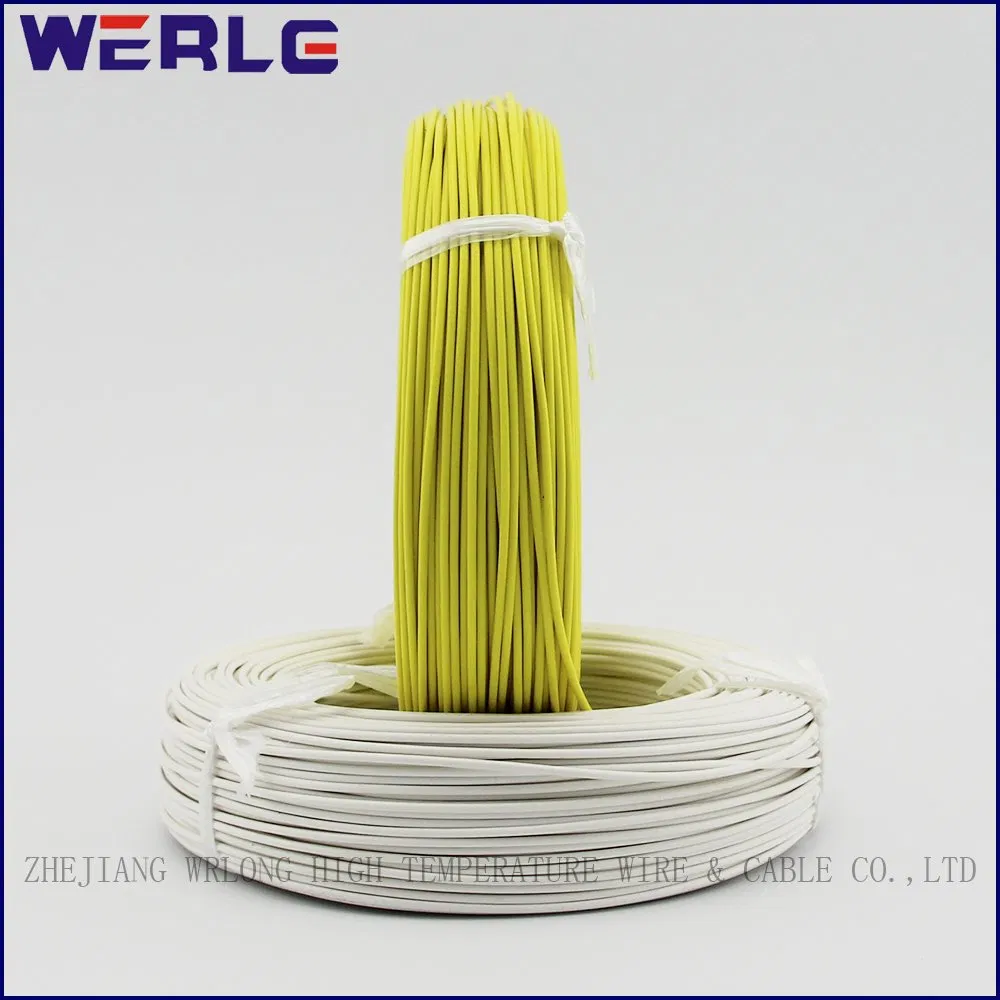

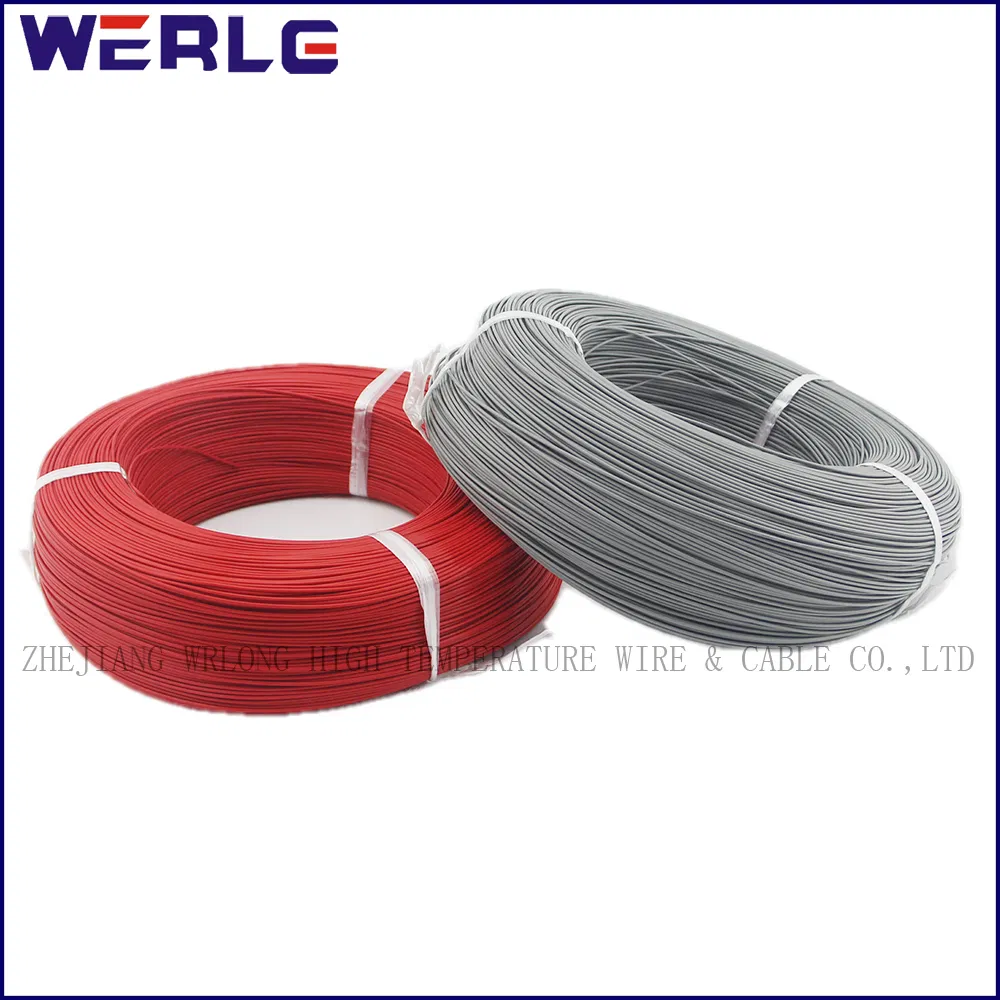

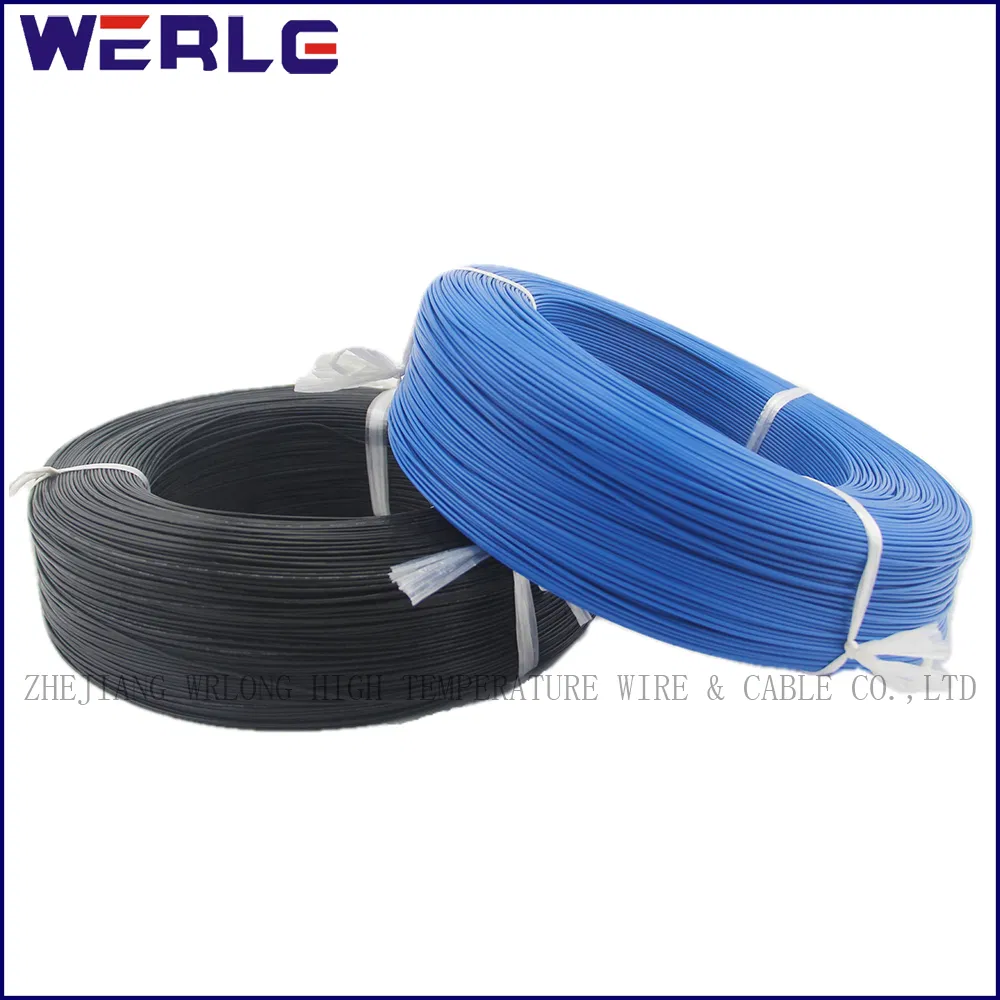

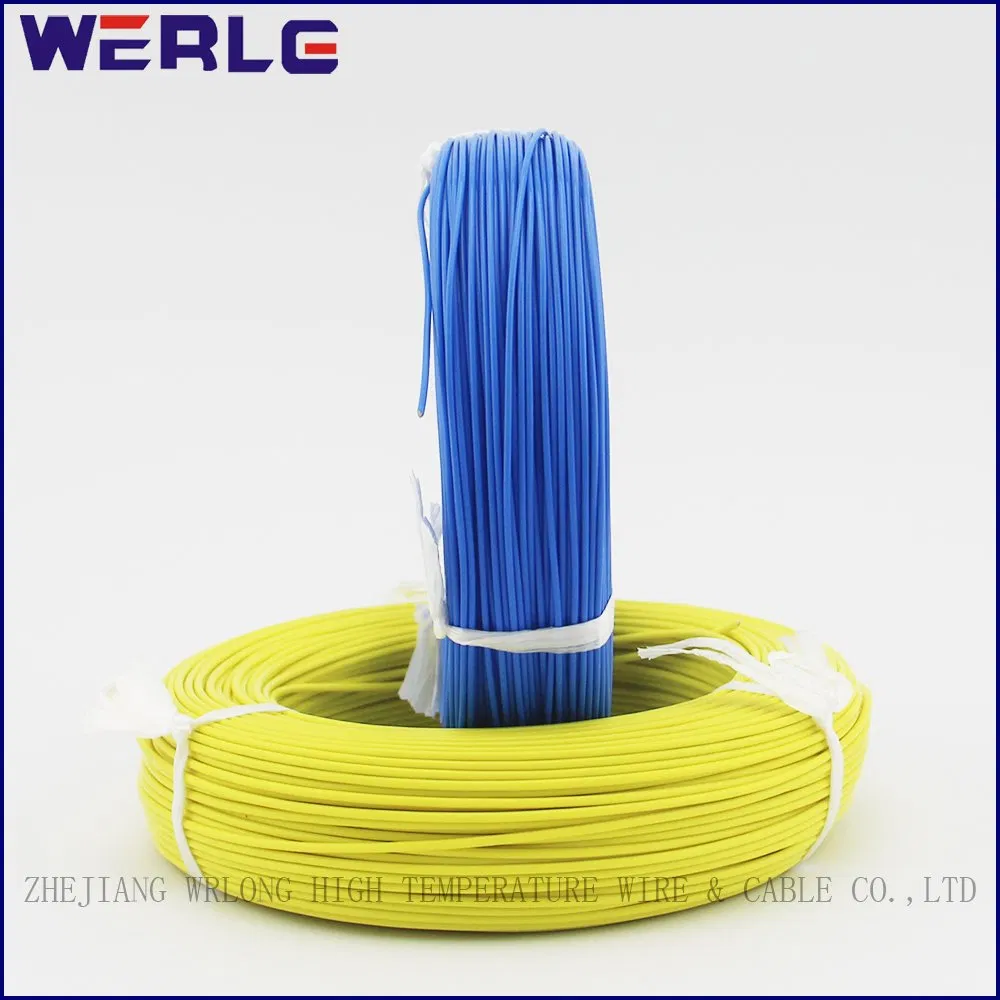

UL 150 degree FEP teflon insulated wire
UL certificate, RoHS, CCC
GB/T19001, ISO9001
Nominal Voltage: 600V
Temperature Range: -100oC~+150oC
O. D. Tolerance: ± 0.10mm
Testing Volta: 2500V
Conductor: Tinned Copper
Insulator: FEP TEFLON
Colours: Whit-bule-red-black-brown-yello-wgreen-transparent-yellow/green
They are the same with then inner fixed wires for Home Electric applinaces, Lighthing equipments, mechanical electrical machines

Conductor			Insulator		Electrical Characteristic		Packing
AWG	Conductor Construction No./mm	Diameter mm	Insulator Thickness mm	Over Diamter mm	Realst.max Cuc,c20ocohm/km	Permissible ampacity 20oc-AMP	mt/coils
30	1X0.25	0.25	0.20	0.65	376.96	1.27	610
28	1X0.31	0.31	0.25	0.81	237.25	2.02	610
26	7X0.15	0.46	0.46	1.38	148.94	3.22	610
26	19X0.10	0.50	0.46	1.42	148.94	3.22	610
24	7X0.20	0.61	0.46	1.53	93.25	5.15	610
24	19X0.12	0.60	0.46	1.52	93.25	5.15	610
22	7X0.25	0.76	0.46	1.68	55.00	8.73	610
22	19X0.15	0.76	0.46	1.68	55.00	8.73	610
20	7X0.31	0.95	0.46	1.87	34.60	13.87	610
20	19X0.19	0.96	0.46	1.88	34.60	13.87	610
18	7X0.39	1.19	0.46	2.11	21.80	22.02	610
18	19X0.235	1.18	0.46	2.10	21.80	22.02	610
16	7X0.50	1.53	0.46	2.45	13.70	35.04	305
16	19X0.30	1.51	0.46	2.43	13.70	35.04	305
14	19X0.37	1.86	0.50	2.86	8.62	55.68	305
12	19X0.46	2.32	0.50	3.32	5.43	88.40	305
10	37X0.43	3.02	0.50	4.02	3.41	140.76	305
