PFA High Temperature Heat Resistant Electrical Cable

Product Description

High Temperature Heat Resistant Electrical Cable

1. Product Description

UL1330/1331 TEFLON WIRE
Insulation:FEP TEFLON
Conductor:Tinned Copper
Temperature Range:-100ºC - +200ºC/150ºC
Rated Voltage: 600V
O.D. Tolerance:+0.1mm

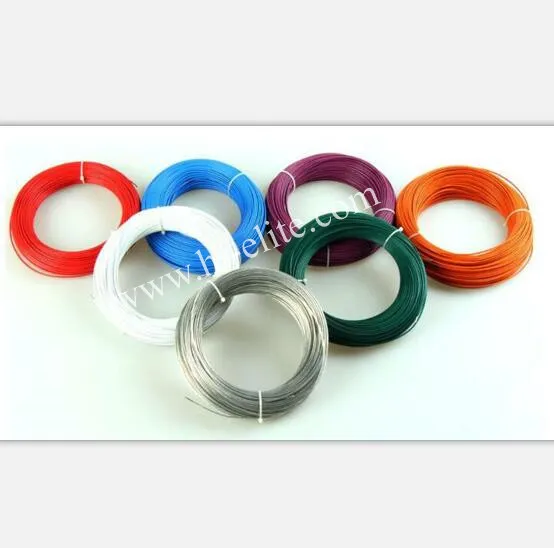

Color:White,Blue,Red,Black,Brown,Yellow,green,transparent,Yellow-green

2. Application

Used for home appliance,lighting lamps,small motors, temperature sensors, electromagnetic coils, automotive interior cables, electronic appliance etc.

3. Advantages

Has excellent corrosion resistance, almost insoluble in any organic solvent, oil, acid, anti-alkali, strong oxidant, etc.
Has excellent electrical insulation properties, resistance to high voltage, high-frequency loss, does not absorb moisture, insulation resistance.
has excellent heat resistance, aging resistance, long service life.

4. Technical Parameter

Conductor			Insulation		Electrical Characteristic		Packing
AWG	Conductor construction NO.×mm	Diameter mm	Insulation Thickness mm	Over Diameter mm	Conductor Resistance 20°C ohm/km	Permissible ampacity 20°C -AMR	m/roll
30	1×0.254	0.25	0.33	0.91	361	0.66	610
28	1×0.32	0.32	0.33	0.98	227	1.06	610
26	7×0.160	0.49	0.33	1.15	143	1.68	305
26	19×0.100	0.50	0.33	1.16	143	1.68	305
24	7×0.200	0.61	0.33	1.27	89.3	26.9	305
24	19×0.120	0.60	0.33	1.26	89.3	26.9	305
22	7×0.250	0.76	0.33	1.42	56.4	4.26	305
22	19×0.150	0.76	0.33	1.42	56.4	4.26	305
20	7×0.310	0.95	0.33	1.61	35.2	6.82	305
20	19×0.190	0.96	0.33	1.62	35.2	6.82	305
18	7×0.390	1.19	0.33	1.85	22.2	10.81	305
18	19×0.235	1.18	0.33	1.84	22.2	10.81	305
16	7×0.500	1.53	0.33	2.19	14	17.14	305
16	19×0.300	1.51	0.33	2.17	14	17.14	305
14	19×0.370	1.86	0.33	2.52	8.78	27.33	200
12	19×0.460	2.32	0.33	2.98	5.53	43.4	200
10	37×0.430	3.02	0.33	3.68	3.48	68.97	100
