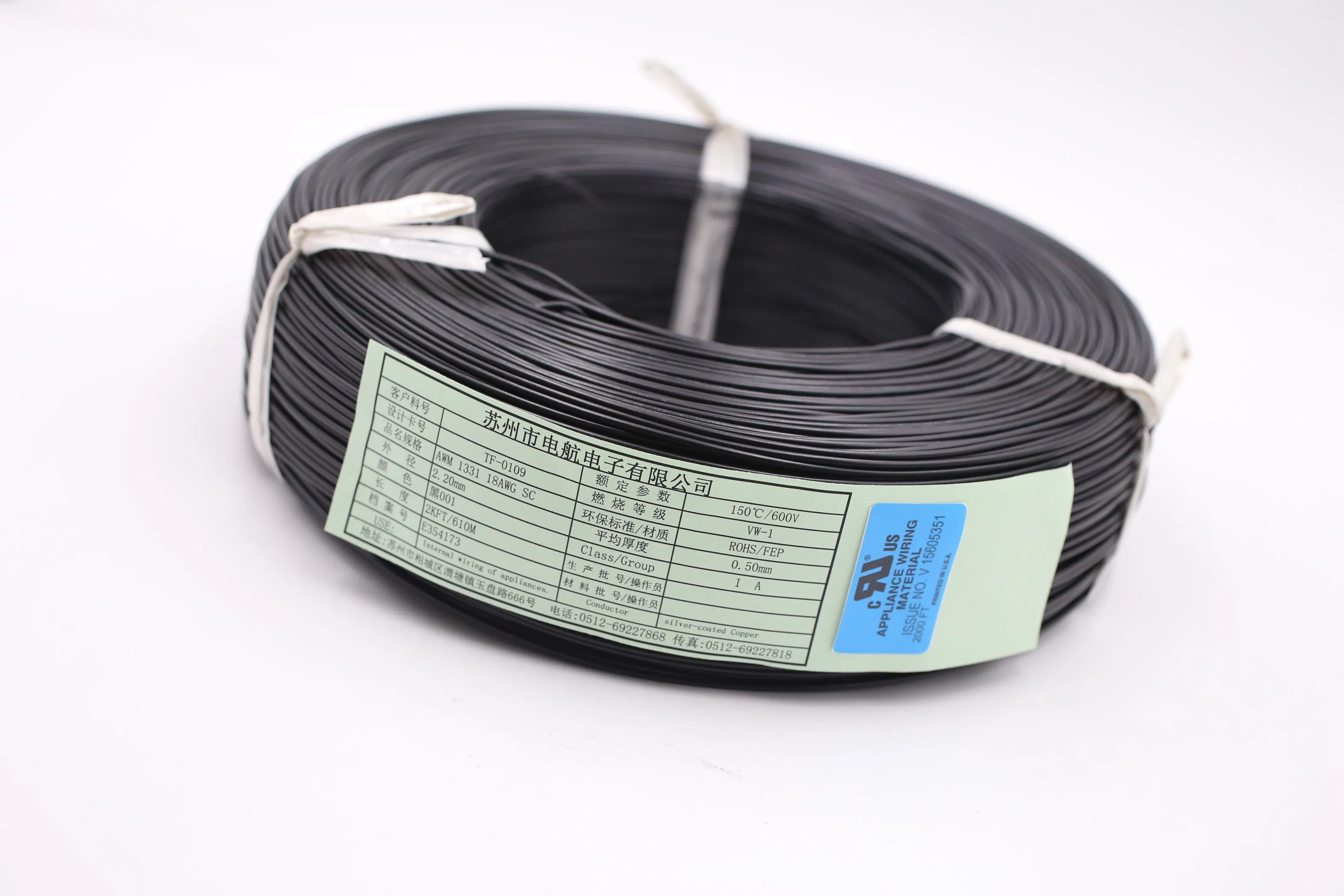

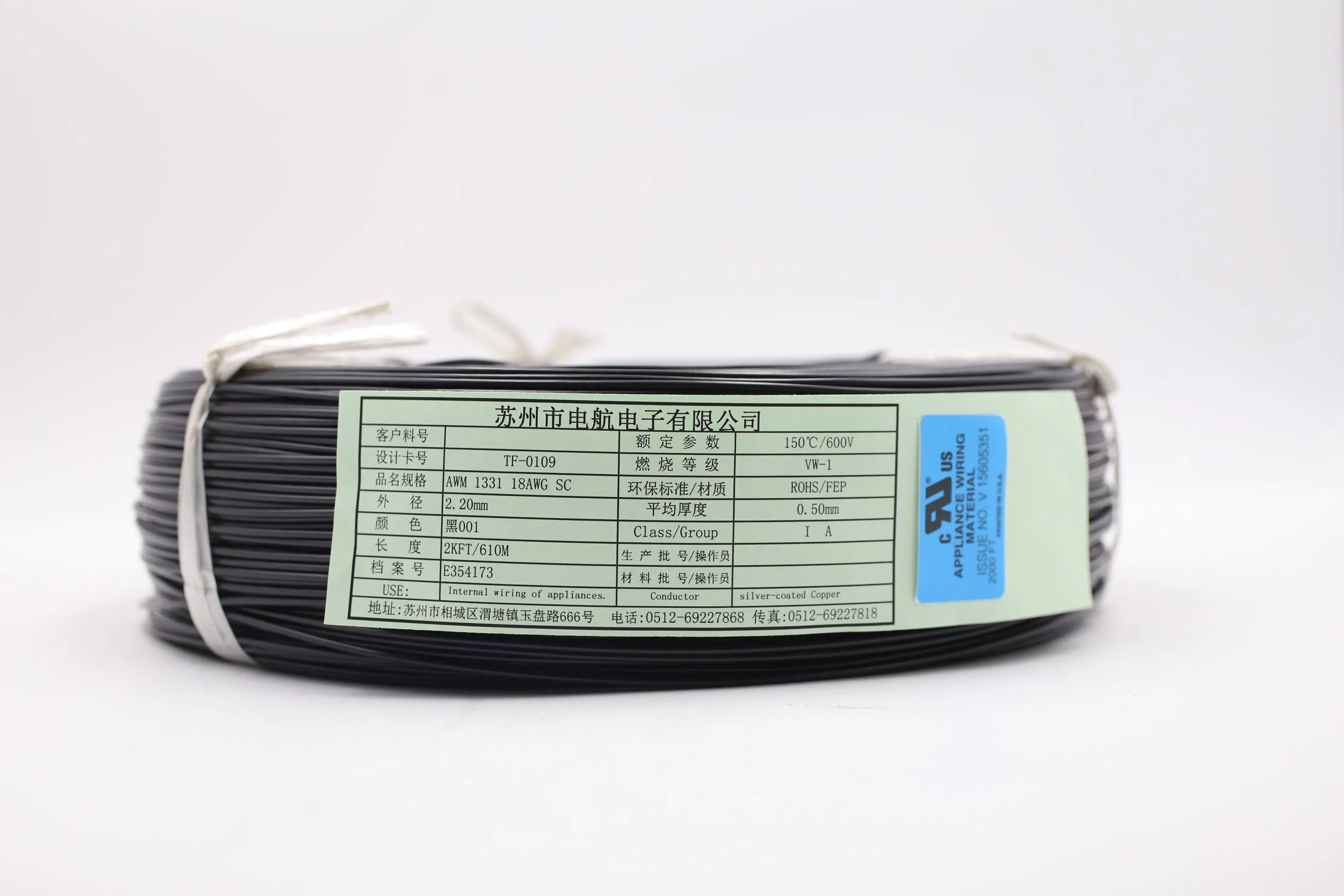

High Temperature Wear Resistance UL1331 Insulated Electrical Wire PVC Insulated Copper Fit Electrical Copper Wire Cable Power Control Wire Cable
Product DescriptionUL 1331 High temperature insulated wire Rated temperature:150ºCRated voltage:600VReference standard:UL758,UL1581,CSA C22.2No.210.2Solid or stranded, tinned or bare copper conductor 30~10AWGFEP insulation, comply with ROHS, REACH environmental standardPasses UL VW-1 and JQ......
Send Inquiry
Product Description
Rated temperature:150ºC
Rated voltage:600V
Reference standard:UL758,UL1581,CSA C22.2No.210.2
Solid or stranded, tinned or bare copper conductor 30~10AWG
FEP insulation, comply with ROHS, REACH environmental standard
Passes UL VW-1 and JQA F-Mark flame test
Uniform insulation thickness to ensure easy stripping and cutting
Application:For general purpose internal wiring of appliance
UL Type | Conductor | Insulation | Max.cond Resistance | Dielectric Strength | ||
1331 | Specification(AWG) | Construction | Thickness (mm) | OD (mm) | (Ω/Km,20ºC,Dc)
| (Vac,1min)
|
30 | 7/0.10 | 0.50 | 1.30 | 381 | 2000 | |
28 | 7/0.127 | 0.50 | 1.40 | 239 | 2000 | |
26 | 7/0.16 | 0.50 | 1.50 | 150 | 2000 | |
24 | 7/0.20 | 0.50 | 1.60 | 94.2 | 2000 | |
18 | 7/0.254 | 0.50 | 1.80 | 59.4 | 2000 | |
