Heating Wire UL1333 High Flexible Wire Gauge Cable UL Listed Manufacturer Copper Wire
UL1333 1330 1331 1332 Heating Wire FEP Wire High Temperature Wire-Rated temperature: 150ºC-Rated voltage: 300V-Reference Standard: UL758, UL1581, C22.2 No.210-Passes UL VW-1 & CSA FT1 vertical flame test.-Uniform insulation thickness of wire to ensure easy stripping and cutting.-For int......
Send Inquiry
Product Description

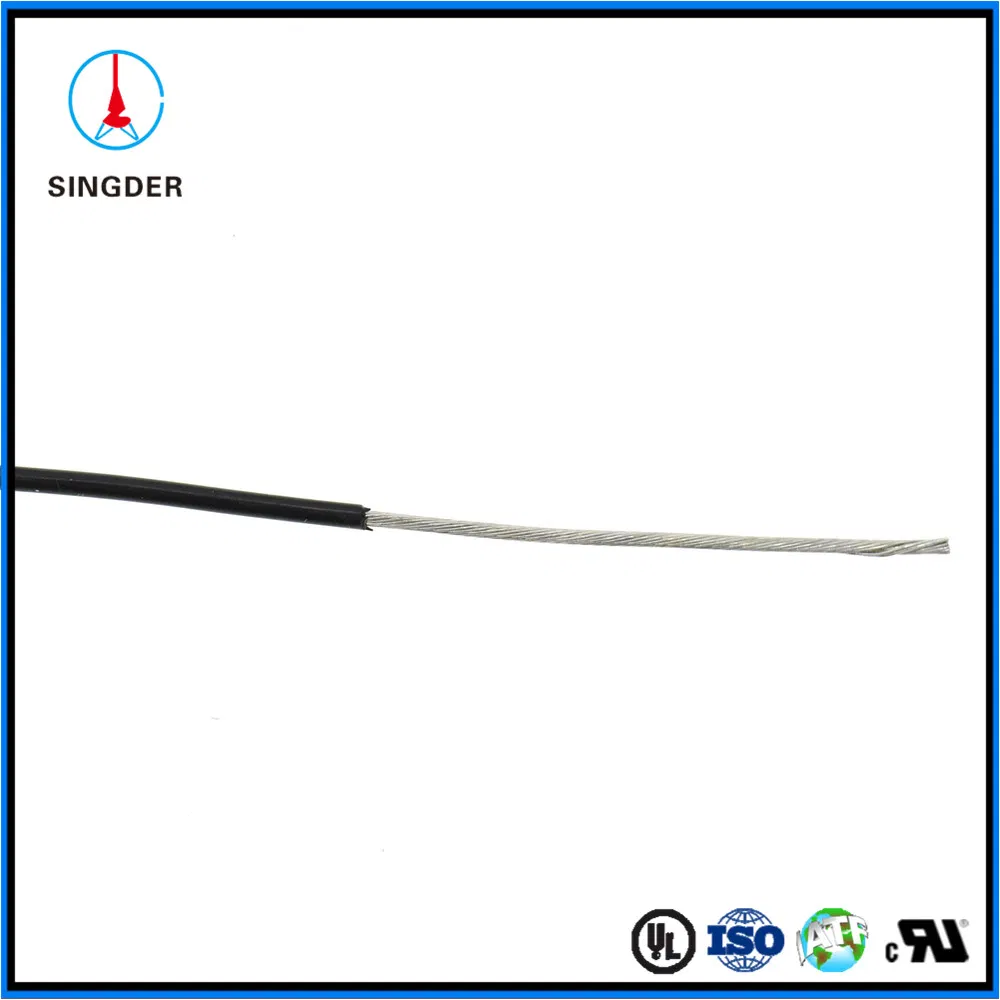

UL1333 1330 1331 1332 Heating Wire FEP Wire High Temperature Wire
-Rated temperature: 150ºC
-Rated voltage: 300V

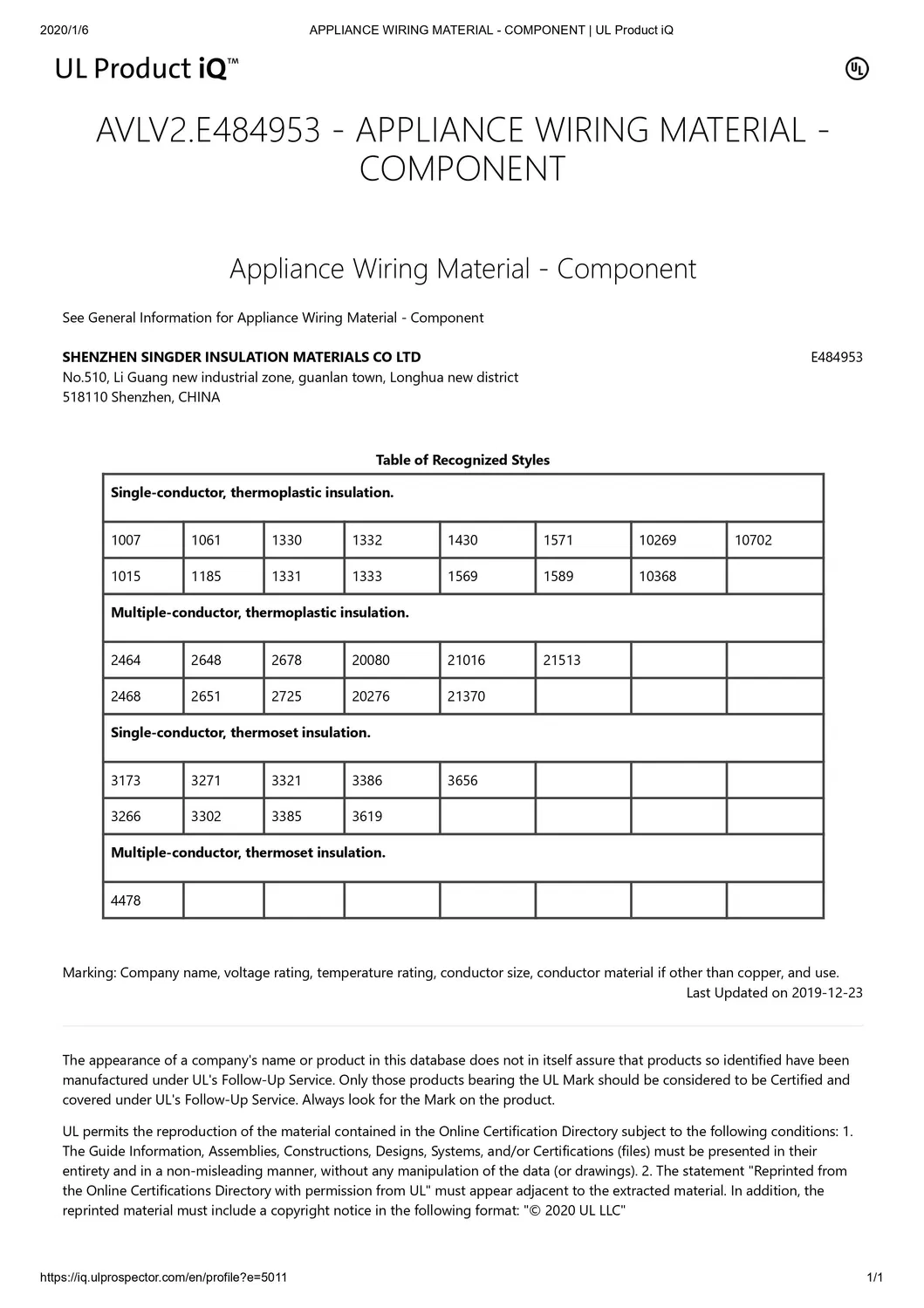

-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.
-Rated temperature: 150ºC
-Rated voltage: 300V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.
| Conductor | Insulation | Max. Cond Resistance at 20°C (Ω/km) | |||
| AWG | Construction (No./mm) | Diameter (mm) | Thickness (mm) | Diameter (mm) | |
| 24 | 1/0.50 7/0.20 19/0.12 | 0.50 0.60 0.60 | 0.20 0.20 0.20 | 1.32 1.42 1.42 | 93.3 |
| 22 | 1/0.65 7/0.254 19/0.15 | 0.65 0.76 0.75 | 0.20 0.20 0.20 | 1.47 1.58 1.57 | 56.1 |
| 20 | 1/0.81 7/0.31 19/0.19 | 0.81 0.96 0.93 | 0.20 0.20 0.20 | 1.63 1.75 1.75 | 34.6 |
| 18 | 1/1.02 7/0.39 19/0.235 | 1.02 1.17 1.30 | 0.20 0.20 0.20 | 1.84 1.99 1.99 | 22.2 |
| 16 | 1/1.30 7/0.49 19/0.30 | 1.30 1.47 1.50 | 0.20 0.20 0.20 | 2.12 2.29 2.32 | 16.6 |
