FEP Insulated High Temperature Appliance Wire

Product Description

FEP Insulated High Temperature Appliance Wire

1. Product Description

UL1330/1331 TEFLON WIRE
Insulation:FEP TEFLON
Conductor:Tinned Copper
Temperature Range:-100ºC - +200ºC/150ºC
Rated Voltage: 600V
O.D. Tolerance:+0.1mm

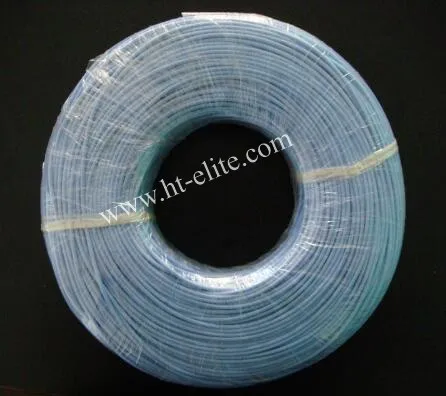

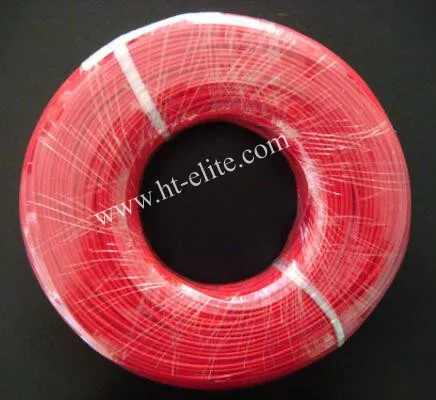

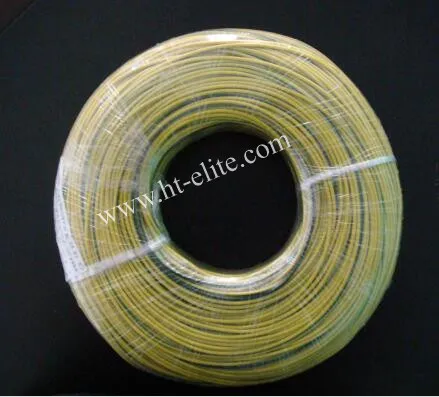

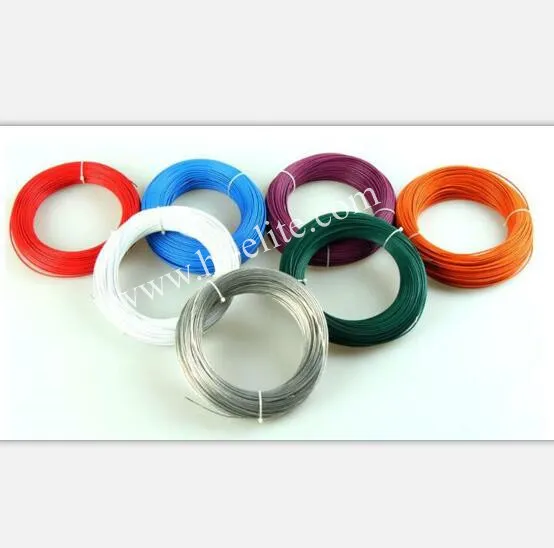

Color:White,Blue,Red,Black,Brown,Yellow,green,transparent,Yellow-green

2. Application
Used for home appliance,lighting lamps,small motors, temperature sensors, electromagnetic coils, automotive interior cables, electronic appliance etc.

3. Advantages

Has excellent corrosion resistance, almost insoluble in any organic solvent, oil, acid, anti-alkali, strong oxidant, etc.
Has excellent electrical insulation properties, resistance to high voltage, high-frequency loss, does not absorb moisture, insulation resistance.
has excellent heat resistance, aging resistance, long service life.

4. Technical Parameter

Conductor			Insulation
Cross Section (mm²)	Construction (No./mm)	Diameter (mm)	Thickness (mm)	Finished Diameter (mm)
0.05	1 × 0.25	0.25	0.20	0.65
0.07	1 × 0.30	0.30	0.20	0.7
0.12	1 × 0.40	0.40	0.225	0.85
0.16	1 × 0.45	0.45	0.25	0.95
0.20	1 × 0.50	0.50	0.30	1.1
0.08	7 × 0.12	0.36	0.25	0.86
0.15	7 × 0.16	0.48	0.25	0.98
0.20	7 × 0.20	0.60	0.25	1.1
0.35	19 × 0.16	0.80	0.30	1.4
0.50	19 × 0.18	0.90	0.35	1.6
0.75	19 × 0.23	1.15	0.35	1.85
1.00	19 × 0.26	1.30	0.35	2
1.20	19 × 0.28	1.40	0.40	2.2
1.50	19 × 0.32	1.60	0.40	2.4
2.00	19 × 0.37	1.85	0.45	2.75
2.50	19 × 0.41	2.05	0.50	3.05
4.00	37 × 0.37	2.58	0.50	3.58
6.00	37 × 0.45	3.15	0.50	4.15
