600V 150c UL1331 UL Certificated FEP Wire Cable
UL1331FEP Wire Description Name:FEP Wire Model:AWM 1331 Size:30~4/0AWG Feature Ratings Voltage:600V Rated temperature: 150ºC Struc......
Send Inquiry
Product Description
UL1331FEP Wire
Description
Name:FEP Wire
Model:AWM 1331
Size:30~4/0AWG
Feature
Ratings Voltage:600V
Rated temperature: 150ºC

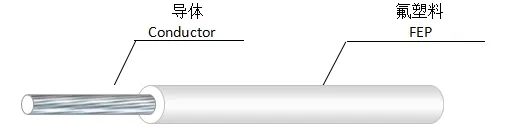

Structure
Conductor: Tinned Copper,Nickel-Copper
Insulation:Extruded FEP
Standard:UL758,UL1581
Hot Products
Certificates
Company Information
Transport&Shipping
Our Services
1. OEM service available based on official & legal authorization.
2. Strict quality control system.
3. Timely deliverly.
4. Excellent quality with affordable price.
5. Strong technical support.
6. Mobile on 24 hours for any question.
FAQ
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3.Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
Description
Name:FEP Wire
Model:AWM 1331
Size:30~4/0AWG
Feature
Ratings Voltage:600V
Rated temperature: 150ºC
Structure
Conductor: Tinned Copper,Nickel-Copper
Insulation:Extruded FEP
Standard:UL758,UL1581
| Size AWG | Conductor Construction (No./mm) | Insulation Thickness (mm) | Diameter (mm) |
| 30 | 7/0.1 | 0.51 | 1.35±0.05 |
| 28 | 7/0.127 | 1.45±0.05 | |
| 26 | 7/0.16 | 1.50±0.05 | |
| 24 | 7/0.2 | 1.65±0.05 | |
| 22 | 7/0.254 | 1.80±0.1 | |
| 20 | 7/0.32 | 2.00±0.1 | |
| 18 | 7/0.39 | 2.25±01 | |
| 16 | 19/0.3 | 2.60±0.1 | |
| 14 | 19/0.38 | 3.00±0.2 | |
| 12 | 19/0.48 | 3.50±0.2 | |
| 10 | 37/0.43 | 4.10±0.2 | |
| 8 | 57/0.43 | 0.76 | 5.50±0.3 |
| 6 | 67/0.5 | 6.60±0.3 | |
| 4 | 106/0.5 | 8.00±0.30 | |
| 2 | 168/0.5 | 9.70±0.30 | |
| 1 | 212/0.5 | 1.14 | 11.50±0.50 |
| 1/0 | 268/0.5 | 12.70±0.50 | |
| 2/0 | 342/0.5 | 14.00±0.50 | |
| 3/0 | 430/0.5 | 15.40±0.50 | |
| 4/0 | 538/0.5 | 17.00±0.50 |
