150deg. C 600V FEP Insulated Tinned Copper Lead Wire UL1331
UL 1331 FEP wire DescriptionName:FEP WireModel:AWM1331 Size:24~10AWG Feature Rated Voltage:600V Rated temperature: -60ºC~+150ºC Structure Conductor: Cooper/Ti......
Send Inquiry
Product Description

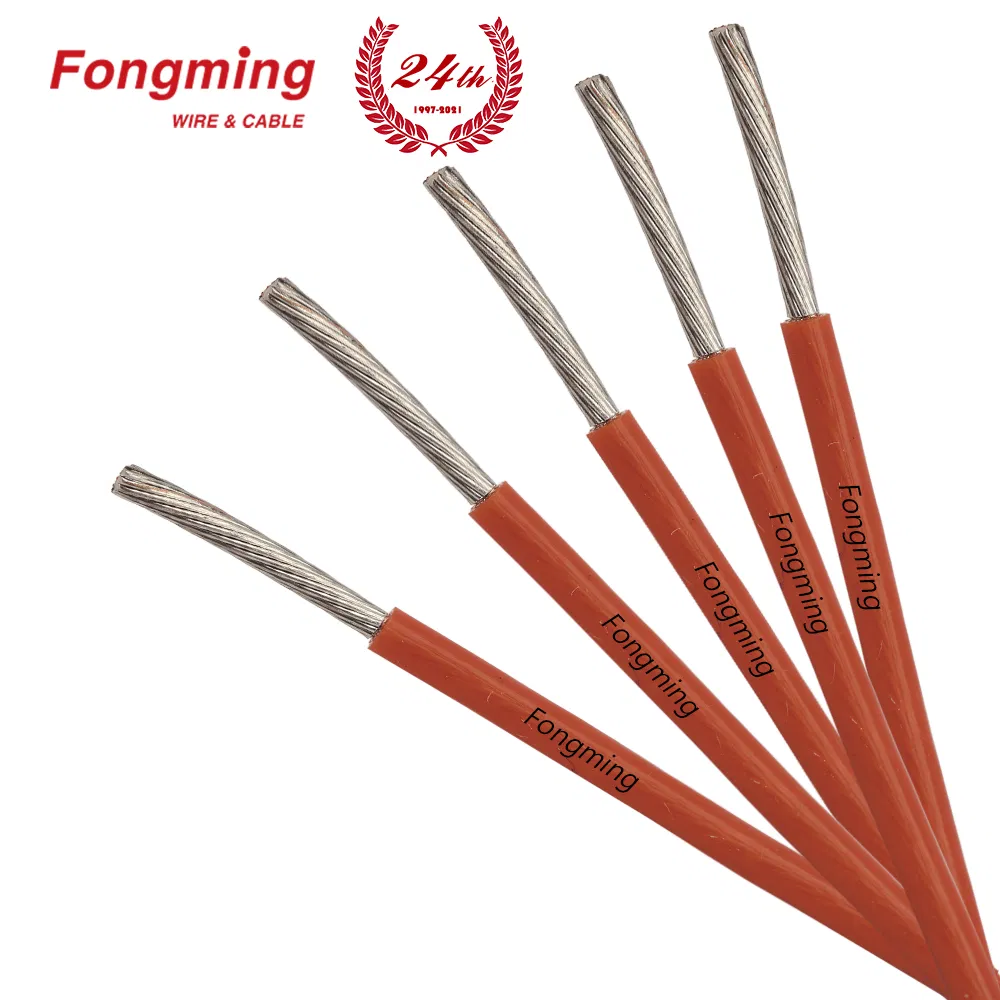

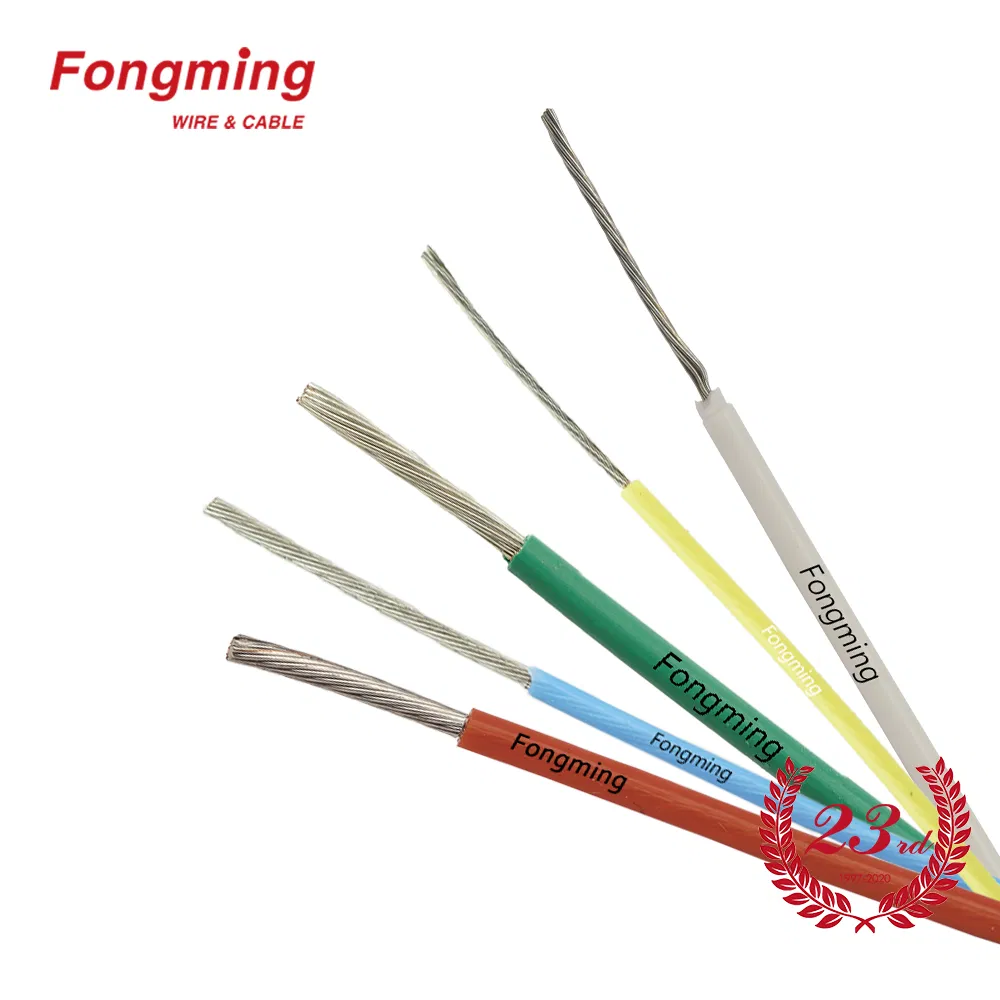

UL 1331 FEP wire
Description
Name:FEP Wire
Model:AWM1331
Size:24~10AWG
Feature
Rated Voltage:600V
Rated temperature: -60ºC~+150ºC

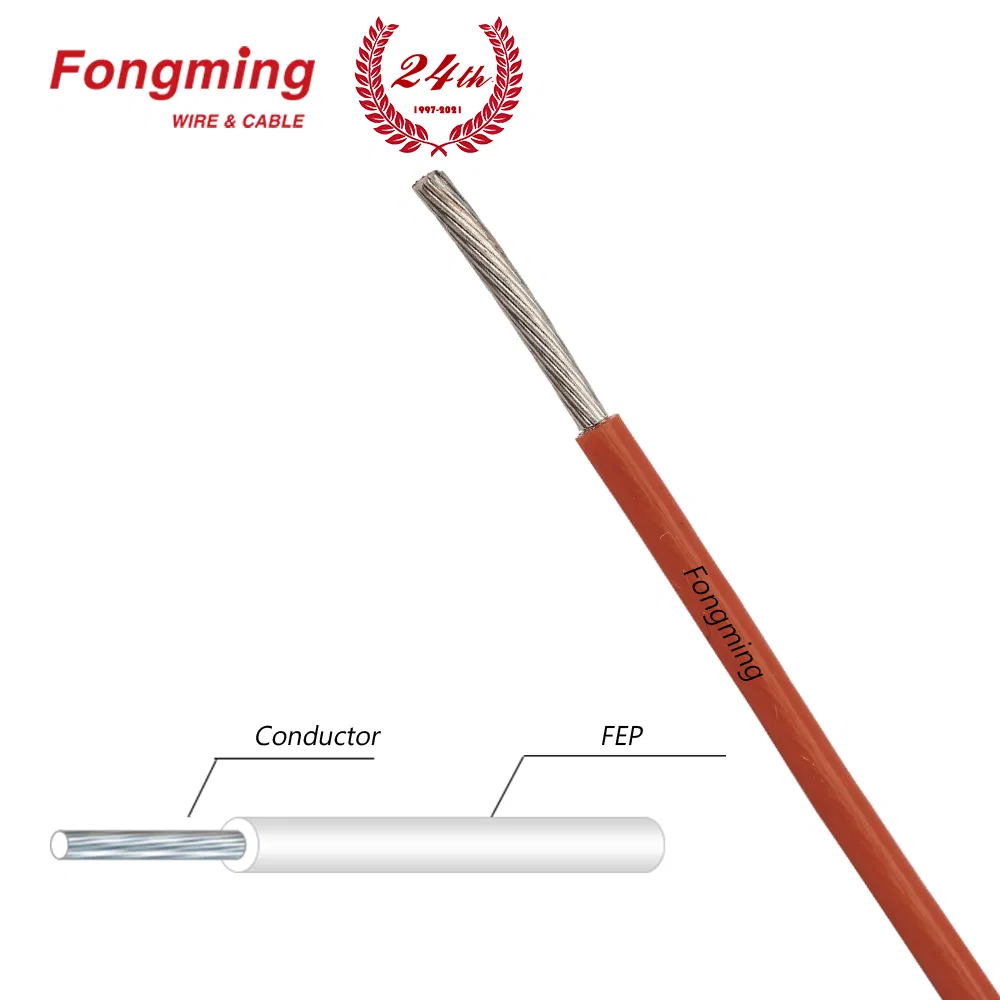

Structure
Conductor: Cooper/Tinned Copper
Insulation:Extruded FEP
Standard:UL758,UL1581
Conductor: Extruded FEP
Packaging & Shipping
Company Information
Yangzhou Fongming Cable Factory located in Yangzhou City, Jiangsu Province, which is near Shanghai. Fongming Cable specialized in the field of wire& cable for more than 15 years. We are a professional manufacturer for universal and special wires including UL high temperature wires, multicore fiberglass braided wires, silicone wires, PVC wires, thermocouple wires etc.
Certificates
Hot Products
Our Services
1. OEM service available based on official & legal authorization.
2. Strict quality control system.
3. Timely deliverly.
4. Excellent quality with affordable price.
5. Strong technical support.
6. Mobile on 24 hours for any question.
FAQ
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3.Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
Certifications
Description
Name:FEP Wire
Model:AWM1331
Size:24~10AWG
Feature
Rated Voltage:600V
Rated temperature: -60ºC~+150ºC
Structure
Conductor: Cooper/Tinned Copper
Insulation:Extruded FEP
Standard:UL758,UL1581
Conductor: Extruded FEP
| Size AWG | Conductor Construction (No./mm) | Insulation Thickness (mm) | Diameter (mm) |
| 30 | 7/0.1 | 0.51 | 1.35±0.05 |
| 28 | 7/0.127 | 1.45±0.05 | |
| 26 | 7/0.16 | 1.50±0.05 | |
| 24 | 7/0.2 | 1.65±0.05 | |
| 22 | 7/0.254 | 1.80±0.1 | |
| 20 | 7/0.32 | 2.00±0.1 | |
| 18 | 7/0.39 | 2.25±01 | |
| 16 | 19/0.3 | 2.60±0.1 | |
| 14 | 19/0.38 | 3.00±0.2 | |
| 12 | 19/0.48 | 3.50±0.2 | |
| 10 | 37/0.43 | 4.10±0.2 | |
| 8 | 57/0.43 | 0.76 | 5.50±0.3 |
| 6 | 67/0.5 | 6.60±0.3 | |
| 4 | 106/0.5 | 8.00±0.30 | |
| 2 | 168/0.5 | 9.70±0.30 | |
| 1 | 212/0.5 | 1.14 | 11.50±0.50 |
| 1/0 | 268/0.5 | 12.70±0.50 | |
| 2/0 | 342/0.5 | 14.00±0.50 | |
| 3/0 | 430/0.5 | 15.40±0.50 | |
| 4/0 | 538/0.5 | 17.00±0.50 |
