150c FEP Coated High Temperature Cable UL1331 600V

Product Description

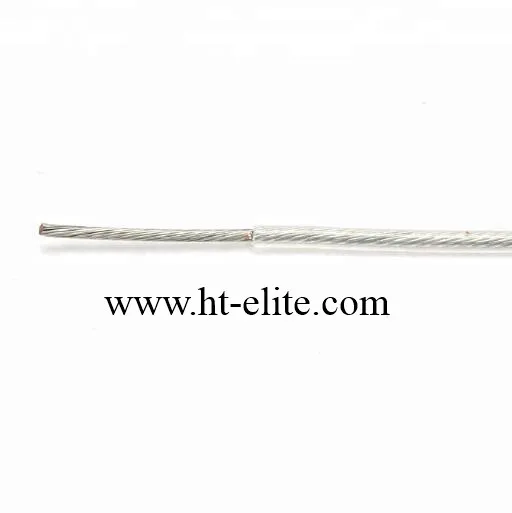

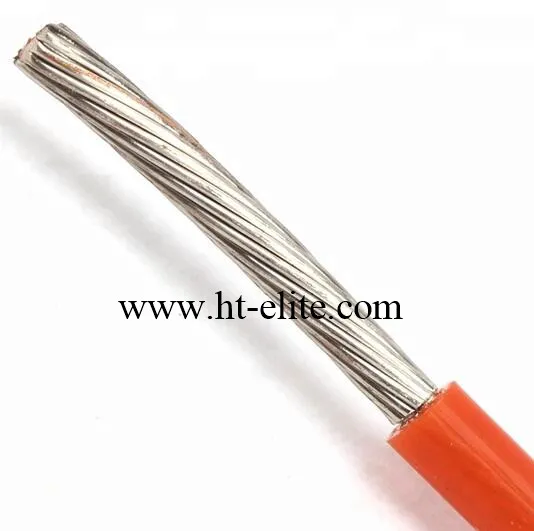

150C FEP coated High Temperature Cable UL1331 600V

UL1331 600V 150C teflon FEP coated wire

Description

Name:UL1331 600V 150C teflon FEP coated wire

Model:AWM 1331

Size:24~10AWG

Feature

Ratings Voltage:600V

Rated temperature: -60ºC~+150ºC

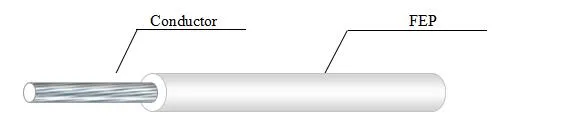

Structure

Conductor: Copper/Tinned Copper

Insulation:Extruded FEP

Standard:UL758,UL1581

150c FEP Coated High Temperature Cable UL1331 600V

Size AWG	Conductor Construction (No./mm)	Insulation Thickness (mm)	Diameter (mm)	Max. Conductor Resistance (20ºC) (Ω/km)
24	11/0.16	≥0.51	1.6±0.2	94.2
22	17/0.16		1.8±0.2	59.4
20	26/0.16		2.0±0.2	37.4
18	16/0.254		2.2±0.2	23.5
16	26/0.254		2.5±0.2	14.6
14	41/0.254		2.9±0.2	8.96
12	65/0.254		3.4±0.2	5.64
10	7/15/0.254		4.5±0.2	3.54

2. Application

Used for home appliance,lighting lamps,small motors, temperature sensors, electromagnetic coils, automotive interior cables, electronic appliance etc.

3. Advantages

Has excellent corrosion resistance, almost insoluble in any organic solvent, oil, acid, anti-alkali, strong oxidant, etc.
Has excellent electrical insulation properties, resistance to high voltage, high-frequency loss, does not absorb moisture, insulation resistance.
has excellent heat resistance, aging resistance, long service life.
