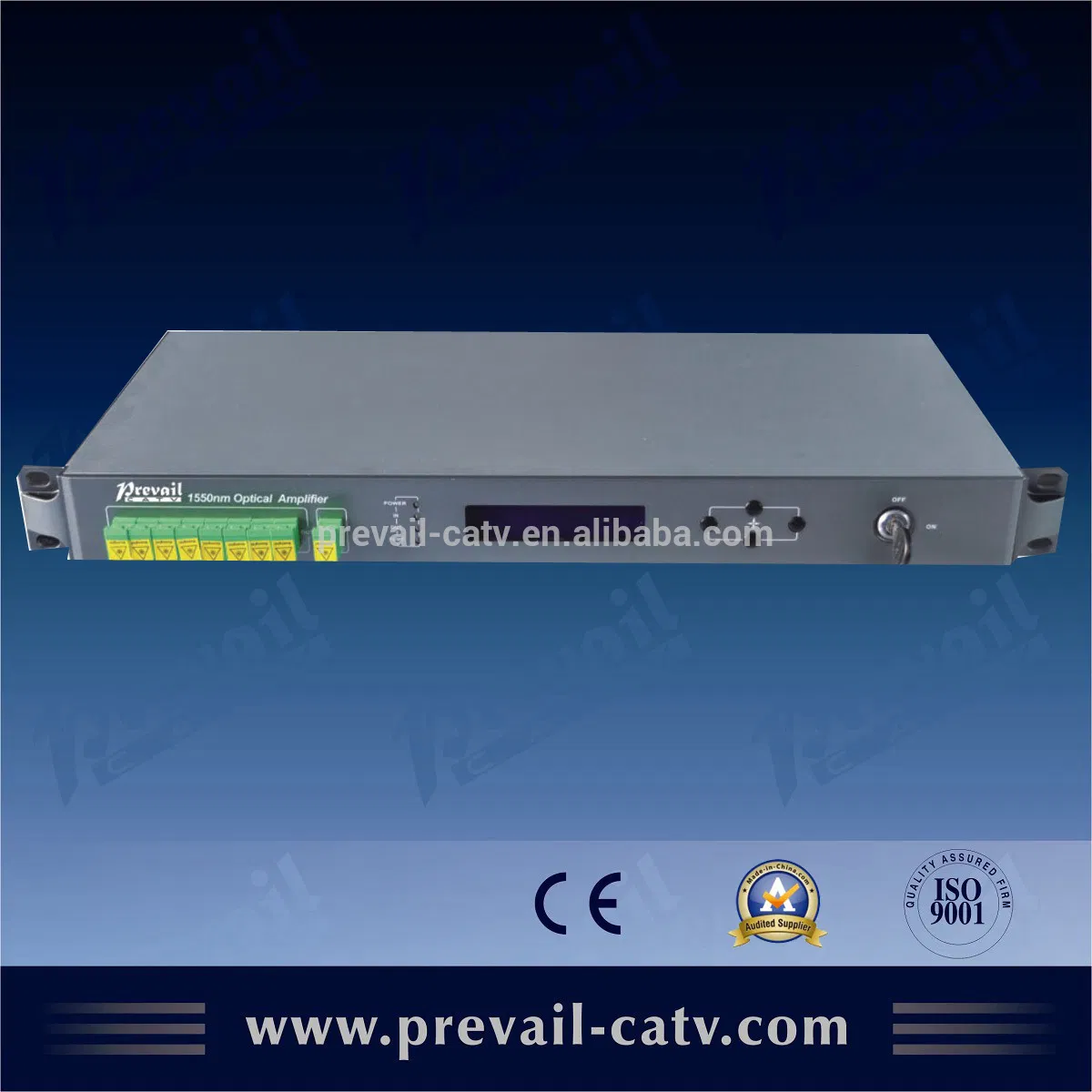

CATV 16 Ways 1550 Optical Amplifier with Dual Power Source
Product Description 1. Applicationn Single-mode fiber 1550 amplification networkn FTTH networkn CATV network 2. Performance Characteristicsn Adopts Er-Yb co-doped double-clad fiber technology;n Output ports: 4-32 optional;n Output optical power: total output up to 2W;n Low noise figure: low than......
Send Inquiry
Product Description
1. Application
n Single-mode fiber 1550 amplification network
n FTTH network
n CATV network
2. Performance Characteristics
n Adopts Er-Yb co-doped double-clad fiber technology;
n Output ports: 4-32 optional;
n Output optical power: total output up to 2W;
n Low noise figure: low than 5dB when input is 0dBm;
n Perfect network management interface, in line with the national standard SNMP network management;
n Intelligent temperature control system make the power consumption more lower;
n Output power: 0-3dB adjustable;
3. Block diagram
Technique Parameter Table:
Item | Unit | Technique Parameter | Remark | |
Operating Wideband | nm | 1535 - 1565 | ||
Input Optic Power | dBm | -3 - +10 | Input Optical Power 0 - +5dBm | |
Output Optic Power | dBm | 13 - 34 | ||
Output Power stability | dBm | ±0.5 | ||
Noise Figure | dB | ≤ 5.0 | Output Optical Power 0dBm | |
Return Loss | Input End | dB | ≥ 45 | |
Output End | dB | ≥ 45 | ||
Power of Pump leak | Input End | dBm | ≤ -30 | |
Output End | dBm | ≤ -30 | ||
(C/N) | dB | ≥ 52 | ||
(C/CTB) | dB | ≥ 63 | ||
(C/CSO) | dB | ≥ 63 | ||
Connector Type | FC/APC or SC/APC | |||
Supply Voltage | V | AC160V - 250V (50 Hz) | it can be set with Dual-power hot-backup supply | |
Operating Temperature | °C | -5 - +55 | ||
Max Relative Humidity | % | Max95%No Condensation | ||
Storage Temperature | °C | -30 - +70 | ||
Max Relative Humidity for Storage | % | Max95%No Condensation | ||
Dimension | mm | 483(W)x340(L)x44(H) | ||
