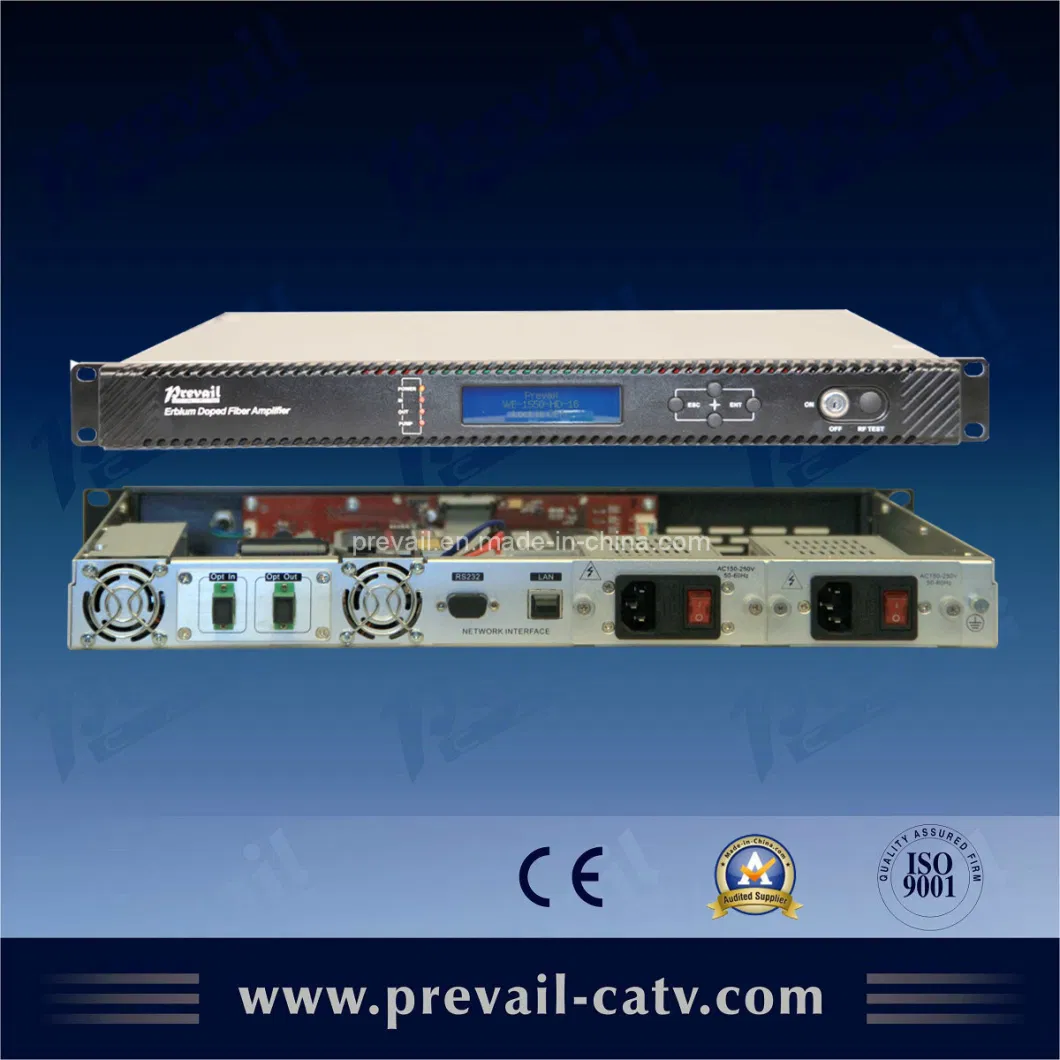

1550 EDFA Optical Amplifier (WE-1550)

Product Description

Optical amplifier Feature:
1. Optical Amplifier with Automatic control the output optical power.
2. Optical Amplifier output optical power is adjustable, attenuation range 0-3dB.
3. EDFA adopt high-performance erbium doped fiber, high efficiency energy conversion.
4. EDFA adopts advanced 32 processor, coordinate with perfect automatic monitoring systemic circuit.
5. EDFA Built-in blue screen 160× 32 DOT matrix LCD monitor on the front panel, accurately show all working status parameters.
6.19''1U height standard rack mount, equipped standard IEEE802.3 10Base-T Ethernet interface and RS232 interface, can expediently realizes network management monitoring.
7. Full support <GB/T 20030-2005HFC Network device management system specification>.

Item		Unit	Technique parameter	Remark
Operating bandwidth		nm	1535 - 1565
Input optical power range		dBm	-5 - +10	Suggested input optical power 0 - +5dBm
Output optical power		dBm	13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24	Optional
Output power stability		dBm	± 0.2
Noise figure		dB	≤ 5.0	Input optical power 0dBm
Return loss	Input	dB	≥ 45
	Output	dB	≥ 45
Pump leakage power	Input	dBm	≤ -30
	Output	dBm	≤ -30
Optical connector type			FC/APC or SC/APC
Power supply voltage		V	AC160V - 250V (50 Hz)
Consumption		W	< 30
Operating Temperature Range			-5 - +55
Maximum operating relative humidity		%	Max 95% No Condensation
Storage Temperature Range			-30 - +70
Maximum storage relative humidity		%	Max 95% No Condensation
Dimension		mm	483(W)340(D)× 44(H)
