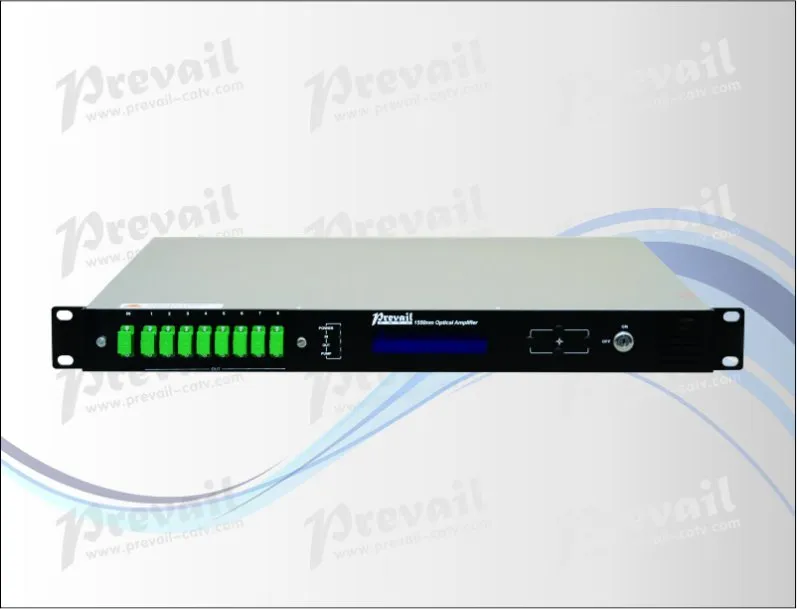

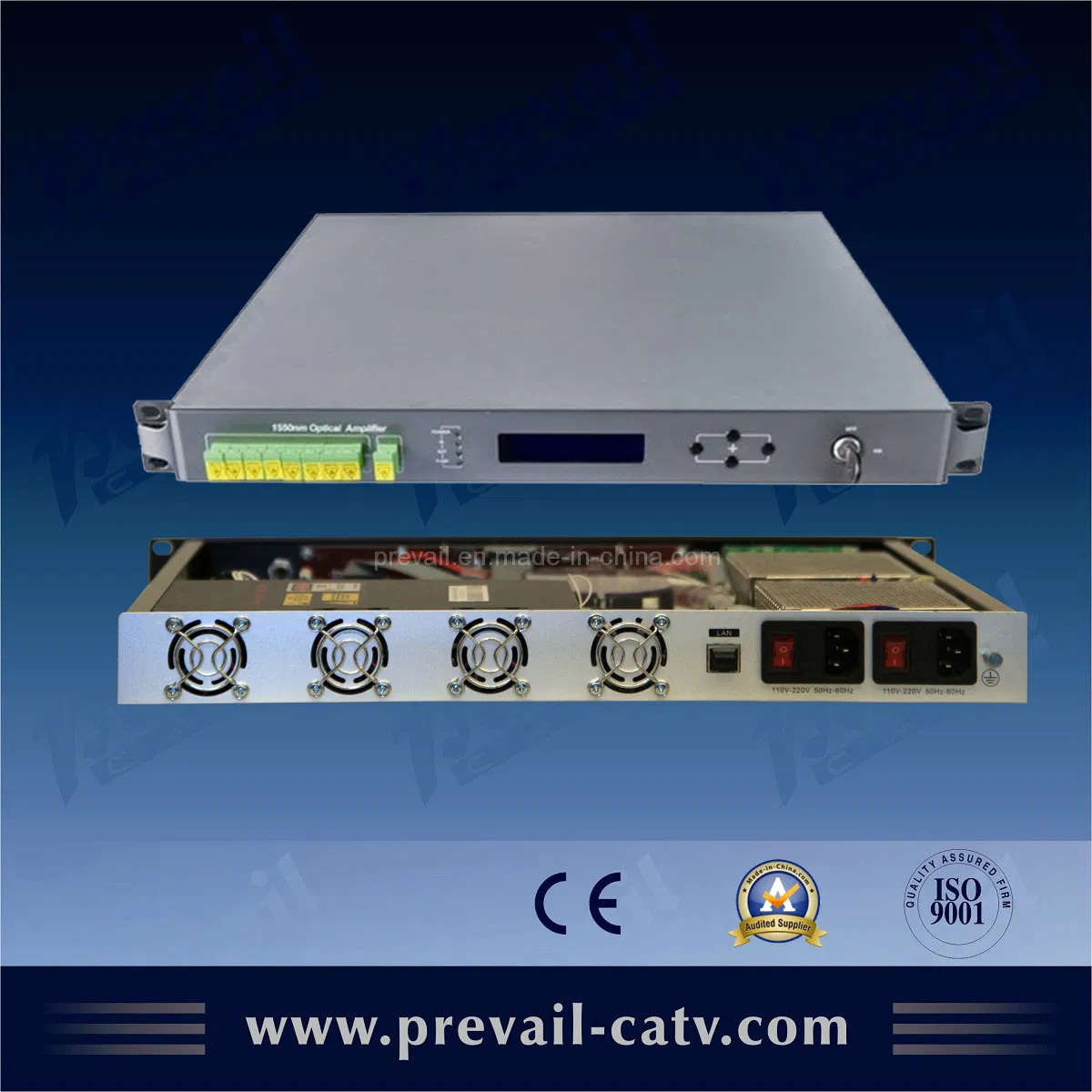

1550nm Jdsu Pump Laser Multiway Optical Amplifier EDFA

Product Description

Optical amplifier Feature:
1. Optical Amplifier adopt Er-Yb co-doped double clad fiber technology;
2. Optical amplifier 4-16 ways optional;
3. Optical amplifier Output optical power: The total output up to 2W;
4. Low noise figure: Low than 5. dB when 0dBm input;
5. The network management interface meet the national standard SNMP;
6. Output power 0-3dB adjustable;

Item		Unit	Technical Parameter	Comment
Operation bandwidth		nm	1545 - 1565
Input optical power range		dBm	-3 - +10	Suggested input optical power 0 - +5dBm
Maximum output optical power		dBm	33
Output power stability		dBm	± 0.5
Noise figure		dB	≤ 5.0	Input optical power 0dBm, λ =1550nm
Return loss	Input	dB	≥ 45
	Output	dB	≥ 45
Optical Connector Type			FC/APC or SC/APC or specified by the user
Power supply voltage		V	AC160V - 250V (50 Hz)
Operating Temperature Range			-5 - +45
Maximum Relative Humidity		%	Max 95% No Condensation
Storage Temperature Range			-30 - +70
Maximum storage relative humidity		%	Max 95% No Condensation
Dimension		mm	19" /1RU
