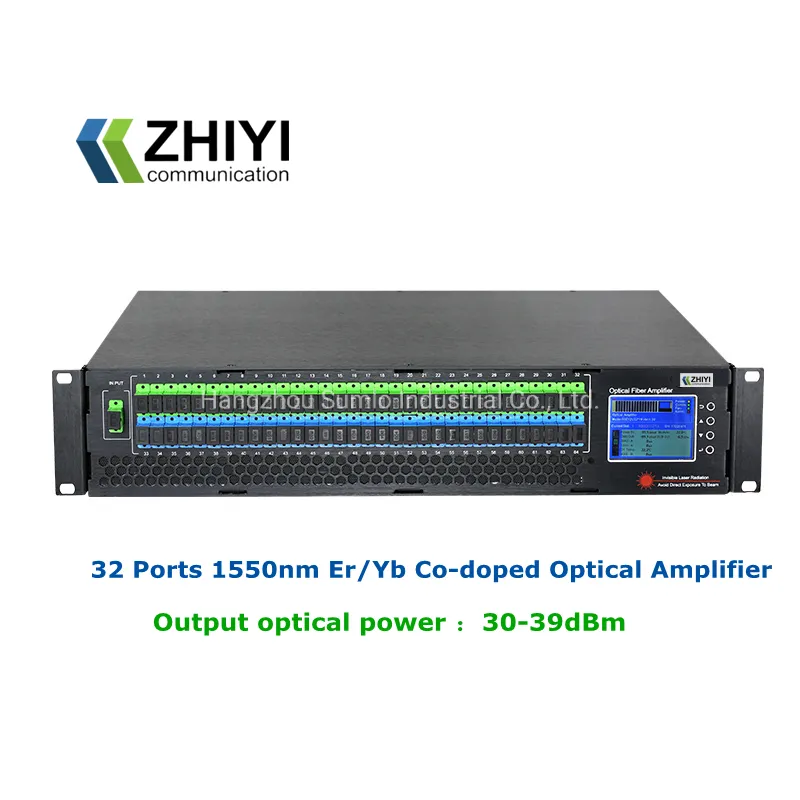

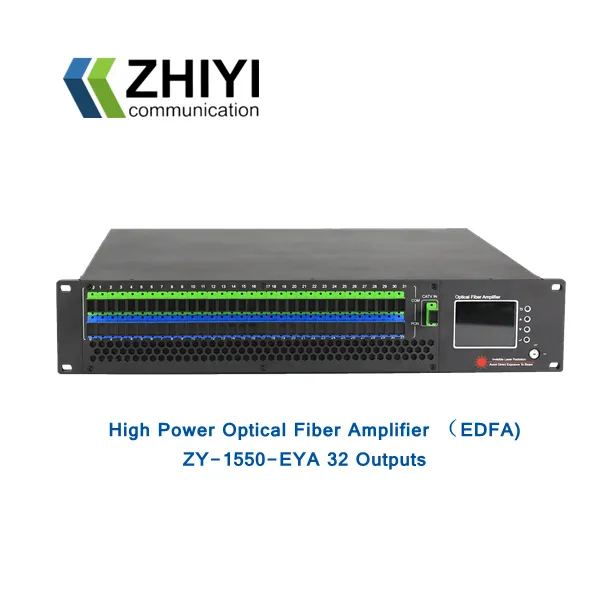

32 Ports 1550nm Er/Yb Co-Doped Optical Amplifier, 30-39dBm, EDFA for CATV, CWDM
32 Ports 1550nm Er/Yb Co-doped Optical Amplifier,30-39dBm, EDFA for CATV ,CWDM ZY-1550-EYA series high-power optical amplifier is a high-power multi-port output fiber amplifier with a gain spectrum bandwidth of 1535~1565nm. Application :It is mainly designed for applications of CATV or 1~8 continu......
Send Inquiry
Product Description
32 Ports 1550nm Er/Yb Co-doped Optical Amplifier,30-39dBm, EDFA for CATV ,CWDM
ZY-1550-EYA series high-power optical amplifier is a high-power multi-port output fiber amplifier with a gain spectrum bandwidth of 1535~1565nm.
Application :
It is mainly designed for applications of CATV or 1~8 continuous strip channels (ITU wavelengths).it can achieve single-wavelength cable TV transmission, CWDM single-fiber three-wave, flat gain, it is an important equipment for building CATV large Medium-sized optical fiber transmission network.
Features:

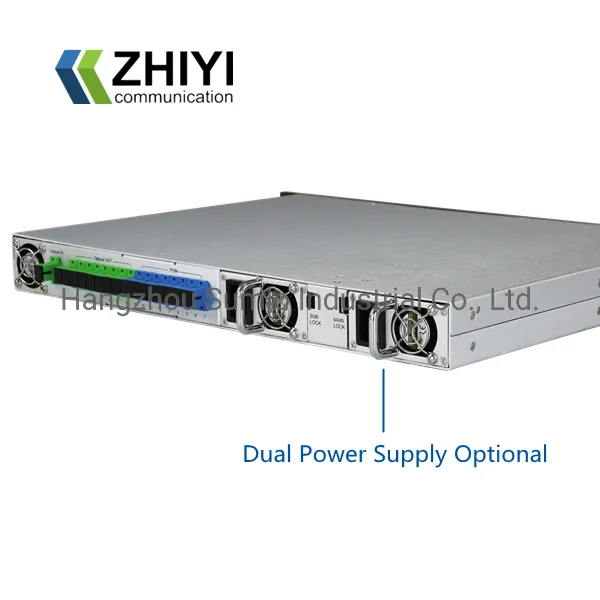

* 1U/2U/3U 19"standard rack, 32ports, Max output port can reach 256 outputs.
* Advanced LG switch low-power circuit design, greatly reducing the overall power consumption and heat.
* Perfect APC, ACC, ATC control, ensure the long life and high reliability of PUMP laser.
* Using digital control chip, remote or local output power adjustable.
* Built-in low-noise preamplifier eliminates the need for cascaded EDFA, allowing input light to be as low as -5dBm, greatly reducing CNR and MER degradation.
* Demultiplexer for 1310/1490/1550nm EPON and GPON. It greatly facilitates network applications with PON. Low noise figure (type ≤ 4.5dB, Max ≤ 5.0dB).
* The front panel can be removed and replaced flexibly according to the number of output ports.
* Can add a built-in optical switch module to facilitate the expansion of the device function.
* Cooling fan supports online replacement.

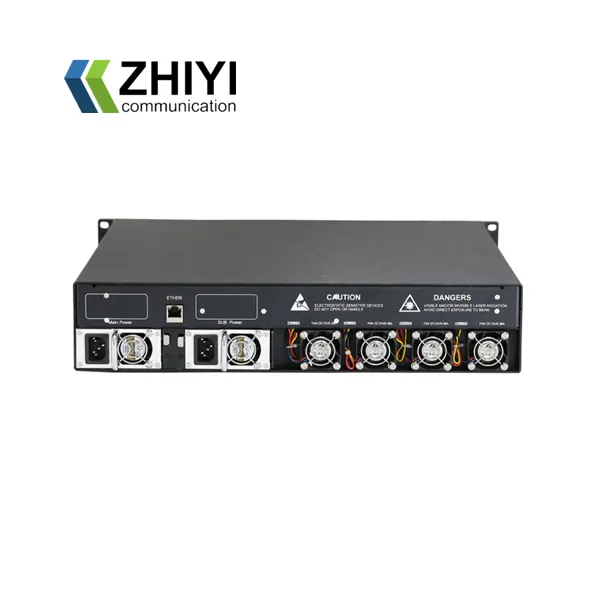

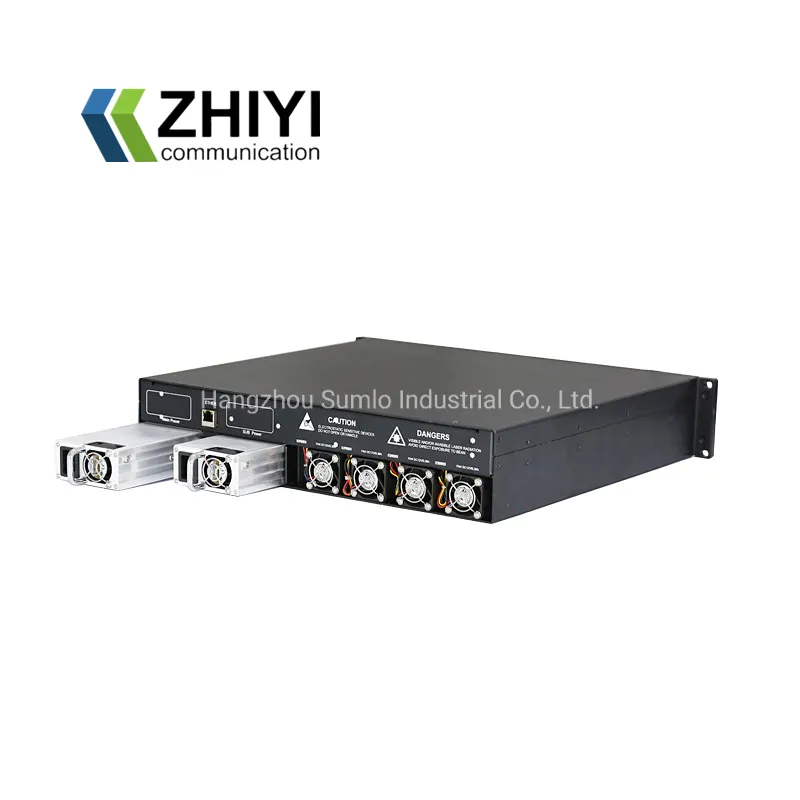

* RJ45 provides serial communication and SNMP network management interface; Carrier-grade dual power hot backup, CPU assignable power.
Other Products recommended:

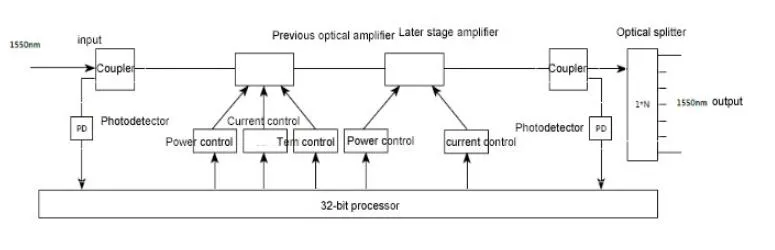

Principle Diagram:
Application :
It is mainly designed for applications of CATV or 1~8 continuous strip channels (ITU wavelengths).it can achieve single-wavelength cable TV transmission, CWDM single-fiber three-wave, flat gain, it is an important equipment for building CATV large Medium-sized optical fiber transmission network.
Features:
* 1U/2U/3U 19"standard rack, 32ports, Max output port can reach 256 outputs.
* Advanced LG switch low-power circuit design, greatly reducing the overall power consumption and heat.
* Perfect APC, ACC, ATC control, ensure the long life and high reliability of PUMP laser.
* Using digital control chip, remote or local output power adjustable.
* Built-in low-noise preamplifier eliminates the need for cascaded EDFA, allowing input light to be as low as -5dBm, greatly reducing CNR and MER degradation.
* Demultiplexer for 1310/1490/1550nm EPON and GPON. It greatly facilitates network applications with PON. Low noise figure (type ≤ 4.5dB, Max ≤ 5.0dB).
* The front panel can be removed and replaced flexibly according to the number of output ports.
* Can add a built-in optical switch module to facilitate the expansion of the device function.
* Cooling fan supports online replacement.
* RJ45 provides serial communication and SNMP network management interface; Carrier-grade dual power hot backup, CPU assignable power.
Other Products recommended:

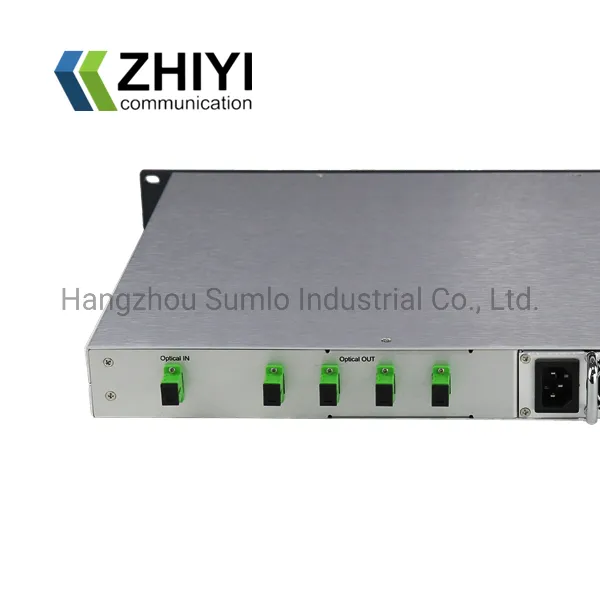

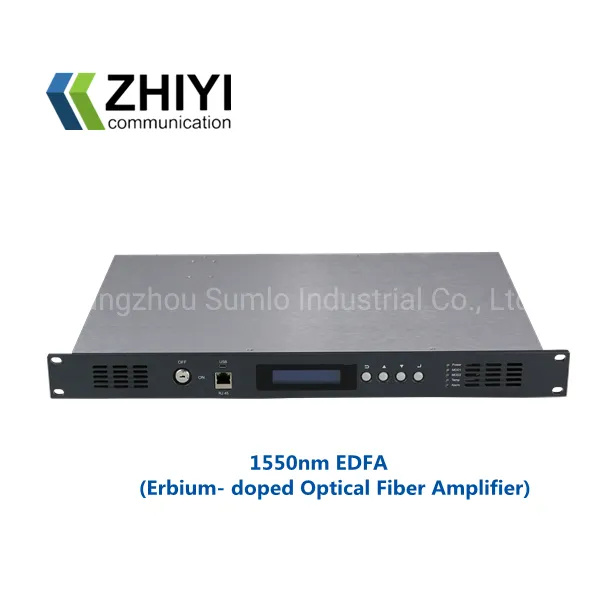

1550nm EDFA Erbium doped optical Fiber Amplifier 1 or 4 outputs.
FEATURE:
* 1U 19" standed rack , 1 or 4 outputs optional.
* internationally renowned brands of low noise pump lasers, low distortion, wide band, high output optical power.
* Imported high-performance American Corning Erbium-doped fiber.
* 32-bit ARM processor, light control output accuracy of ± 0.1dBm.
* Optical power receiving range -10dBm ~ +10dBm, optical power output 13~26dBm.
* Modular structure, easy to expand the function of equipment and maintenance.
* All control circuits & devices use high-efficiency switching chips, and the overall power consumption is ≤10W.

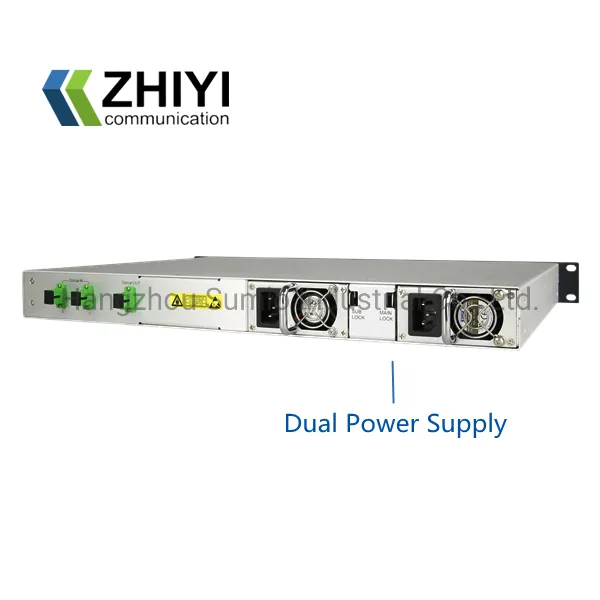

* hot backup dual power supply.
* Output power +0.2~-4dBm adjustable.
* Support SNMP network management protocol.
FEATURE:
* 1U 19" standed rack , 1 or 4 outputs optional.
* internationally renowned brands of low noise pump lasers, low distortion, wide band, high output optical power.
* Imported high-performance American Corning Erbium-doped fiber.
* 32-bit ARM processor, light control output accuracy of ± 0.1dBm.
* Optical power receiving range -10dBm ~ +10dBm, optical power output 13~26dBm.
* Modular structure, easy to expand the function of equipment and maintenance.
* All control circuits & devices use high-efficiency switching chips, and the overall power consumption is ≤10W.
* hot backup dual power supply.
* Output power +0.2~-4dBm adjustable.
* Support SNMP network management protocol.
1550nm High power optical fiber Amplifier EDFA 8ports
Features:
* 1U 19"standard rack, 8ports of optical output Max output port can reach 256 outputs.
* Advanced LG switch low-power circuit design, greatly reducing the overall power consumption and heat.
* Perfect APC, ACC, ATC control, ensure the long life and high reliability of PUMP laser.
* Using digital control chip, remote or local output power adjustable.
* Built-in low-noise preamplifier eliminates the need for cascaded EDFA, allowing input light to be as low as -5dBm, greatly reducing CNR and MER degradation.
* Demultiplexer for 1310/1490/1550nm EPON and GPON. It greatly facilitates network applications with PON. Low noise figure (type ≤ 4.5dB, Max ≤ 5.0dB).
* The front panel can be removed and replaced flexibly according to the number of output ports.
* Can add a built-in optical switch module to facilitate the expansion of the device function.
* Cooling fan supports online replacement.
* RJ45 provides serial communication and SNMP network management interface; Carrier-grade dual power hot backup, CPU assignable power.
Features:
* 1U 19"standard rack, 8ports of optical output Max output port can reach 256 outputs.
* Advanced LG switch low-power circuit design, greatly reducing the overall power consumption and heat.
* Perfect APC, ACC, ATC control, ensure the long life and high reliability of PUMP laser.
* Using digital control chip, remote or local output power adjustable.
* Built-in low-noise preamplifier eliminates the need for cascaded EDFA, allowing input light to be as low as -5dBm, greatly reducing CNR and MER degradation.
* Demultiplexer for 1310/1490/1550nm EPON and GPON. It greatly facilitates network applications with PON. Low noise figure (type ≤ 4.5dB, Max ≤ 5.0dB).
* The front panel can be removed and replaced flexibly according to the number of output ports.
* Can add a built-in optical switch module to facilitate the expansion of the device function.
* Cooling fan supports online replacement.
* RJ45 provides serial communication and SNMP network management interface; Carrier-grade dual power hot backup, CPU assignable power.

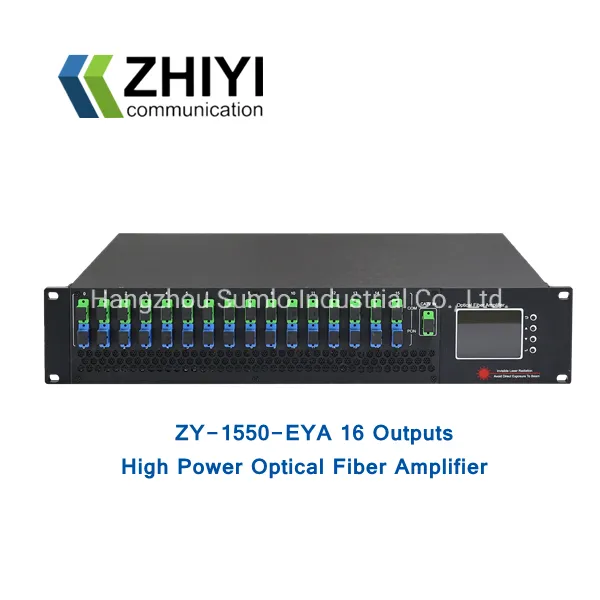

1550nm High power optical fiber Amplifier EDFA 16ports
Features:
* 2U 19"standard rack, 16ports of optical output Max output port can reach 256 outputs.
* Advanced LG switch low-power circuit design, greatly reducing the overall power consumption and heat.
* Perfect APC, ACC, ATC control, ensure the long life and high reliability of PUMP laser.
* Using digital control chip, remote or local output power adjustable.
* Built-in low-noise preamplifier eliminates the need for cascaded EDFA, allowing input light to be as low as -5dBm, greatly reducing CNR and MER degradation.
* Demultiplexer for 1310/1490/1550nm EPON and GPON. It greatly facilitates network applications with PON. Low noise figure (type ≤ 4.5dB, Max ≤ 5.0dB).
* The front panel can be removed and replaced flexibly according to the number of output ports.
* Can add a built-in optical switch module to facilitate the expansion of the device function.
* Cooling fan supports online replacement.
* RJ45 provides serial communication and SNMP network management interface; Carrier-grade dual power hot backup, CPU assignable power.
Features:
* 2U 19"standard rack, 16ports of optical output Max output port can reach 256 outputs.
* Advanced LG switch low-power circuit design, greatly reducing the overall power consumption and heat.
* Perfect APC, ACC, ATC control, ensure the long life and high reliability of PUMP laser.
* Using digital control chip, remote or local output power adjustable.
* Built-in low-noise preamplifier eliminates the need for cascaded EDFA, allowing input light to be as low as -5dBm, greatly reducing CNR and MER degradation.
* Demultiplexer for 1310/1490/1550nm EPON and GPON. It greatly facilitates network applications with PON. Low noise figure (type ≤ 4.5dB, Max ≤ 5.0dB).
* The front panel can be removed and replaced flexibly according to the number of output ports.
* Can add a built-in optical switch module to facilitate the expansion of the device function.
* Cooling fan supports online replacement.
* RJ45 provides serial communication and SNMP network management interface; Carrier-grade dual power hot backup, CPU assignable power.
Principle Diagram:
