1535 -1565nm CATV Optical Amplifier Module 13dBm~24dBm

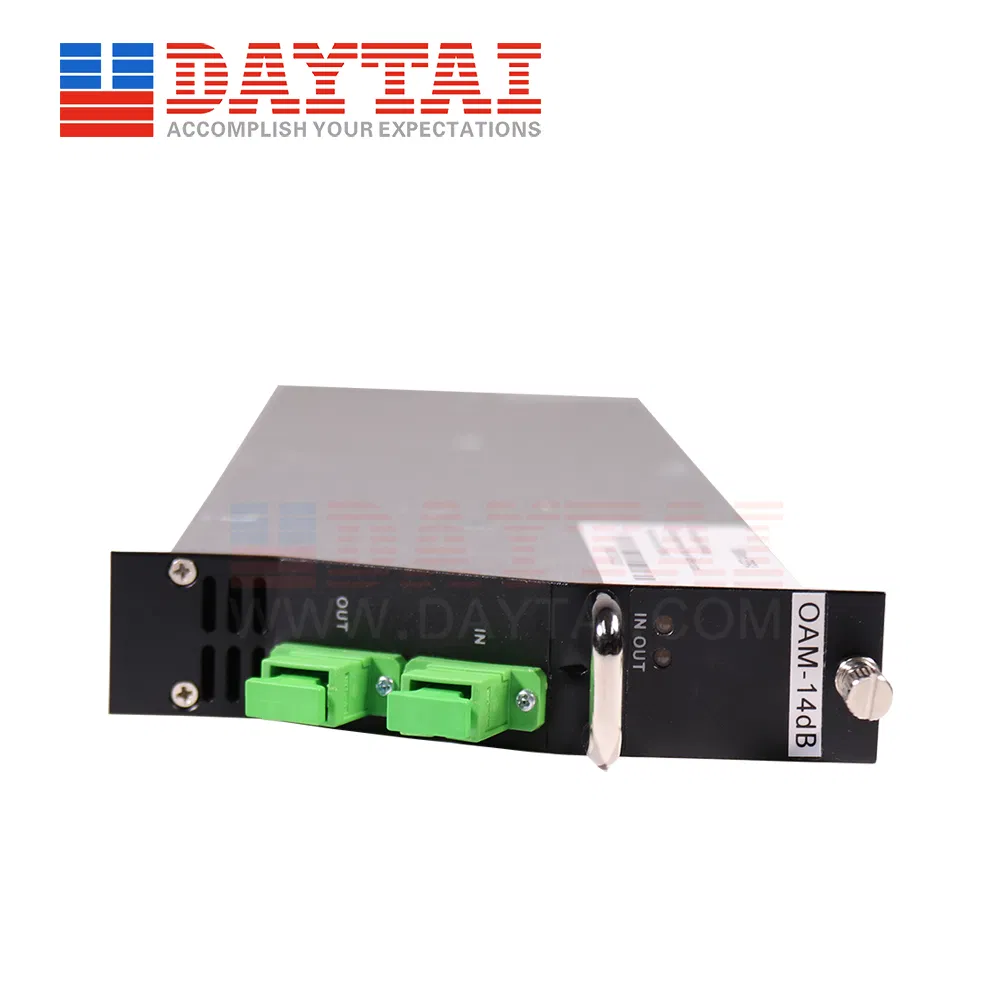

DescriptionOptical Amplifier Module 13dBm~24dBm-(DT-OAM-4UxxdB), Suitable for DT-OCP-4U Optical Communication Platform, Operating bandwidth: 1535 - 1565nm, Input optical power range: -5 - +10dBm, Output optical power: 13 - 22dBm, Optical connector type: SC/APC.Product OverviewErbium-doped Optical Fi......
Send Inquiry
Product Description
Description
Optical Amplifier Module 13dBm~24dBm-(DT-OAM-4UxxdB), Suitable for DT-OCP-4U Optical Communication Platform, Operating bandwidth: 1535 - 1565nm, Input optical power range: -5 - +10dBm, Output optical power: 13 - 22dBm, Optical connector type: SC/APC.
Product Overview
Erbium-doped Optical Fiber Amplifier (EDFA) is the important optical relay transmission equipment in the 1550nm optical fiber communication system. Adopt imported high performance Er-doped fiber, low noise pump laser (international famous brand), and perfect designed embedded automatic monitoring system ensures the excellent performance indexes.
Structure

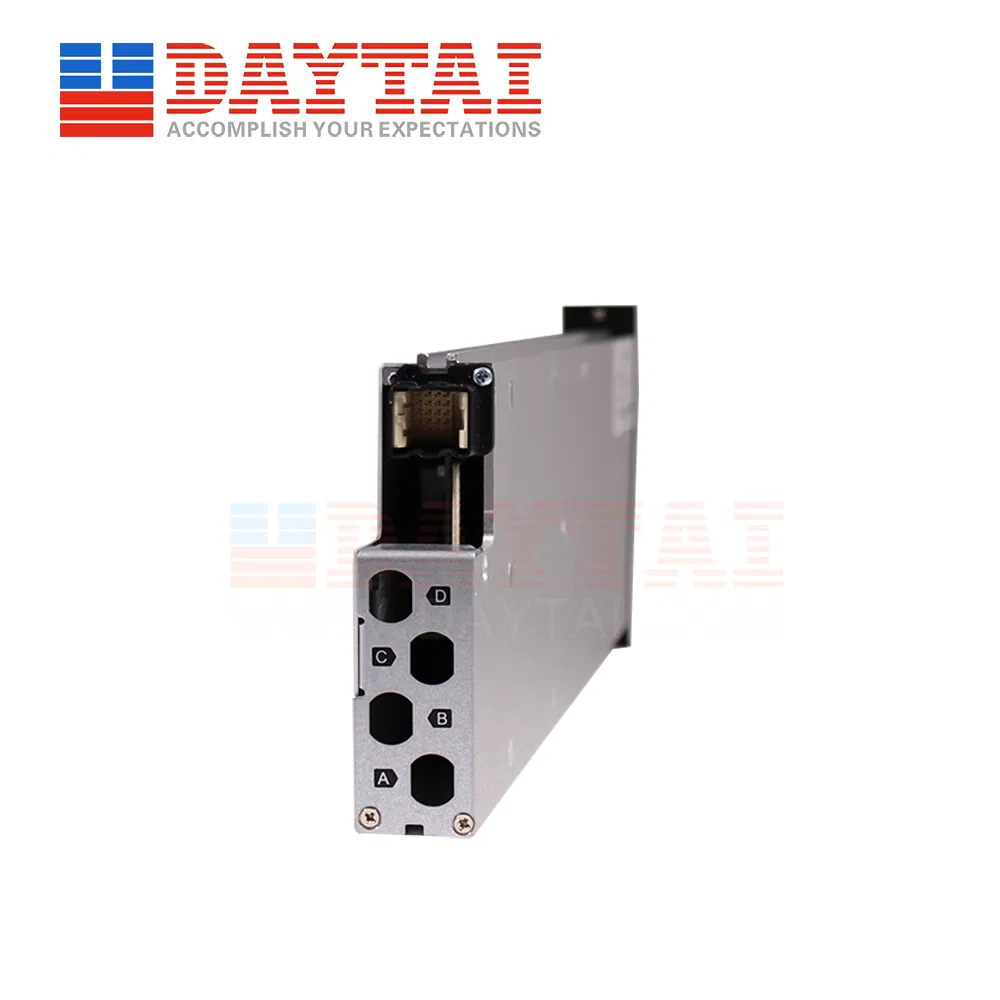

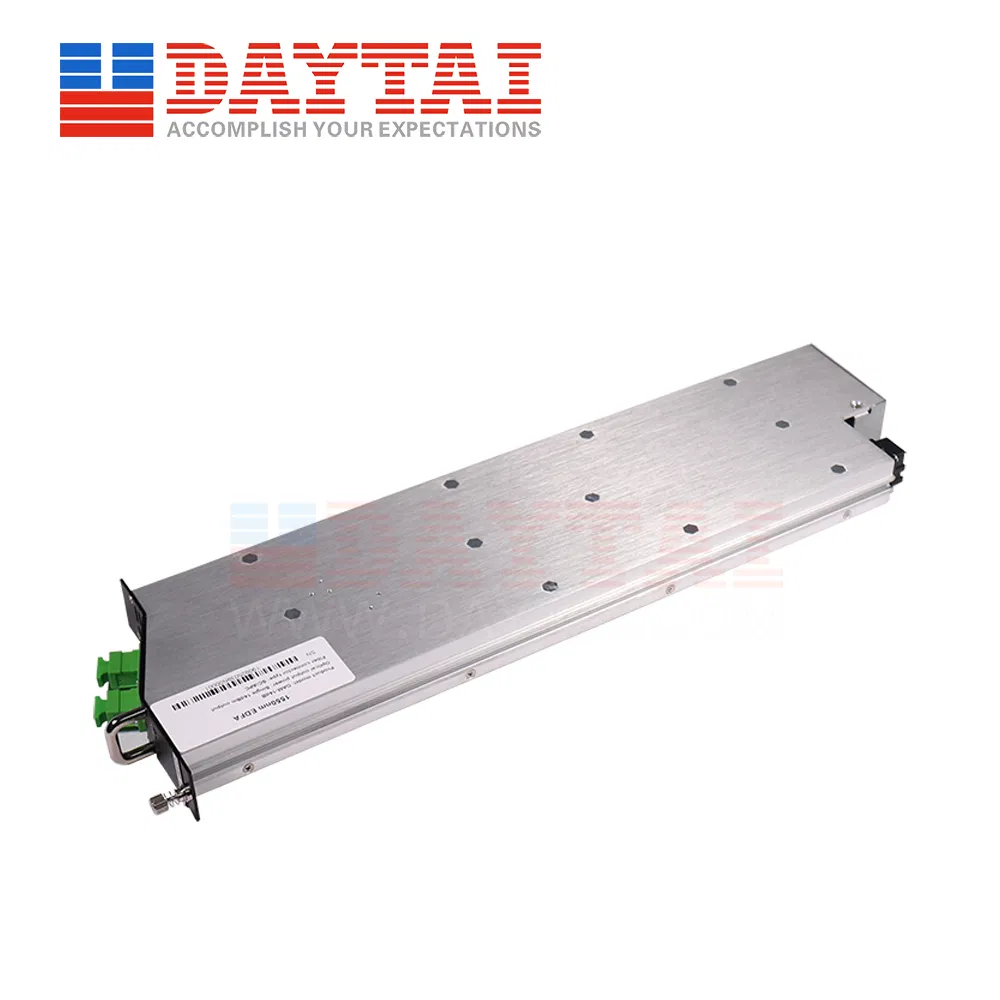

Its housing is made of metal sheet. This module can be mounted or pull out from the rack front.
Internal circuit
Each EDFA module includes input and output optical power detection parts to adjust the laser pump automatically and make the output optical power of EDFA module keep constant. Internal control circuit accurately maintains the output power and temperature of the laser. This module keeps data exchange with CMM status control and display unit by A/D sampling, switching circuit and communication interface circuit.
Performance Parameters
| Item | Unit | Technique parameter | Comment | |
| Operating bandwidth | nm | 1535 - 1565 | ||
| Input optical power range | dBm | -5 - +10 | Suggested input optical power 0 - +5dBm | |
| Output optical power | dBm | 13 - 22 | ||
| Output power stability | dBm | ±0.5 | ||
| Noise figure | dB | ≤ 5.0 | Input optical power 0dBm | |
| Return loss | Input | dB | ≥ 45 | |
| Output | dB | ≥ 45 | ||
| Pump leakage power | Input | dBm | ≤ -30 | |
| Output | dBm | ≤ -30 | ||
| C/N | dB | ≥ 52 | ||
| C/CTB | dB | ≥ 63 | ||
| C/CSO | dB | ≥ 63 | ||
| Optical connector type | SC/APC | |||
| Operating Temperature Range | ºC | -5 - +55 | ||
| Maximum operating relative humidity | % | Max 95% no condensation | ||
| Storage Temperature Range | ºC | -30 - +70 | ||
