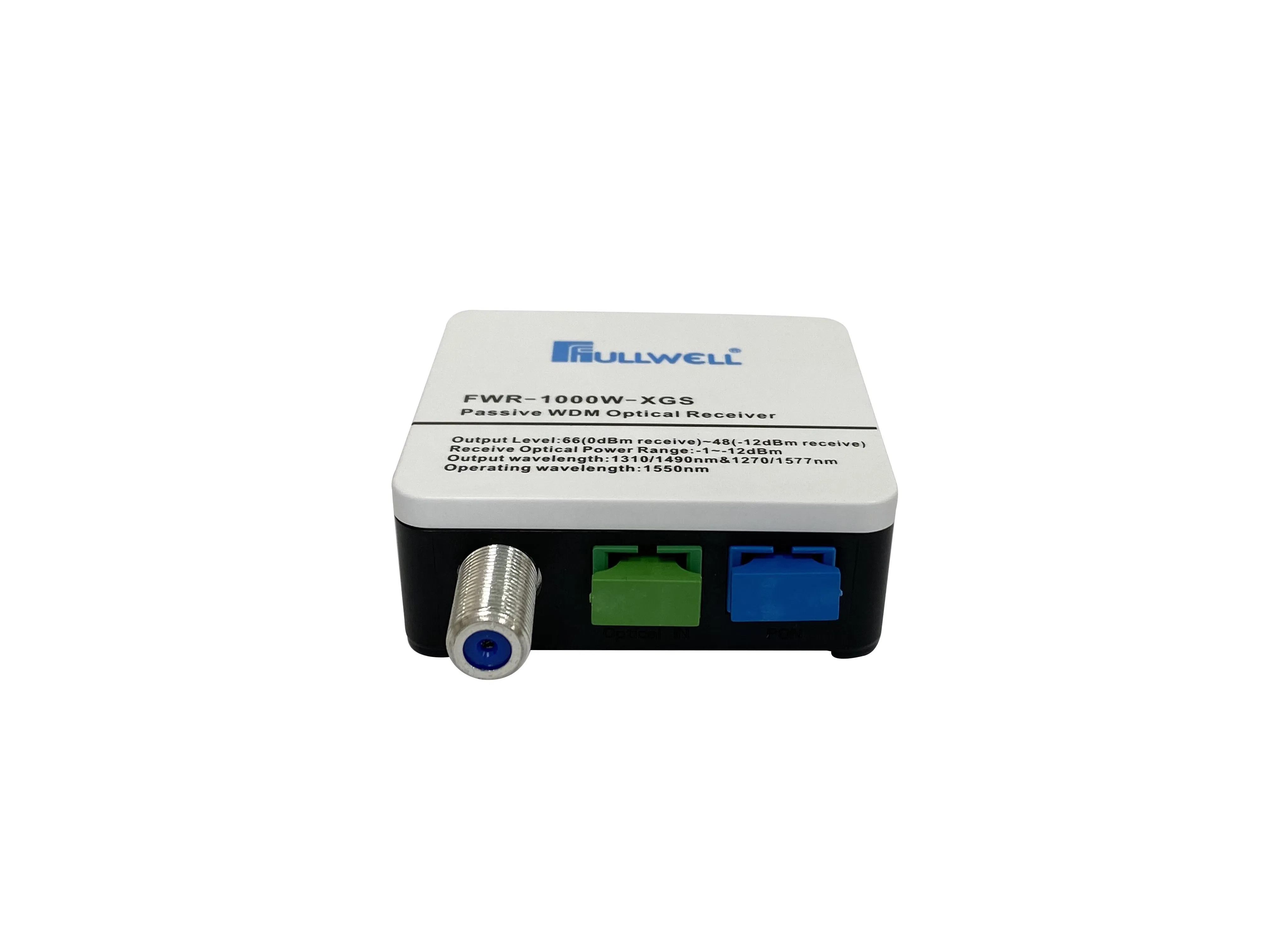

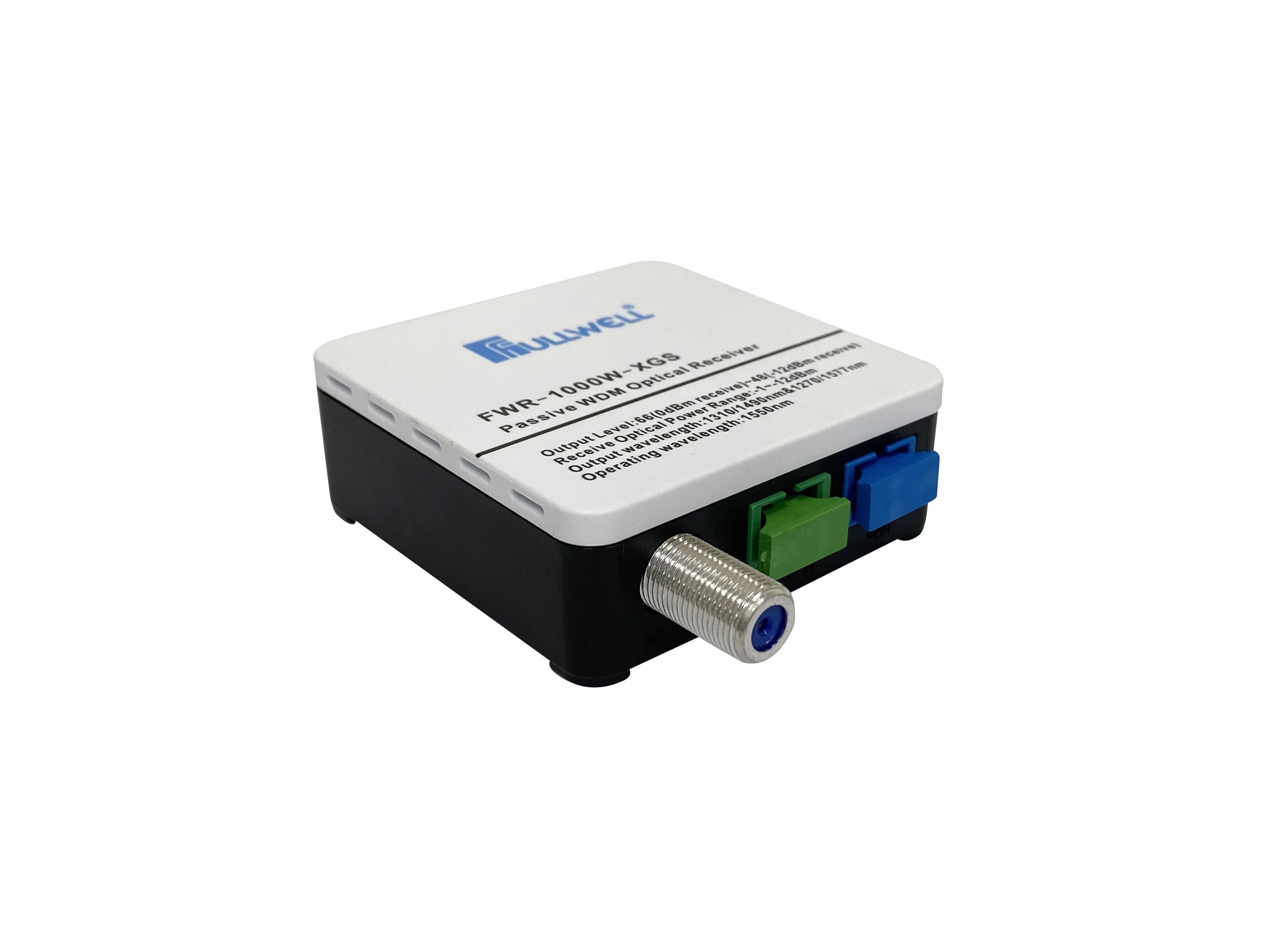

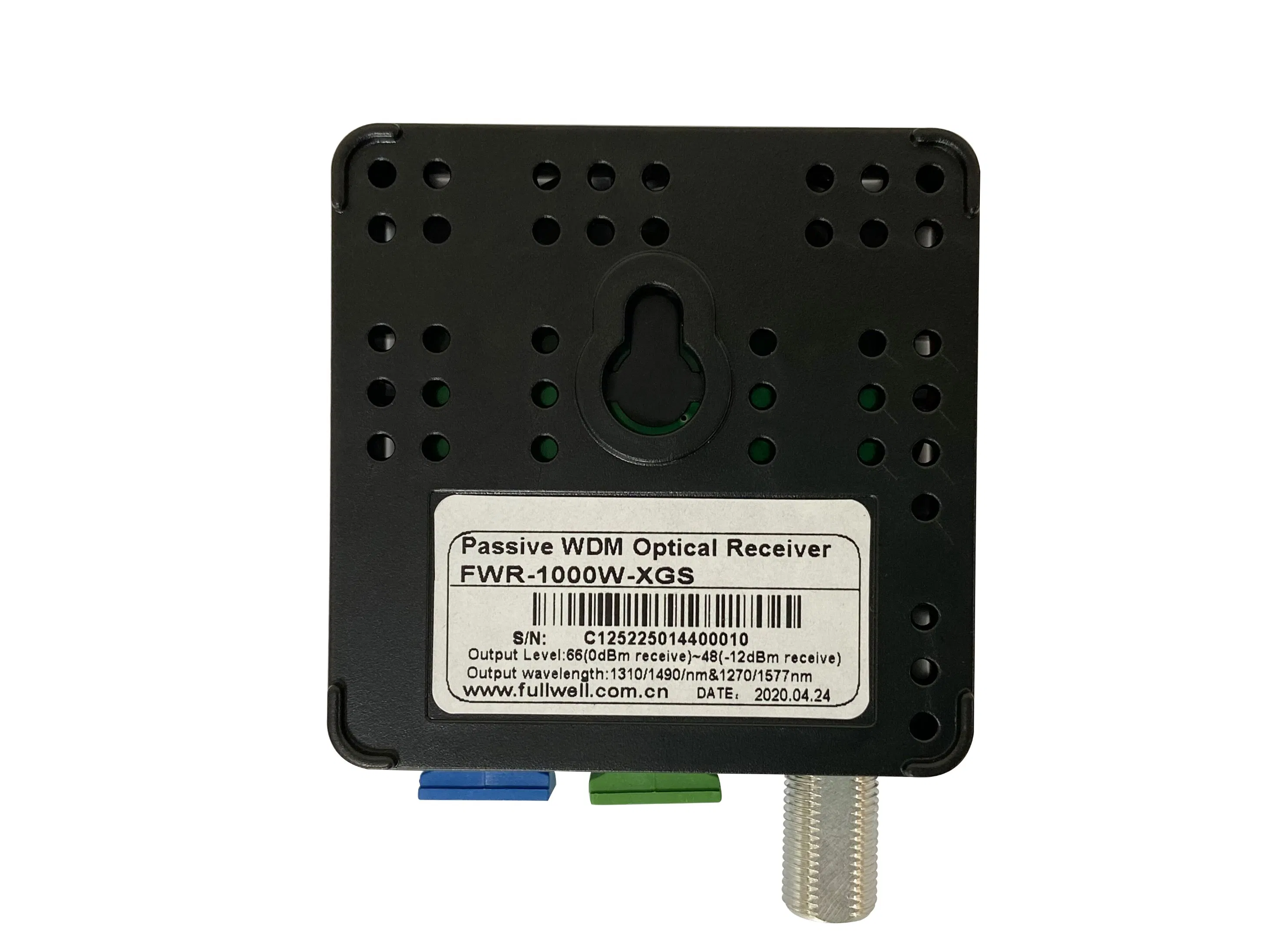

FWR-1000W-XGS Passive WDM Optical Receiver
Product Description
FWR-1000W-XGS is designed as a novel equipment for special requirement of CATV industry. It is catering to object of passive terminal receiving equipment for FTTH 1310/1490/&1270/1577&1550nm signals, realizing 1550nm receiving and PON signals transferring, which FTTH projects combining CATV and PON signals easier.It is very convenient as just plug and play and also energy-saving. This equipment adopts high isolation WDM & high sensitive optical receiving tube and exchanges 50dBuv analog level while receiving as -9dBm (44 dBuv digital level). It is superior fitting for FTTH application in place of faraway village, construction site and etc due to the advantages of powerless, no consumption, economic and flexible.
Product Feature

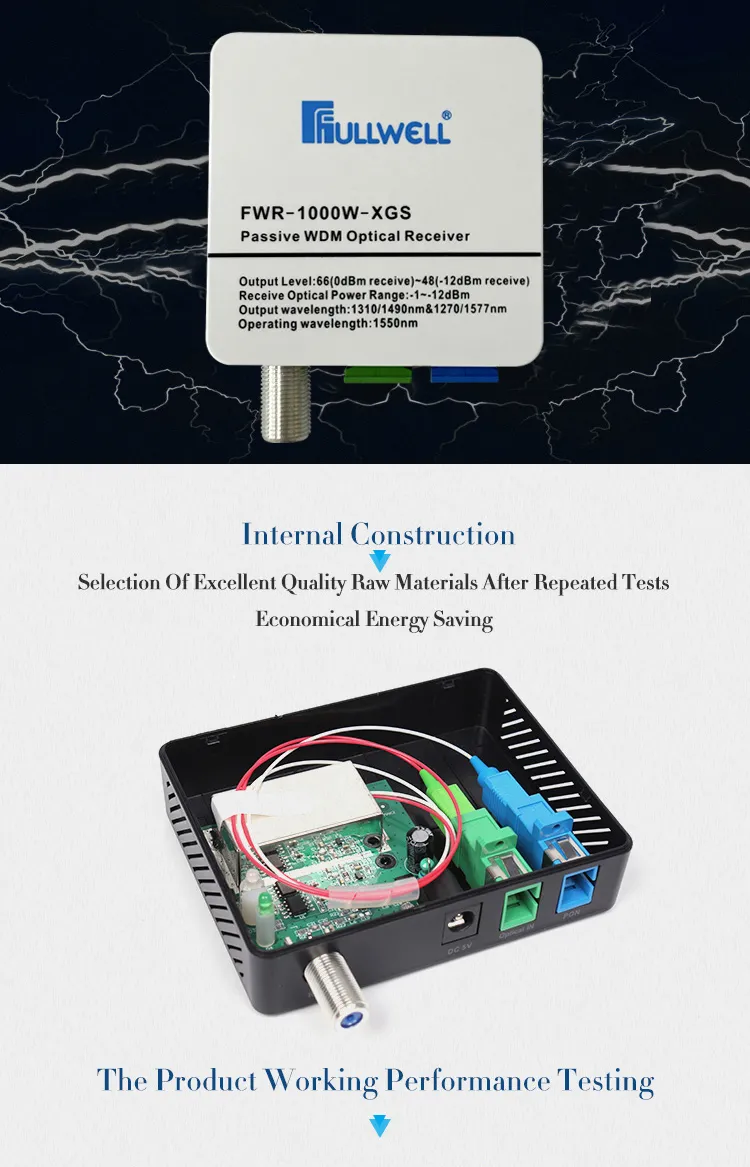

1. Only WDM & optical electric exchanging parts, average fault-free time is over 150 thousands hours.

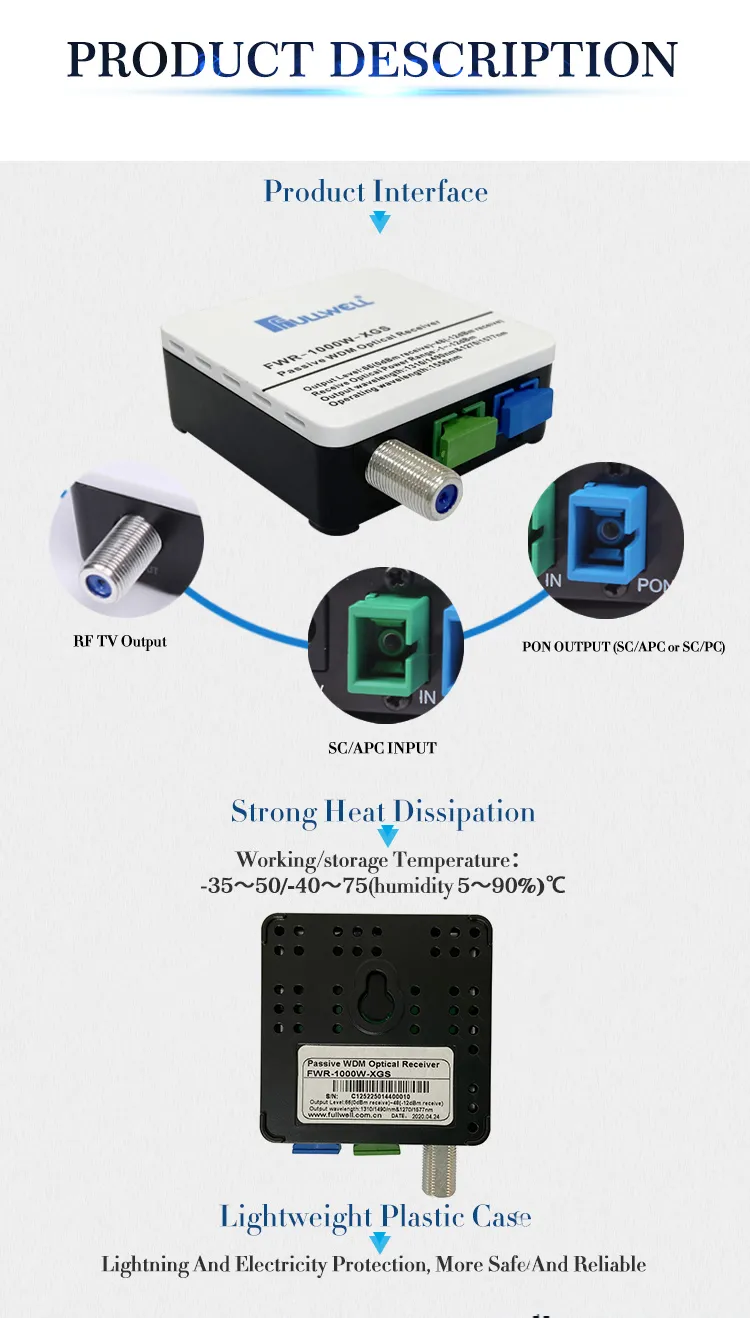

2. Optical in: SC/APC, Optical out: SC/UPC, output ports have F type metric/inch screw, nut base , F base and RF to choose.
3. Superior low optical power receiving, 1540-1565nm inputting, plug and play, PON insert loss ≤0.8dB.
4. No external power source required, no consumption, safe and energy conservation.

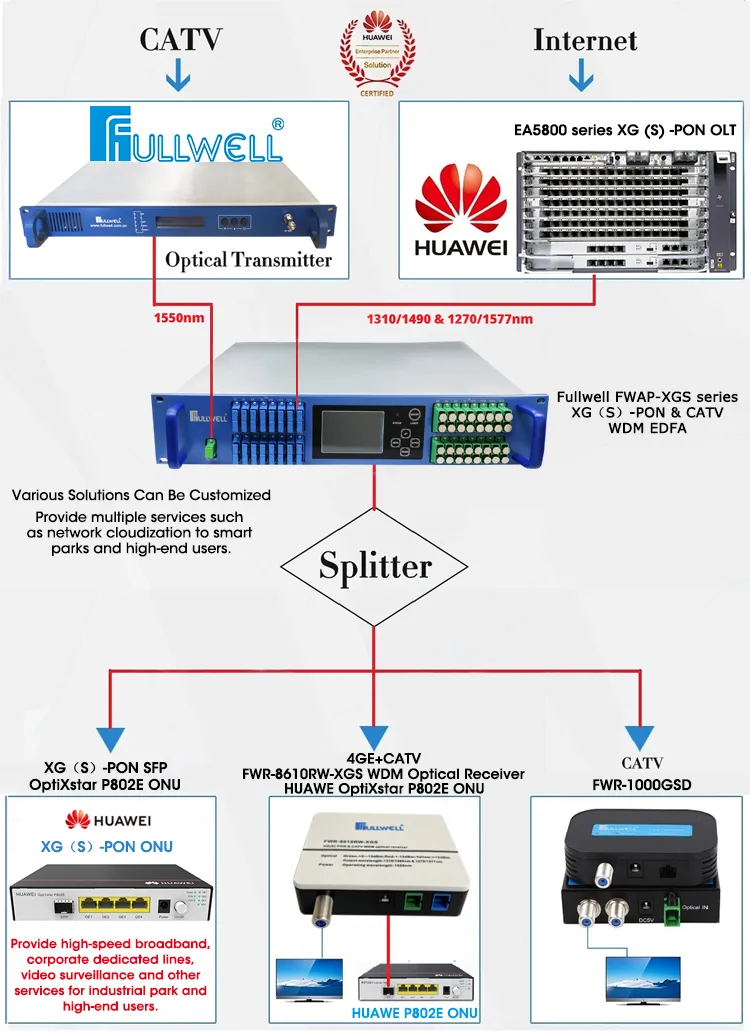

5. Can be compatible with any FTTx PON or customized XGS-PON triple play optical network.
6. Plastic enclosure with white top cover and black base, exquisite texture appearance, to demonstrate brand strength.
Technical Parameters
| Item | Unit | Performance Parameter | |
Optical Characteristic | Input Wavelength | nm | 1310,1490,1550,1270,1577 |
| PON Wavelength | nm | 1310,1490,1270,1577 | |
| Operation Wavelength | nm | 1540~1565 | |
| Channel Separation | dB | ≥40(1310/1490nm and 1550nm ) | |
| Response | A/W | ≥0.9 | |
| Receiving Power Range | dBm | 0~-12(advice -1~-6) | |
| Reflection Loss | dB | ≥45 | |
| Optical Connector | / | Optical-IN:SC/APC, PON:SC/UPC | |
| RF Characteristic | Bandwidth/Flatness | MHz/dB | 47~1000/≤±2 |
| Output Level | dBuv | 66(0dBm receive)-48(-9dBm receive) | |
| RF Output Interface | / | Female or RF | |
| CNR/MER | dB | ≥44/34(0dBm),≥38/29(-6dBm) | |
| CTB/CSO/HUM | dB | ≥70/≥66/≥60(-3dBm/60dBuv) | |
| Other Requirement | Working/Storage temperature | ºC | -30~55/-40~75 |
| Working/Storage Humidity | % | Humidity(5%-90%)((No Condensation) | |

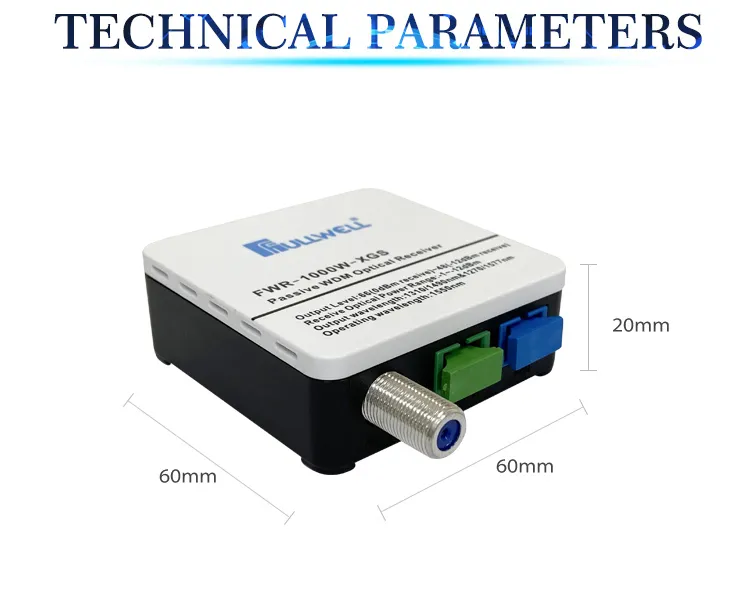

| Size | mm | 78×60×22.5 | |
Product Model Series
FWR-1000W-XGS Passive XGS-PON WDM Optical Receiver
