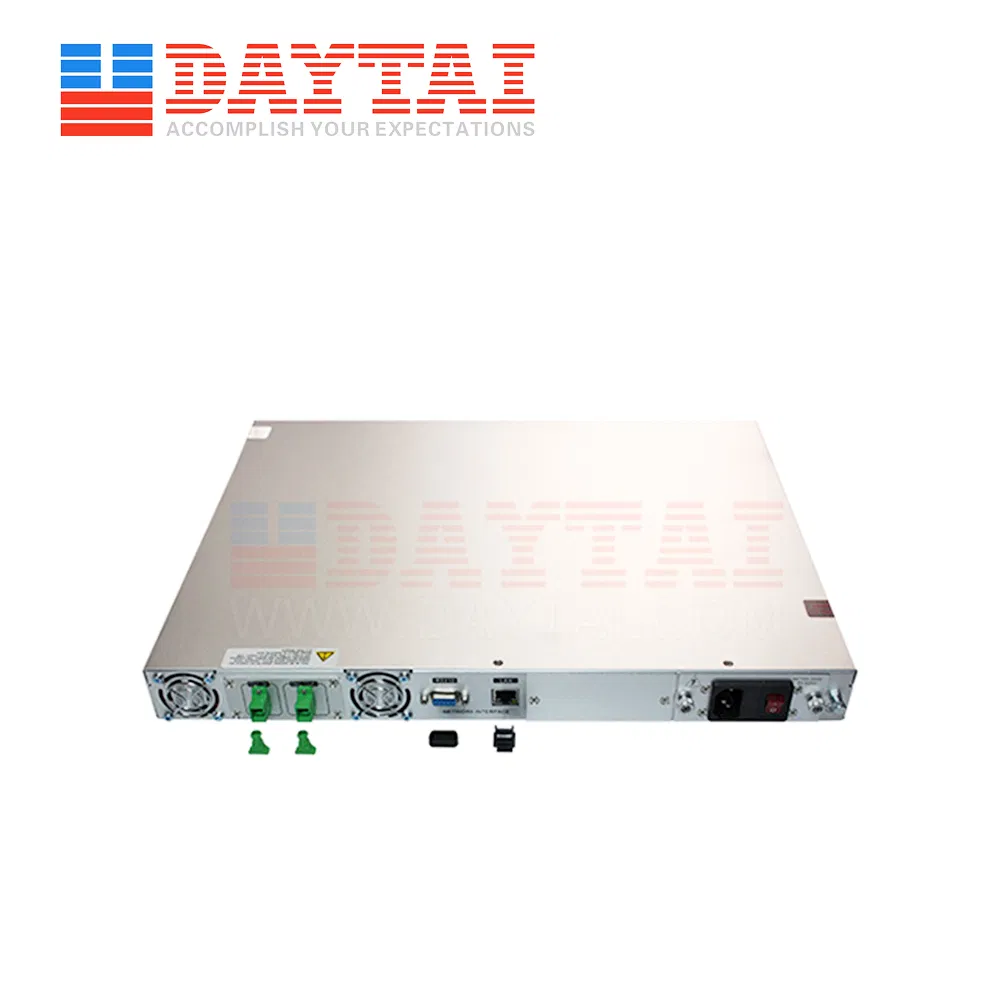

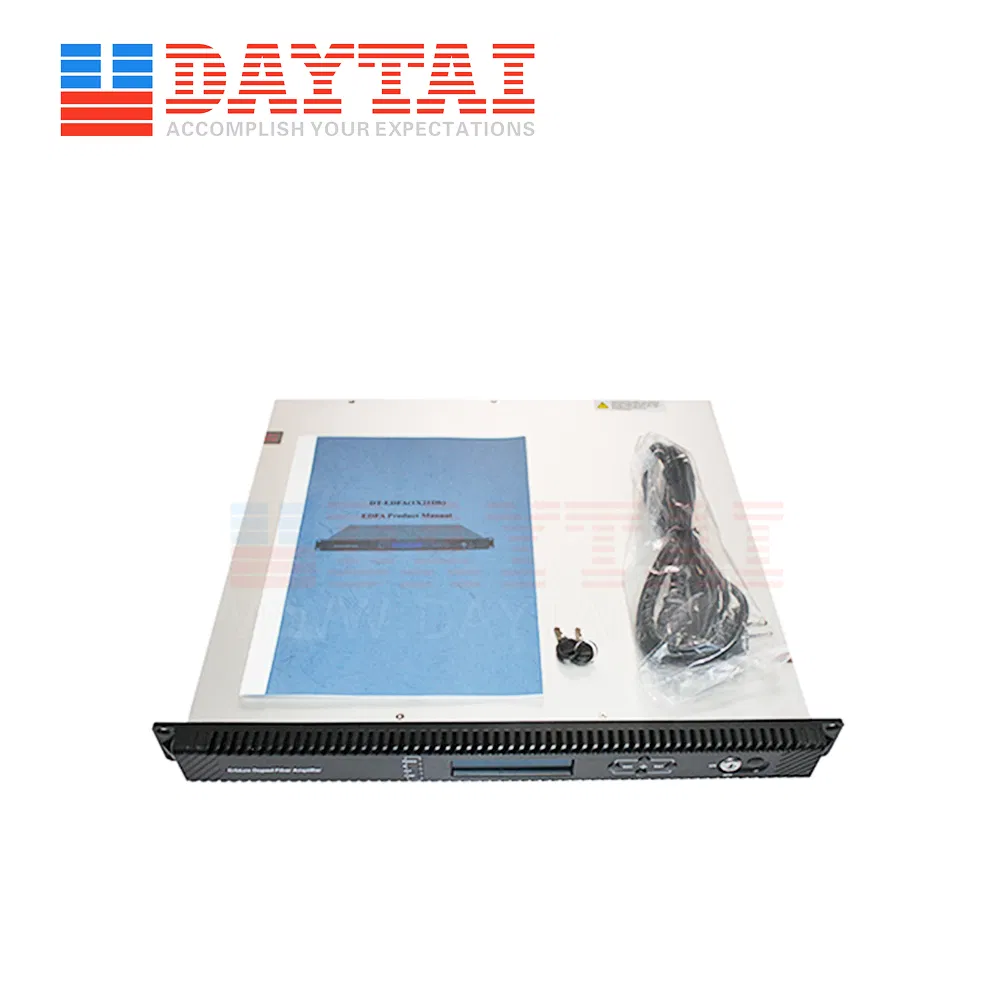

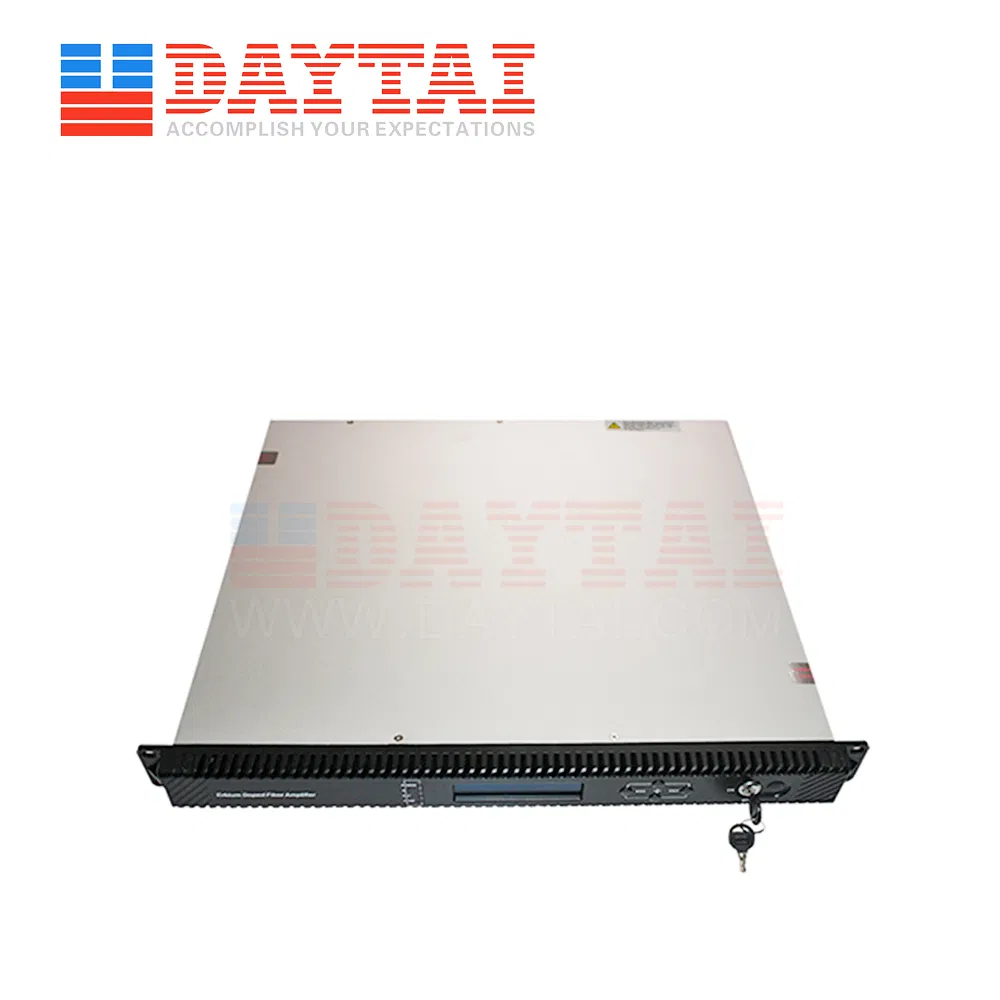

1 Way Output 1550nm 13, 14, 15, 16, 17, 18, 19 dBm Optical Amplifier EDFA
DescriptionThis manual applies to EDFA Optical Amplifier 1 Way Output (DT-EDFA-1 x XXdBm) series 1550nm EDFA. It mainly describes the performance characteristics, technical parameters, installation and debugging, common troubleshooting, and other related content of the product. In order to ensure th......
Send Inquiry
Product Description
Description
This manual applies to EDFA Optical Amplifier 1 Way Output (DT-EDFA-1 x XXdBm) series 1550nm EDFA. It mainly describes the performance characteristics, technical parameters, installation and debugging, common troubleshooting, and other related content of the product. In order to ensure that the equipment can be successfully installed and safely operated, please read this manual carefully before installing and debugging the equipment. And the installation and debugging should be strictly according to the specified steps on the manual to avoid unnecessary damage to equipment or accident harm to the operator. Any questions, please contact with us in time.
Product Performance
| Item | Unit | Technique parameter | Remark | |
| Operating bandwidth | nm | 1535 - 1565 | ||
| Input optical power range | dBm | -3 - +10 | Suggested input optical power 0 - +5dBm | |
| Output optical power | dBm | 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24 | Optional | |
| Output power stability | dBm | ±0.2 | ||
| Noise figure | dB | ≤ 5.0 | Input optical power 0dBm | |
| Return loss | Input | dB | ≥ 45 | |
| Output | dB | ≥ 45 | ||
| Pump leakage power | Input | dBm | ≤ -30 | |
| Output | dBm | ≤ -30 | ||
| Optical connector type | FC/APC or SC/APC | |||
| Power supply voltage | V | AC160V - 250V (50 Hz) | ||
| Consumption | W | < 30 | ||
| Operating Temperature Range | °C | -5 - +55 | ||
| Maximum operating relative humidity | % | Max 95% No Condensation | ||
| Storage Temperature Range | °C | -30 - +70 | ||
| Maximum storage relative humidity | % | Max 95% No Condensation | ||
| Dimension | mm | 483(W)×340(D)× 44(H) | ||
