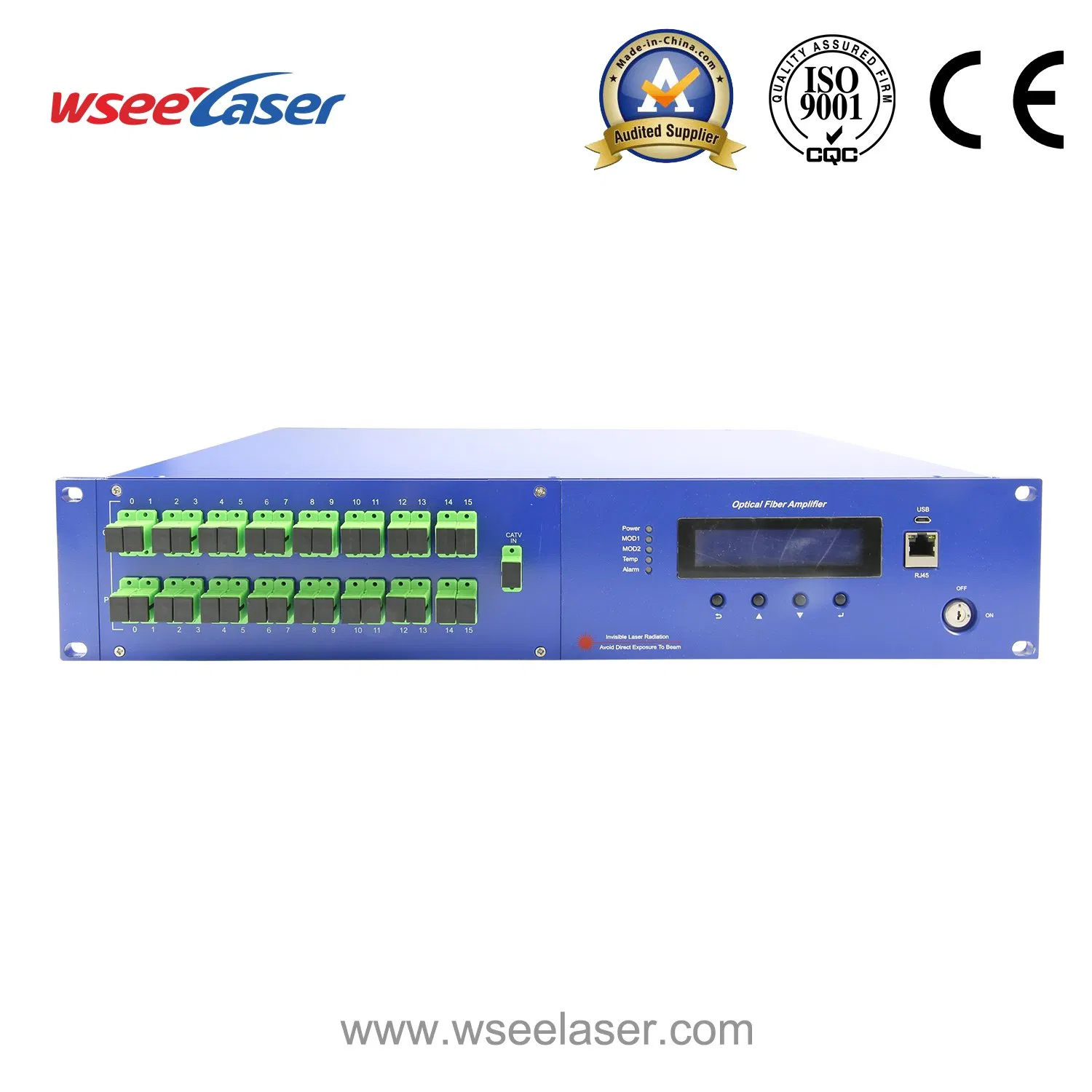

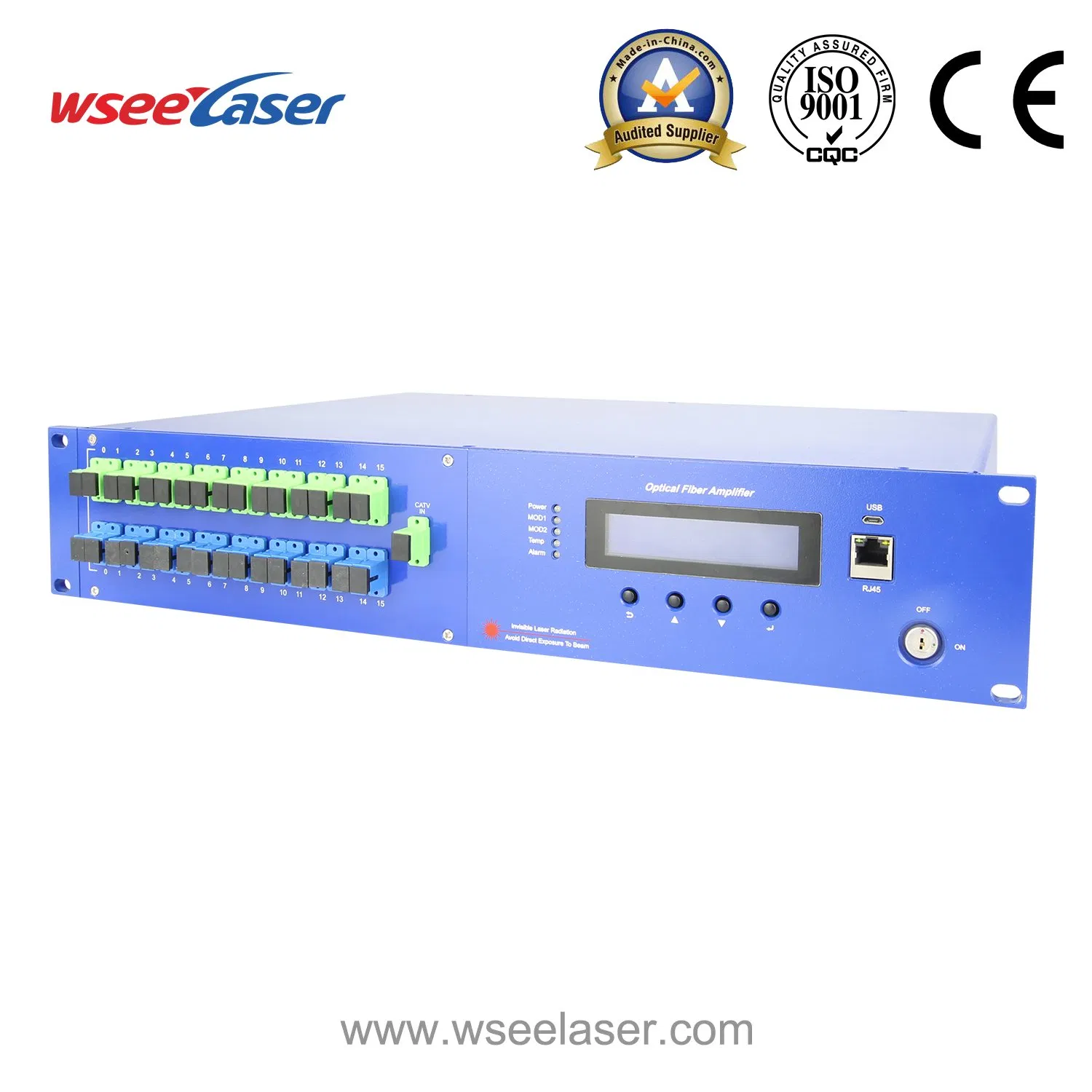

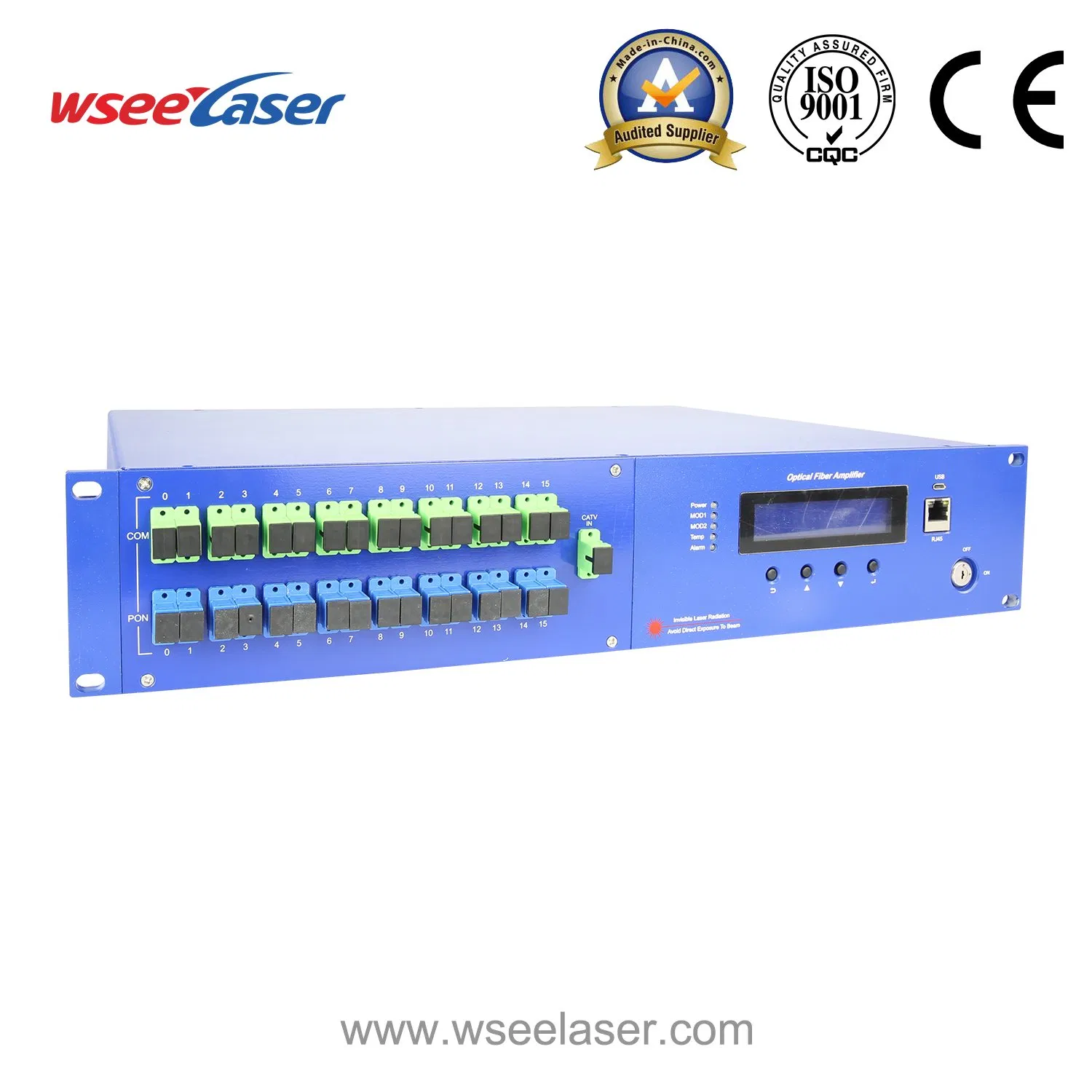

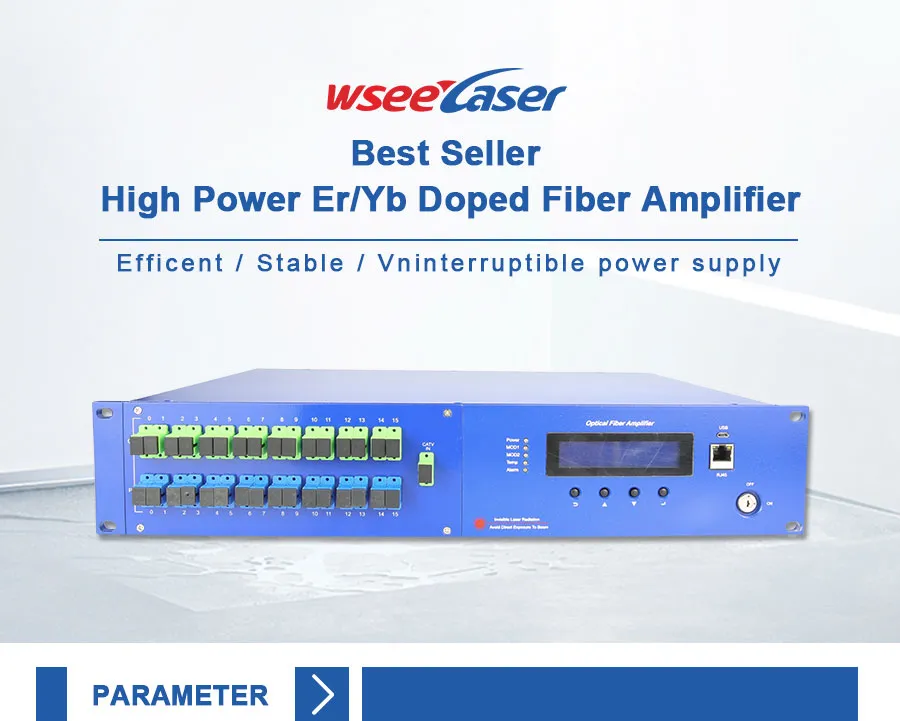

China Ws-52eya2u High Power CATV Optical Amplifier Wdm Pon EDFA

Product Description

Technical parameters	WS-52EYAxx
Wavelength	1535-1565nm
Input power	-5dBm~+10dBm(normal input -2dBm~+5dBm)
Output power	33dBm~40dBm(WDM -1dBm)
Output port	SC: 16/32/64;LC: 32/64/128
Each output power	10~23dBm or customized
Noise	< 5.0dB(Pin=0dB)
Polarization dependence loss (PDL)	< 0.3dB
Polarization dependence gain (PDG)	< 0.4dB
Polarization mode dispersion(PMD)	< 0.3dB
Pump leakage power	< -30dBm
Echo loss	≥ 55dB
Optical connector	SC/APC&SC/UPC&LC/APC&LC/UPC
Supply voltage	220V(AC90V~265V)&110V(AC90V-130V)&48V(DC30~72V)
Consumption	≤100w
Working temperature	-5ºC ~+42ºC
Storage temperature	-40ºC ~+80ºC
Working relative humidity	5~95%
Product net size	380(L)480(W)89(H)
Package dimension	640(L)640(W)200(H)

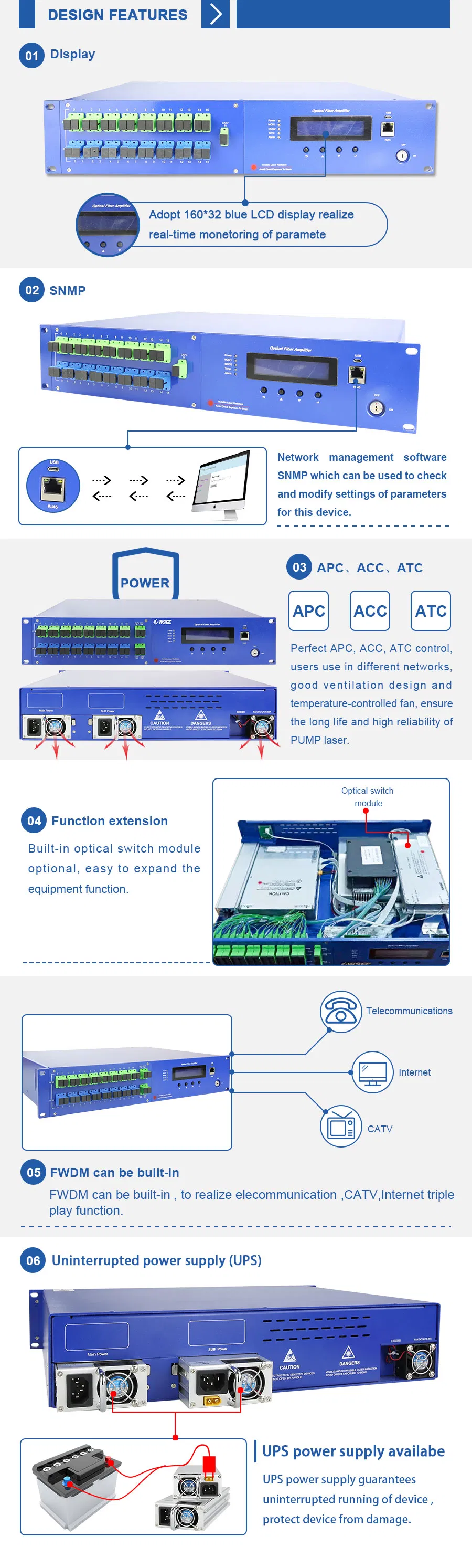

The WS-52EYAxx series high power amplifier is a high power multi-output optical fiber amplifier with a gain spectrum bandwidth of 1535~1565nm. It is mainly designed for CATV or 1~8 continuous strip channels (ITU wavelength) applications. It provides a flexible, low-cost solution for large-scale FTTH coverage of CATV systems in large and medium-sized cities.
WS-52EYAxx can achieve single-wavelength cable TV transmission, CWDM single-fiber three- wave, flat-gain type, DWDM; its reliable and excellent performance ratio between the main application of FTTH, FTTB, DBS, MMDS, FTTX pon, is to build CATV large Medium-sized optical fiber transmission network is an important equipment.

Ws-52eya2u High Power CATV Optical Amplifier Wdm Pon EDFA
