Outdoor Fiber Amplifier Gpon Epon Olt Pon 1550nm Jdsu EDFA
Description Field (Outdoor) Optical Amplifier (DT-OA-1550F),Working Bandwidth:1535 ~ 1565nm,Input Optical Power Range:-3 ~ +10dbm,Output Optical Power:(13 ~ 24dBm is optional,price is not the same),Output Power Stability:±0.5dB,Noise Figure:≤ 5.0dB(Input Optical Power 0dBm),Input E......
Send Inquiry
Product Description
★Description
Field (Outdoor) Optical Amplifier (DT-OA-1550F),Working Bandwidth:1535 ~ 1565nm,Input Optical Power Range:-3 ~ +10dbm,Output Optical Power:(13 ~ 24dBm is optional,price is not the same),Output Power Stability:±0.5dB,Noise Figure:≤ 5.0dB(Input Optical Power 0dBm),Input End and Output End Return Loss:≥ 45dB,C/N:≥ 50dB,C/CTB:≥ 63dB,C/CSO:≥ 63dB,Connector Type:FC/APC or SC/APC,Supply Voltage:AC 110V or AC 265V OR 24V,Operating Temperature:-40 ~ +50ºC.
★Features
* Uselow-noise pump laser of famous brand with low distortion, wide bandwidth andhigh output optical power.
* Usehigh performance erbium-doped fiber, with high energy conversion efficiency;Advanced SMT production process with higher reliability is used in the internalcircuitry
* Built-inperfect microcomputer automatic control circuit, monitor a variety of workingconditions of output power and laser in real time, to make sure the opticaloutput power is steady and extend the working life of the laser.

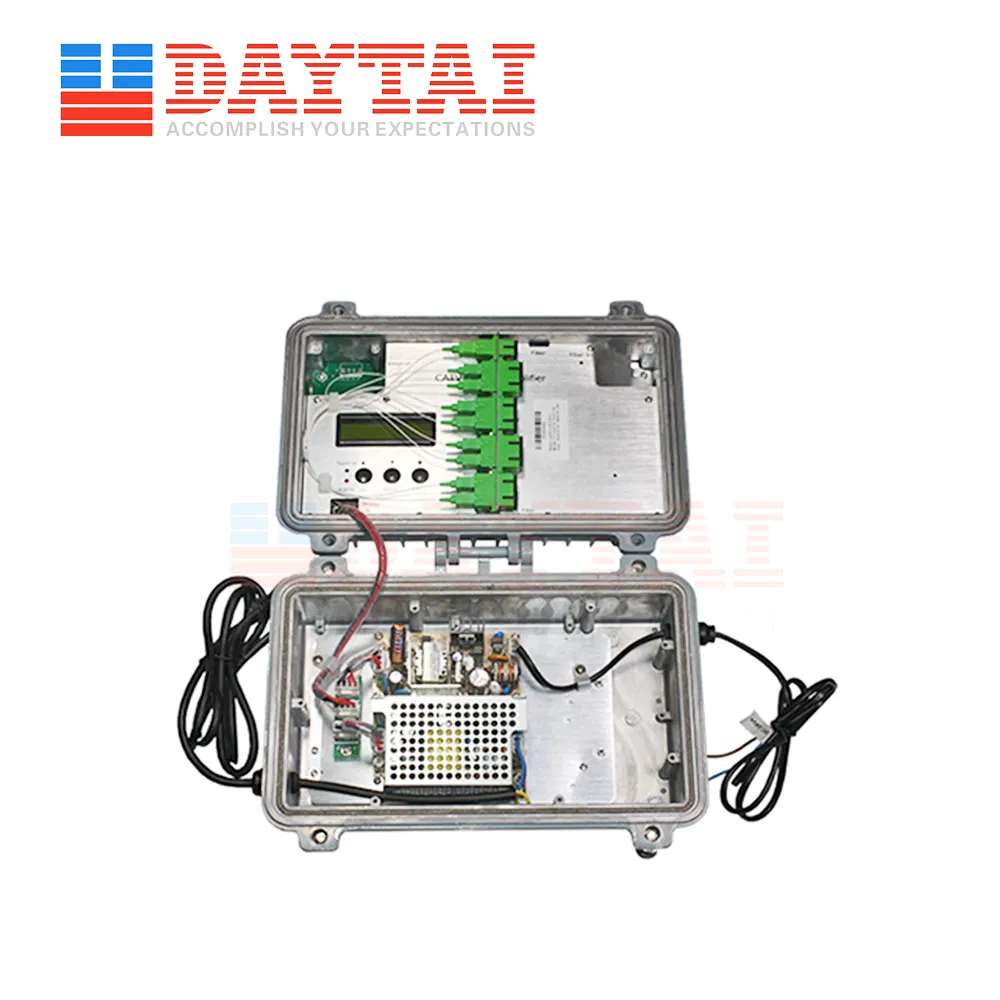

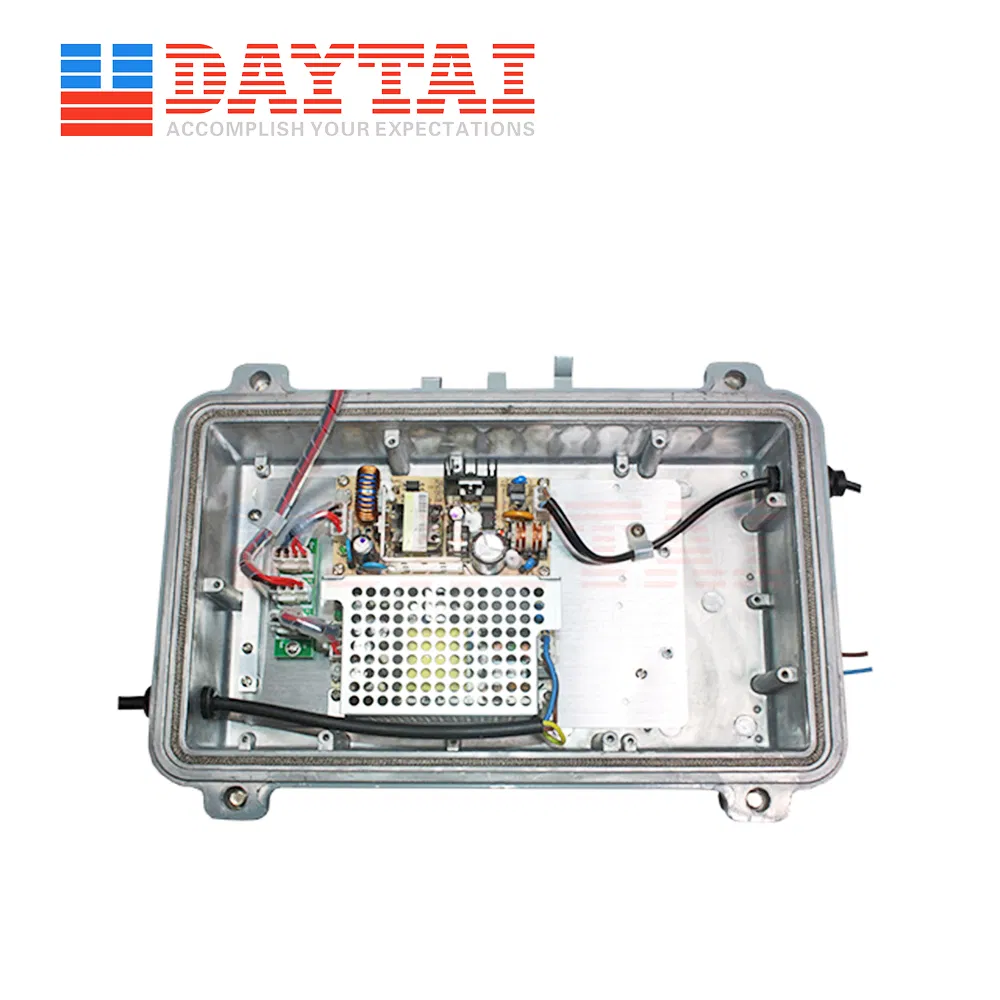

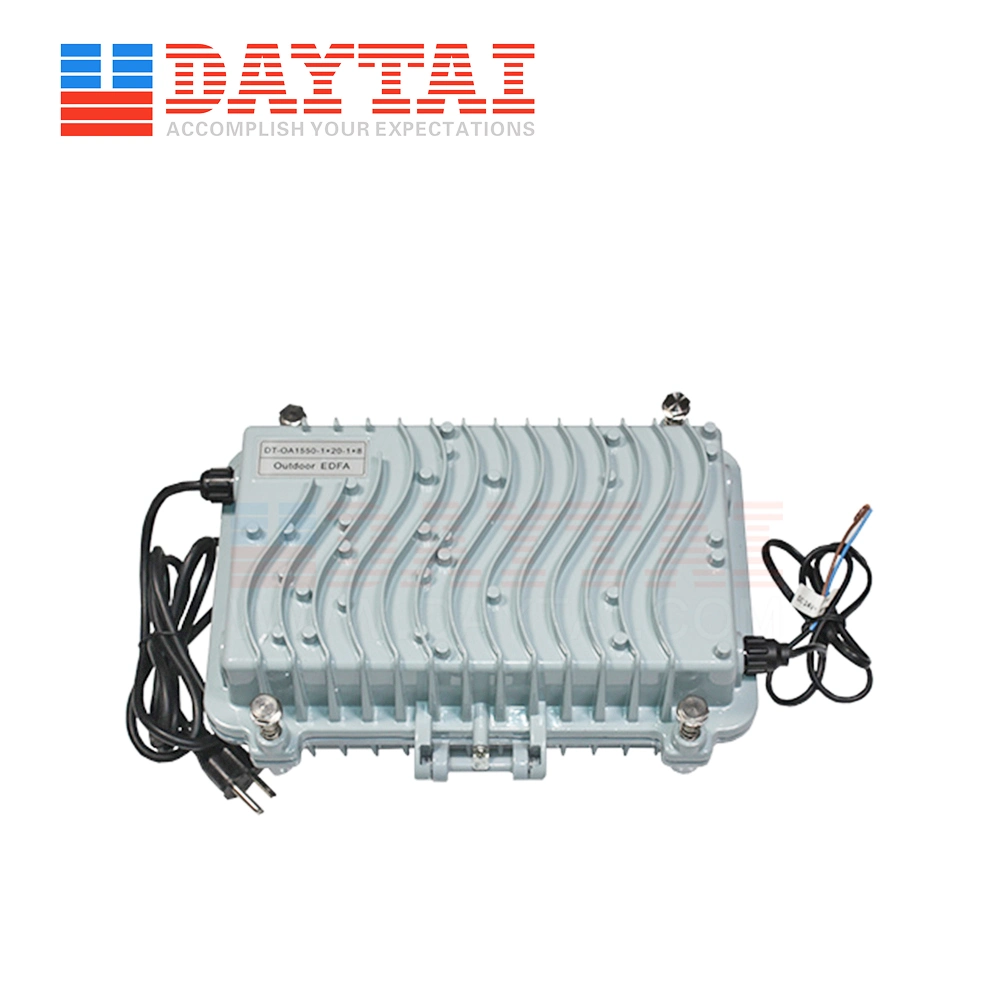

* Large castaluminium drain case and high-frequency E-Electric refrigerator which make theequipment can adapt field environmental temperature aboutfrom-40ºCto +60 ºCare build in the wild-type EDFA. It is mainly used in remote areas having noindoor room.
