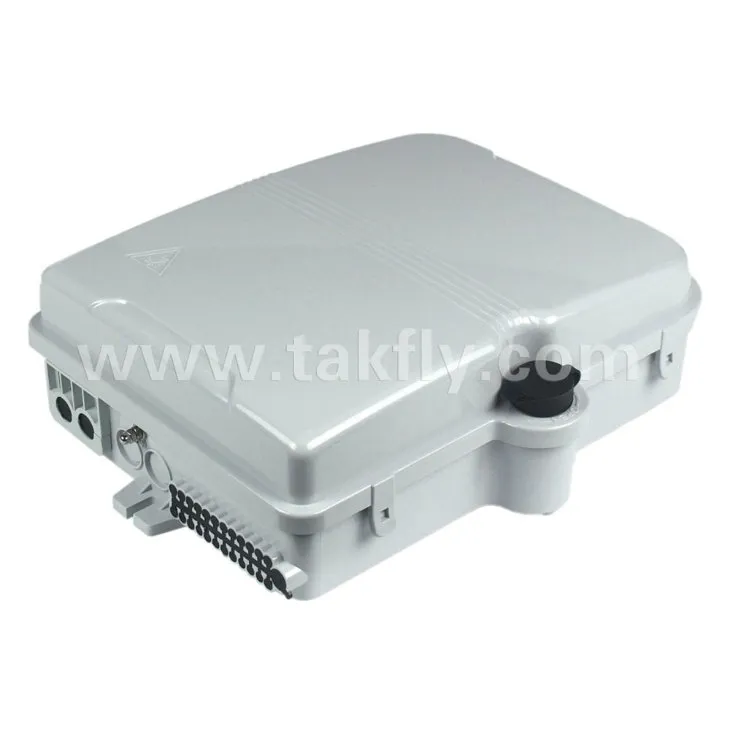

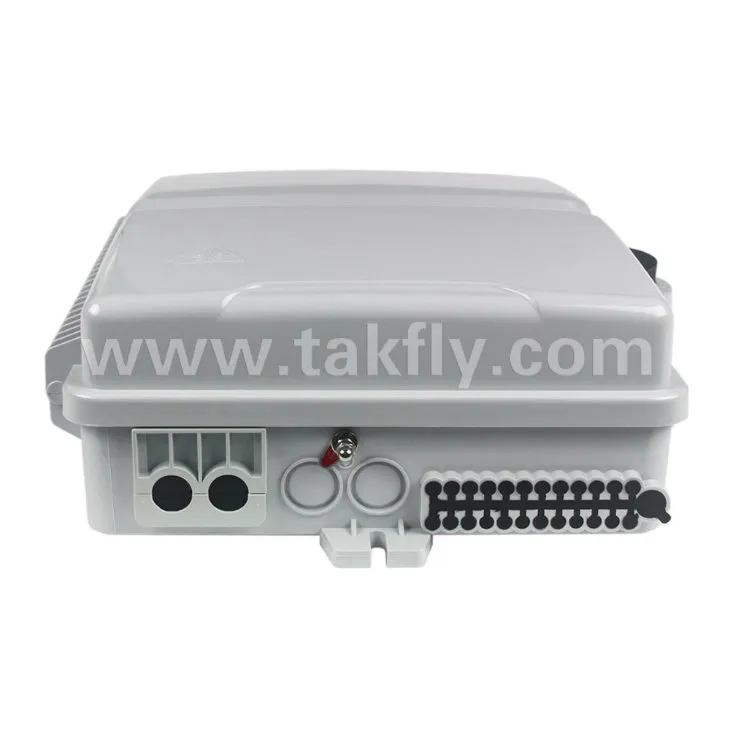

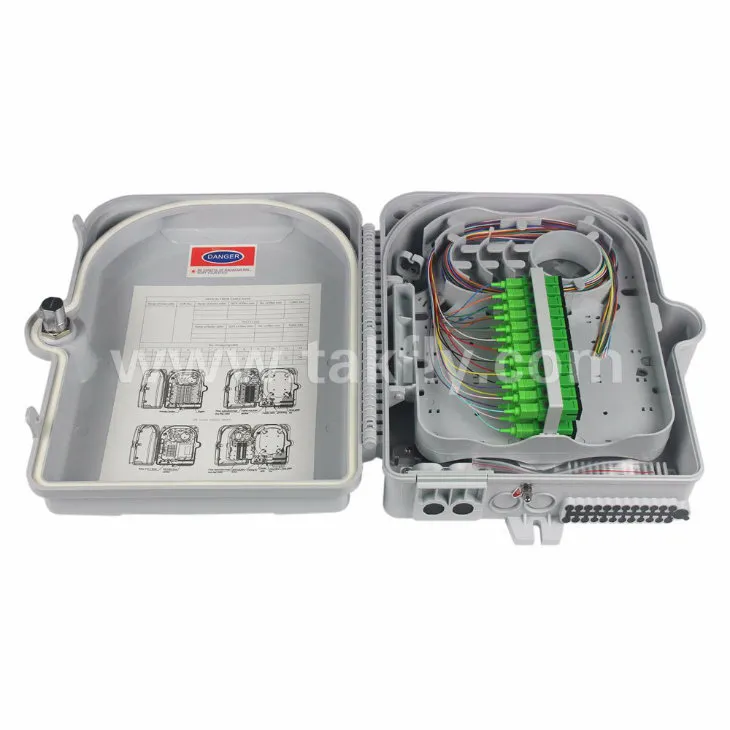

Outdoor 12 16 24 Way FTTH Telecom Fiber Optic Termination Distribution Box

1. Description:
Fiber Optic Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.


2. Features:

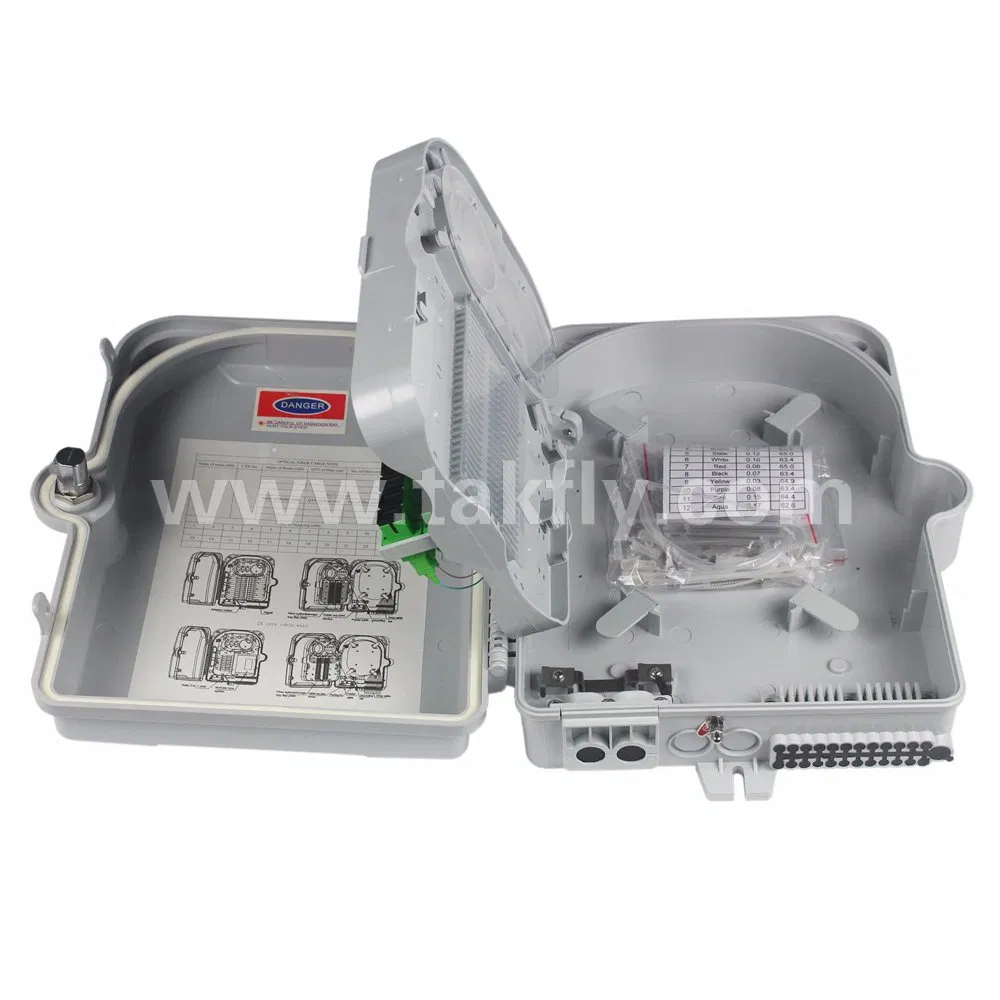

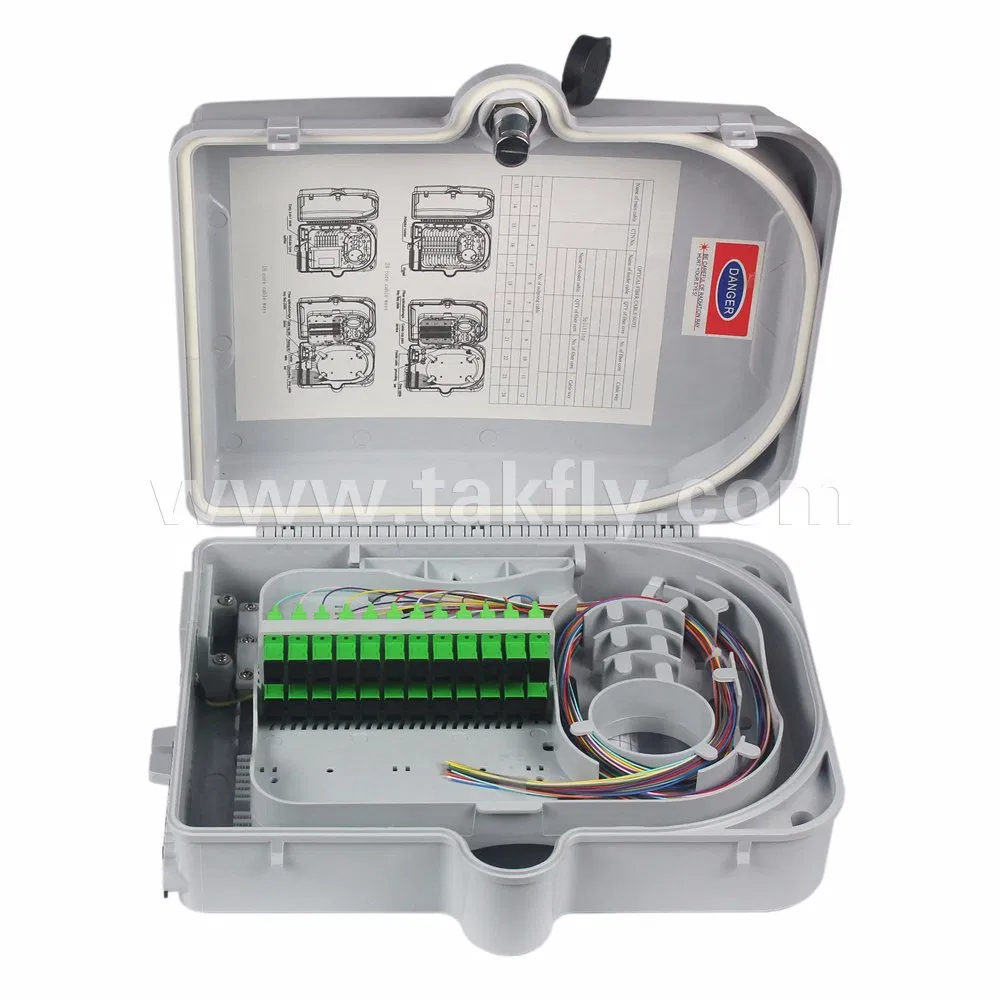

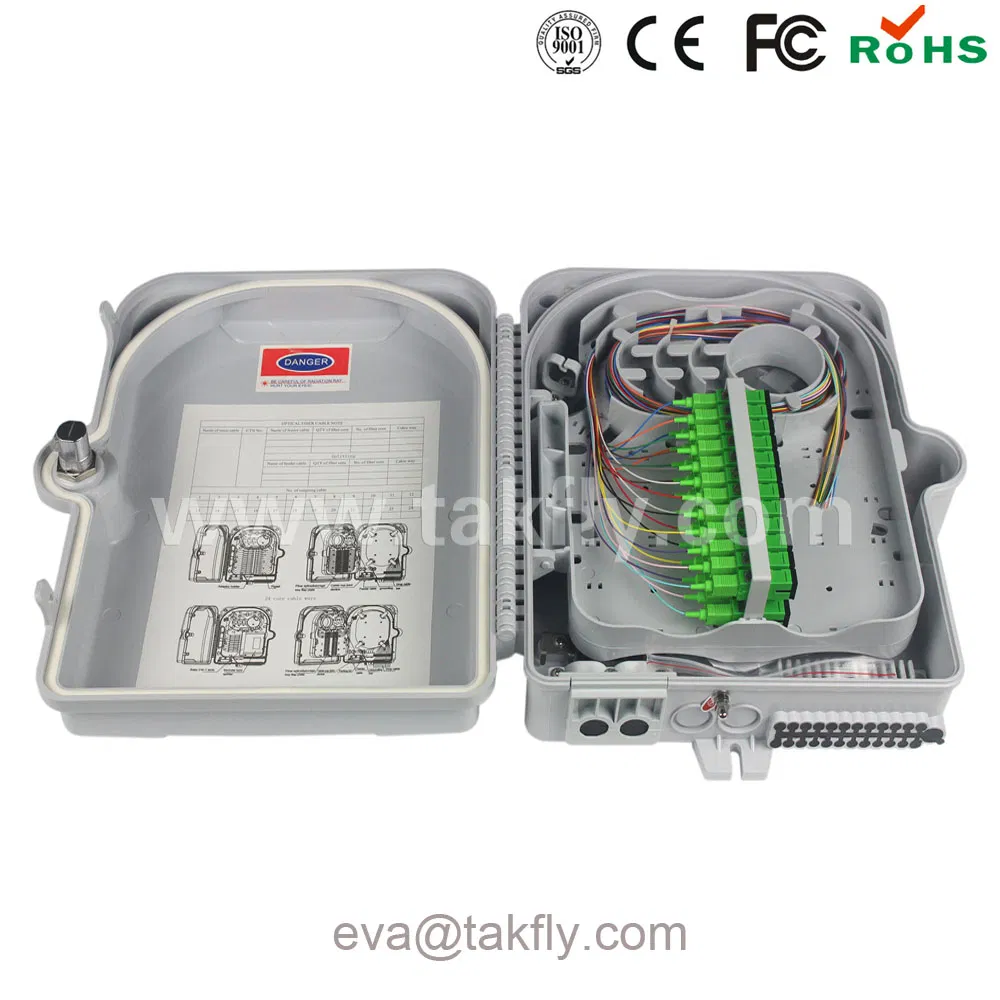

Total enclosed structure. Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.  Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.


3. Specification:
(1) Environmental requirement
Working temperature:-40ºC~+85ºC
Relative humidity:≤85%(+30ºC)
Atmospheric pressure:70KPa~106Kpa

(2) Main technical datasheet
Insertion loss:≤0.2dB
UPC return loss:≥50dB
APC return loss:≥60dB
Life of insertion and extraction:>1000 times

(3) Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than2MΩ/500V(DC);
IR≥2MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover.
U≥3000V


4. Configuration table:
Table 1 Model and configuration
