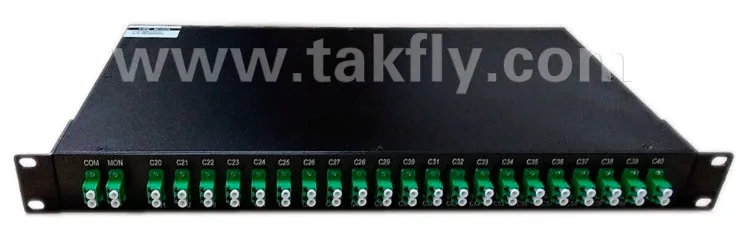

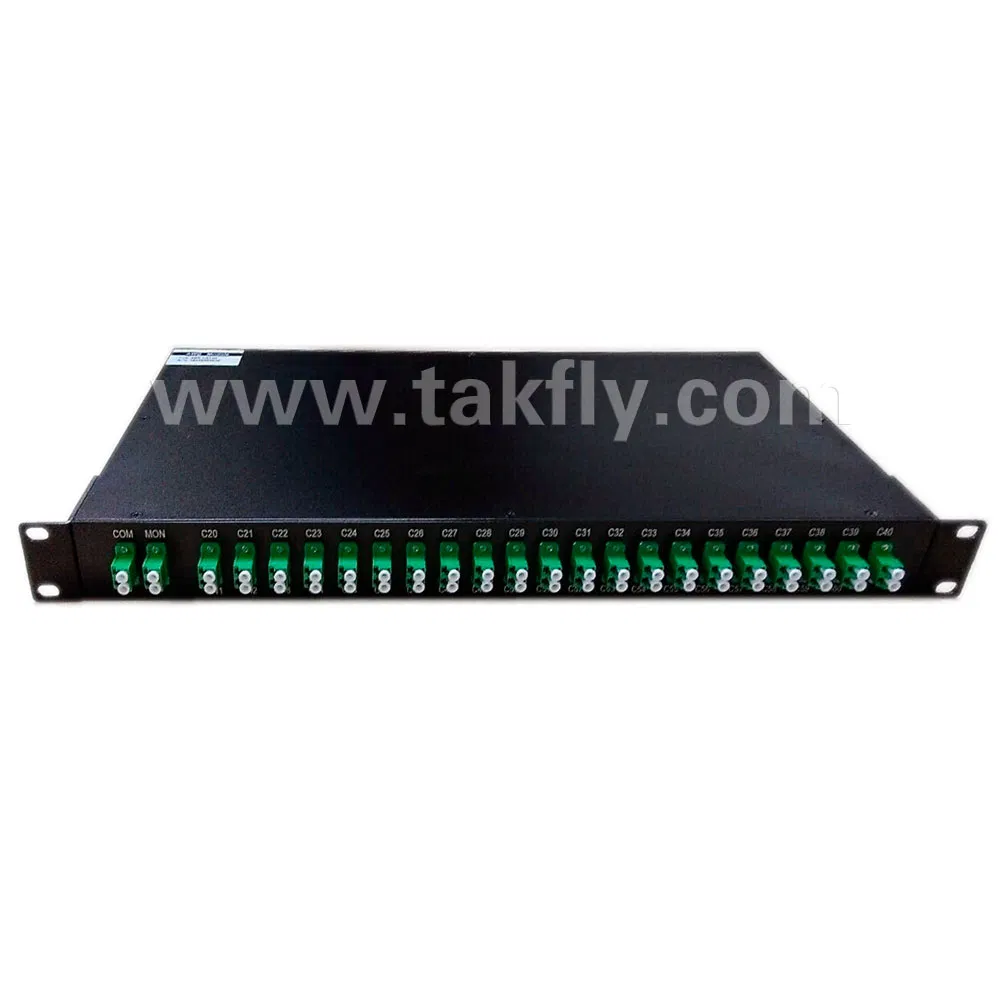

Optic Fiber 40CH Rack Mount Type 100g 200g DWDM Mux
Optic Fiber 40CH Rack Mount Type 100g DWDM muxDWDM - Dense Wavelength Division Multiplexing uses the C-Band(1530 nm-1560 nm) transmission window but with denser channel spacing. Channel plans vary, but a typical DWDM system would use 40 channels at 100 GHz spacing or 80 channels with 50 GHz spacing.......
Send Inquiry
Product Description
DWDM - Dense Wavelength Division Multiplexing uses the C-Band(1530 nm-1560 nm) transmission window but with denser channel spacing. Channel plans vary, but a typical DWDM system would use 40 channels at 100 GHz spacing or 80 channels with 50 GHz spacing.
Features
Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Applications
Channel Add/Drop
DWDM Network
Fiber Optical Amplifier
Performance Specifications
Spec
Parameter | 4 Channel | 8 Channel | 16 Channel | ||||
Mux | Demux | Mux | Demux | Mux | Demux | ||
Channel Wavelength(nm) | ITU 100 GHz Grid | ||||||
Center wavelength Accuracy(nm) | ±0.05 | ||||||
Channel Spacing (GHz) GHz) | 100 | ||||||
Channel Passband (@-0.5dB bandwidth) (nm) | ≥0.22 | ||||||
Insertion Loss | ≤1.6 | ≤2.5 | ≤3.5 | ||||
Channel Uniformity | ≤0.6 | ≤1.0 | ≤1.5 | ||||
Channel Ripple | 0.3 | 0.3 | 0.3 | ||||
Isolation | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 |
Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |
Insertion Loss Temperature Sensitivity (dB/ºC) | ≤0.005 | ||||||
Wavelength Temperature ShiftingºC) | <0.002 | ||||||
Polarization Dependent Loss(dB) | <0.1 | ||||||
Polarization Mode Dispersion(PS) | <0.1 | ||||||
Directivity(dB) | >50 | ||||||
Return Loss(dB) | >45 | ||||||
Maximum Power Handling (mW) | 500 | ||||||
Operating Temperature(ºC) | -5~+75 | ||||||
Storage Temperature(ºC) | -40~85 | ||||||
Package dimension(mm) | 1. L100 x W80 x H10 ( 2 CH~8CH Module) 2. L140xW100xH15 (9 CH~18CH Module)) 3. 19 1U Rack | ||||||
Ordering information
Configuration | Channel No. | Channel | Pigtail Type | Fiber length | Dimension(mm) | Connector |
M=Mux D=Demux | 04=4 Channel 08=8 Channel 16=16 Channel N=N Channel | C20= 1561.42 nm | 0=250um 1=900um 2=2.0mm | 1=1m | 1= L100 x W80 xH10 2=L140xW100xH15 3=19 1U Rack | 0=None 5=others |
