Opti X Osn8800 T32 Optical Equipment Otn DWDM Transmission Equipment Osn 8800

Product Description

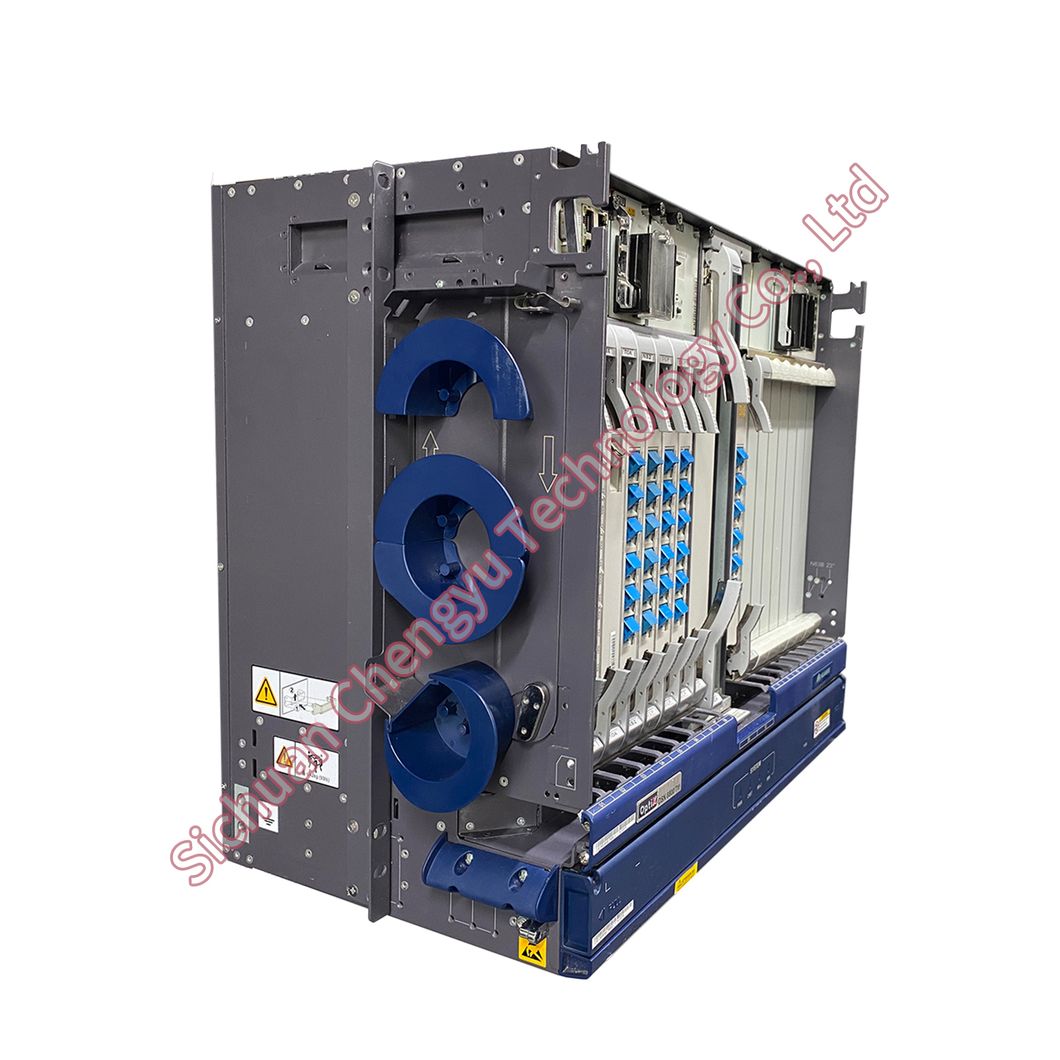

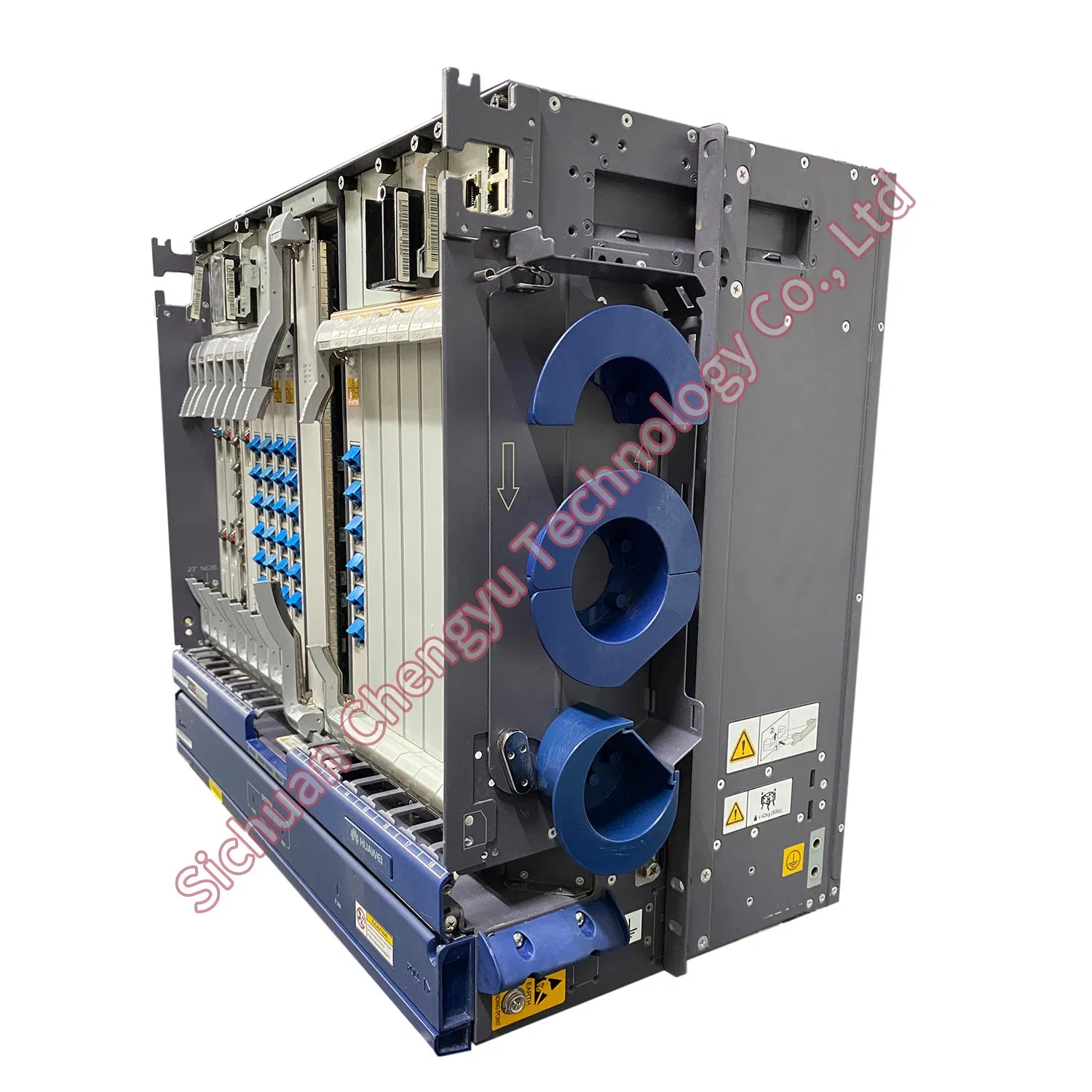

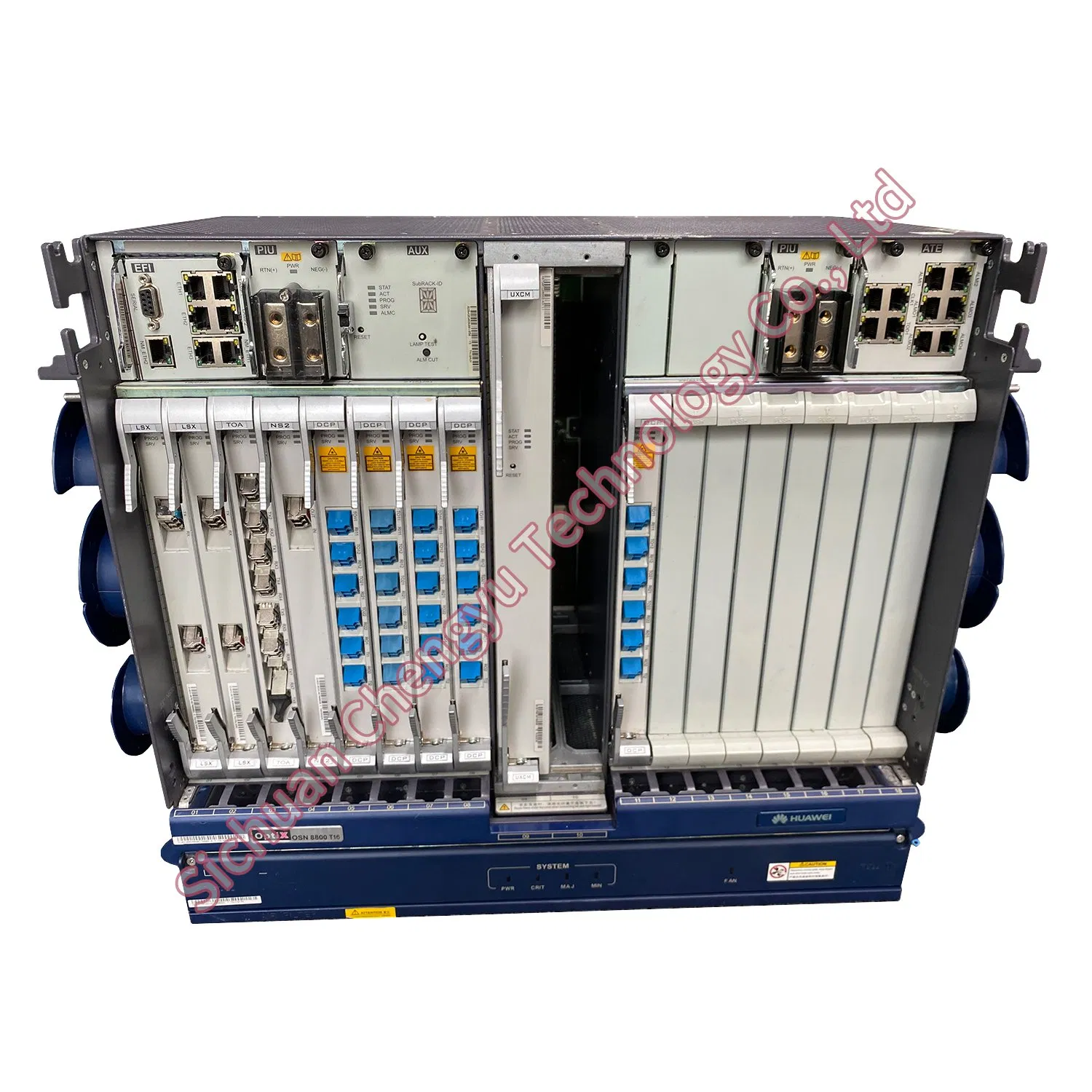

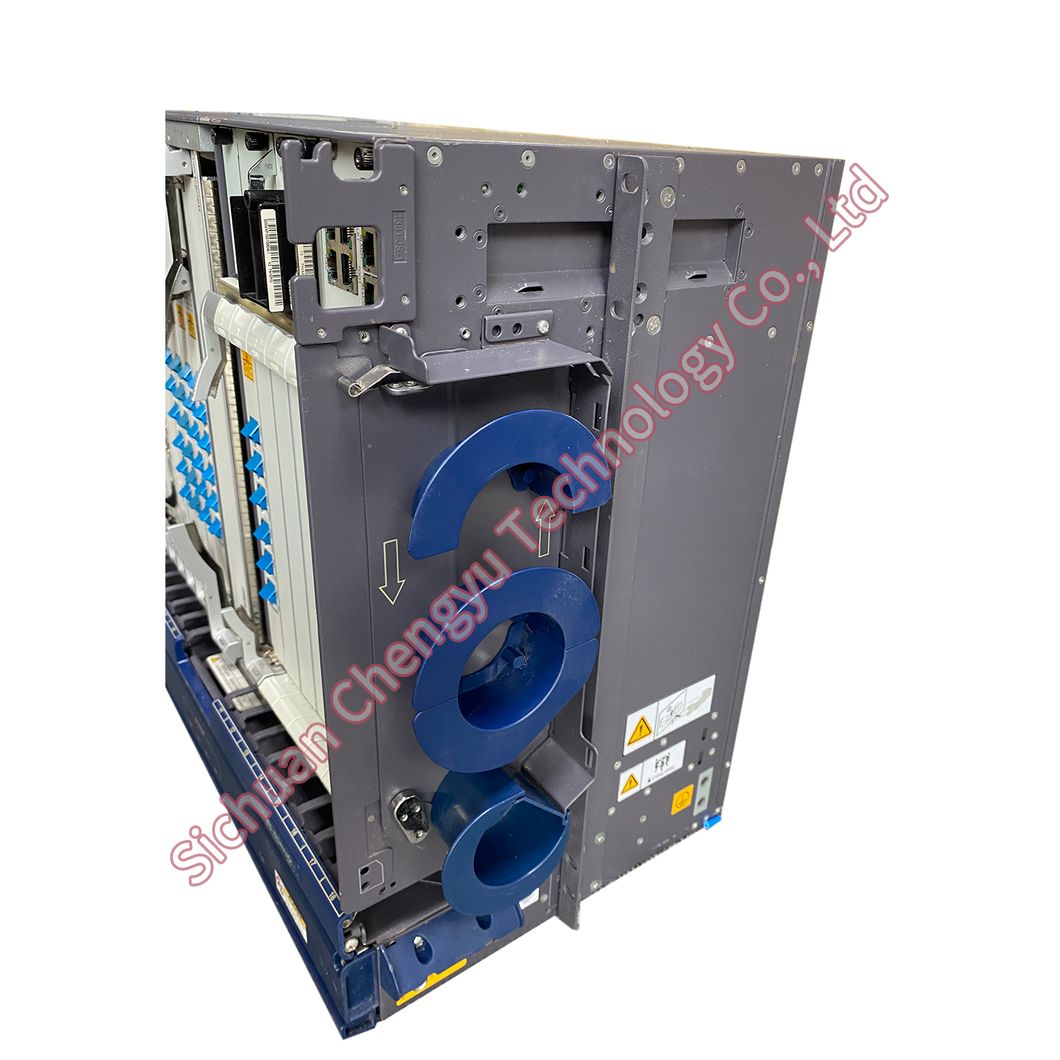

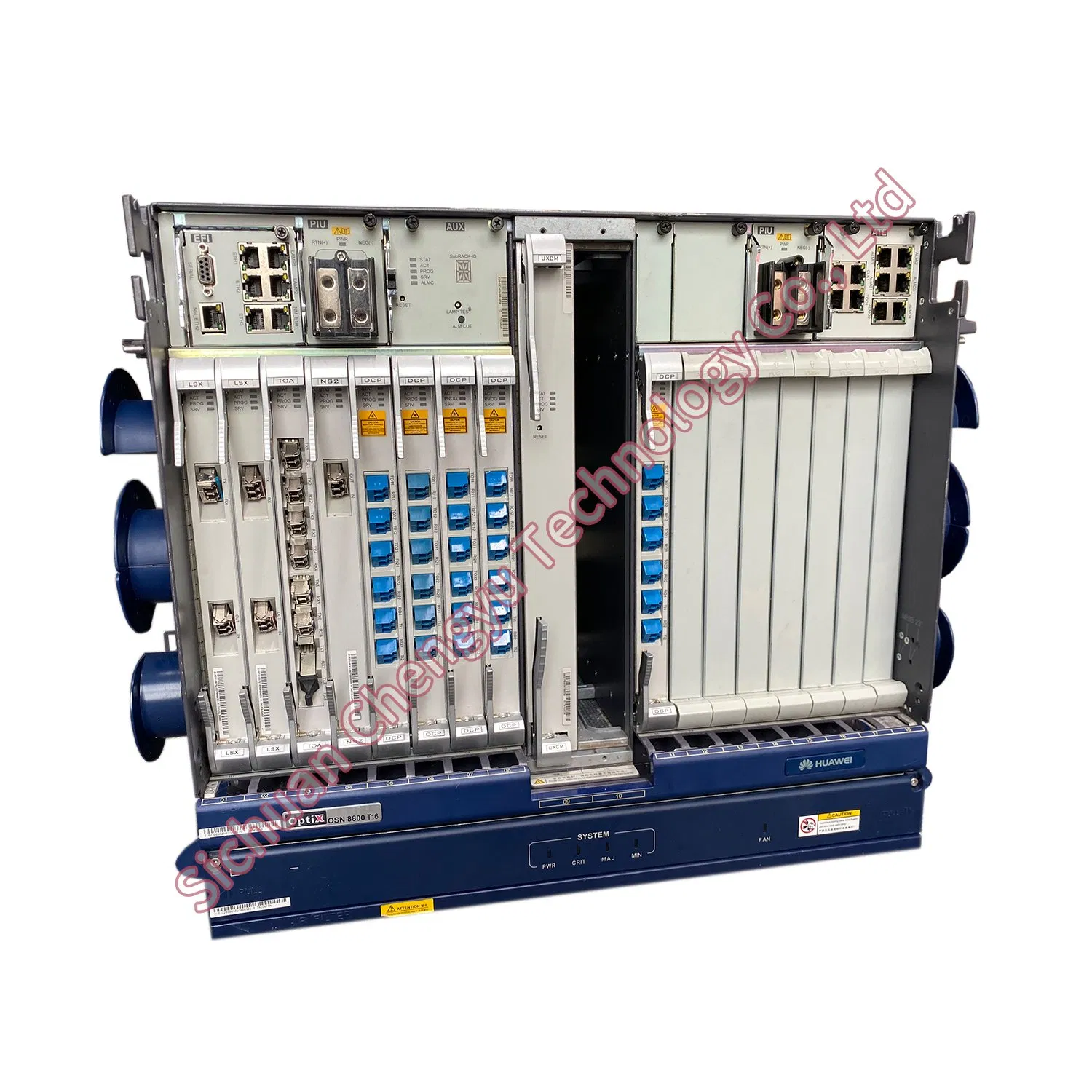

OptiX OSN 8800 T32

The Huawei OptiX OSN 8800 is a widely deployed 100G product and applied on backbone and metro WDM/OTN networks. It is T-SDN
oriented and adopts industry-leading technologies, such as the 2nd generation SD-FEC, 100G, OTN, POTS/MS-OTN technology.

OptiX OSN 8800 T32 Specification
Dimensions (HxWxD)		900 x 498 x 295 mm
Number of Service Slots		32
Switching Capability	Optical	Up to 20-degree C-D-C-G ROADM
	Electrical	3.2T ODUK,1.28T VC4 & 80G VC3&VC12,1.6T Packe
Channel Spacing		50/100GHz fixed grid for 40/80-ch
		37.5-400 GHz flex-grid
Wavelength Range		DWDM: 1529.16 nm to 1560.61 nm (C Band, ITU-T G.694.1)
Rate per Channel (Max.)		100G, 200G, 400G
Service Types Supported		SDH, SONET, Ethernet, SAN, OTN, video
Topology		Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring and mesh
Redundancy and Protection	Equipment	Cross-connect 1+1 backup, control board 1+1 backup and power 1+1 backup, clock 1+1 backup
	Network	OTN: Optical line protect, optical channel protect, ODUk SNCP protection, ODUk SPRing protection, OWSP*,ASON SDH: linear 1+1/1:N/ring MSP, SNCP, TOA, DNI, DLAG&LAG and Fiber Shared-virtual Path Protection, ASON PKT: PW APS, Tunnel APS, MSTP, LAG, LPT, MC LAG
Optical Power Management		ALS, AGC, ALC, APE, IPA
Synchronization		IEEE 1588v2, Sync-E
		2 Mbit/s or 2 MHz (with the SSM function)
		External clock source (1PPS+TOD)
ASON/GMPLS		Automatic network discovery
		ODUk/λ level protection and restoration
		5-Level SLA (Service Level Agreement) provisioning
		End-to-end service configuration
		Shared Risk Link Group (SRLG)
		Traffic engineering
T-SDN		Automation, IP+Optical , BOD
Installation Rack		ETSI 300/600mm rack, 23 inch rack
Heat Dissipation		Fan
Power Supply		-48VDC/-60VDC
Operation Environment		Temperature: Long-term operation: 5°C to 45°C Short-term operation: -5°C to 50°C
		Relative humidity: Long-term operation: 5% to 85% Short-term operation: 5% to 95%
