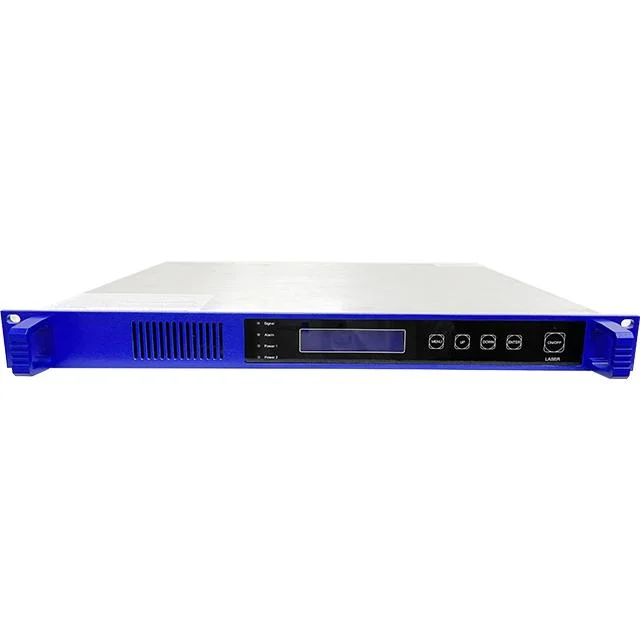

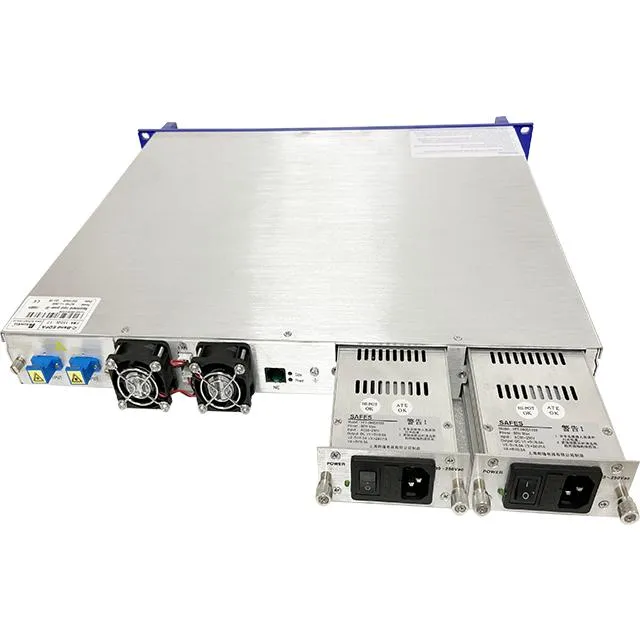

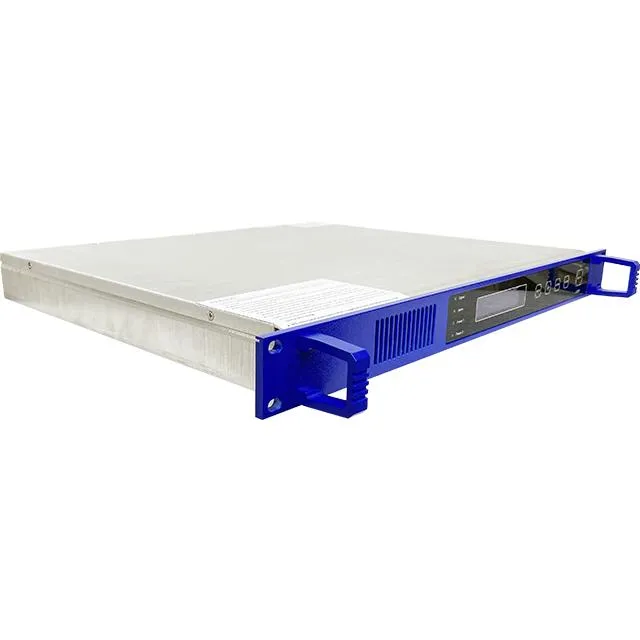

Line-Amplifier EDFA with C-Bnad Input Power -10~-30dBm
Description:FWA-1550L series Line Booster DWDM EDFA (Erbium-Doped Fiber Amplifier) is -30~ -15dBm Input power EDFA,output power:5~26dBm. As the EDFA's wavelength is C-Band, it is in line with the low-loss band of fiber and its technology has been relatively mature, so widely used. Erbium-doped f......
Send Inquiry

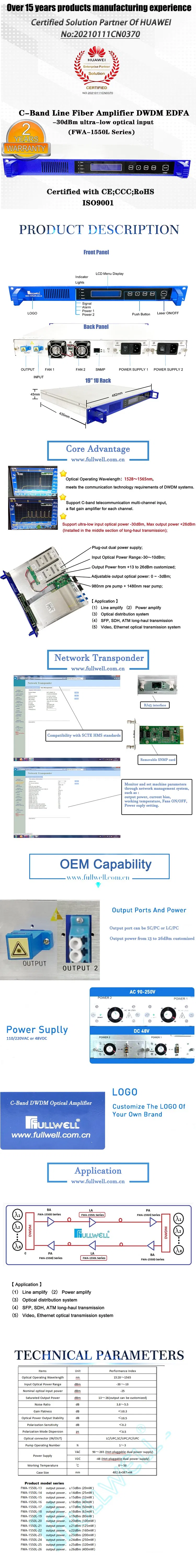

Product Description
Description:
FWA-1550L series Line Booster DWDM EDFA (Erbium-Doped Fiber Amplifier) is -30~ -15dBm Input power EDFA,output power:5~26dBm. As the EDFA's wavelength is C-Band, it is in line with the low-loss band of fiber and its technology has been relatively mature, so widely used. Erbium-doped fiber is the core component of the EDFA, it makes quartz optical fiber as a matrix material, and incorporates a certain proportion of rare earth element erbium ions (Er3 +) in the core of a fiber. When certain amount of pump light is injected into the erbium-doped fiber, Er3 + have been excited from the low-energy level to the high energy level, due to Er3 + has a very short lifespan on the high energy level, and soon transit to a higher level by the form of a non-radiative, and form the population inversion distribution between this energy level and low-energy-level. Because the energy between these two energy levels is exactly equal to the photon energy of 1550nm, stimulated emission of C-Band light can only occur, we can only enlarge C-Band optical signal.
This series of products adopt 980nm or 1480nm high linearity, optical isolation, the DFB, thermoelectric cooling DFB laser produced by JDSU, Fujitsu, Nortel, Lucent, Fitel, and other world-renowned semiconductor companies as the pumping source. The interior of the machine is equipped with the light power export stable circuit and laser Thermoelectric cooling device Temperature stability control circuit to ensure optimal machine performance and long-life laser stability. The microprocessor software monitors the lasers' working state, the Digital Panel (VFD) displays the operating parameters. Once the laser operating parameters deviate from the permissible range set by the software, micro-processing will automatically turn off laser power, the red light goes on to warn, digital panel prompts cause of troubles., a detailed report of the device parameters please read "instructions."
Application:
(1) DWDM Line amplify (2)DWDM Power amplify (3) Optical distribution system (4) SDH, ATM long-distance transmission (5) Video, Ethernet optical transmission system, etc.
Features:
1. High quality: The former-class pump commonly uses 980nm, the after-class pump use 1480nm, power is legitimately optimized by software to minimize the NF of the EDFA. It can make the system obtain superior CNR.
2. Reliability: Reliability: The 19 "1U standard rack, built-in high-performance switching power supply, can work at 85 ∽ 265Vac City Network Voltage, As well as an optional DC48V power supply (reservations required); chassis cooling automatic temperature control.
3. Intuitive: The laser is the most expensive machine component, machine equipped with a microprocessor monitors the working state of the laser, the panel LCD window displays the operating parameters.
4. Network type: Select All-piece status monitoring transponder guarantee to meet the national standard and be compatible with the SCTE HMS standard, it enables network management monitoring capabilities.
5. Power plug: Aluminum structure using plug switching power supply, allows for heat dissipation and replacement. And dual power supply hot and cold backup.
6. Adjustable output power: Adjustable output power range(0~ -6dB), The user-specified when ordering.
Parameters:
Model Number Choose Guide:
(-30~ -15dBm Input power DWDM EDFA)
FWA-1550L - 5 output power, ≥5dBm (3.2mW )
FWA-1550L - 6 output power, ≥6dBm (4.0mW )
FWA-1550L - 7 output power, ≥7dBm (5.0mW )
FWA-1550L - 8 output power, ≥8dBm (6.0mW )
FWA-1550L - 9 output power, ≥9dBm (8.0mW )
FWA-1550L -10 output power, ≥10dBm (10mW )
FWA-1550L -11 output power, ≥11dBm (13mW )
FWA-1550L -12 output power, ≥12dBm (16mW )
FWA-1550L -13 output power, ≥13dBm (20mW )
FWA-1550L -14 output power, ≥14dBm (25mW )
FWA-1550L -15 output power, ≥15dBm (32mW )
FWA-1550L -16 output power, ≥16dBm (40mW )
FWA-1550L -17 output power, ≥17dBm (50mW )
FWA-1550L -18 output power, ≥18dBm (63mW )
FWA-1550L -19 output power, ≥19dBm (80mW )
FWA-1550L -20 output power, ≥20dBm (100mW )
FWA-1550L -21 output power, ≥21dBm (125mW )
FWA-1550L -22 output power, ≥22dBm (160mW )
FWA-1550L -23 output power, ≥23dBm (200mW )
FWA-1550L -24 output power, ≥24dBm (250mW )
FWA-1550L -25 output power, ≥25dBm (320mW )
FWA-1550L -26 output power, ≥26dBm (400mW )
FAQ:
1. What are your terms of payment?
Usually, we can accept T/T, PayPal, and Western Union. You can select the terms of payment that are more convenient for you.
2. What about the lead time?
Usually, if there is a stock of goods, we will deliver the goods within 3~5 workdays after we receive the payment.
3. How about the shipping?
Usually, we will deliver the goods via International Express like FedEx, DHL, TNT, and UPS, and so on. Door to door delivery service will be provided.
4. How can I place an order?
(1) Agreement is achieved on the product price and product specifications.
(2) We make a proforma invoice for your confirmation.
(3) When you agree on the proforma invoice, you make the payment.
(4) We deliver the goods after we receive your payment.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. What are the advantages of your products?
A. Good quality and competitive prices.
B. Strict quality control during the production process.
C. Professional operations in processes of production, sales, assembling, packaging, and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem with the goods, we will help to solve the problem or provide replacement of the goods.
FWA-1550L series Line Booster DWDM EDFA (Erbium-Doped Fiber Amplifier) is -30~ -15dBm Input power EDFA,output power:5~26dBm. As the EDFA's wavelength is C-Band, it is in line with the low-loss band of fiber and its technology has been relatively mature, so widely used. Erbium-doped fiber is the core component of the EDFA, it makes quartz optical fiber as a matrix material, and incorporates a certain proportion of rare earth element erbium ions (Er3 +) in the core of a fiber. When certain amount of pump light is injected into the erbium-doped fiber, Er3 + have been excited from the low-energy level to the high energy level, due to Er3 + has a very short lifespan on the high energy level, and soon transit to a higher level by the form of a non-radiative, and form the population inversion distribution between this energy level and low-energy-level. Because the energy between these two energy levels is exactly equal to the photon energy of 1550nm, stimulated emission of C-Band light can only occur, we can only enlarge C-Band optical signal.
This series of products adopt 980nm or 1480nm high linearity, optical isolation, the DFB, thermoelectric cooling DFB laser produced by JDSU, Fujitsu, Nortel, Lucent, Fitel, and other world-renowned semiconductor companies as the pumping source. The interior of the machine is equipped with the light power export stable circuit and laser Thermoelectric cooling device Temperature stability control circuit to ensure optimal machine performance and long-life laser stability. The microprocessor software monitors the lasers' working state, the Digital Panel (VFD) displays the operating parameters. Once the laser operating parameters deviate from the permissible range set by the software, micro-processing will automatically turn off laser power, the red light goes on to warn, digital panel prompts cause of troubles., a detailed report of the device parameters please read "instructions."
Application:
(1) DWDM Line amplify (2)DWDM Power amplify (3) Optical distribution system (4) SDH, ATM long-distance transmission (5) Video, Ethernet optical transmission system, etc.
Features:
1. High quality: The former-class pump commonly uses 980nm, the after-class pump use 1480nm, power is legitimately optimized by software to minimize the NF of the EDFA. It can make the system obtain superior CNR.
2. Reliability: Reliability: The 19 "1U standard rack, built-in high-performance switching power supply, can work at 85 ∽ 265Vac City Network Voltage, As well as an optional DC48V power supply (reservations required); chassis cooling automatic temperature control.
3. Intuitive: The laser is the most expensive machine component, machine equipped with a microprocessor monitors the working state of the laser, the panel LCD window displays the operating parameters.
4. Network type: Select All-piece status monitoring transponder guarantee to meet the national standard and be compatible with the SCTE HMS standard, it enables network management monitoring capabilities.
5. Power plug: Aluminum structure using plug switching power supply, allows for heat dissipation and replacement. And dual power supply hot and cold backup.
6. Adjustable output power: Adjustable output power range(0~ -6dB), The user-specified when ordering.
Parameters:
| Equipment type Item | FWA-1550L |
| Wavelength (nm) | 1535~1565 |
| Optical input power (dBm) | -30~ -15 |
| Nominal optical input power (dBm) | -25 |
| NF(dB) | 3.8~5.5 |
| Gain (dB) | 20~56 |
| Optical output power stability (dB) | <±0.5 |
| Polarization Sensitivity (dB) | <0.2 |
| Polarization mode dispersion (ps) | <0.5 |
| Optical connector (IN/OUT) | FC/UPC( or SC/UPC) |
| Working pump quantity (N) | 1∽3 |
| Saturated output power (dBm) | 5∽26 |
| The power source (Vac) | 90~265 |
| The power source (Vdc) | 48 |
| Working temperature (ºC) | 0~50 |
| size(mm) | 482.6×387×44 |
