Guangtai C-Band DWDM Booster EDFA Module 100X 130X 19mm Wba4100-FM04
Product DescriptionWBA4100-FM04 series used 100 x 130 x 19mm compact package, is a digital control circuit of DWDM power amplifier function module. Products using the most excellent optical properties, electronic control technology and complete software function is most advanced, wide wavelength ran......
Send Inquiry
Product Description
WBA4100-FM04 series used 100 x 130 x 19mm compact package, is a digital control circuit of DWDM power amplifier function module. Products using the most excellent optical properties, electronic control technology and complete software function is most advanced, wide wavelength range, low noise, excellent gain flatness characteristics and transient characteristics. Application for C-Band 44 wave or the 88 wave of DWDM system.
WBA4100-FM04 has two kinds of function versions are available:
1. Standard version: provides a fixed gain control mode (FGA), the pump current control mode (ACC)
2. Enhanced version: In addition to the standard version with the control functions, increasing the variable gain control mode (VGA, AGC), Variable output power control mode (VPA, APC).
WBA4100-FM04 enhanced version, for DWDM systems, providing a flexible, high-performance, low-cost networking applications.
1. With Digital Control Electronics (Full Function )
2. Wide working wavelength: 1529.16~1563.86nm
3. Accord with the communication technology requirements of 44 channels DWDM system
4. Excellent gain flatness feature (GF<1.0dB)
5. Excellent Transient feature
6. Low noise figure.
7. Standard RS232 communication interface.
8. Compact package (100×130×19mm )
9. Low power consumption,Wide operating temperature range
10. Excellent P/P ratio in area.
1. 44 channels DWDM system
2. Metropolitan and access networks
3. Optical Add/Drop and Cross-Connects
4. FTTx PON
| Performace | Index | Supplement | ||||
| Min. | Typ. | Max. | ||||
| Optical feature | Working wavelength range (λ) | (nm) | 1529.16 | 1563.86 | ITU 88CH | |
| No. of working channel | (CH) | 1 | 44 | |||
| Input Optical Power (Pi) | (dBm) | -10 | +6 | |||
| Saturation output power(Po) | (dBm) | 14 | 22 | |||
| Variable output power range | (dB) | -6 | 0 | Enhanced version | ||
| Signal gain | (dB) | 13 | 27 | Customer selection | ||
| Variable gain range | (dB) | -12 | 0 | Enhanced version | ||
| Gain flatness | (dB) | 0.7 | 1.0 | Peak-to-peak | ||
| Noise figure | (dB) | 5.0 | Max ouput , Max. gain | |||
| Polarization dependence loss (PDL) | (dB) | 0.3 | ||||
| Polarization dependence Gain (PDG) | (dB) | 0.3 | ||||
| Polarization mode dispersion (PMD) | (ps) | 0.3 | ||||
| Pump leakage power | (dB) | -30 | ||||
| Input/Output optic isolatioin | (dB) | 30 | ||||
| Echo loss | (dB) | 45 | UPC | |||
| 55 | APC | |||||
| Optical Supervisory Channel Wavelength | (nm) | 1500 | 1510 | 1520 | ||
| Transient feature | Transient setting time (16 dB Add / Drop) | (μs) | 700 | |||
| Transient Overshoot (16 dB Add / Drop) | (dB) | -1.5 | +1.5 | |||
| Transient gain changes | (dB) | -0.5 | +0.5 | |||
| General feature | Communication interface | RS232 | ||||
| Fiber type | Coming SMF-28TM or equivalent | |||||
| Pigtail buffer diameter | (μm) | 900 | ||||
| Pigtail length | (mm) | 1000 | ||||
| Power supply | (V) | +4.75 | +5.0 | +5.25 | ||
| Power consumption | (W) | 2.0 | 1.0 | |||
| Working temp. | (ºC) | -5 | +70 | |||
| Storage temp. | (ºC) | -40 | +85 | |||
| Working relative humidity | (%) | 5 | +95 | |||
| Size (W)×(D)×(H) | (mm) | 100×130×19 | ||||
1. What are the payment terms of payment?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 5-7 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we will deliver the goods via international Express like FedEx , DHL,TNT and UPS and so on. Door to door delivery service will be provided; while the goods have high weight and volume, we suggest using air or sea shipment.
4. Can you do OEM for us?
Yes. if there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
5. What are the advantages of your products?
A. Good quality and competitive prices

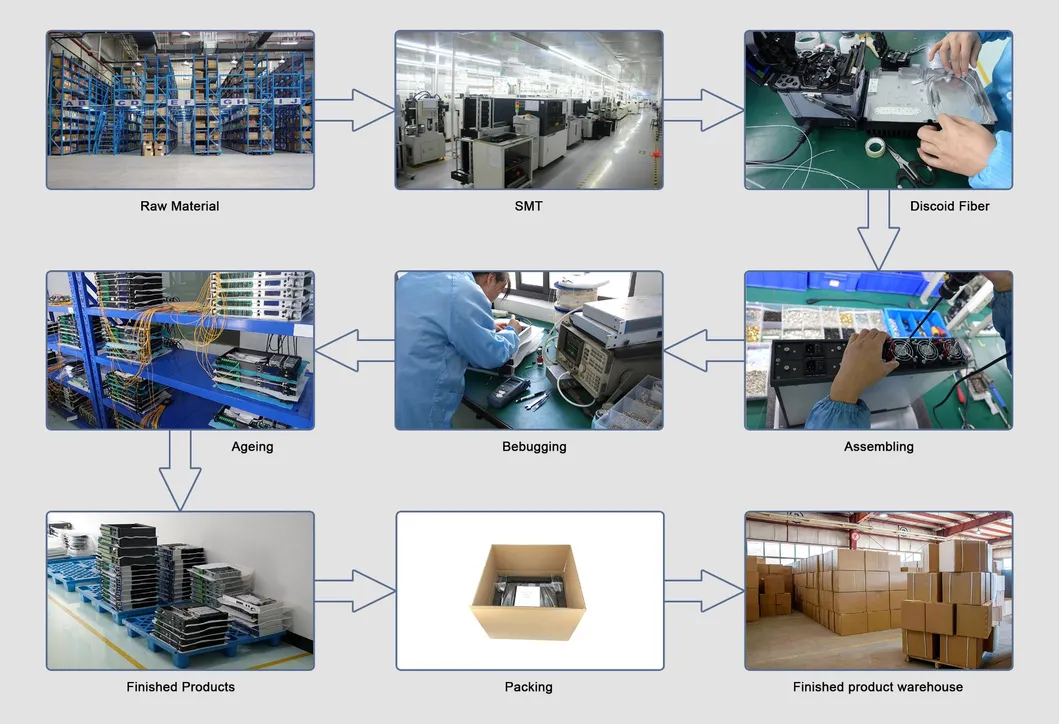

B. Strict quality control during production process.
C. Professional operations in processes of production, sales, assembling, packaging and shipping
D. Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem of the goods, we will help to solve the problem or provide replacement of the goods
6. How about the Warranty?
There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
