Fullwell Optical Amplifier with Xgs-Pon Integrate
FWAP-XG(S) Series, XGS-PON,XG-PON,and GPON & CATV Integrated Optical Platform Product Description "Quality Broadband" has become the consensus of the development of the global broadband industry. Meeting the needs of users for 10G bandwidth has become a challenge for operators. To meet......
Send Inquiry
Product Description
FWAP-XG(S) Series, XGS-PON,XG-PON,and GPON & CATV Integrated Optical Platform
- Product Description
"Quality Broadband" has become the consensus of the development of the global broadband industry. Meeting the needs of users for 10G bandwidth has become a challenge for operators. To meet the challenges faced by operators, Huawei's next-generation large-capacity distributed intelligent OLT platform MA5800 provides a single service board that supports XGS-PON, XG-PON, and GPON mixed access application scenarios.

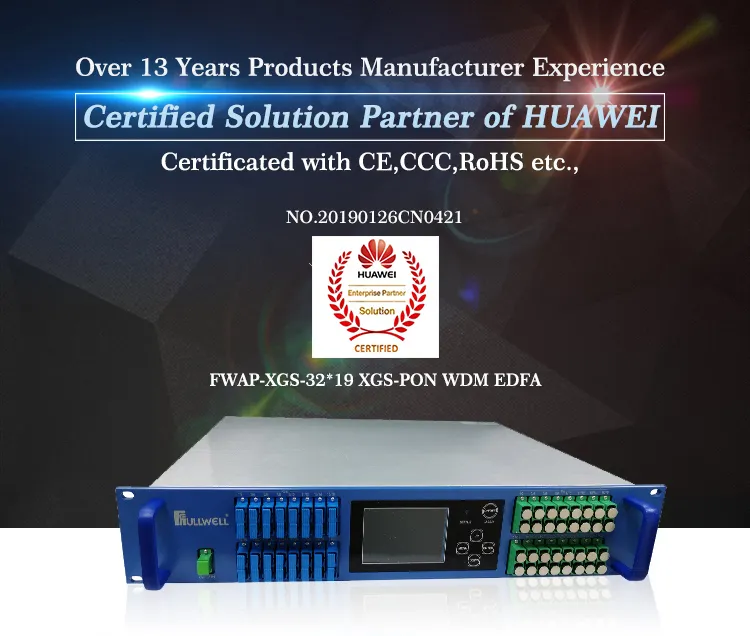

Fullwell is a certified solution partner of Huawei. In order to cater to the integration of triply play network and move towards 10G bandwidth, Fullwell has developed the product of XG (S ) -PON + CATV EDFA high power EDFA. Which its CATV signals and XGS-PON, XG-PON and GPON signals can be accessed on one fiber at the same time, helping operators to create all-optical , automated and intelligent FTTH integrated access network, continuously improve user experience, enable quality broadband, help operators CATV and home broadband become possible, while reducing the cost of operator investment.

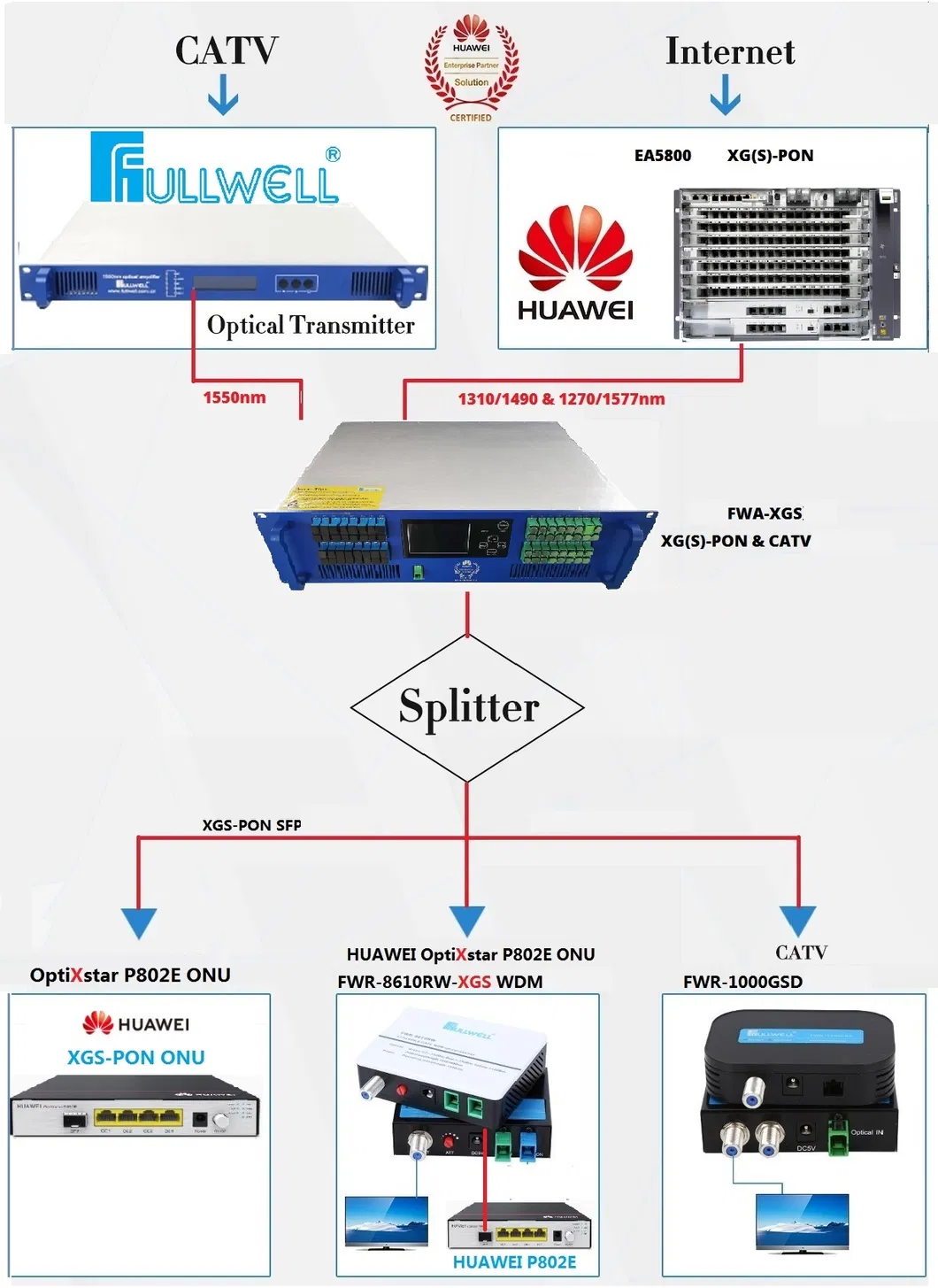

FWAP-XG(S) series is the latest optical transmission system equipment of XG (S) -PON + CATV FTTH / FTTP triple play network integration, and it is the function of combining OLT XG (S) -PON broadband signal and CATV 1550nm optical signal after amplification. Input ports: 1 CATV + 32 XGS-PON / XG-PON and GPON, combined 32 outputs: 1310 / 1490nm & 1270 / 1577nm + 1550nm, of which the total output power range of 1550nm is 30 ~ 45dBm. Multiply output ports can be customized. Compatible with XG (S) -PON / ONU, such as Huawei, ZTE, and Fiberhome, without losing of data, and has a high cost performance.
2. Product feature
Top quality: Adopt JDSU, - multi-mode high-power pump laser and the power is optimized through software, which makes the system achieving excellent CNR AND minimizing the NF of EDFA.

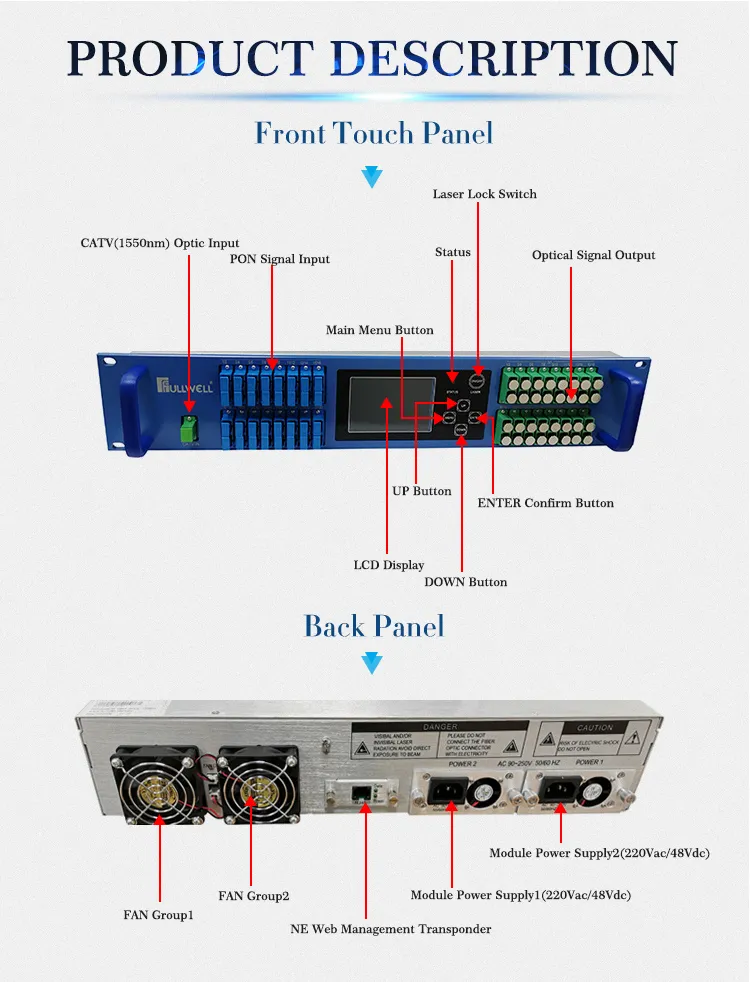

Reliability: 19″2U/3U chassis, large-screen with touch screen panel, built-in high-performance hot-pluggable dual switching power supply with Chassis automatic heat dissipation control.
Intuitive: JDSU, - multi-mode pump laser is the most expensive component in the device. The built-in microprocessor monitors the working status of the pump laser, and the working parameters are displayed on LCD.

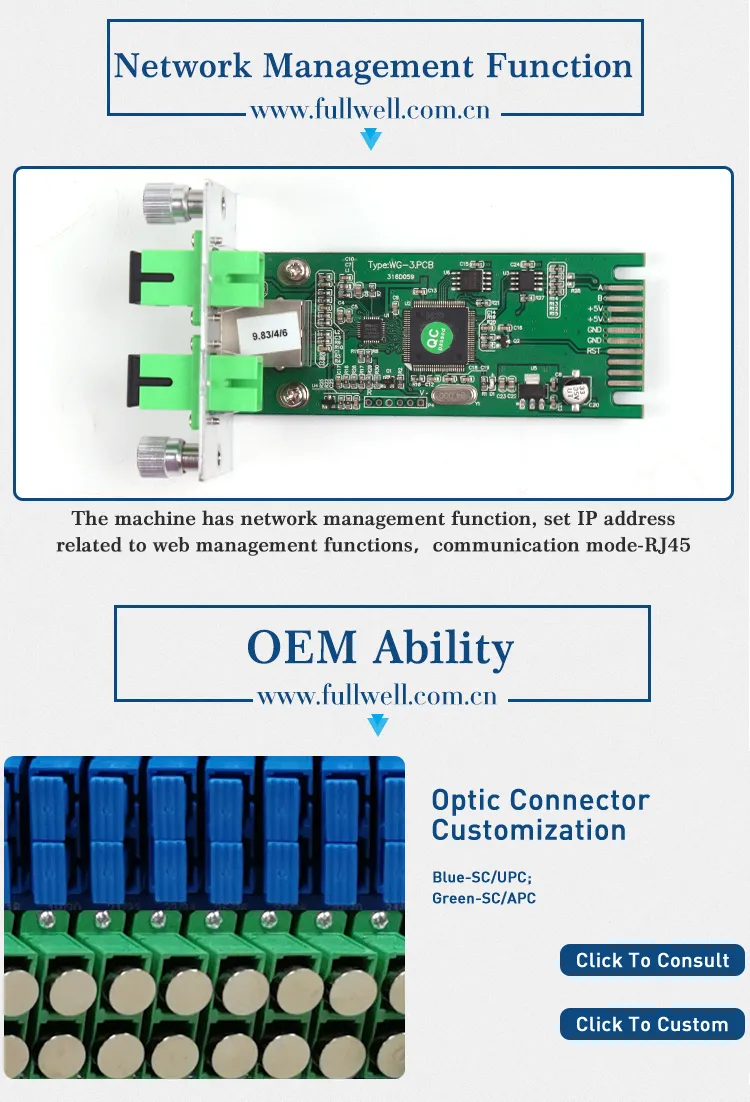

Network management Interface: Web transponder is line with the national standard and compatible with the SCTE HMS standard, achieving WEB monitoring function.
Customizable 2X1 optical switch: built-in optical path selector, 2 optical inputs, can be set to manual or automatic mode for the selection of main and redundant path.
Integrated WDM of XGS-PON, XG-PON and GPON, optical port: XGS-PON, XG-PON and GPON input: SC / UPC, 1 port of 1550nm CATV optical input port: SC / APC, XG (S) -PON + CATV 1550nm EDFA output optical port: SC / APC. 64/128 multiply output ports can be customized.
3.Technical Parameters
Fullwell is a certified solution partner of Huawei. In order to cater to the integration of triply play network and move towards 10G bandwidth, Fullwell has developed the product of XG (S ) -PON + CATV EDFA high power EDFA. Which its CATV signals and XGS-PON, XG-PON and GPON signals can be accessed on one fiber at the same time, helping operators to create all-optical , automated and intelligent FTTH integrated access network, continuously improve user experience, enable quality broadband, help operators CATV and home broadband become possible, while reducing the cost of operator investment.
FWAP-XG(S) series is the latest optical transmission system equipment of XG (S) -PON + CATV FTTH / FTTP triple play network integration, and it is the function of combining OLT XG (S) -PON broadband signal and CATV 1550nm optical signal after amplification. Input ports: 1 CATV + 32 XGS-PON / XG-PON and GPON, combined 32 outputs: 1310 / 1490nm & 1270 / 1577nm + 1550nm, of which the total output power range of 1550nm is 30 ~ 45dBm. Multiply output ports can be customized. Compatible with XG (S) -PON / ONU, such as Huawei, ZTE, and Fiberhome, without losing of data, and has a high cost performance.
2. Product feature
Top quality: Adopt JDSU, - multi-mode high-power pump laser and the power is optimized through software, which makes the system achieving excellent CNR AND minimizing the NF of EDFA.
Reliability: 19″2U/3U chassis, large-screen with touch screen panel, built-in high-performance hot-pluggable dual switching power supply with Chassis automatic heat dissipation control.
Intuitive: JDSU, - multi-mode pump laser is the most expensive component in the device. The built-in microprocessor monitors the working status of the pump laser, and the working parameters are displayed on LCD.
Network management Interface: Web transponder is line with the national standard and compatible with the SCTE HMS standard, achieving WEB monitoring function.
Customizable 2X1 optical switch: built-in optical path selector, 2 optical inputs, can be set to manual or automatic mode for the selection of main and redundant path.
Integrated WDM of XGS-PON, XG-PON and GPON, optical port: XGS-PON, XG-PON and GPON input: SC / UPC, 1 port of 1550nm CATV optical input port: SC / APC, XG (S) -PON + CATV 1550nm EDFA output optical port: SC / APC. 64/128 multiply output ports can be customized.
3.Technical Parameters
| Items | Unit | Performance Index | |
| Optical Operating Wavelength | nm | 1535~1565 | |
| Input Optical Power Range | dBm | -10~+10 | |
| Noise Ratio | dB | ≤5.0 (0 dBm,@1550nM) | |
| Gain Flatness | dB | <±0.3 | |
| Optical Power Output Stability | dB | <±0.5 | |
| Polarization Sensitivity | dB | <0.2 | |
| Polarization Mode Dispersion | Ps | <0.5 | |
| Input End Pump Leakage Power | dB | ≤-30 | |
| Output End Pump Leakage Power | dB | ≤-30 | |
| Optical Input, Output Return Loss | dB | >45(APC Stepped Face) | |
| Pump Operating Number | PCs | 2~5 | |
| Rated Output Power | dBm | 27~45 | |
| Linker(IN) | - | SC/APC | |
| Linker(OUT) | - | SC/APC,LC/UPC(128ports) | |
| Power Supply/Consumption | V/W | AC165~265 or DC-48/20 | |
| Operating/Storage Temperature | ºC | -20~65/-30~70 | |
| Operating/Storage Humidity | % | 5~90 | |
| Case Size | " | 19×16×3.5,19×16×5.3(3U) | |
| Network Management Connector | / | RJ45(following national network management standard, supports WEB) | |
| XG(S)- PON | XG(S)- PON Wavelength | nm | 1310/1490 & 1270/1577 |
| XG(S)- PON Linker | / | SC/UPC,LC/UPC(128ports) | |
| Uplink optical ports | pcs | 16/32/64/128 | |
| Output ports | Pcs | 16/32/64/128 | |
| XG(S)- PON Insertion Loss | dB | <1.2 | |
| 1550 Port Insertion Loss | dB | <0.7 | |
| Optical isolation between CATV&OLT | dB | 40 | |
| Optical Switch | Insertion Loss | dB | <1 |
| Harass | dB | <-60 (isolation between A and B) | |
| Switch Time | ms | <10 | |
| Switched Power Threshold Range | dBm | -5~10 | |
4.Product Model Series
| Model Number | Total Output Power dBm(mW) | Output No. | Each Output Power (dBm) |
| FWAP-XG(S)-16x16 | 30dBm(1000mW) | 16 | 16 |
| FWAP-XG(S)-32x12 | 32 | 12 | |
| FWAP-XG(S)-16x17 | 31dBm(1300mW) | 16 | 17 |
| FWAP-XG(S)-32x13 | 32 | 13 | |
| FWAP-XG(S)-16x18 | 32dBm(1600mW) | 16 | 18 |
| FWAP-XG(S)-32x14 | 32 | 14 | |
| FWAP-XG(S)-16x19 | 33dBm(2000mW) | 16 | 19 |
| FWAP-XG(S)-32x15 | 32 | 15 | |
| FWAP-XG(S)-16x20 | 34dBm(2500mW) | 16 | 20 |
| FWAP-XG(S)-32x16 | 32 | 16 | |
| FWAP-XG(S)-16x21 | 35dBm(3000mW) | 16 | 21 |
| FWAP-XG(S)-32x17 | 32 | 17 | |
| FWAP-XG(S)-16x22 | 36dBm(4000mW) | 16 | 22 |
| FWAP-XG(S)-32x18 | 32 | 18 | |
| FWAP-XG(S)-16x23 | 37dBm(5000mW) | 16 | 23 |
| FWAP-XG(S)-32x19 | 32 | 19 | |
| FWAP-XG(S)-32x20 | 38dBm(6000mW) | 32 | 20 |
| FWAP-XG(S)-64x16 | 64 | 16 | |
| FWAP-XG(S)-32x21 | 39dBm(8000mW) | 32 | 21 |
| FWAP-XG(S)-64x17 | 64 | 17 | |
| FWAP-XG(S)-32x22 | 40dBm(10000mW) | 32 | 22 |
| FWAP-XG(S)-64x18 | 64 | 18 | |
| FWAP-XG(S)-32x23 | 41dBm(13000mW) | 32 | 23 |
| FWAP-XG(S)-64x19 | 64 | 19 | |
| FWAP-XG(S)-64x20 | 42dBm(16000mW) | 64 | 20 |
| FWAP-XG(S)-128x16 | 128 | 16 | |
| FWAP-XG(S)-64x21 | 43dBm(20000mW) | 64 | 21 |
| FWAP-XG(S)-128x17 | 128 | 17 | |
| FWAP-XG(S)-64x22 | 44dBm(25000mW) | 64 | 22 |
| FWAP-XG(S)-128x18 | 128 | 18 | |
| FWAP-XG(S)-64x23 | 45dBm(32000mW) | 64 | 23 |
| FWAP-XG(S)-128x19 | 128 | 19 |
