Fullwell C-Band Output Power: 22dBm DWDM Booster EDFA
Fullwell C-band output power: 22dBm dwdm booster edfa FeaturesAdjustable output power: Adjustable output power range(0~ -6dB), The user specified when ordering.1. C - Band DWDM booster EDFA 2. One ports output,3. New Pump, 100% new first hand pump4. Stable output optical power5. Long lifetim......
Send Inquiry
Product Description
Features
Adjustable output power: Adjustable output power range(0~ -6dB), The user specified when ordering.
1. C - Band DWDM booster EDFA
2. One ports output,
3. New Pump, 100% new first hand pump
4. Stable output optical power
5. Long lifetime
Application
1. C - Band DWDM booster EDFA amplify optical signal
2. output optical power stable and sustaining
Fullwell Manufacturer Service
1. Mature technical support
2. Perfect sell service
3. Free OEM service, laser your logo

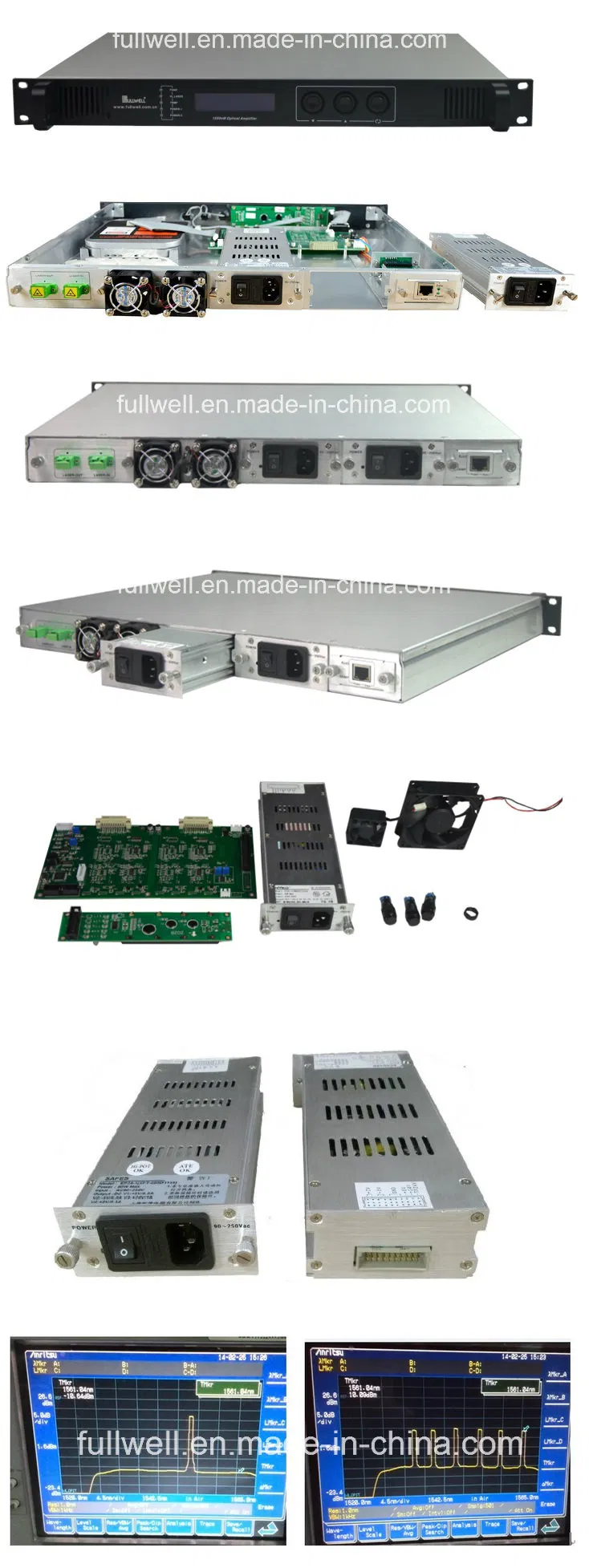

Products Show
Technical Index
Equipment type Item | FWA-1550D |
Wavelength (nm) | 1535~1565 |
Optical input power (dBm) | -5~+10 |
Nominal optical input power (dBm) | +3 |
NF(dB) (+3 dBm,@1550nm) | 3.8~5.5 |
Gain Flatness (dB) | <±0.3 |
Optical output power stability (dB) | <±0.5 |
Polarization Sensitivity (dB) | <0.2 |
Polarization mode dispersion (ps) | <0.5 |
Optical connector (IN/OUT) | FC/UPC ( or SC/UPC) |
Working pump quantity (N) | 13 |
Saturated output power (dBm) | 1326 |
Power source (Vac) | 115~265 |
Power source (Vdc) | 48 |
Working temperature (ºC) | 0~50 |
size(mm) | 482.6×387×44 |

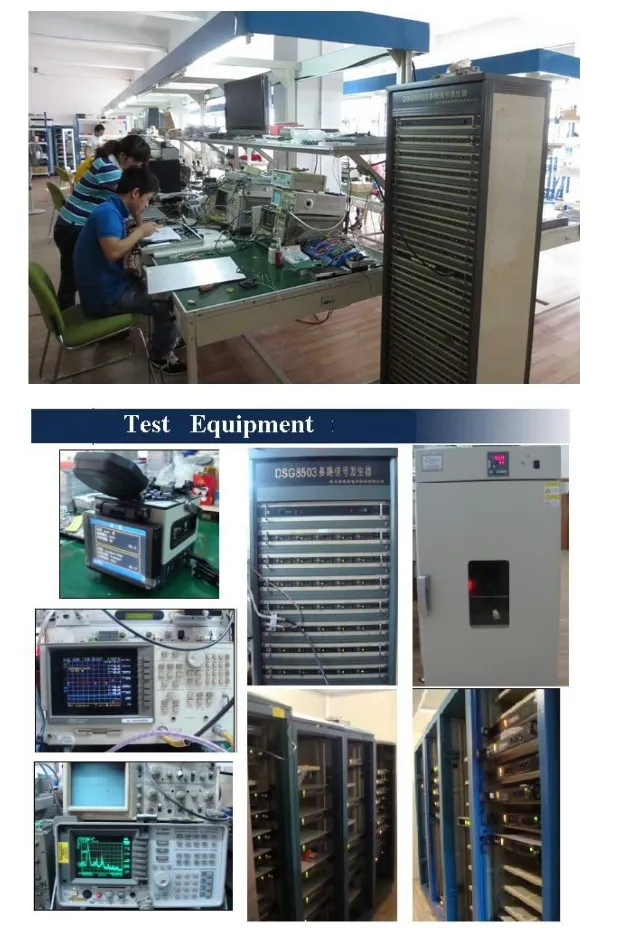

Workshop View
Package
Welcome your inquiry and want to offer you professional help !
