Fullwell 1270/ 1577 &1310/1490&1550nm Satellite Optical Converter with Xgs-Pon Wdm
FWR-2600W-XGS, CATV+Satellite TV Optical Receiver With XGS-PON WDM Product DescriptionFWR-2600W-XGS optical receiver is an FTTH CATV + SAT IF high-performance optical transmission equipment, suitable for CATV and satellite live TV transmission on the same network. Use high-bandwidth, high-sensitivit......
Send Inquiry
Product Description
FWR-2600W-XGS, CATV+Satellite TV Optical Receiver With XGS-PON WDM
Product model series
FWR-2600, CATV+Satellite TV Optical Receiver
FWR-2600D, CATV+Satellite TV Optical Receiver With Filter, only pass 1550nm
FWR-2600W, CATV+Satellite TV Optical Receiver With WDM .
If you have another question, please feel free to contact me directly as below:
Hangzhou Fullwell Optoelectronic Equipment Co., Ltd
Add:A2-1305,Qimeng Science & Innovation Park,No.1899,Gudun Road,Hangzhou, China
Contact person: Leo Yao
"Design and manufacture the most reliable and efficient FTTH CATV equipment products in the industry."
Product Description

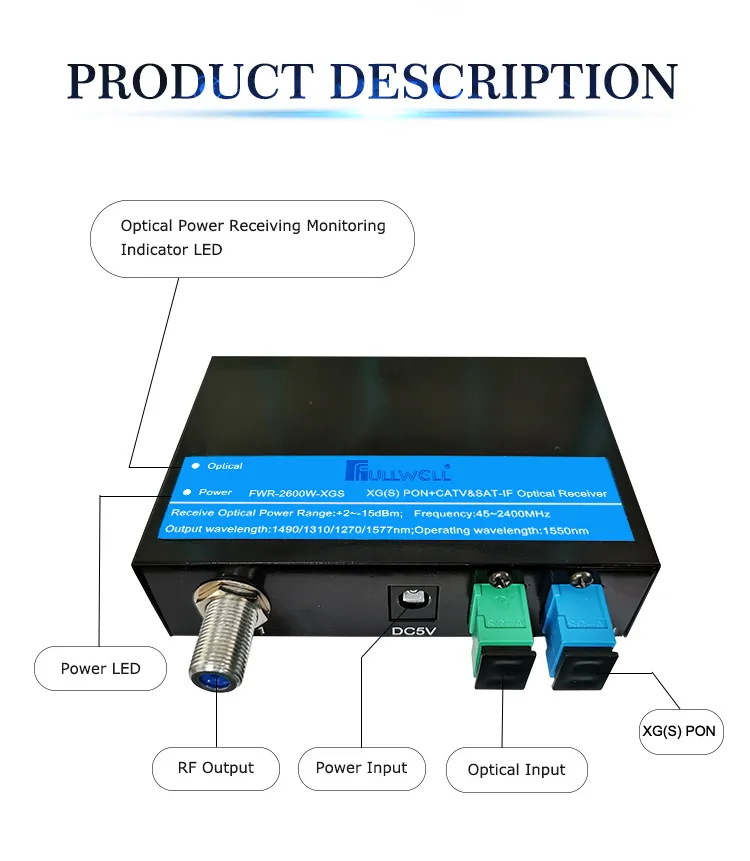

FWR-2600W-XGS optical receiver is an FTTH CATV + SAT IF high-performance optical transmission equipment, suitable for CATV and satellite live TV transmission on the same network. Use high-bandwidth, high-sensitivity photocells, low-noise matching circuits and GaAs amplification, the device has receiving range -15 ~ + 2dBm, and AGC stable output: -8 ~ 0 dBm. In order to facilitate the use of the user, the device is also equipped with a working power and light power receiving monitoring LED indicator on the panel.

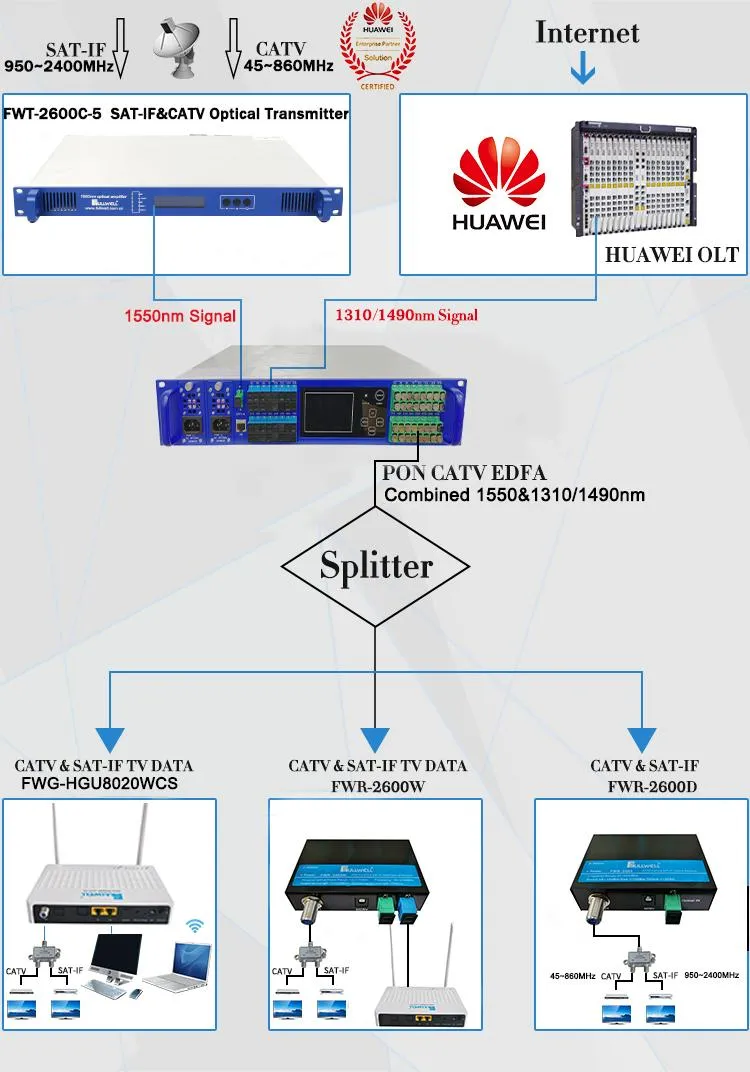

FWR-2600W-XGS WDM optical receiver, with PON interface, can be compatible with any FTTx PON technology, which achieves multi-network integration of CATV + satellite TV (DVB-S) + Internet. It can be used along with Fullwell WDM EDFA for large-area FTTH triple play transmission and coverage.

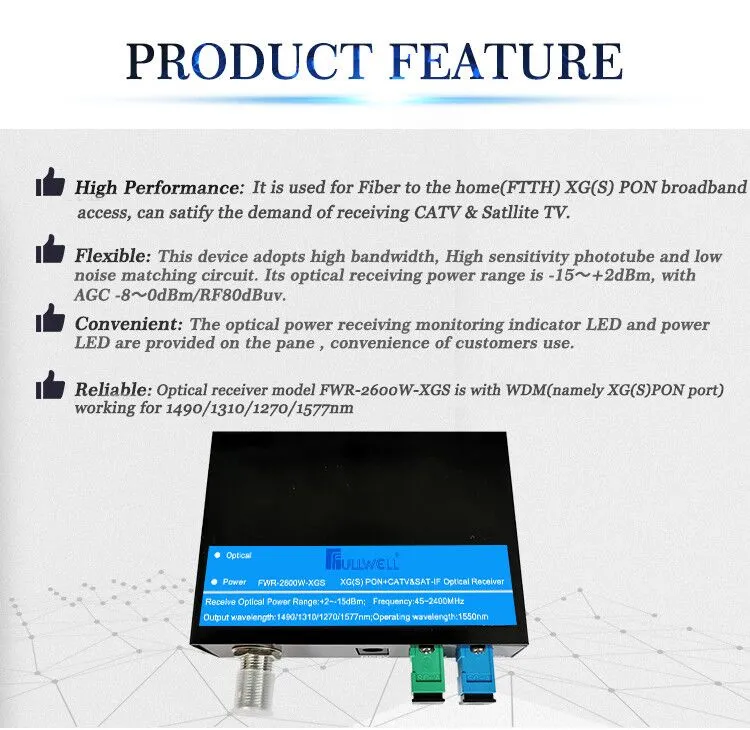

Product Feature
PIN receiving optical power, -1dBm receiving sensitivity, AGC receiving range: 0~ -8dBm, stable output level: 80dBuv.
Wide bandwidth: 47 ~ 2400MHz working bandwidth.
One fiber can receive 10CH of Analog TV, Digital TV (DVB-C), Satellite TV (DVB-S) signal and CATV radio frequency RF signal at the same time.
t can be used along with WDM EDFA for long-haul and large-area transmission of FTTH triple play integration.
Industry-leading 5V power adapter, non-stop work design for more than 5 years.
Can be integrated and compatible with any FTTx PON triple play.
Technical Parameters
FWR-2600W-XGS optical receiver is an FTTH CATV + SAT IF high-performance optical transmission equipment, suitable for CATV and satellite live TV transmission on the same network. Use high-bandwidth, high-sensitivity photocells, low-noise matching circuits and GaAs amplification, the device has receiving range -15 ~ + 2dBm, and AGC stable output: -8 ~ 0 dBm. In order to facilitate the use of the user, the device is also equipped with a working power and light power receiving monitoring LED indicator on the panel.
FWR-2600W-XGS WDM optical receiver, with PON interface, can be compatible with any FTTx PON technology, which achieves multi-network integration of CATV + satellite TV (DVB-S) + Internet. It can be used along with Fullwell WDM EDFA for large-area FTTH triple play transmission and coverage.
Product Feature
PIN receiving optical power, -1dBm receiving sensitivity, AGC receiving range: 0~ -8dBm, stable output level: 80dBuv.
Wide bandwidth: 47 ~ 2400MHz working bandwidth.
One fiber can receive 10CH of Analog TV, Digital TV (DVB-C), Satellite TV (DVB-S) signal and CATV radio frequency RF signal at the same time.
t can be used along with WDM EDFA for long-haul and large-area transmission of FTTH triple play integration.
Industry-leading 5V power adapter, non-stop work design for more than 5 years.
Can be integrated and compatible with any FTTx PON triple play.
Technical Parameters
| Items | Unit | Performance Index | Note | ||
| IF | Frequency Range | MHz | 950~2400 | Benchmark: 950~2400 | |
| Output Level | dBuV | 80 | AGC:-8~0 dBm | ||
| Flatness | dB | -1.5~+1.5 | -1.0~+1.0/950~2400MHz | ||
| Output Return Impedance | dB | 12 | 14/950~2400MHz | ||
| Channel Load | CH | 10 | Analogue TV | ||
| 64QAM | Digital TV | ||||
| 36 | QPSK or FM | ||||
| IM3 | dB | -65 | |||
| HUM | dB | -60 | |||
| IP1 | dBm | 18 | |||
| Output Impedance | Ω | 75 | 50Ω Optional | ||
| RF Connector | 75Ω/F-female | 50Ω/SMA-F | |||
| Optical Index | Receiving Wavelength | nm | 1310,1490,1550,1270,1577 | ||
| PON Wavelength | nm | 1310/1490 &1270/1577 | |||
| CATV Wavelength | nm | 1540~1565 | |||
| Isolation | dB | ≥40 | 1310/1490nm &1550nm&1270/1577nm | ||
| Responsivity | A/W | ≥0.9 | |||
| Input Optical Power Range | dBm | +2~-15 | |||
| Return Loss | dB | ≥55 | |||
| Input Connector | / | SC/APC | |||
| PON Connector | / | SC/UPC | SC/APC Optional | ||
| RF | Bandwidth/Flatness | MHz/dB | 47-1000 | ≤±1 | |
| Output Level | dBuv | AGC:80 | AGC:0~-8dBm | ||
| Return Loss | dB | ≥14 | 75Ω Characteristic Impedance | ||
| CNR/MER | dB | ≥44/34 | PAL-D60CH,OMI3.8%,-9dBm | ||
| CTB/CSO/HUM | dB | ≥65/≥60/≥60 | -1dBm receive | ||
| General Parameter | Power Supply/Consumption | V/W | AC90~250V→DC5/3 | Non-stop Work Design For More Than 5 Years | |
| Working / Storage Temperature | ºC | -35~50/-40~75 | Humidity 5~90% | ||
| Dimension | mm | 92×80×25 | |||
Product model series
FWR-2600, CATV+Satellite TV Optical Receiver
FWR-2600D, CATV+Satellite TV Optical Receiver With Filter, only pass 1550nm
FWR-2600W, CATV+Satellite TV Optical Receiver With WDM .
If you have another question, please feel free to contact me directly as below:
Hangzhou Fullwell Optoelectronic Equipment Co., Ltd
Add:A2-1305,Qimeng Science & Innovation Park,No.1899,Gudun Road,Hangzhou, China
Contact person: Leo Yao
"Design and manufacture the most reliable and efficient FTTH CATV equipment products in the industry."
