FTTH Fiber Optical Terminal Box (popular product)

Product Description

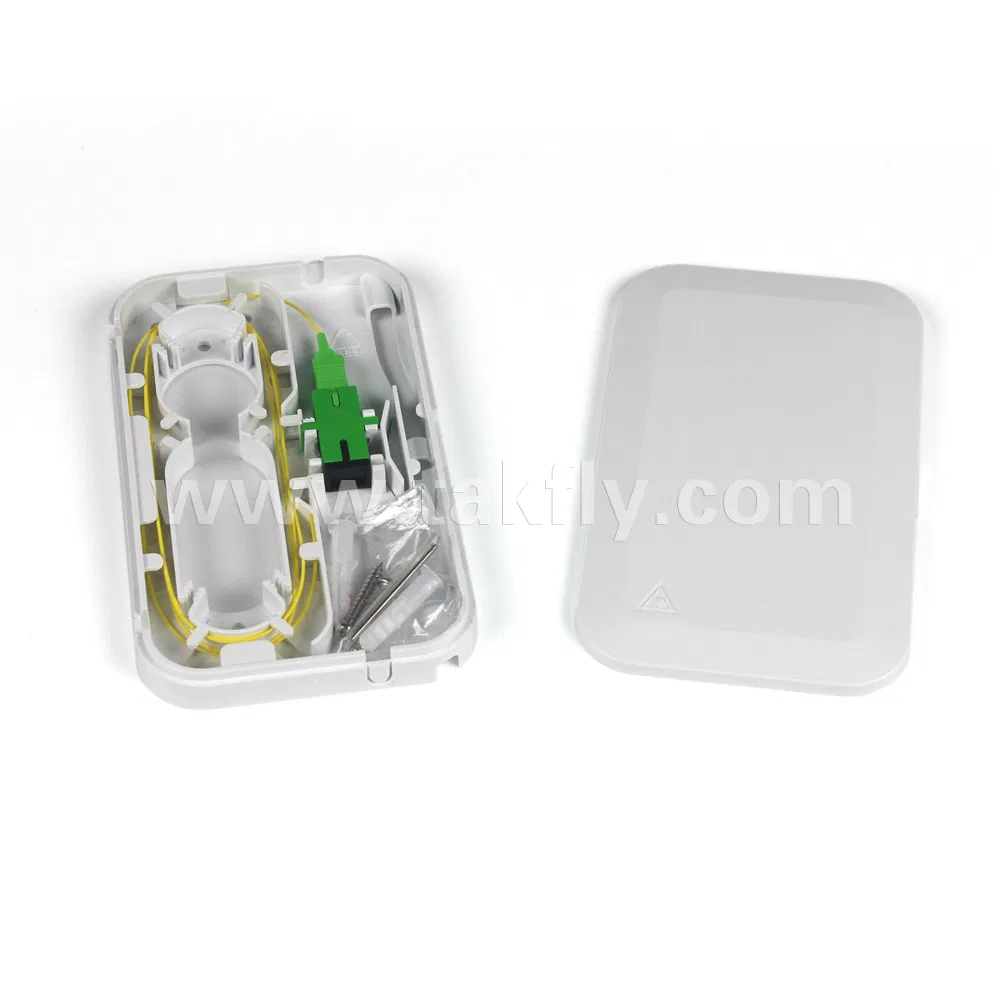

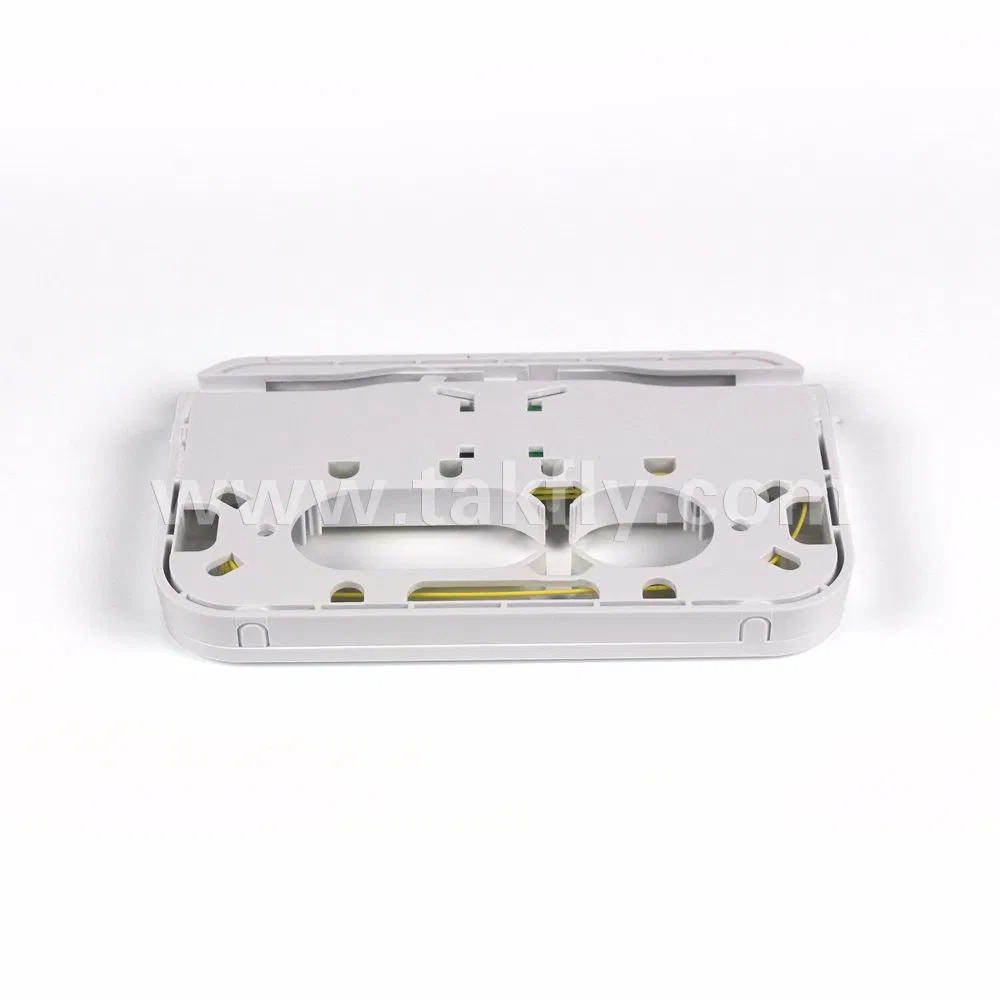

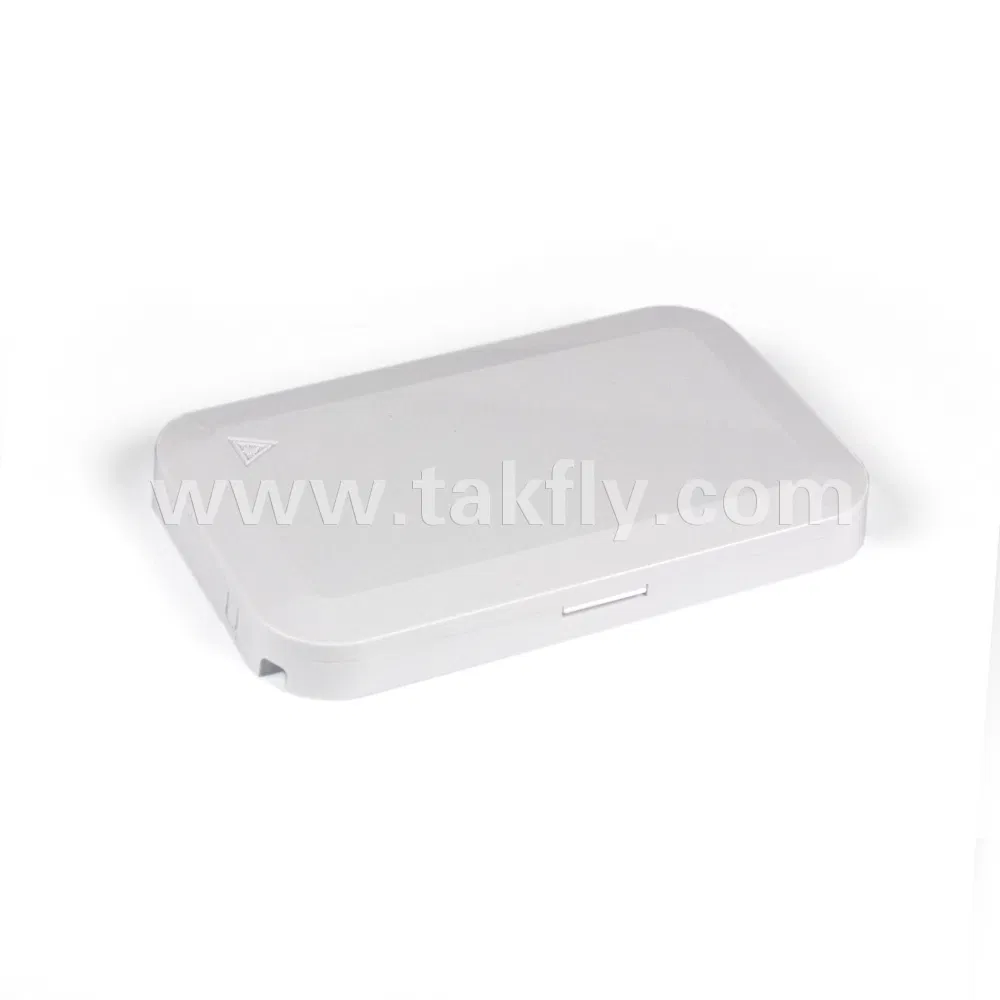

Fiber Optic Terminal Box for FTTX

Description:
It is used for different kinds of modules and applied to the working area subsystem.It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO. With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer's choice.Cable management can be connected without cutting (with express port). All modules are free of welding.

Working area:

1. The telecommunication network, metropolitan area network, optical fiber communication system.

2. Optical testing equipment/instrument.

3. CATV optical fiber, optical fiber sensor.

4. Optical fiber broadband access network, FTTH optical fiber.

5. Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.

Performance index:

Item	Technical data
Application	3.0 x 2.0 mm drop cable or indoor cable
Fiber diameter	125μm ( 652 & 657 )
Tight cladding diameter	250μm & 900μm
Mode of application	Single mode & duplex mode
Tensile strength	>50 N
End-use temperature	-40~+85ºC
Adaptor	SC & LC
Insertion loss	≤0.2dB(1310nm & 1550nm)
output	1

Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV

Certification:

Takfly Worldwide Exhibition

Thanks for refer our products, should you have any further question please feel free to contact me.

Takfly looking forward to hearing from you!
