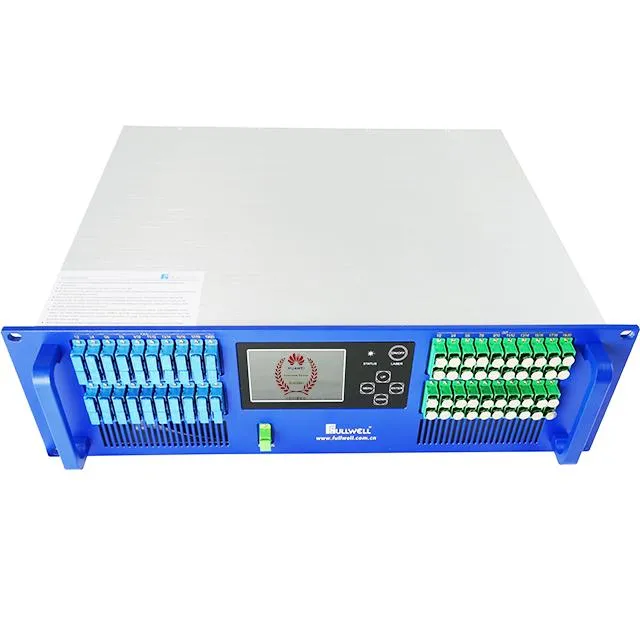

FWAP-XGS Series, XG(S)-PON + CATV WDM EDFAProduct Description "Quality Broadband" has become the consensus of the development of the global broadband industry. Meeting the needs of users for 10G bandwidth has become a challenge for operators. To meet the challenges faced by operators, Huaw......

Send Inquiry

Product Description

FWAP-XGS Series, XG(S)-PON + CATV WDM EDFA

Product Description
"Quality Broadband" has become the consensus of the development of the global broadband industry. Meeting the needs of users for 10G bandwidth has become a challenge for operators. To meet the challenges faced by operators, Huawei's next-generation large-capacity distributed intelligent OLT platform MA5800 provides a single service board that supports XGS-PON, XG-PON, and GPON mixed access application scenarios.

Fullwell is a certified solution partner of Huawei. In order to cater to the integration of triply play network and move towards 10G bandwidth, Fullwell has developed the product of XG (S ) -PON + CATV EDFA high power EDFA. Which its CATV signals and XGS-PON, XG-PON and GPON signals can be accessed on one fiber at the same time, helping operators to create all-optical , automated and intelligent FTTH integrated access network, continuously improve user experience, enable quality broadband, help operators CATV and home broadband become possible, while reducing the cost of operator investment.

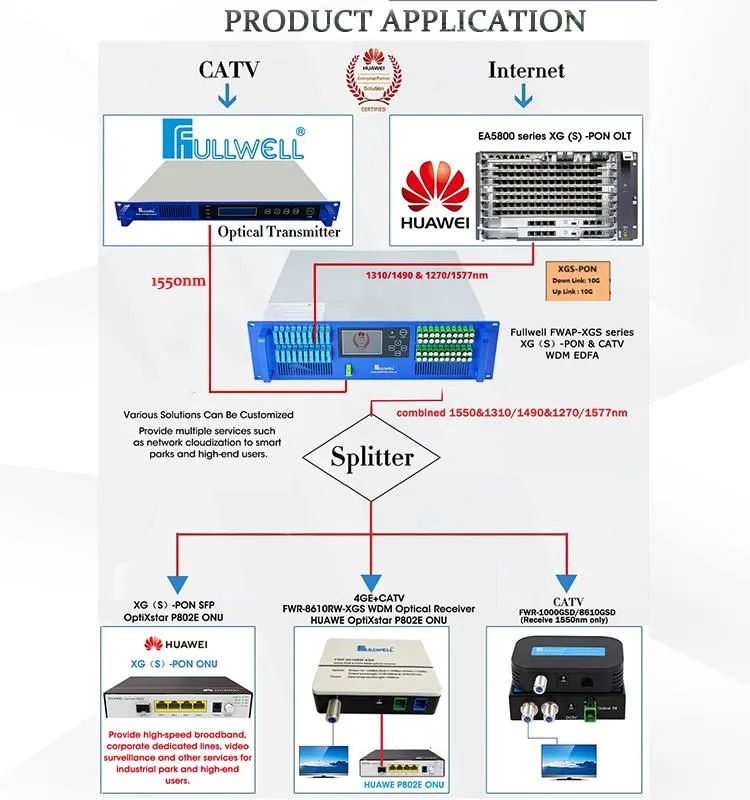

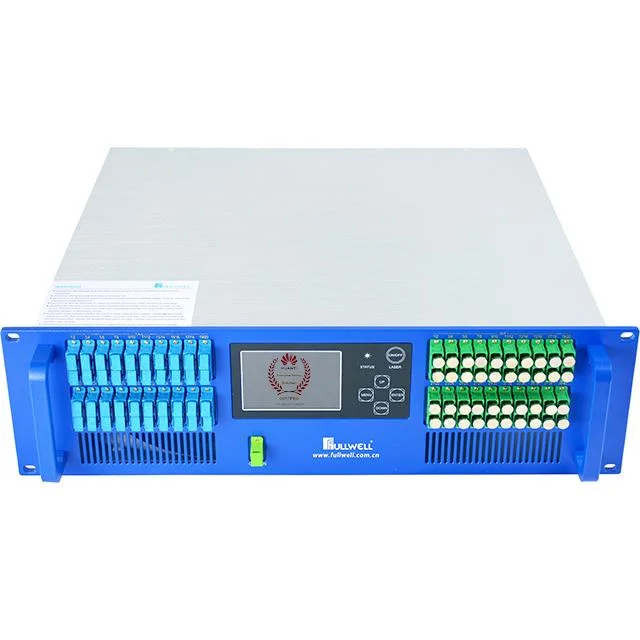

FWAP-XGS series is the latest optical transmission system equipment of XG (S) -PON + CATV FTTH / FTTP triple play network integration, and it is the function of combining OLT XG (S) -PON broadband signal and CATV 1550nm optical signal after amplification. Input ports: 1 CATV + 40 XGS-PON / XG-PON and GPON, combined 40 outputs: 1310 / 1490nm & 1270 / 1577nm + 1550nm, of which the total output power range of 1550nm is 27 ~ 45dBm. Multiply output ports can be customized. Compatible with XG (S) -PON / ONU, such as Huawei, ZTE, and Fiberhome, without losing of data, and has a high cost performance.

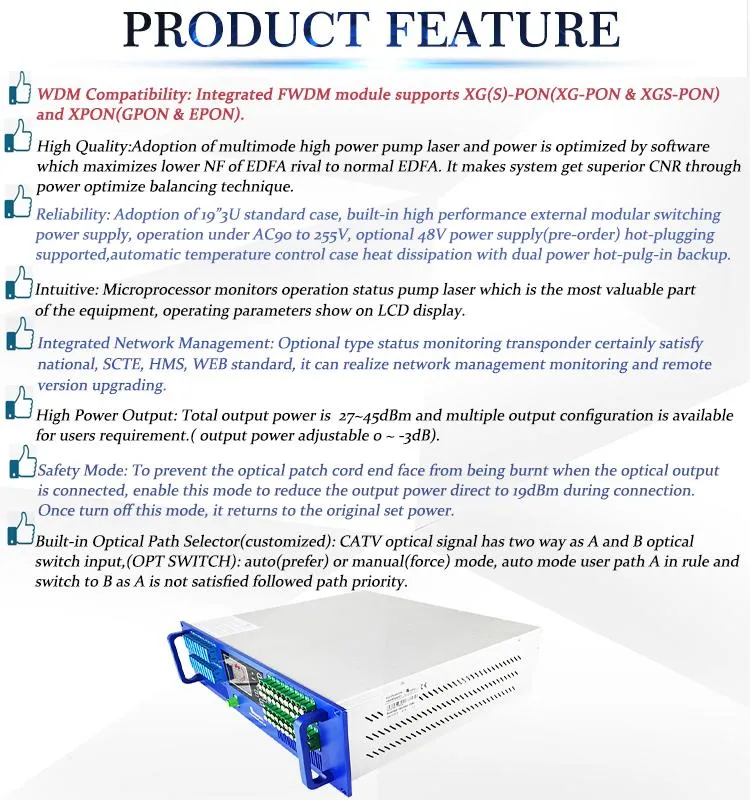

Product Feature
1. Top quality: Adopt JDSU multi-mode high-power pump laser and the power is optimized through software, which makes the system achieving excellent CNR AND minimizing the NF of EDFA.

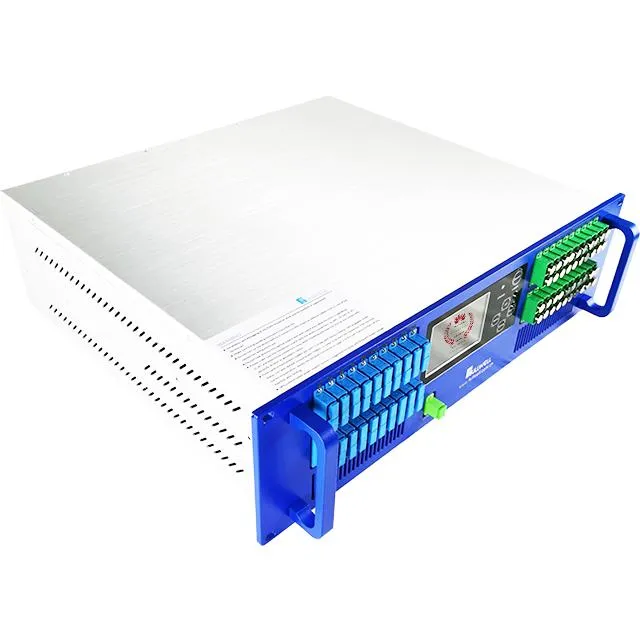

2. Reliability: 19 ″ 3U chassis, large-screen with touch screen panel, built-in high-performance hot-pluggable dual switching power supply with Chassis automatic heat dissipation control.

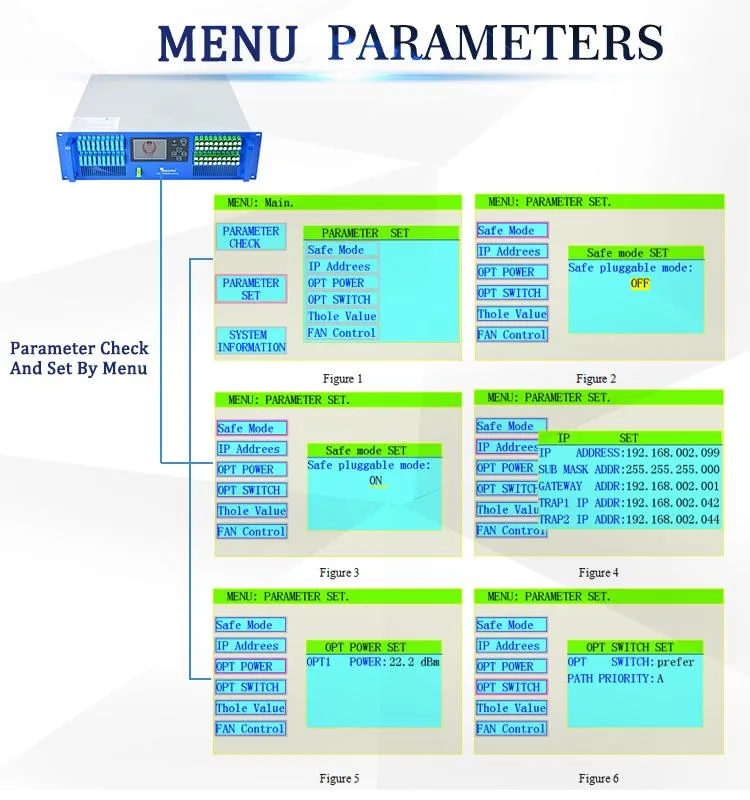

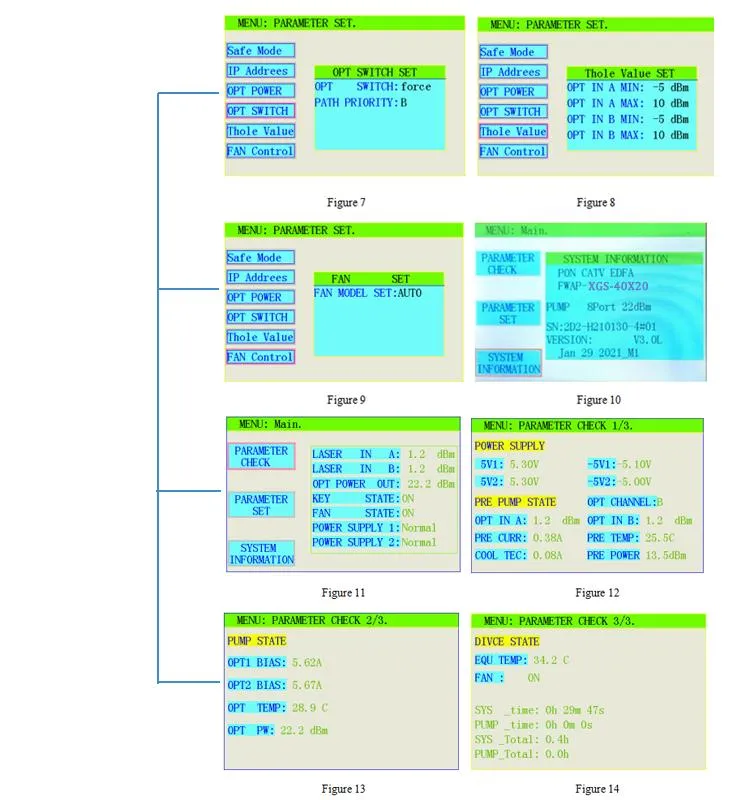

3. Intuitive: JDSU, Lumentum multi-mode pump laser is the most expensive component in the device. The built-in microprocessor monitors the working status of the pump laser, and the working parameters are displayed on LCD.

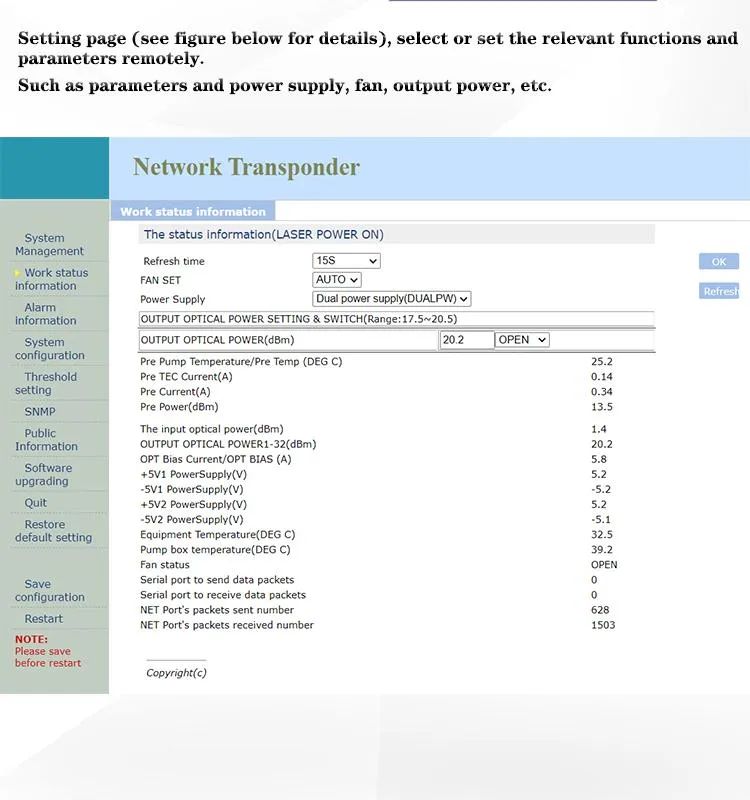

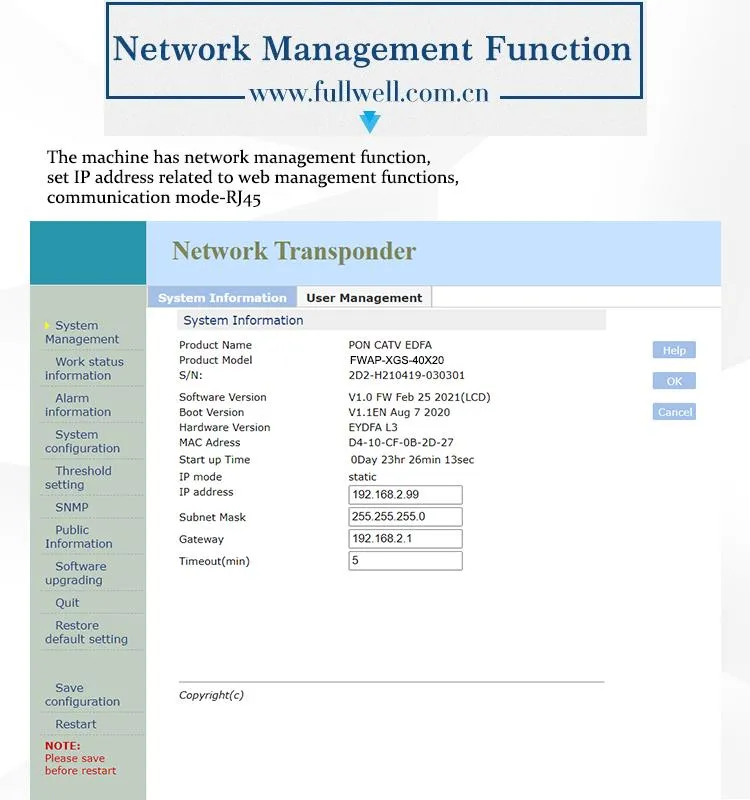

4. Network management Interface: Web transponder is line with the national standard and compatible with the SCTE HMS standard, achieving WEB monitoring function.
5. Customizable 2X1 optical switch: built-in optical path selector, 2 optical inputs, can be set to manual or automatic mode for the selection of main and redundant path.

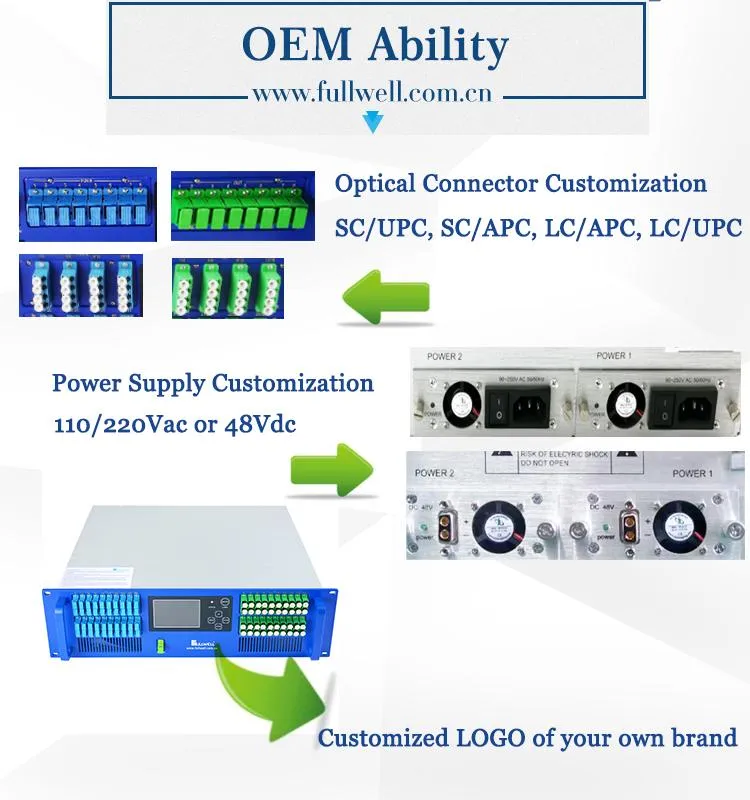

6. Integrated WDM of XGS-PON, XG-PON and GPON, optical port: XGS-PON, XG-PON and GPON input: SC / UPC, 1 port of 1550nm CATV optical input port: SC / APC, XG (S) -PON + CATV 1550nm EDFA output optical port: SC / APC. 64/128 multiply output ports can be customized.


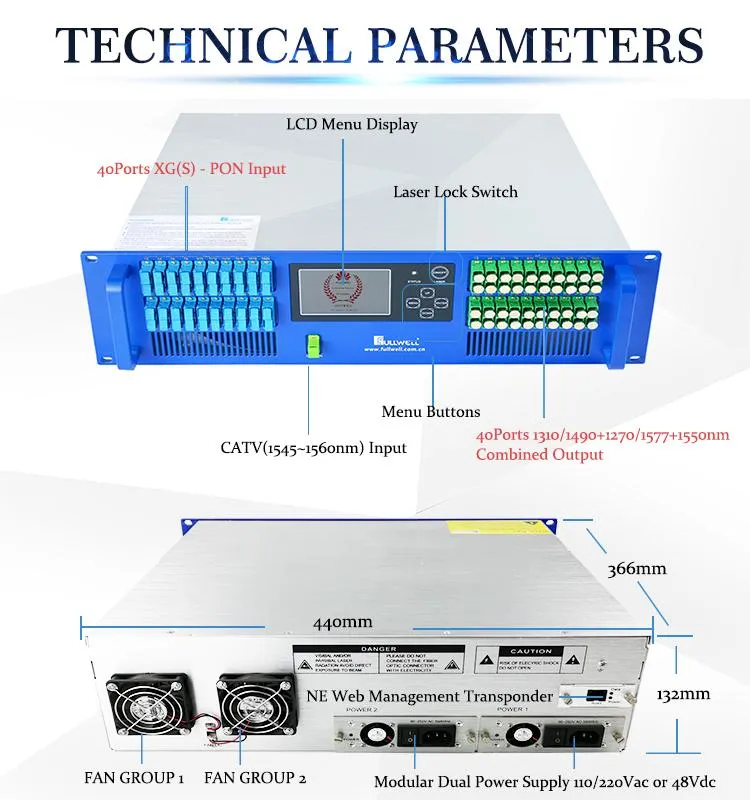

Technical Parameters
ItemsUnitPerformance Index
Optical Operating Wavelengthnm1535~1565
Input Optical Power RangedBm-10~+10
Noise RatiodB5.0 (0 dBm,@1550nM)
Gain FlatnessdB0.3
Optical Power Output StabilitydB0.5
Polarization SensitivitydB<0.2
Polarization Mode DispersionPs<0.5
Input End Pump Leakage Power dB-30
Output End Pump Leakage Power dB-30
Optical Input, Output Return Loss dB>45(APC Stepped Face)
Pump Operating NumberPCs2~5
Rated Output PowerdBm27~45
Linker(IN)-SC/APC
Linker(OUT)-SC/APC
Power Supply/ConsumptionV/WAC165~265 or DC-48/20
Operating/Storage TemperatureºC-20~65/-30~70
Operating/Storage Humidity%5~90
Case Size19×16×3.5
Network Management Connector/RJ45(following national network management standard, supports WEB)
 XG(S)- PON Wavelengthnm1310/1490 & 1270/1577
XG(S)- PON Linker/SC/UPC
Uplink optical portspcs40
Output portsPcs40
XG(S)- PON Insertion LossdB<1.2
1550 Port Insertion LossdB<0.7
Optical isolation between CATV&OLTdB40
Optical SwitchInsertion LossdB<1
HarassdB<-60 (isolation between A and B)
Switch Timems<10
Switched Power Threshold RangedBm-5~10


Product model series

Type

Total output power

Output No.

Each Output(dBm)

dBm(mW)

FWAP-XGS-40x15

33dBm(2000mW)

40

15

FWAP-XGS-80x11

80

11

FWAP-XGS-40x16

34dBm(2500mW)

40

16

FWAP-XGS-80x12

80

12

FWAP-XGS-40x17

35dBm(3000mW)

40

17

FWAP-XGS-80x13

80

13

FWAP-XGS-40x18

36dBm(4000mW)

40

18

FWAP-XGS-80x14

80

14

FWAP-XGS-40x19

37dBm(5000mW)

40

19

FWAP-XGS-80x15

80

15

FWAP-XGS-40x20

38dBm(6000mW)

40

20

FWAP-XGS-80x16

80

16

FWAP-XGS-40x21

39dBm(8000mW)

40

21

FWAP-XGS-80x17

80

17

FWAP-XGS-40x22

40dBm(10000mW)

40

22

FWAP-XGS-80x18

80

18

FTTH 10g Downstream and Upstream Xgs-Pon 1270/1577&1310/1490&1550nm EDFA CombinerFTTH 10g Downstream and Upstream Xgs-Pon 1270/1577&1310/1490&1550nm EDFA CombinerFTTH 10g Downstream and Upstream Xgs-Pon 1270/1577&1310/1490&1550nm EDFA CombinerFTTH 10g Downstream and Upstream Xgs-Pon 1270/1577&1310/1490&1550nm EDFA CombinerFTTH 10g Downstream and Upstream Xgs-Pon 1270/1577&1310/1490&1550nm EDFA CombinerFTTH 10g Downstream and Upstream Xgs-Pon 1270/1577&1310/1490&1550nm EDFA CombinerFTTH 10g Downstream and Upstream Xgs-Pon 1270/1577&1310/1490&1550nm EDFA CombinerFTTH 10g Downstream and Upstream Xgs-Pon 1270/1577&1310/1490&1550nm EDFA CombinerFTTH 10g Downstream and Upstream Xgs-Pon 1270/1577&1310/1490&1550nm EDFA Combiner
FTTH 10g Downstream and Upstream Xgs-Pon 1270/1577&1310/1490&1550nm EDFA Combiner
FTTH 10g Downstream and Upstream Xgs-Pon 1270/1577&1310/1490&1550nm EDFA Combiner


If you have another question, please feel free to contact me directly as below:

Hangzhou Fullwell Optoelectronic Equipment Co., Ltd

Add:A2-1305,Qimeng Science & Innovation Park,No.1899,Gudun Road,Hangzhou, China
