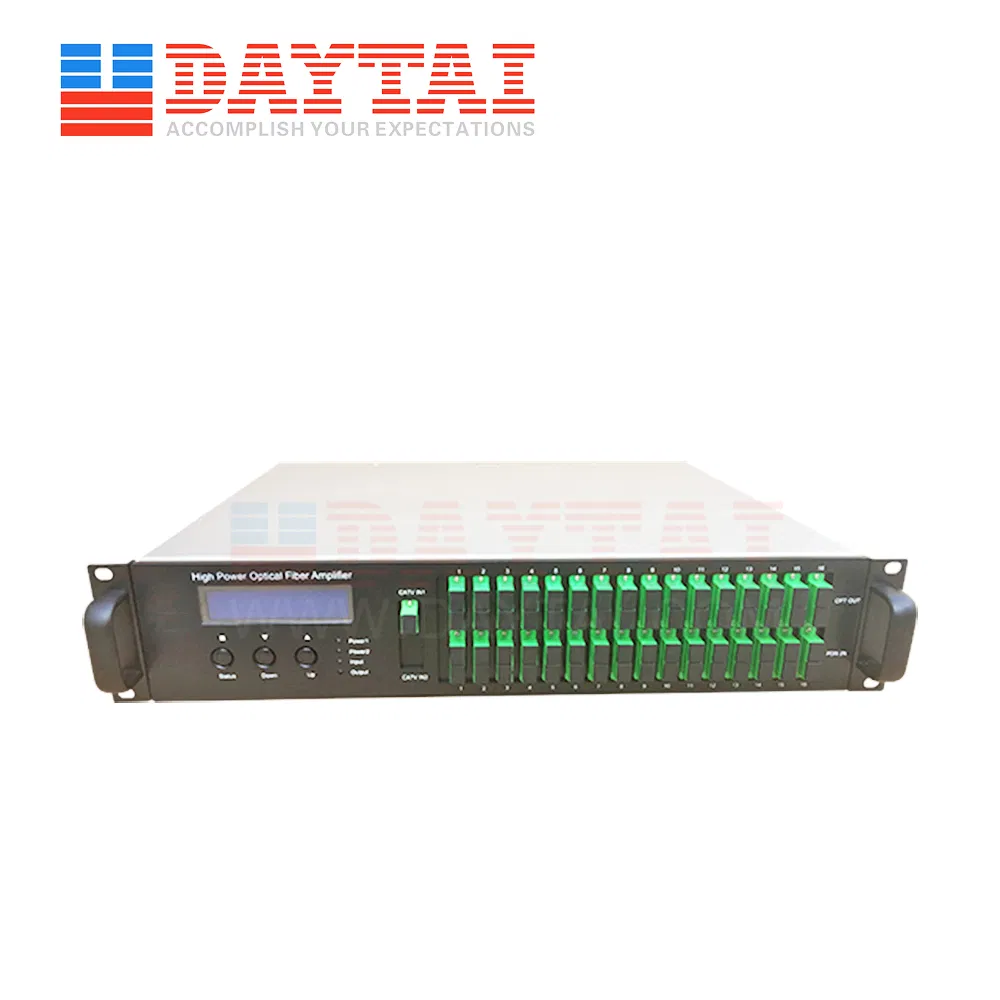

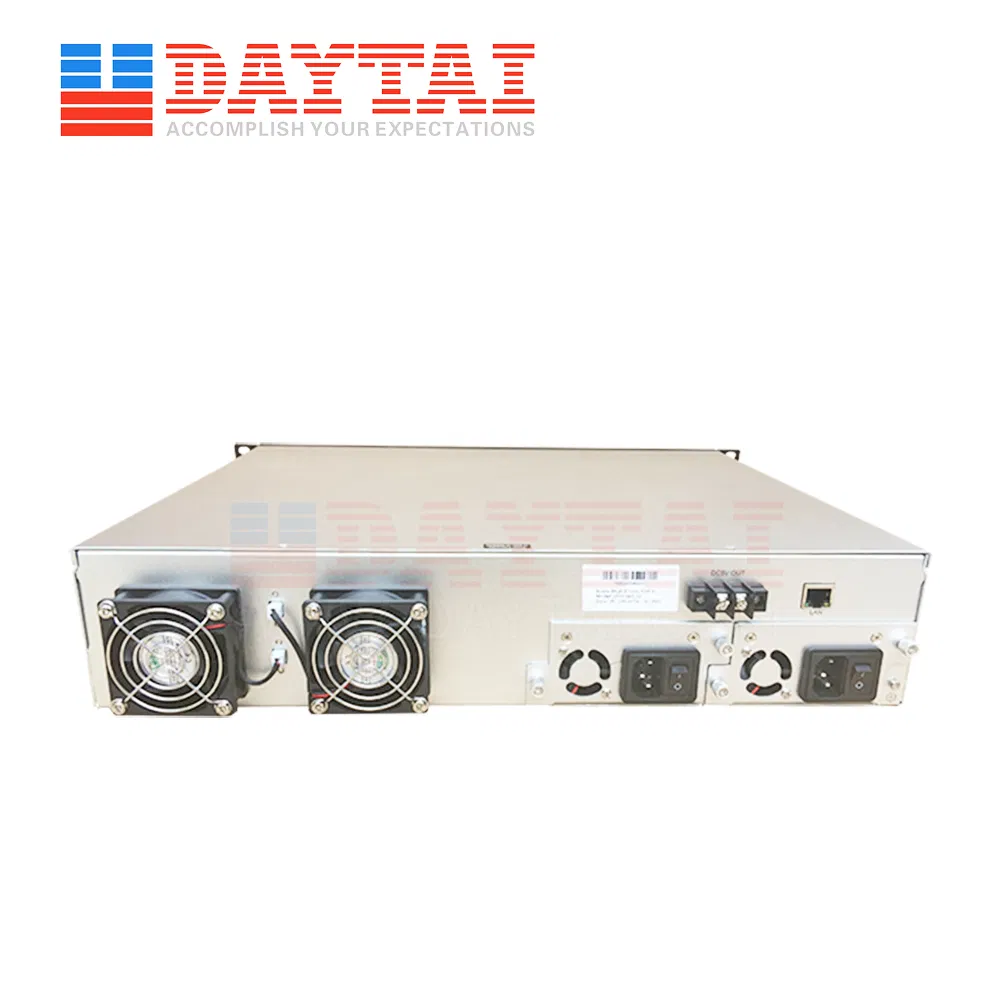

Cheap Price 1550nm 32 Output Port 21 22 23 24dBm EDFA Optical Fiber Amplifier
DescriptionDT-OA1550-32 x XX dbm series high power fiber amplifier adopts high-reliability multi-mode PUMP laser and double-clad fiber in core component. It adopts unique APC (automatic power control) and ATC (automatic temperature control) circuit to make output power keep high stability, good reli......
Send Inquiry
Product Description
Description
DT-OA1550-32 x XX dbm series high power fiber amplifier adopts high-reliability multi-mode PUMP laser and double-clad fiber in core component. It adopts unique APC (automatic power control) and ATC (automatic temperature control) circuit to make output power keep high stability, good reliability. Unique optical path design to ensure the excellent optical path index; And adopted high-stability and high-precision MPU (micro-processing unit) system is very convenient, reliable and intelligent to use, adjust and display.
Specifications
| Item | Unit | Parameter | ||
| Working wavelength | nm | 1535~1565 | ||
| Input optic power | dBm | -5~+10 | ||
| Total output power | dBm | 28~33 | 34~37 | 38~40 |
| Noise figure | dB | ≤5.0 | ≤5.5 | ≤6.0 |
| output port number | 4,8,16,32,64 | |||
| Each port output power | dBm | 10~23 | ||
| Output power adjustable range | dB | -4.0 to +0.2 | ||
| Output power stability | dB | ≤±0.2 | ||
| Return loss | dB | ≥45 | ||
| Pump leakage power | dBm | ≤-30 | ||
| Polarization relevant gain | dB | ≤0.3 | ||
| Polarization membrane dispersion | Ps/nm | ≤0.5 | ||
| Optic Connector | SC/APC,FC/APC or LC/APC | |||
| Power Supply Voltage | V | AC110~265(50~60Hz)or DC48V | ||
| Power Consumption | W | ≤55 | ≤75 | ≤120 |
| Working Temperature | ºC | -5~+50 | ||
| Max. Working Relevant Humidity | % | Max. 85%, no condensation | ||
| Storage Temperature | ºC | -40~+80 | ||
| Outer size | mm | 483×440×88 | ||
| Packing size | mm | 550×540×180 | ||
| Net weight | Kg | 8.45 | ||
| Total weight | Kg | 9.50 | ||
