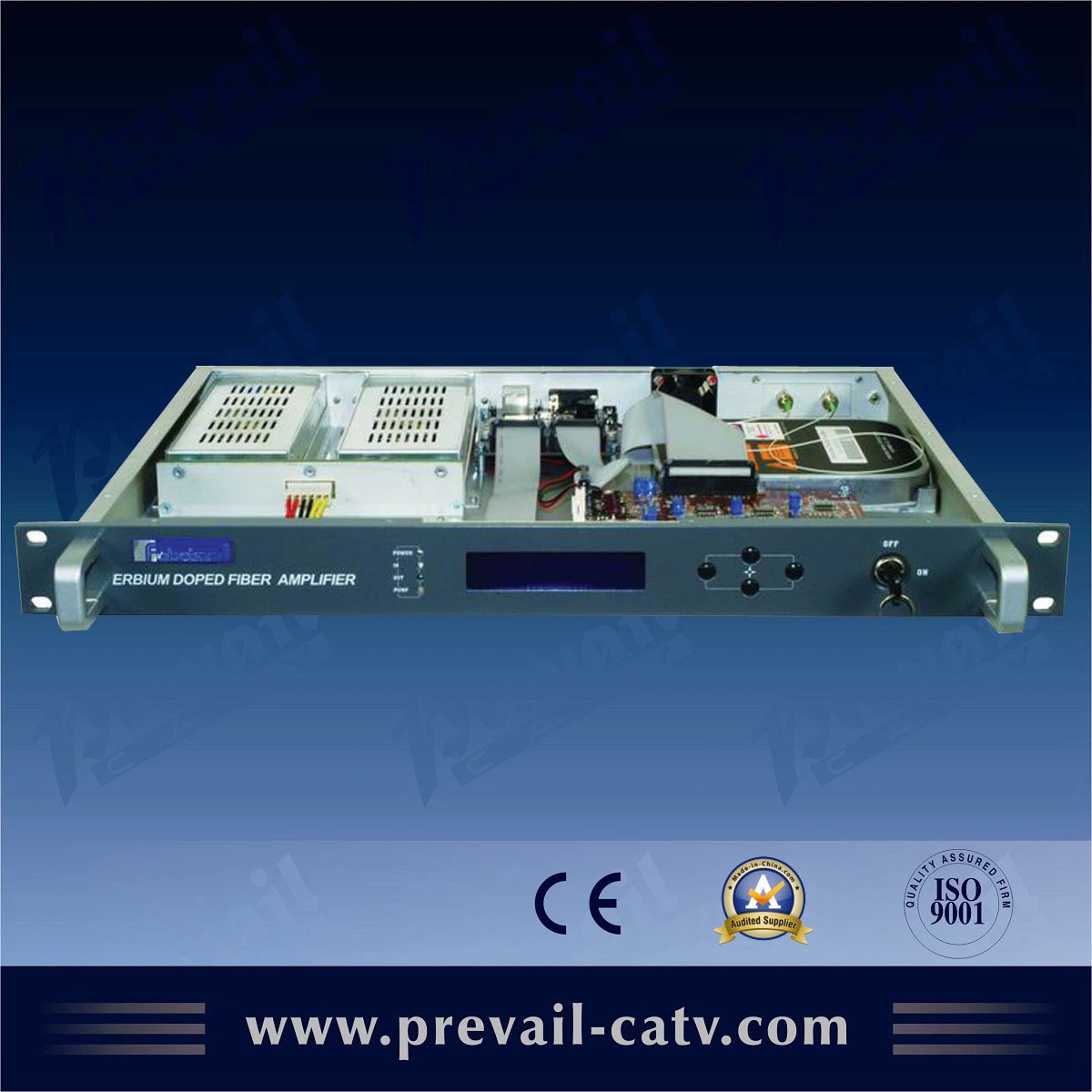

CATV Dual Plug-Type Power Supply EDFA Optional Amplifier
Product Description Performance Characteristicsu Adopt low noise pump laser to realize low distortion, wide broadband and high output optical power.u Adopt imported high-performance Er-doped fiber to achieve high energy conversion efficiency. u Built-in perfect microcomputer automatic monitored con......
Send Inquiry
Product Description
Performance Characteristics
u Adopt low noise pump laser to realize low distortion, wide broadband and high output optical power.
u Adopt imported high-performance Er-doped fiber to achieve high energy conversion efficiency.
u Built-in perfect microcomputer automatic monitored control system, accurately monitoring the real time operating parameters.
u LCD display device operating parameters on the front panel, and support national standard II class network management transponder.
Technique Parameters
Item | Unit | Technique parameter | Remark | |
Operating bandwidth | nm | 1535 - 1565 |
| |
Optical input power range | dBm | -3 - +10 | Suggested optical input power 0 - +5dBm | |
Optical output power | dBm | 13 - 25 |
| |
Output power stability | dBm | ±0.5 | (0 - +10dBm) | |
Noise figure | dB | ≤ 5.0 | Optical input power 0dBm | |
Return loss | Input | dB | ≥ 45 |
|
Output | dB | ≥ 45 |
| |
Pump leakage power | Input | dBm | ≤ -30 |
|
Output | dBm | ≤ -30 |
| |
Optical connector type |
| FC/APC or SC/APC |
| |
Power supply voltage | V | AC160V - 250V (50 Hz) |
| |
Consumption | W | < 30 |
| |
Operating Temperature Range | °C | -5 - +55 |
| |
Maximum operating relative humidity | % | Max 95% No Condensation |
| |
Storage Temperature Range | °C | -30 - +70 |
| |
Maximum storage relative humidity | % | Max 95% No Condensation |
| |
Dimension | mm | 483(W)×340(D)× 44(H) | ||
