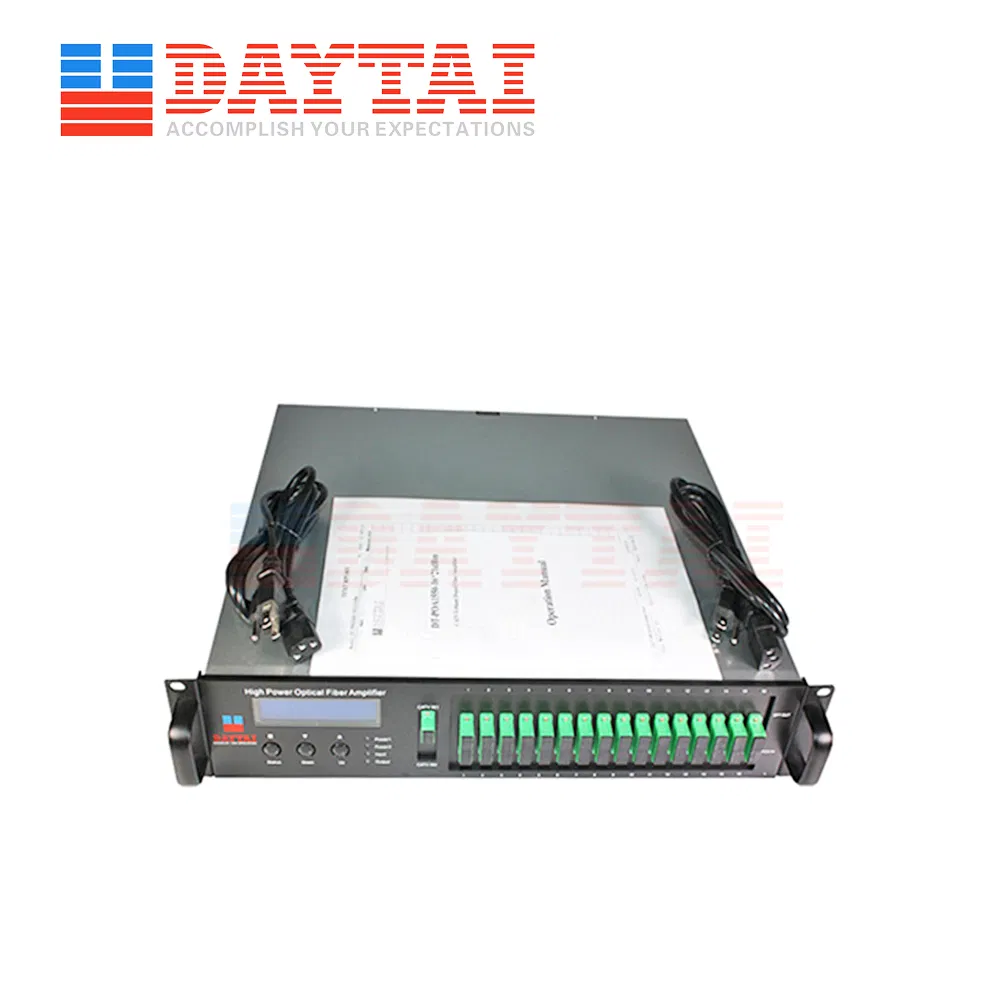

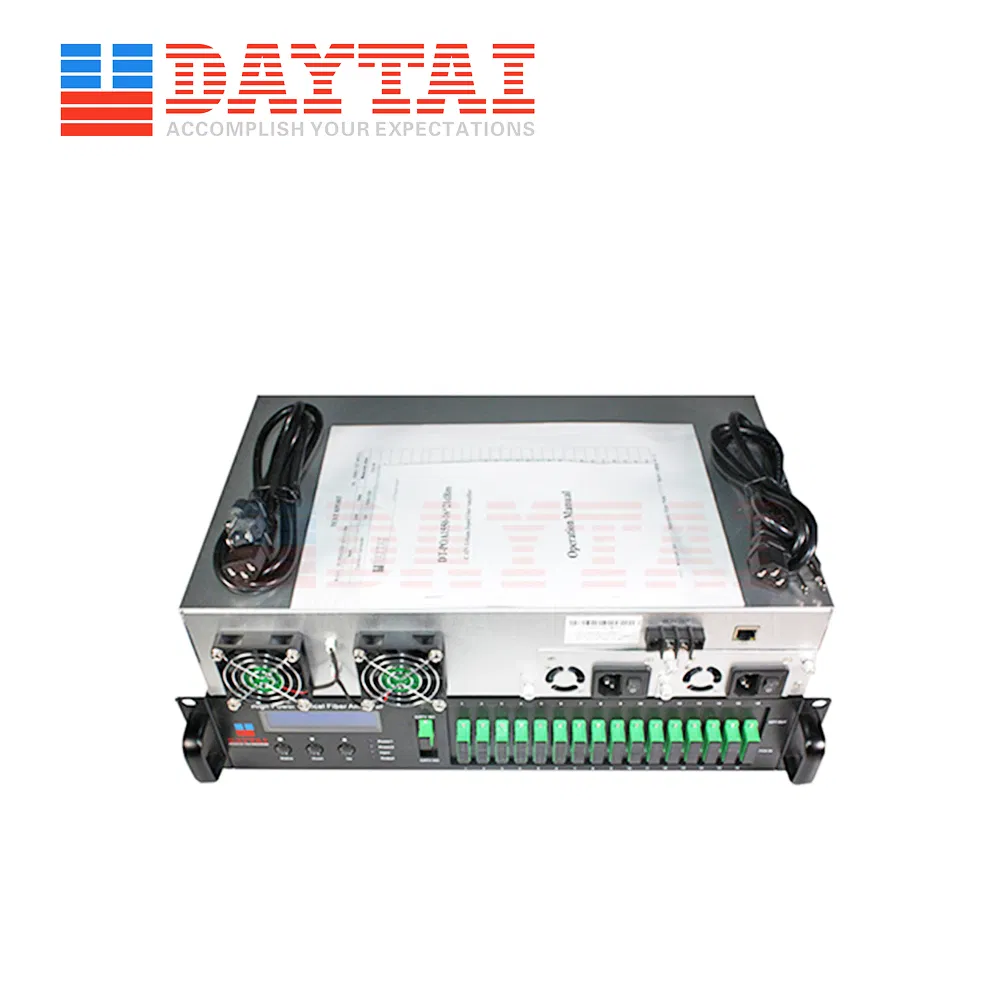

CATV 16 Outputs Ports 1550 Pon Wdm EDFA Optical Amplifier / EDFA Wdm Combiner
Description 1. DT-OA/PA1550-X x XX dbm series high power fiber amplifier adopts high-reliability multi-mode PUMP laser and double-clad fiber in core component. It adopts unique APC (automatic power control) and ATC (automatic temperature control) circuit to make output power keep high stability, goo......
Send Inquiry
Product Description
★Description
1. DT-OA/PA1550-X x XX dbm series high power fiber amplifier adopts high-reliability multi-mode PUMP laser and double-clad fiber in core component. It adopts unique APC (automatic power control) and ATC (automatic temperature control) circuit to make output power keep high stability, good reliability. Unique optical path design to ensure the excellent optical path index; And adopted high-stability and high-precision MPU (micro-processing unit) system is very convenient, reliable and intelligent to use, adjust and display.
2. DT-OA/PA1550-X x XX dbm series high power fiber amplifier adopts unique intelligent temperature-control system; Adopted special temperature-control chip can make the equipment heating volume reduce by 30% compared with conventional circuit. Special heat-dissipating fan channel design can ensure the perfect temperature stability, meanwhile powerful fan will start to work when the whole machine temperature is higher than 40ºC, and will stop when temperature is lower than 36ºC, which ensure the heat-stability of the system and long-life of fan.
3. DT-OA/PA1550-X x XX dbm series high power fiber amplifier is characterized by intelligent monitoring and management system. With Ethernet network management interface which is open to ensure that has connectivity with any network management system.
4. DT-OA/PA1550-X x XX dbm series high power fiber amplifier can be widely used in CATV optical transmission system, as well as FTTH required high power distribution system and access system.
★Specifications
Item | Unit | Parameter | ||
Working wavelength | nm | 1535~1565 | ||
Input optic power | dBm | -5~+10 | ||
Total output power | dBm | 28~33 | 34~37 | 38~40 |
Noise figure | dB | ≤5.0 | ≤5.5 | ≤6.0 |
output port number |
| 4,8,16,32,64 | ||
Each port output power | dBm | 10~23 | ||
Output power adjustable range | dB | -4.0 to +0.2 | ||
Output power stability | dB | ≤±0.2 | ||
Return loss | dB | ≥45 | ||
Pump leakage power | dBm | ≤-30 | ||
Polarization relevant gain | dB | ≤0.3 | ||
Polarization membrane dispersion | Ps/nm | ≤0.5 | ||
Optic Connector |
| SC/APC,FC/APC or LC/APC | ||
Power Supply Voltage | V | AC110~265(50~60Hz)or DC48V | ||
Power Consumption | W | ≤55 | ≤75 | ≤120 |
Working Temperature | ºC | -5~+50 | ||
Max. Working Relevant Humidity | % | Max. 85%, no condensation | ||
Storage Temperature | ºC | -40~+80 | ||
Outer size | mm | 483×440×88 | ||

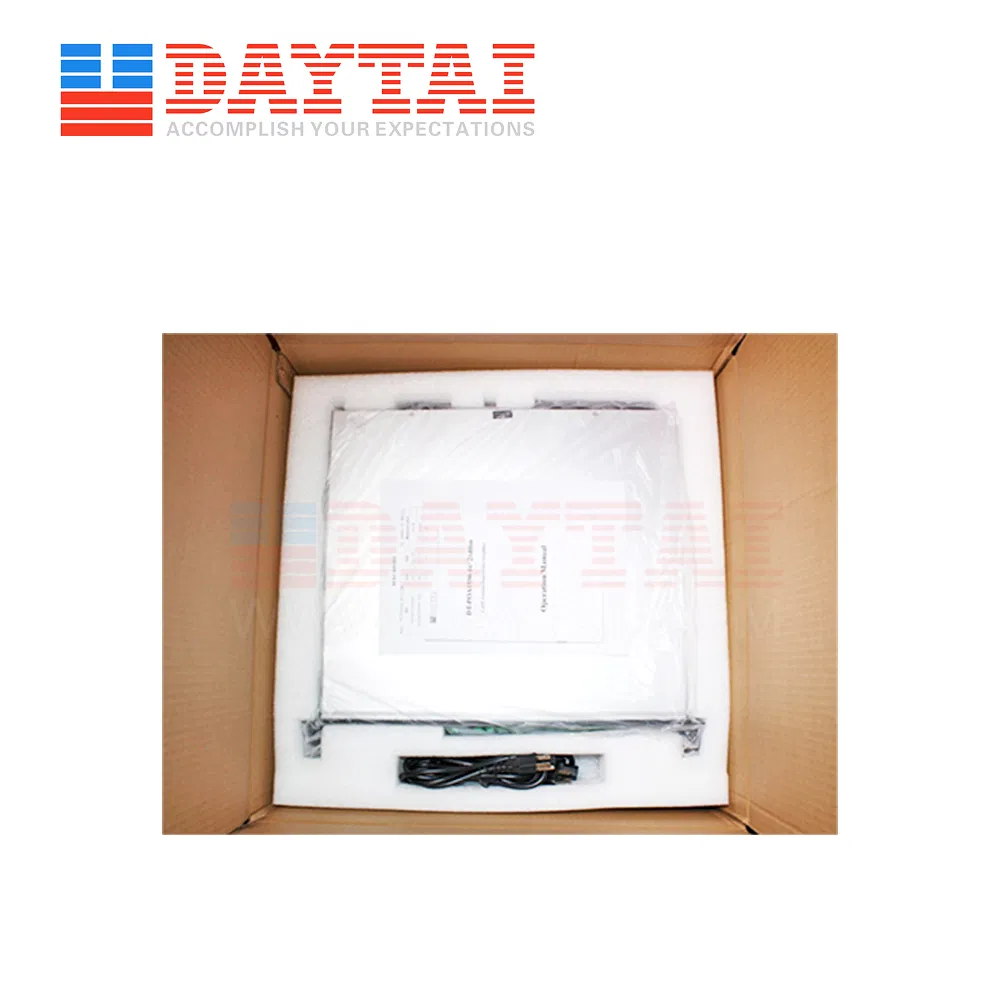

Packing size | mm | 550×540×180 | ||
Net weight | Kg | 8.45 | ||
Total weight | Kg | 9.50 | ||
