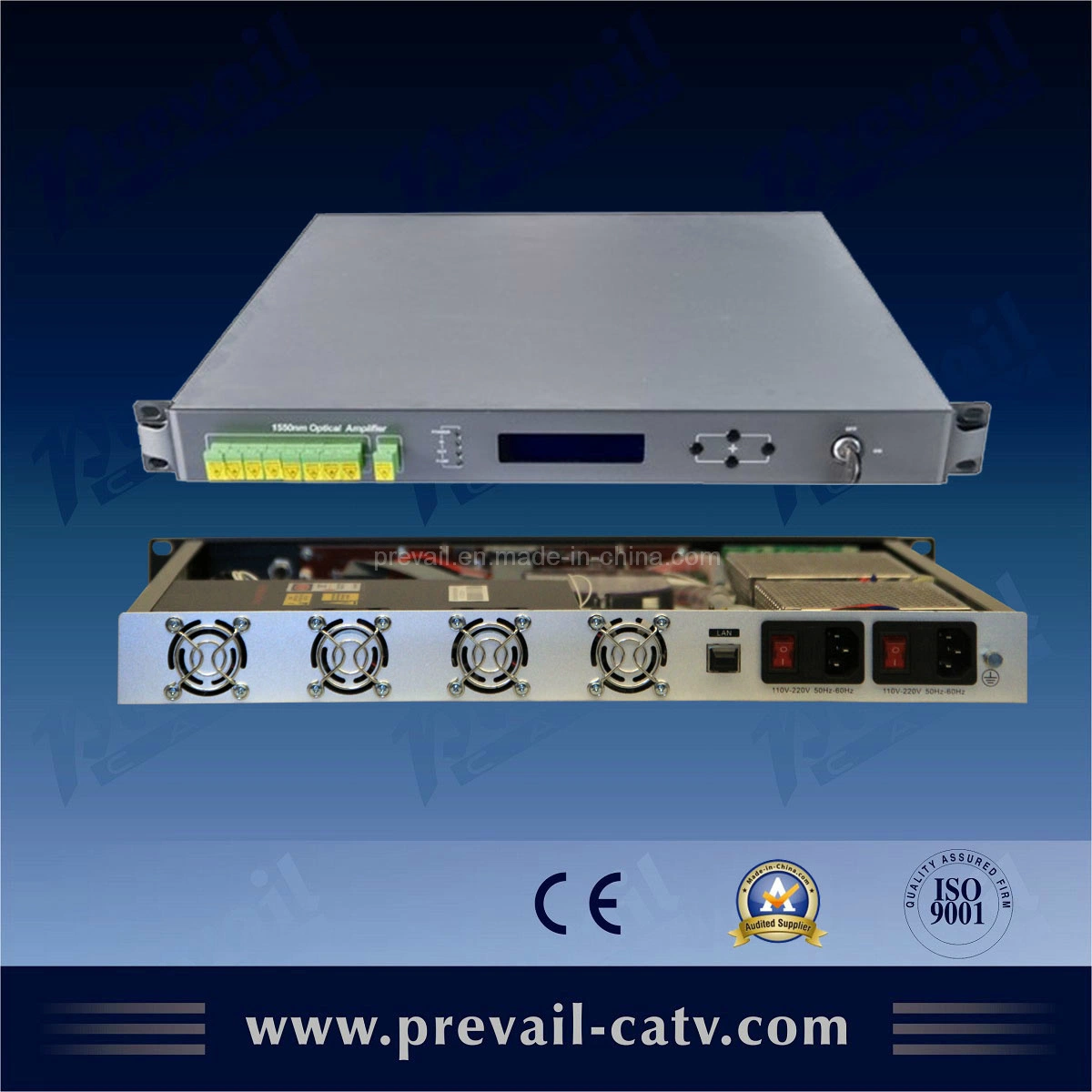

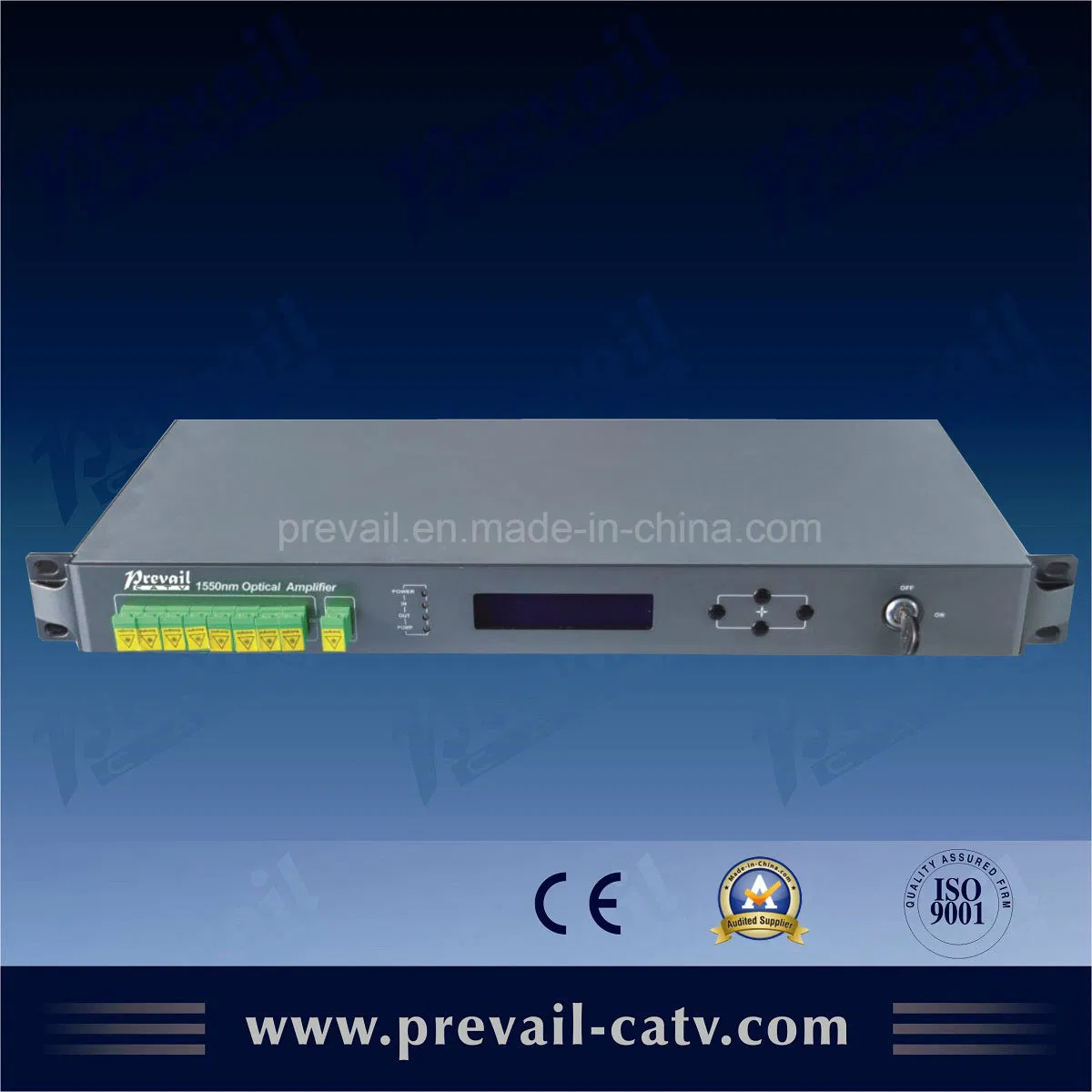

8 Ways Jdsu 1550nm High Power EDFA (WE-YZ)

Product Description

Specification

1. With imported erbium-doped fiber, JDSU pump laser
2. Max optical power is 31dBm
3. With dual Power supply, SMPS

Application

1. Single-mode fiber 1550 amplifier network
2. FTTH network
3. CATV network

Performance Characteristics

1. Adopt Er-Yb co-doped double clad fiber technology;
2. Output port: 4-16 ways optional;
3. Output optical power: (WE-YZB) The total output up to 2W (34dBm);
4. Low noise figure: Low than 5dB when 0dBm input;
5. Perfect network management interface: Ethernet interface;
6. The network management interface meet the national standard SNMP;
7. Intelligent temperature control system, lower power consumption;
8. Output power 0-3dB adjustable;

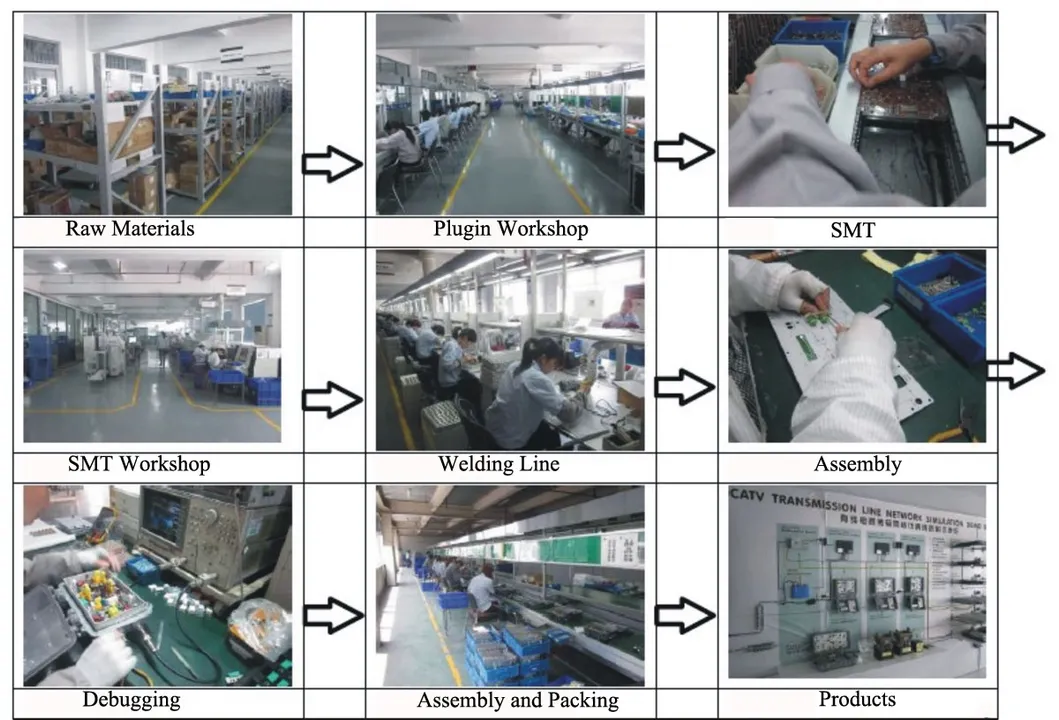

Product Process
8 Ways Jdsu 1550nm High Power EDFA (WE-YZ)

8 Ways Jdsu 1550nm High Power EDFA (WE-YZ)

Item		Unit	Technical Parameter	C omment
Operation bandwidth		nm	1545 - 1565
Input optical power range		dBm	-3 - +10	Suggested i nput optical power 0 - +5dBm
Maximum output optical power		dBm	33
Output power stability		dBm	± 0.5
N oise figure		dB	≤ 5.0	Input optical power 0dBm, λ =1550nm
R eturn loss	Input	dB	≥ 45
R eturn loss	Output	dB	≥ 45
Optical Connector Type			FC/APC or SC/APC or specified by the user
P ower supply voltage		V	AC160V - 250V ( 50 Hz )
Operating Temperature Range		° C	-5 - +55
M aximum operating relative humidity		%	Max 95% No Condensation
Storage Temperature Range		° C	-30 - +70
Maximum storage relative humidity		%	Max 95% No Condensation
Dimension		mm	19" /1RU
