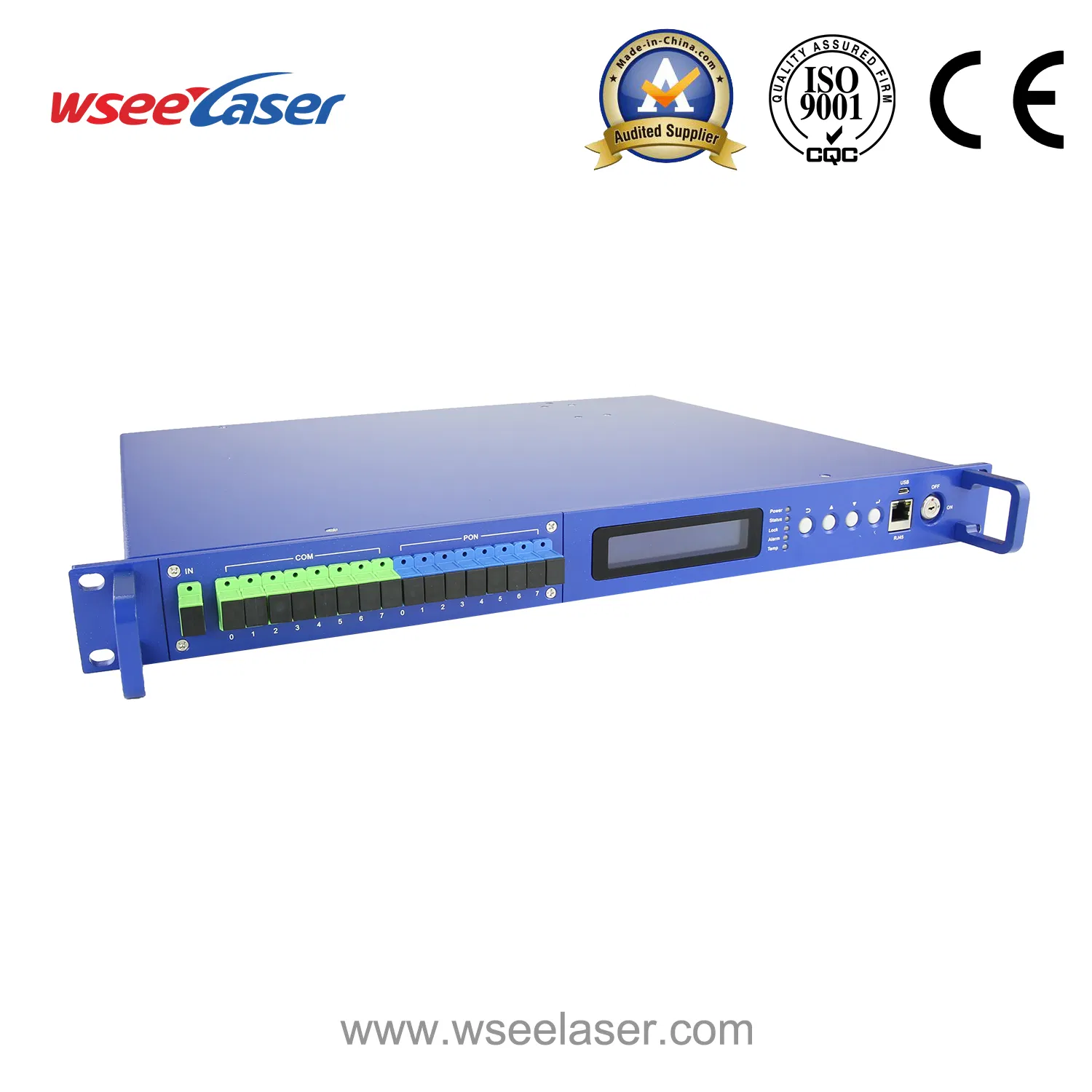

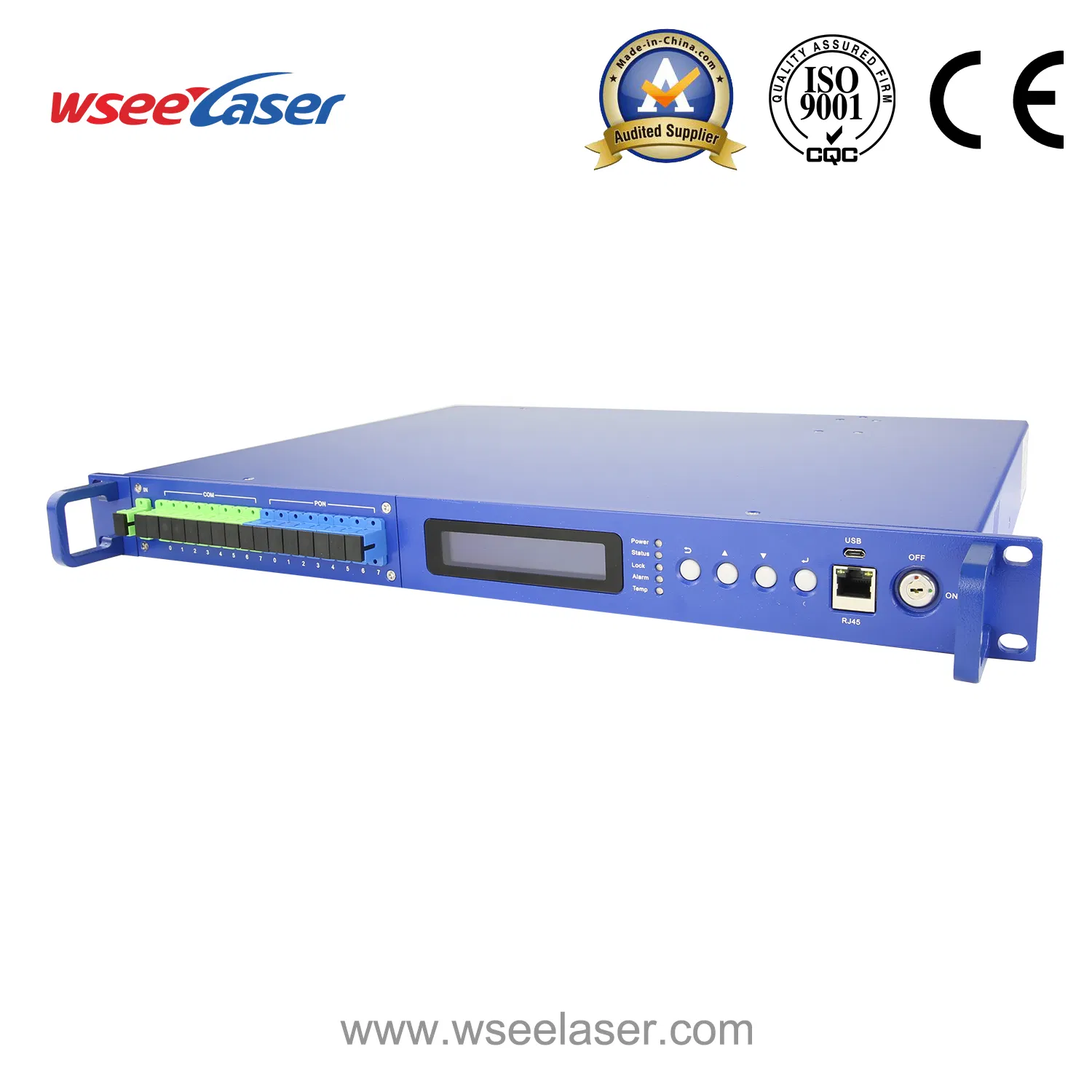

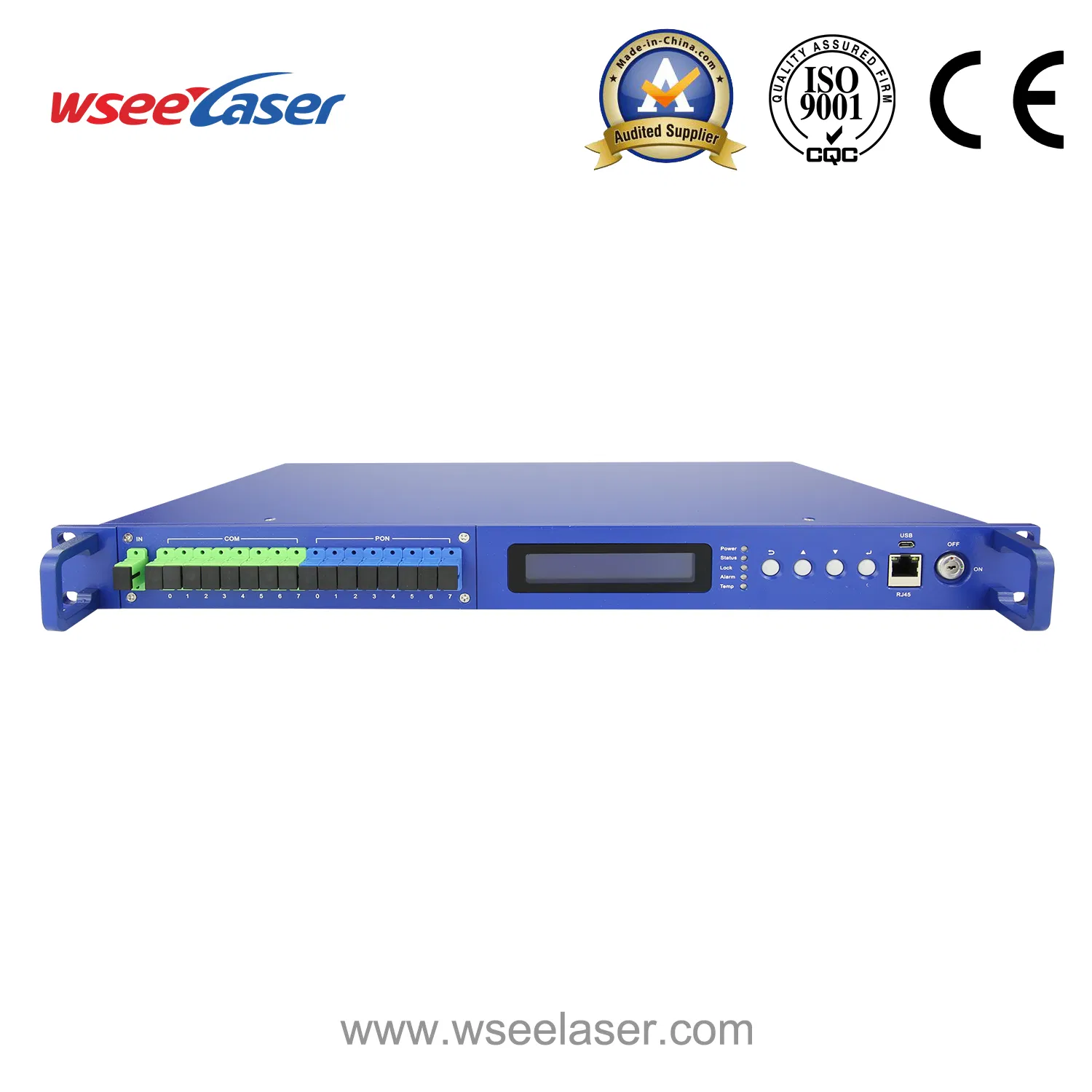

1u Dbc 8 Ports 22dBm EDFA 1550nm Amplificador Optico with Wdm
Technical parametersWS-52EYAxxOperating Wavelength1535-1565nmInput Power-5dBm~+10dBm(normal input -2dBm~+5dBm)Output Total Power26~39dBmOutput PortsSC connector:4/16;LC connector:8/32Noise Figure< 5.5dB(Pin=0dB)PDL< 0.3dBPDG< 0.4dBPMD< 0.3dBPump Leakage Power< -30dBmReturn Loss&ge......
Send Inquiry
Product Description
| Technical parameters | WS-52EYAxx |
| Operating Wavelength | 1535-1565nm |
| Input Power | -5dBm~+10dBm(normal input -2dBm~+5dBm) |
| Output Total Power | 26~39dBm |
| Output Ports | SC connector:4/16;LC connector:8/32 |
| Noise Figure | < 5.5dB(Pin=0dB) |
| PDL | < 0.3dB |
| PDG | < 0.4dB |
| PMD | < 0.3dB |
| Pump Leakage Power | < -30dBm |
| Return Loss | ≥ 45dB |
| Fiber Connector | SC/APC&SC/UPC&LC/APC&LC/UPC |
| Power Supply | 220V(AC90V~265V)&110V(AC90V-130V)&48V(DC30~72V) |
| Power Consumption | ≤60w |
| Operating Temperature | -5ºC ~+42ºC |
| Storage Temperature | -30ºC ~+70ºC |
| Humidity | 5~95% |
| Net Size | 357(W)*482(L)*44(H) |
| Net Weight(one-piece) | 595(W)*490(L)*120(H) |

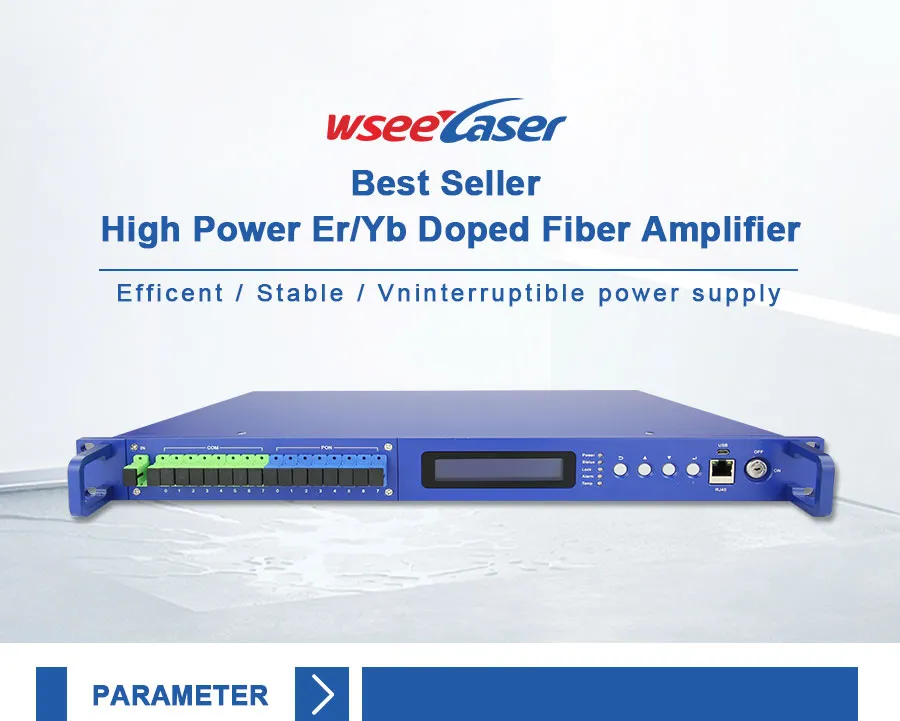

WS-52EYAxx series is a high - power erbium ytterbium fiber amplifier with a gain spectrum bandwidth of 1535 - 1565 nm,mainly
designed for the application of CATV or 1 to 8 continuous band-shaped channels (ITU wavelength),It provides a flexible and low-cost
solution for CATV system to cover a large area of FTTH in large and medium-sized cities.
WS-52EYAxx can realize single wavelength transmission of cable TV, CWDM single fiber three waves, flat gain, DWDM;Its reliable
and excellent performance ratio,mainly used forFTTH, FTTB, DBS, MMDS, FTTX pon. It is an important equipment for constructing
CATV large and medium-sized optical fiber transmission network.
