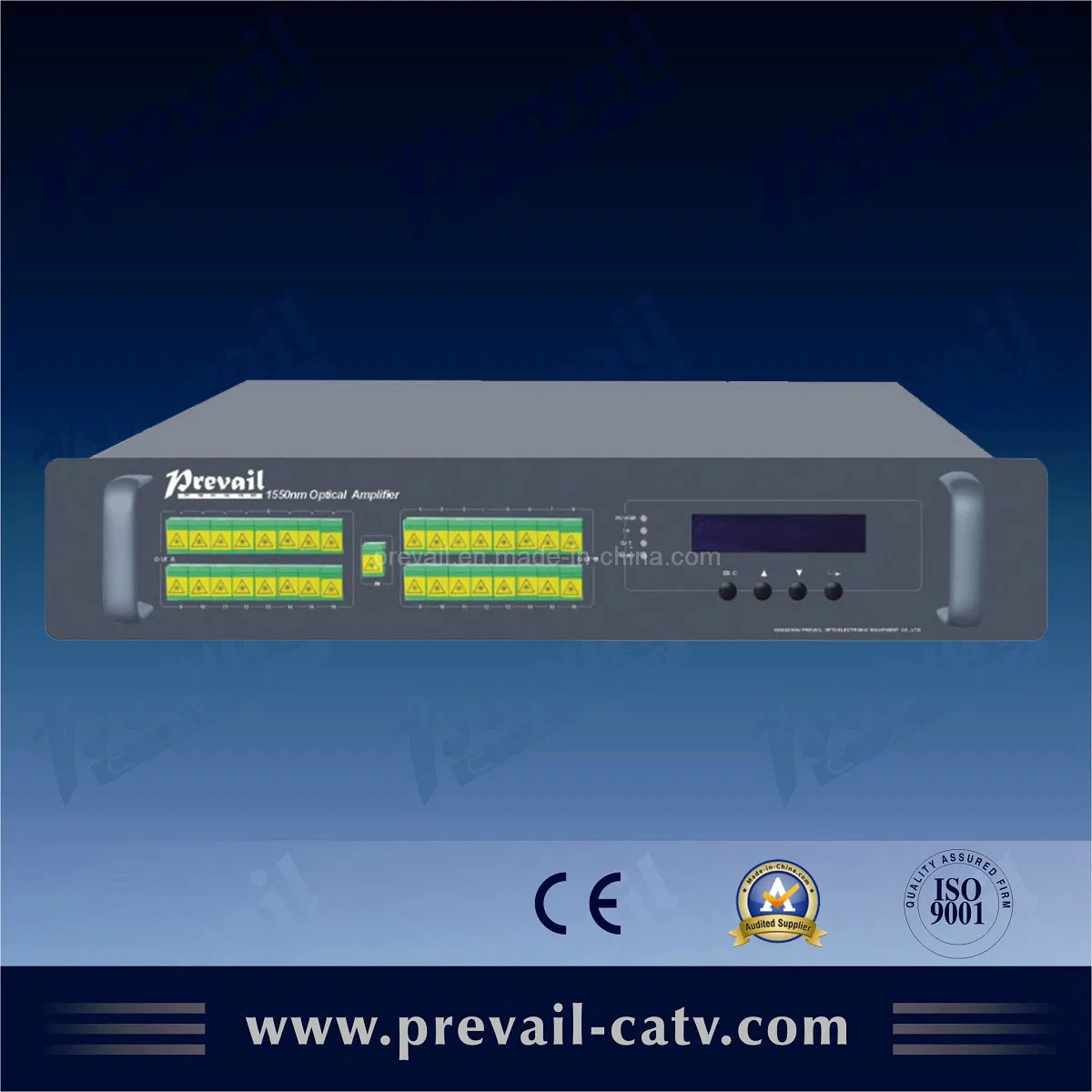

1550nm Multi-Way High Power Optical Amplifier EDFA (WE-YZB)
Optical amplifier Feature1. Optical amplifier adopt Er-Yb co-doped double clad fiber technology;2. Optical amplifier output port: 4~32 ways optional;3. Output optical power: The total output up to 2W;4. Low noise figure: Low than 5dB when 0dBm input;5. Perfect network management interface: Ethernet ......
Send Inquiry
Product Description
Optical amplifier Feature
1. Optical amplifier adopt Er-Yb co-doped double clad fiber technology;
2. Optical amplifier output port: 4~32 ways optional;
3. Output optical power: The total output up to 2W;
4. Low noise figure: Low than 5dB when 0dBm input;
5. Perfect network management interface: Ethernet interface;
6. The network management interface meet the national standard SNMP;
7. Output power 0-3dB adjustable;
Product Process
1. Optical amplifier adopt Er-Yb co-doped double clad fiber technology;
2. Optical amplifier output port: 4~32 ways optional;
3. Output optical power: The total output up to 2W;
4. Low noise figure: Low than 5dB when 0dBm input;
5. Perfect network management interface: Ethernet interface;
6. The network management interface meet the national standard SNMP;
7. Output power 0-3dB adjustable;
Product Process
| Item | Unit | Technical Parameter | Comment | |
| Operation bandwidth | nm | 1545 - 1565 | ||
| Input optical power range | dBm | -3 - +10 |
Suggested input optical power 0 - +5dBm |
|
| Maximum output optical power | dBm | 34 | ||
| Output power stability | dBm | ± 0.5 | ||
| Noise figure | dB | ≤ 5.0 | Input optical power 0dBm, λ =1550nm | |
| Return loss | Input | dB | ≥ 45 | |
| Output | dB | ≥ 45 | ||
| Optical Connector Type | FC/APC or SC/APC or specified by the user | |||
| Power supply voltage | V | AC160V - 250V (50 Hz) | ||
| Operating Temperature Range | -5 - +45 | |||
| Maximum Relative Humidity | % | Max 95% No Condensation | ||
| Storage Temperature Range | -30 - +70 | |||
| Maximum storage relative humidity | % | Max 95% No Condensation | ||
| Dimension | mm | 19" /1RU | ||
