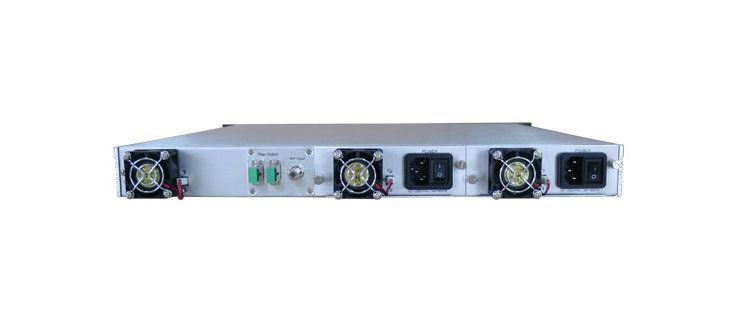

1550nm Fttp Multi-Port Output High Power Optical Transmitter

Product Description

HT8000
1550nm FTTP Multi-port output High Power Optical Transmitter

Product description
1.1550nm High power Optical transmitter
2. With externally modulated
3. SNMP management function option
4. CTB, CSO<=-65, SBS: 13~20dBm

Product features
1. Using high-power, continuous wave DFB laser, which provides 4-way, 6 way, 8 way, 10way High linearity standard optical power output, can be linked more FTTP EDFA.
2. InnovationSBS: 13 ~ 20dBmadjustable.
3. Telecom class high reliability and network management.
4. High system indicators: CNR≥ 53.5dB\CTB≥ -65dB\CTB≤ -65dB ( Without EDFA ).
5. Externally modulated technical no laser chirp, low dispersiondistortion, large extinction Ratio, 40 ~ 862MHz bandhave good features.
6. Narrow linewidth(Typ. = 0.65MHz), low noise, DFB continuous wavelaser, helps to reduce the dispersion.
7. ITU standard wavelength, in the ± 200GHz (± 1.6nm) range can be adjusted.
8. AGC / MGC mode is optional at spot; OMI can be optimized at spot.
9.1+1 powers supply back, up hot-plug function available
10. Advanced SNMP network management function, perfect RS232 communicate interface...
11. Casing temperature auto-control. ]

Main application
1. FTTX PON(FTTH\FTTP)
2. Large and medium-sizedcable televisioncentral office front-endlocal networklarge area, Multi-user access.
3. DWDM OpticalCATV systemsvalue-added services.

Technical Index

Performance			Index		Supplement
Optic feature	Operating wavelength	(nm)	1540~1563		HT8000-CR
			1528.77~1563.86 ( ITU )		HT8000-_ _
	Wavelength ADJ. range	(nm)	± 1.6		± 200GHz
	Wavelength ADJ. mode		± 0.05nm stepping
	Wavelength stability	(Pm/º C)	-1~0		Tc=20~70º C
	Linewidth	(MHz)	Typ. =0.65		FWHM(Δ λ ), (-3dB full width)
	Side mode suppression ratio	(dB)	≥ 45		SMSR
	Equivalent noise intensity	(dB/Hz)	≤ -160		RIN ( 20~1000MHz )
	Number of output port		4		HT8047
			6		HT8067
			8		HT8085
			10		HT8105
	Output power	(dBm)	≥ 7.0		HT8047, HT8067
			≥ 4.5		HT8085, HT8105
	Return loss	(dB)	≥ 50
	Optical fiber connector		LC / APC
RF feature	Work bandwidth	(MHz)	47-862
	Input level	(dBmV)	18~28		AGC
	Flatness	(dB)	≤ ± 0.75		47~862MHz
	Return loss	(dB)	> 16
	Input impedance	(Ω )	75
	RF connector		F-Female
Link feature	Transmit channel		PAL-D / 60CH	PAL-D / 99CH
	CNR1	(dB)	≥ 53.5	≥ 52.0	Back to back
	CNR2	(dB)	≥ 52.0	≥ 50.0	65Km optical fiber, 0dBm receive
	CTB	(dB)	≤ -65	≤ -65
	CSO	(dB)	≤ -65	≤ -65
	SBS restrain	(dBm)	13~20		Adjustable
General feature	SNMP network management interface		RJ45
	Communication interface		RS232
	Power supply	(VAC)	90~265VAC		50 / 60Hz
		(VDC)	-48		30~72
	Power Consume	(W)	≤ 50		Single power works
	Operating temp.	(º C)	0~50		Machine temp. control automatically
	Storage temp.	(º C)	-40~85
	Operating relative humidity	(%)	5~95
	Size (W)x(D)x(H)	(" )	19× 15.2× 1.75		S-Type
			19× 17.9× 1.75		L-Type
