1550nm EDFA/High Power Multi-Way Optical Amplifier
Product Description FTTH 32Ways 2U JDSU 1550nm high power edfa 1. Applicationn Single-mode fiber 1550 amplification networkn FTTH networkn CATV network 2. Performance Characteristicsn Adopts Er-Yb co-doped double-clad fiber technology;n Output ports: 8-32 optional;n Output optical power: total o......
Send Inquiry
Product Description

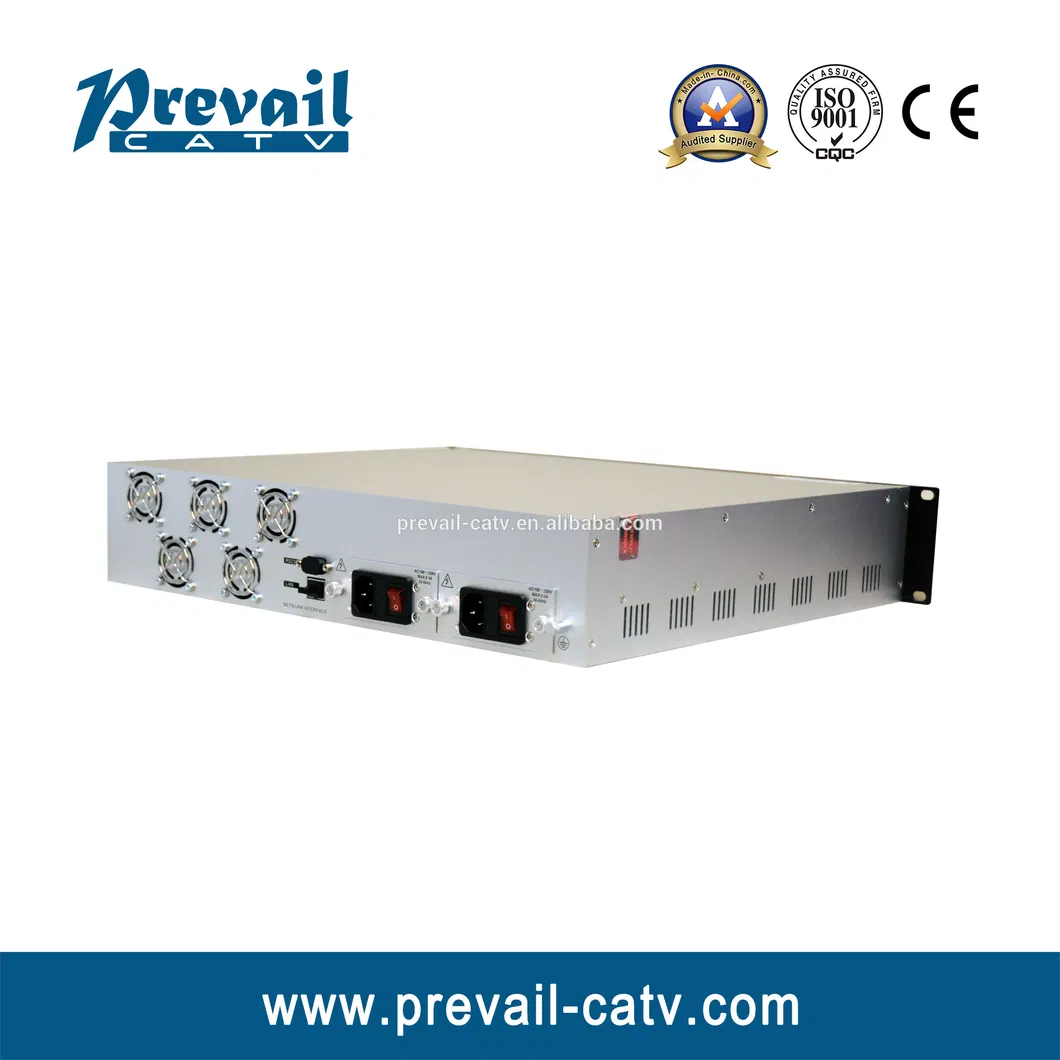

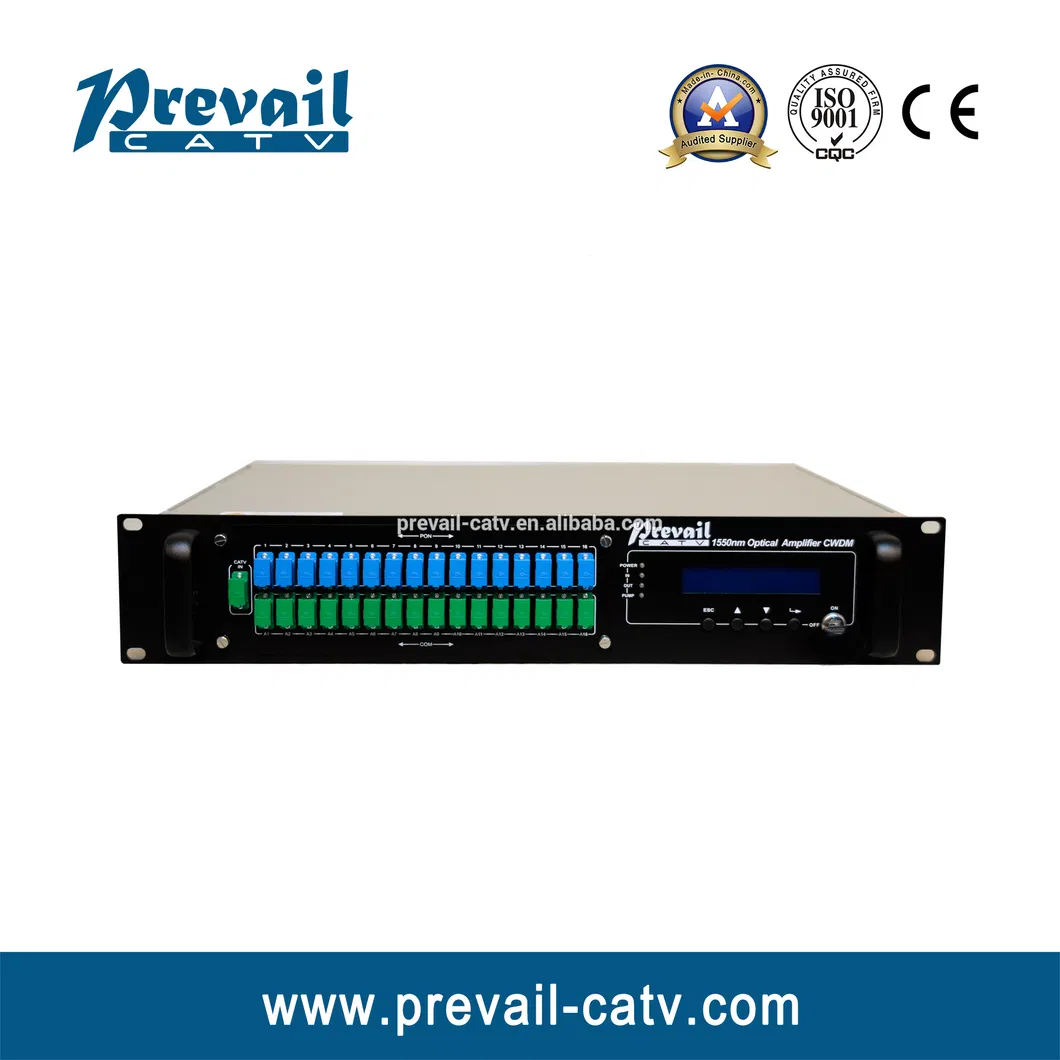

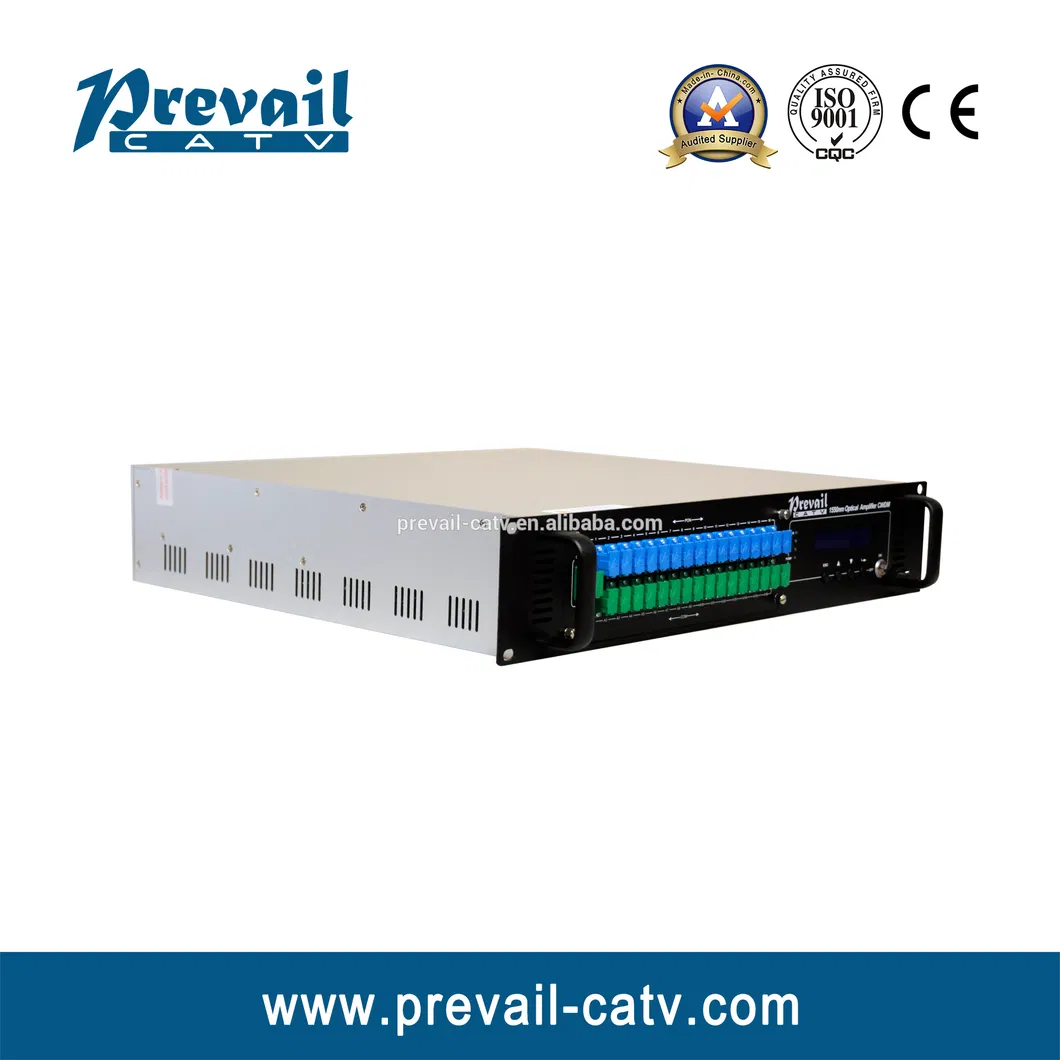

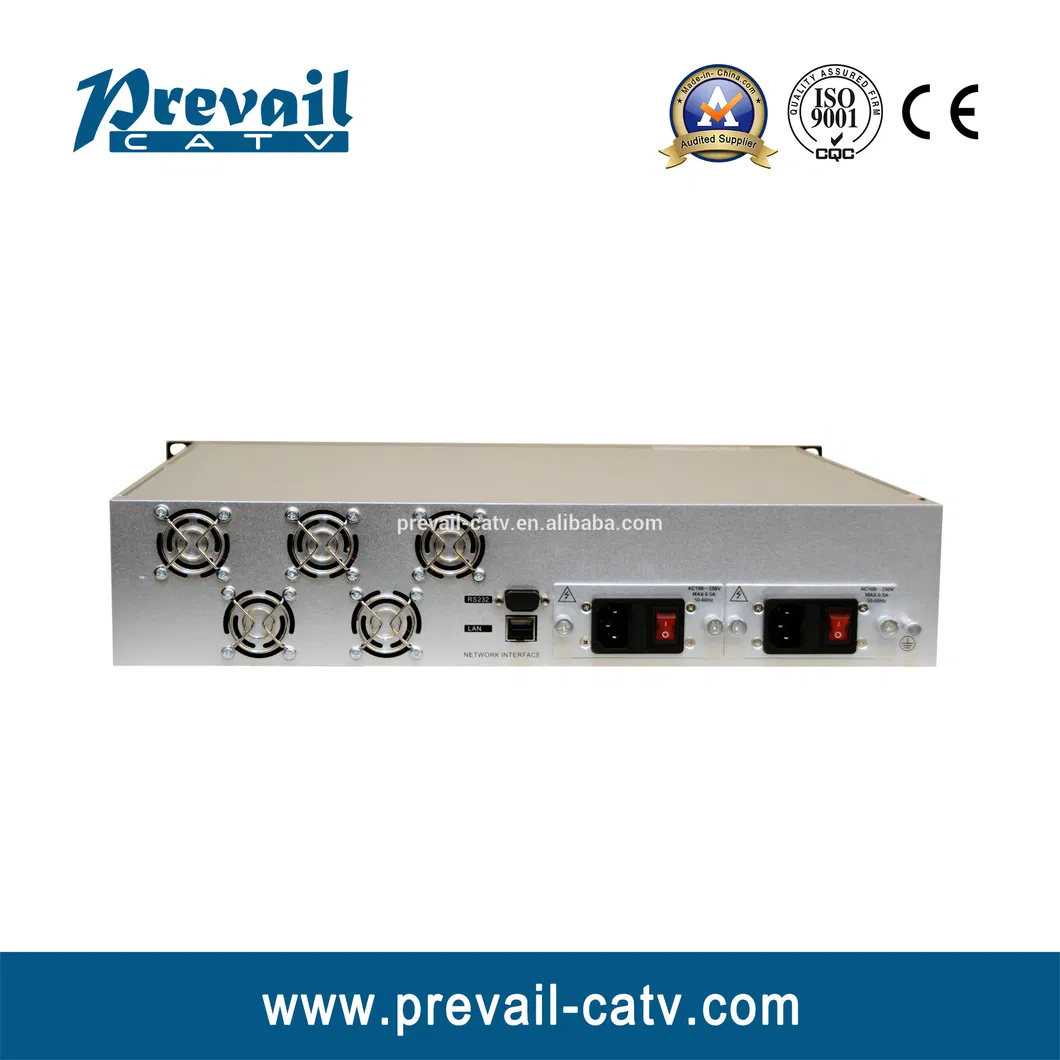

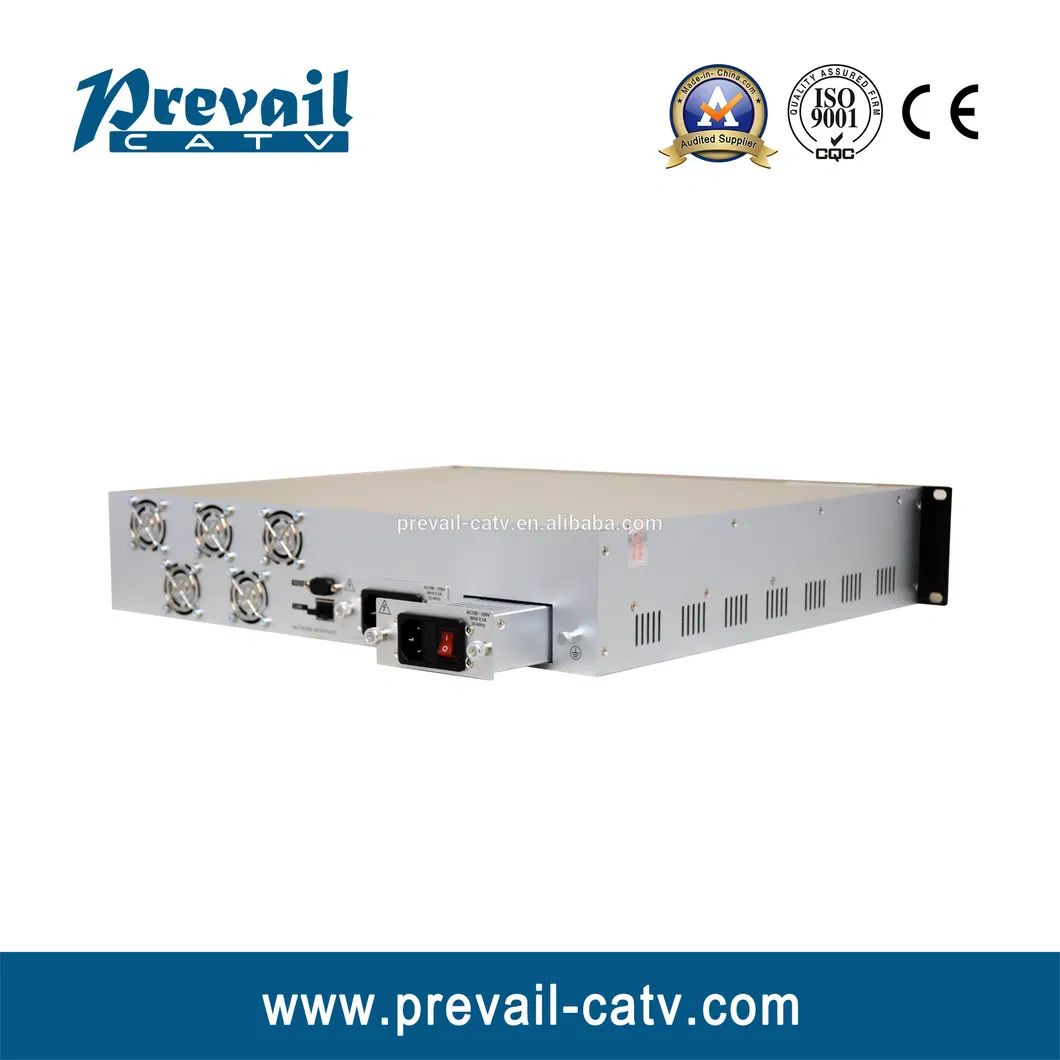

FTTH 32Ways 2U JDSU 1550nm high power edfa
1. Application
n Single-mode fiber 1550 amplification network
n FTTH network
n CATV network
2. Performance Characteristics
n Adopts Er-Yb co-doped double-clad fiber technology;
n Output ports: 8-32 optional;
n Output optical power: total output up to 2W;
n Low noise figure: low than 5dB when input is 0dBm;
n Perfect network management interface, in line with the national standard SNMP network management;
n Intelligent temperature control system make the power consumption more lower;
n Output power: 0-3dB adjustable;
Technique Parameter
Item | Unit | Technique parameters | Remark | |
Operating bandwidth | nm | 1545 - 1565 |
| |
Optical input power range | dBm | -3 - +10 |
| |
Maximum optical output power | dBm | 36 |
| |
Output power stability | dBm | ±0.5 |
| |
Noise figure | dB | ≤ 5.0 | Optical input power 0dBm, λ=1550nm | |
Return loss | Input | dB | ≥ 45 |
|
Output | dB | ≥ 45 |
| |
Optical Connector Type |
| SC/APC |
| |
C/N | dB | ≥ 50 | Test condition according to GT/T 184-2002. | |
C/CTB | dB | ≥ 63 | ||
C/CSO | dB | ≥ 63 | ||
Power supply voltage | V | A: AC160V - 250V (50 Hz) B: DC48V |
| |
Operating temperature range | °C | -10 - +42 |
| |
Maximum operating relative humidity | % | Max 95% no condensation |
| |
Storage temperature range | °C | -30 - +70 |
| |
Maximum storage relative humidity | % | Max 95% no condensation |
| |
Dimension | mm | 483(L)×440(W)×88(H) | ||
Pls see the manual before use the equipment;18 months free warranty for optical transmitter,EDFA and digital equipments(natural disaster and anthropic loss are not included);one year for RF Amplifier,splitter&Tap,optical splitter);Prevail will provide 0.5% of order quantity parts for free (example for the power supply and display etc).If there is a problem ,pls send email to us,we will try to solve it by our engineer.
