China 1550nm CATV Waterproof Outdoor EDFA Optical Amplifier (WE-1550-YZ-YW)

Product Description

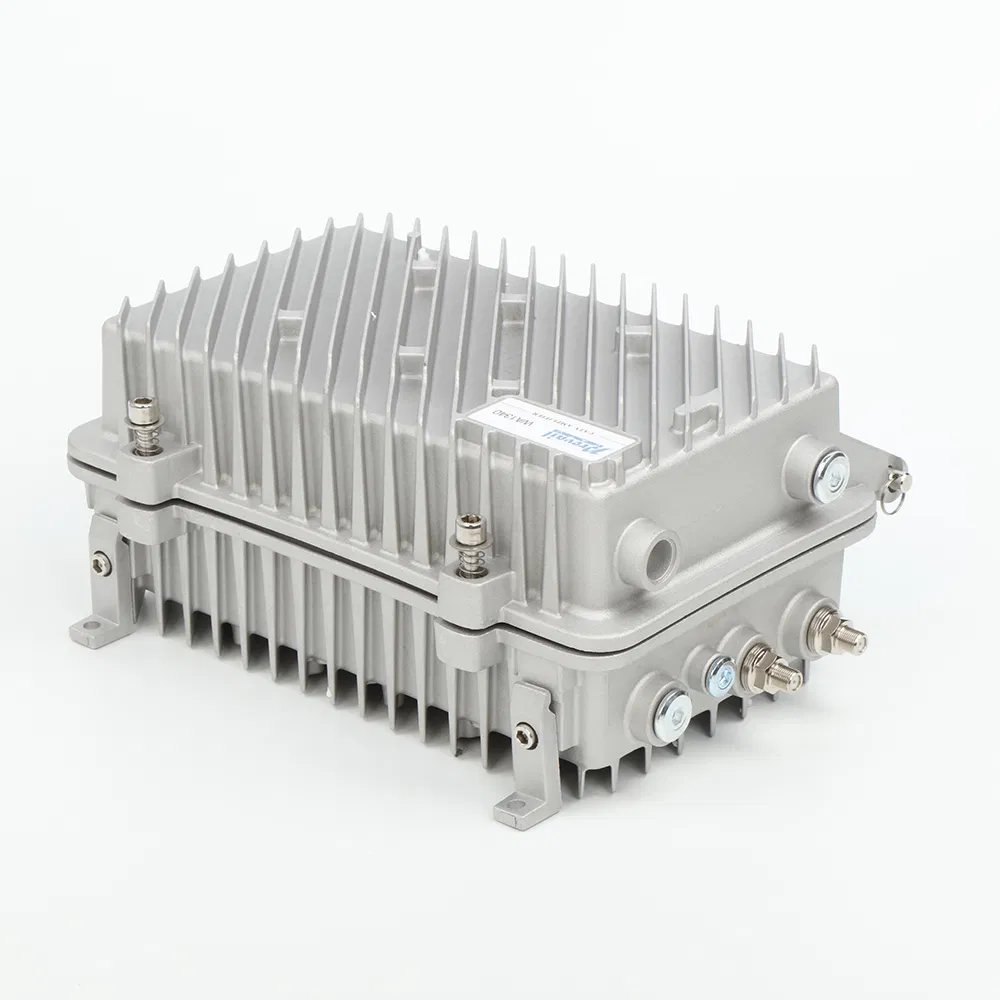

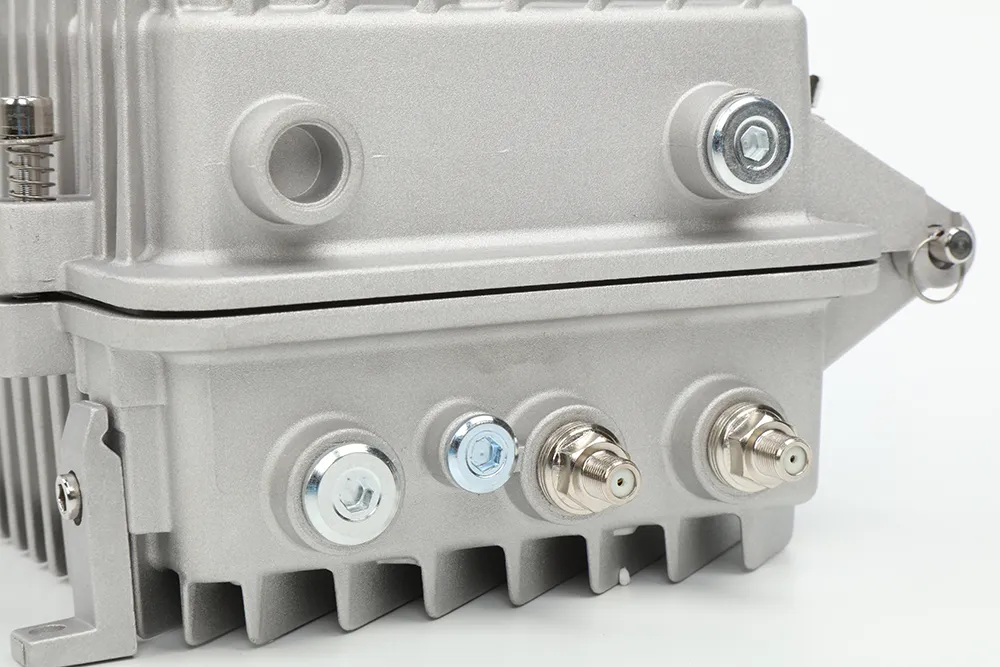

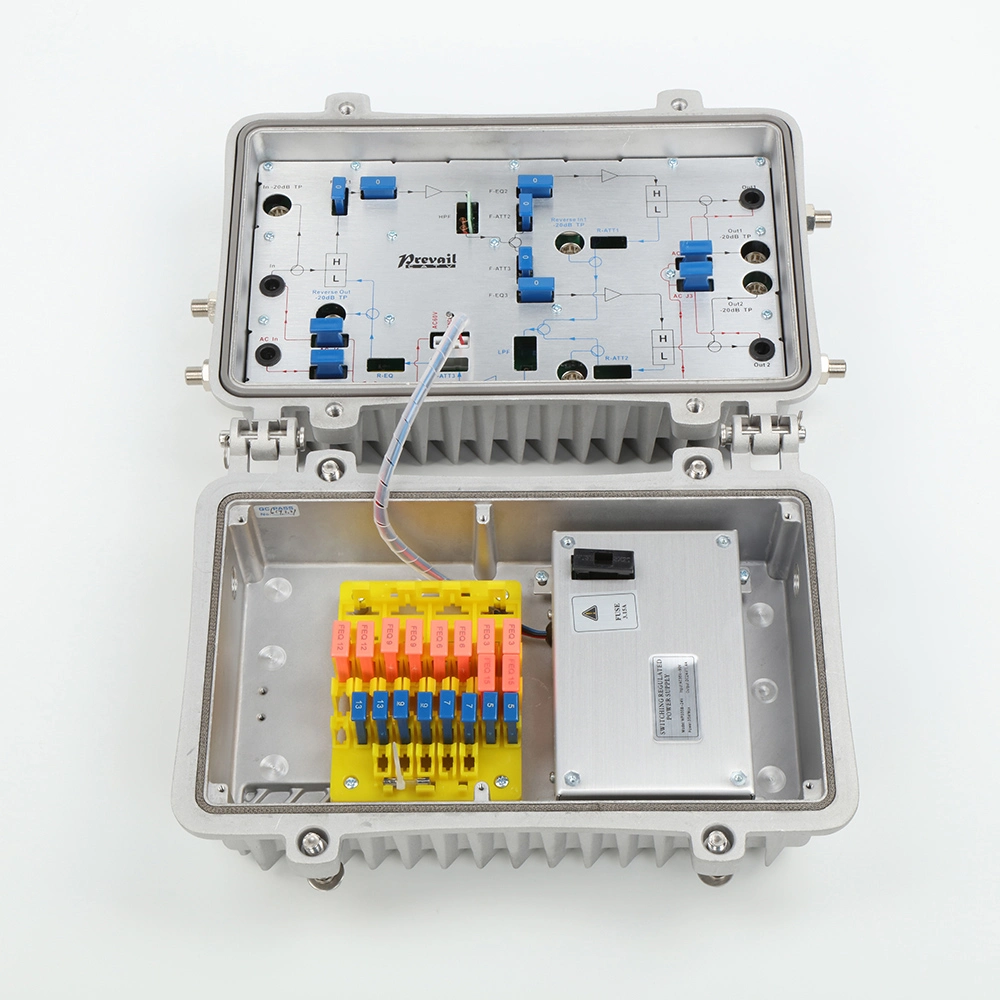

1550nm CATV Waterproof Outdoor EDFA Optical Amplifier (WE-1550-YZ-YW)

1. WE1550nm Erbium-Doped Fiber Amplifier is the important transmission equipment in the WE1550nm fiber optic communication.
2. It is used for long-distance optical transmission of TV image signal, digital TV signal telephone sound signal and data (or compressed data) signal.
3. With high steady imported Erbium-Doped Fiber, international famous low-noise pump laser and automatic control system inside, ensuring the excellent qualification of this equipment.

Item		Unit	Technique Parameter	Remark
Operating Wideband		nm	1535 - 1565
Input Optic Power		dBm	-3 - +10	Input Optical Power 0 - +5dBm
Output Optic Power		dBm	13 - 26
Output Power stability		dBm	± 0.5
Noise Figure		dB	≤ 5.0	Output Optical Power 0dBm
Return Loss	Input End	dB	≥ 45
	Output End	dB	≥ 45
Power of Pump leak	Input End	dBm	≤ -30
	Output End	dBm	≤ -30
C/N		dB	≥ 52
C/CTB		dB	≥ 63
C/CSO		dB	≥ 63
Connector Type			FC/APC, SC/APC
Supply Voltage		V	AC160V - 250V (50 Hz)	it can be set with Dual-power hot-backup supply
Operating Temperature			-5 - +55
Max Relative Humidity		%	Max95%No Condensation
Storage Temperature			-30 - +70
Max Relative Humidity for Storage		%	Max95%No Condensation
Dimension		mm	483(W)34(L)44(H)
