Product Description

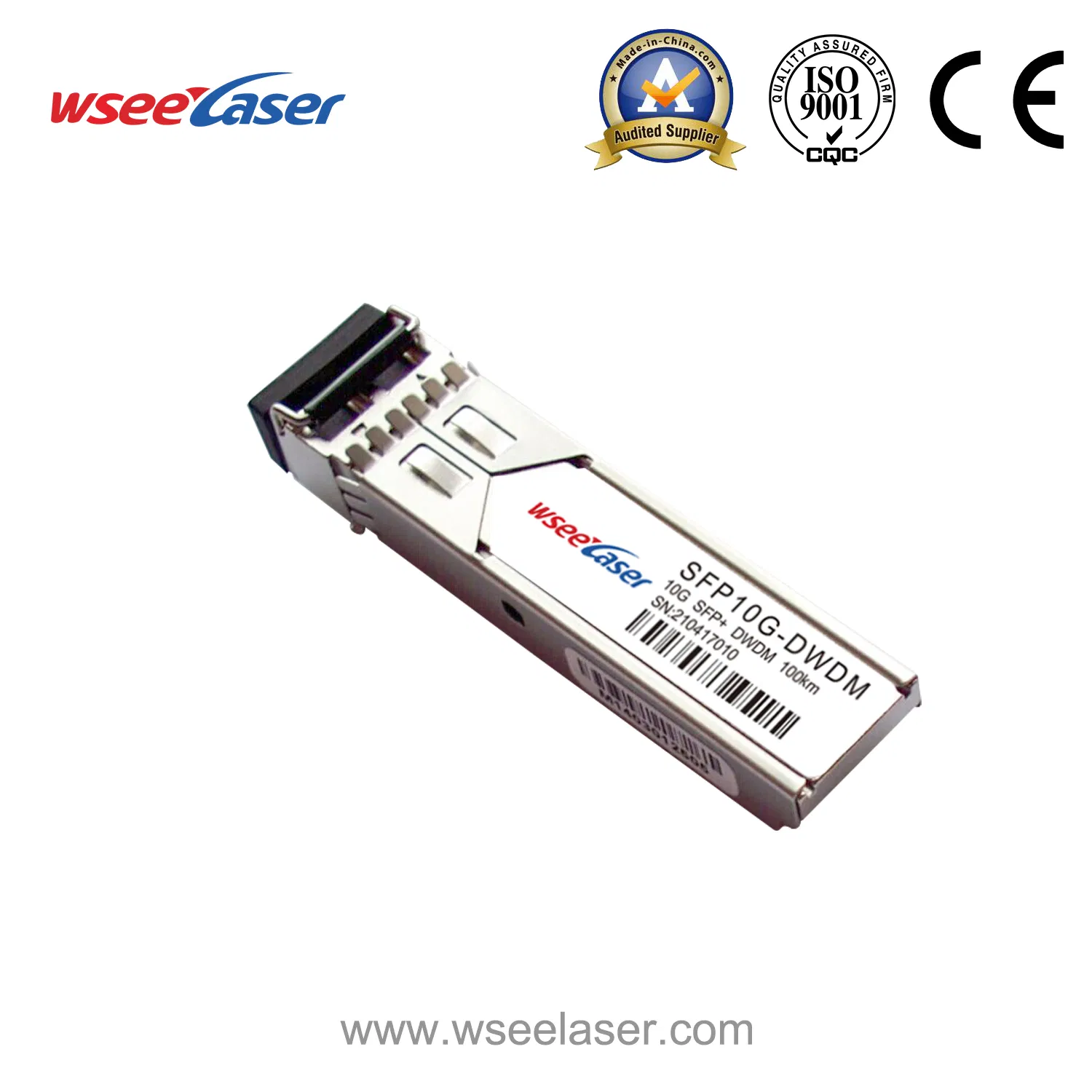

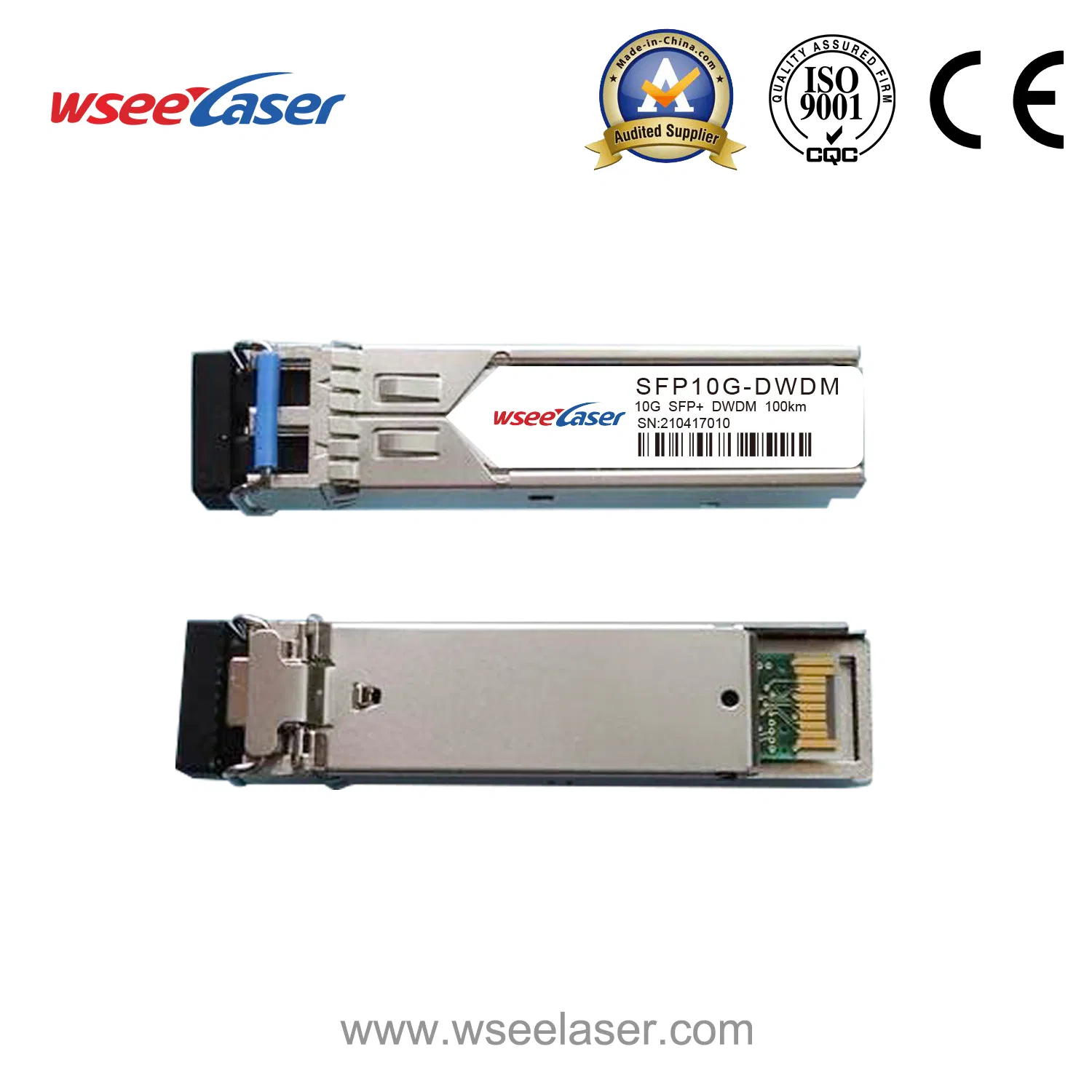

OEM/ODM 10G SFP+ DWDM 100km optical transceiver optical module

The DWDM 10Gbps SFP+ transceiver is designed for 10GBASE-ER/EW, and 8.5G/10G Fiber- Channel applications.The transceiver consists of two sections: The transmitter section incorporates a cooled EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. which allows real-time access to device operating parameters such as transceiver temperature laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Features

Supports 9.95 to 11.5Gb/s bit rates
Duplex LC connector
Hot pluggable SFP+ footprint
Cooled EML transmitter and APD receiver
Applicable for 100km SMF connection
Low power consumption, < 2W

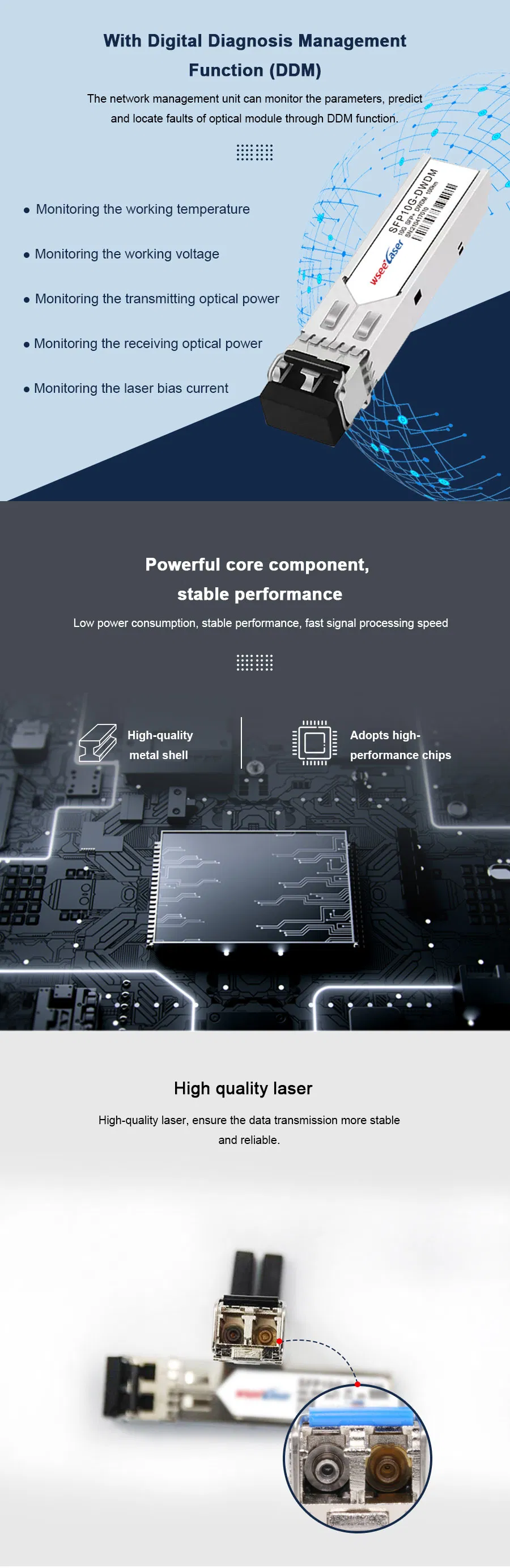

Digital Diagnostic Monitor Interface
Optical interface compliant to ITU-T 694.1& G.698.1
Electrical interface compliant to SFF-8431& SFF-8432
Operating case temperature:

Commerical:0 to 70 °C
Industrial:-40 to 85 °C

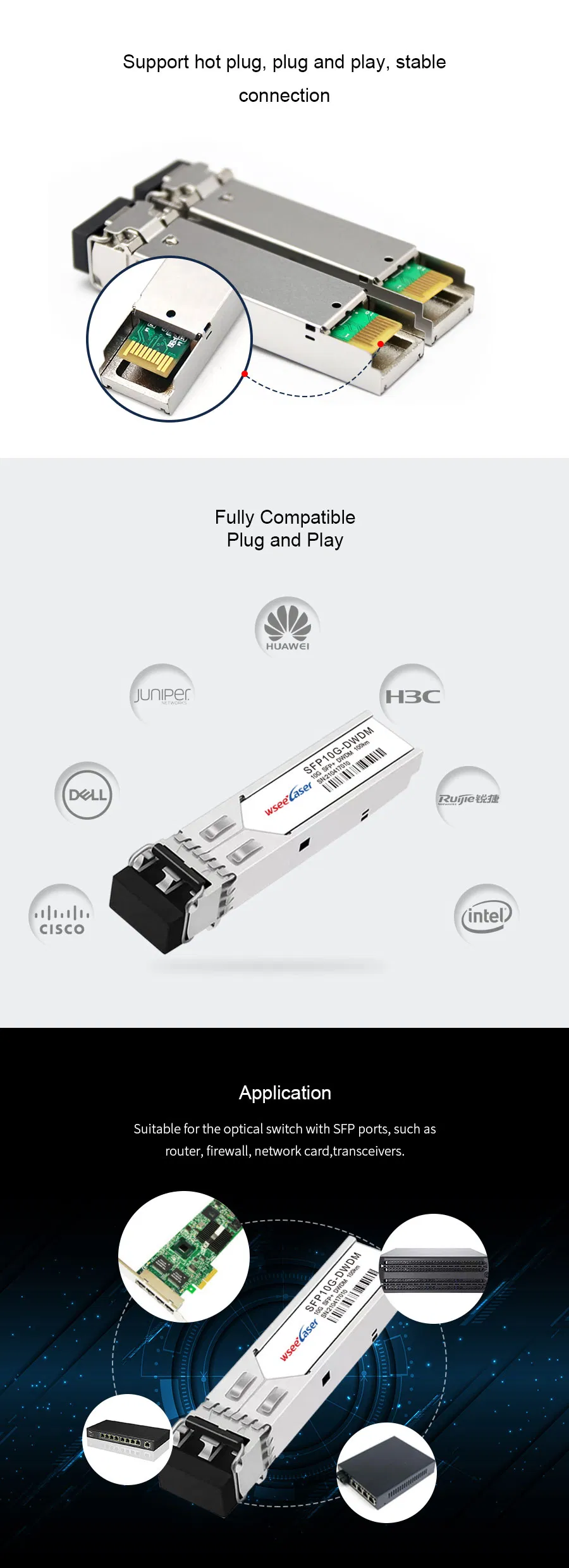

Applications

10GBASE-ER/EW at 10.3125Gbps
10G Ethernet
Other optical links

Optical Characteristics (TOP(C) = 0 to 70 ºC, TOP(I) =-40 to 85 ºC,VCC = 3.13 to 3.47 V)

Parameter	Symbol	Min.	Typ	Max.	Unit	Note
Transmitter
Operating Wavelength	λ	1528.77		1563.86	nm	1
Ave. output power (Enabled)	PAVE	1		+5	dBm	2
Side-Mode Suppression Ratio	SMSR	30			dB
Extinction Ratio	ER	9.5			dB
Spectral width	Δλ			1	nm
Rise/Fall time (20%~80%)	Tr/Tf			50	ps
Relative Intensity Noise	RIN			-128	dB/Hz
Receiver
Operating Wavelength	λ	1260		1610	nm
Receiver Sensitivity	PSEN			-25	dBm	3
Input Saturation Power(Overload)	PAVE	-7			dBm
LOS Assert Power	Pa	-37			dBm
LOS De-assert Power	Pd			-27	dBm
LOS-Hysteresis	Phys	0.5			dB

Notes:

The wavelength λ =1270nm~1610nm, Total 18 wavelengths,20nm spacing
Measured at 10.3125b/s with PRBS 2³¹ ^- ¹ NRZ test pattern.
Under the ER worst =5, measured at 10.3125 Gb/s with PRBS 2³¹ ^- ¹ NRZ test pattern for BER < 1x10^-12
