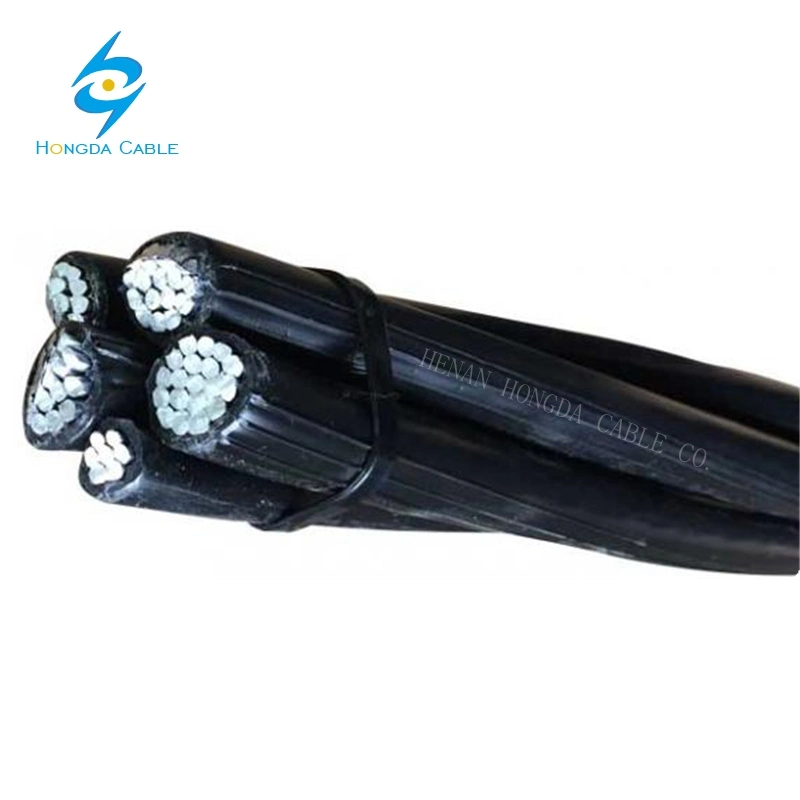

LV ABC Amka-T Cable 3X95+16+70 (0.6/1kV) with Insulated Almelec Messenger
AMKA 1 kV1 Kv Self Supporting Bundle Assembled Aerial ABC Amka CableAMK-X, AMK-T, AMKA-X, AMKA-TInstallation Information Economical Flexible Safe Vandal proof Durable Aesthetically pleasing AdaptableRATED VOLTAGEU0/U = 0,6/1 kV, Um = 1,2 kVAPPLICATIONFor overhead distribution as a part of AMKA......
Send Inquiry
Product Description
1 Kv Self Supporting Bundle Assembled Aerial ABC Amka Cable
AMK-X, AMK-T, AMKA-X, AMKA-T
Installation Information
• Economical • Flexible • Safe • Vandal proof • Durable • Aesthetically pleasing • Adaptable
RATED VOLTAGE
U0/U = 0,6/1 kV, Um = 1,2 kV
APPLICATION
For overhead distribution as a part of AMKA-system, where the messenger is used as PEN-conductor. The cable can have one optional conductor for street lighting.
Highest permissible conductor temperature:
• continuous operation 70 °C
• short circuit (duration up to 5 s) 135 °C
Lowest recommended temperature during laying: -20 °C

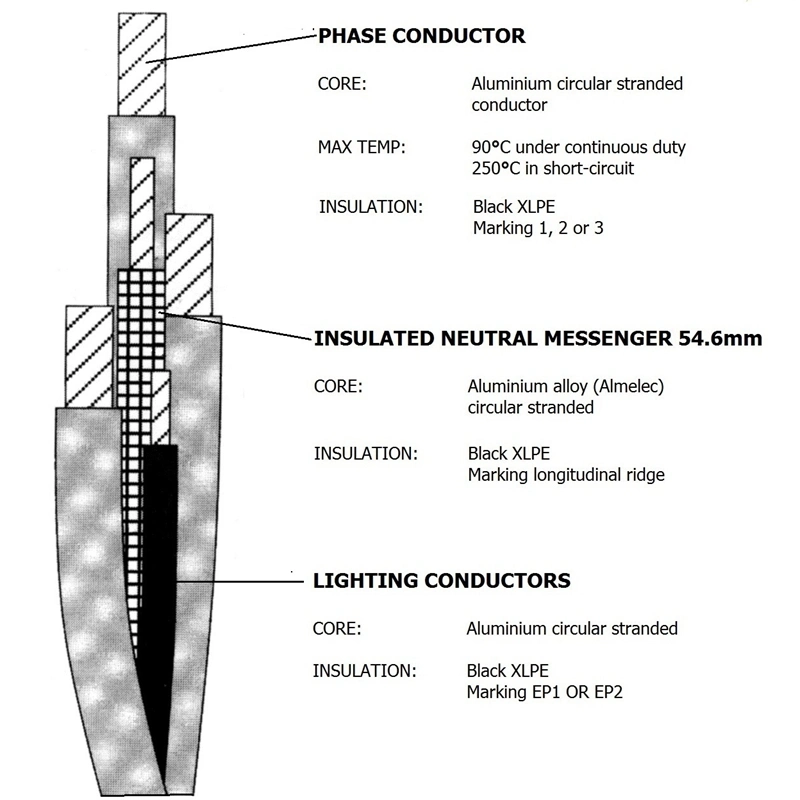

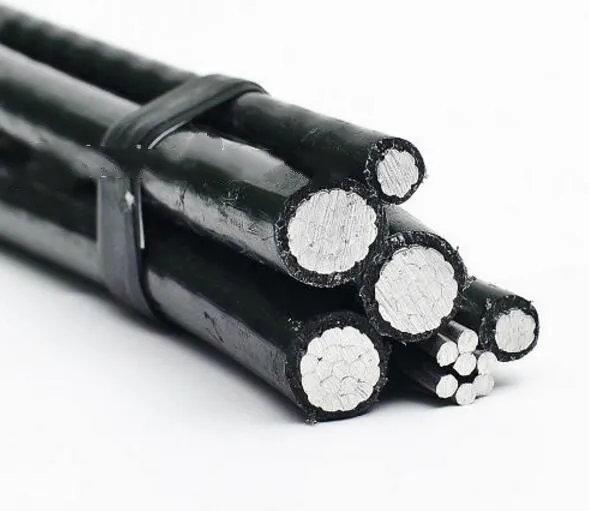

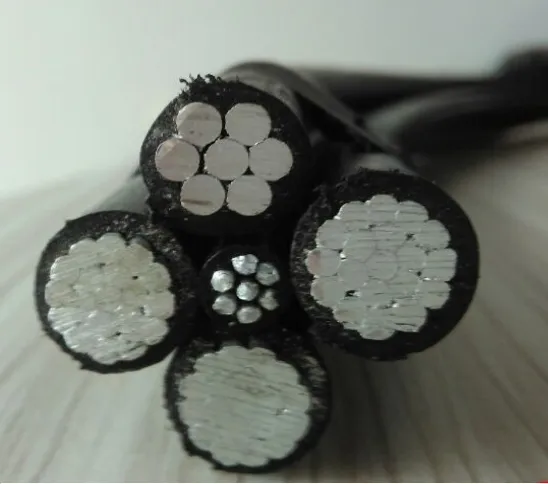

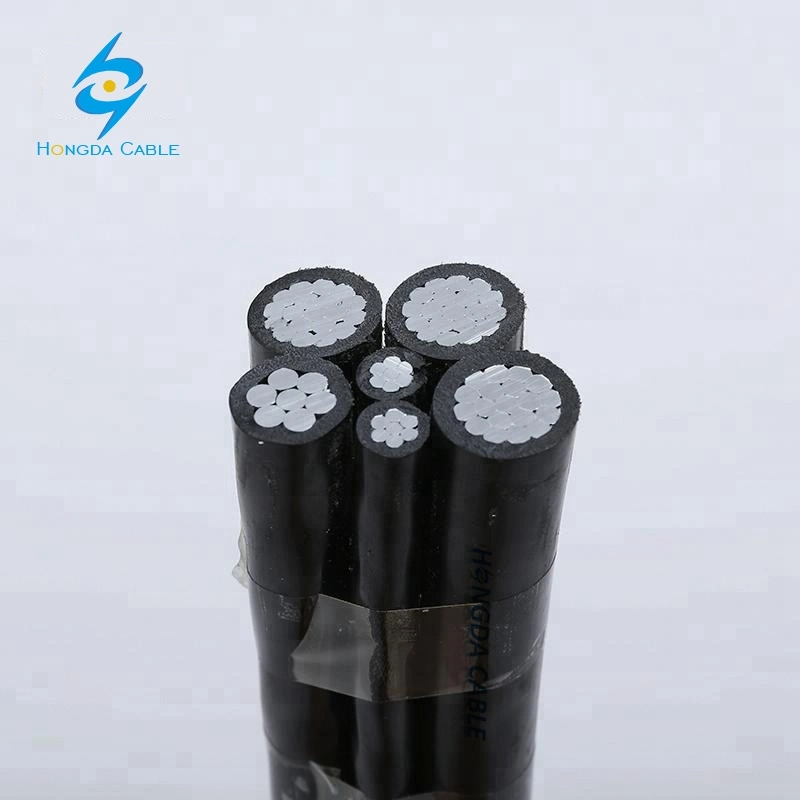

CONSTRUCTION
| Conductor | 16 mm²: solid aluminium wire 25-120 mm²: stranded aluminium wire |
| Insulation | Black weather-resistant PE / XLPE compound |
| Messenger | Stranded aluminium alloy wire |
| Laying up | Insulated conductors are laid up around the messenger |
IDENTIFICATION OF CORES
Phase conductors: 2, 3 or 4 longitudinal ridges
Optional conductor: no ridges
STANDARDS
SFS 2200
HD 626-5D
NFC 33-209
CUSTOMS CODE: 8544492100
Mechanical Properties
BUNDLE MAIN CHARACTERISTICS TO SABS 1418 - 1986
Bundle Size mm² | Bundle | Phase | Neutral | Lighting | Max | 3 volt | Max Liner | |
Approx | Approx | |||||||
3x25 + 54.6 + 1x25 | 29 | 0.70 | 9 | 12.4 | 9 | 98 | 2.62 | 1.200 |
3x35 + 54.6 + 1x25 | 31 | 0.82 | 10.2 | 12.4 | 9 | 120 | 1.89 | 0.868 |
3x50 + 54.6 + 1x25 | 33 | 0.95 | 11.6 | 12.4 | 9 | 150 | 1.40 | 0.641 |
3x70 + 54.6 + 1x25 | 37 | 1.25 | 13.7 | 12.4 | 9 | 200 | 0.97 | 0.443 |
3x95 + 54.6 + 1x25 | 41 | 1.45 | 15.2 | 12.4 | 9 | 240 | 0.71 | 0.320 |
3x120 + 70 + 1x25 | 45 | 1.70 | 16.5 | 13.5 | 9 | 280 | 0.57 | 0.253 |
3x35 + 35BN | 23 | 0.47 | 9.65 | 7.05 | N/A | 130 | 1.08 | 0.868 |
3x70 + 50BN | 30 | 0.84 | 11.05 | 8.05 | N/A | 205 | 0.55 | 0.443 |
Cable | Size (mm²) | Current Rating | Weight |
2x25 | 25 | 98 | 0.23 |
4x25 | 25 | 92 | 0.46 |
2x16AI | 16 | 80 | 0.15 |
4x16AI | 16 | 74 | 0.30 |
4 Airdac | 4-Phase & Neutral, | 50 | 0.16 |
6 Airdac | 6-Phase & Neutral, | 65 | 0.22 |
10 Airdac | 10-Phase & Neutral, | 90 | 0.32 |
16 Airdac | 16-Phase & Neutral, | 125 | 0.49 |
4 Airdac II | 4 | 50 | 0.12 |
10 Airdac II | 10 | 86 | 0.25 |
16 Airdac II | 16 | 125 | 0.41 |
(2) See the basic assumptions at general information of products.
(3) Final installation with careful single bending into final position.
(4) The effective diameter in wind is equal to the length of measuring tape wrapped around the cable divided by the value 3,1416 (pi).
(5) Initial temperature of conductor before short circuit 70°C, final temperature of conductor after short circuit 135°C.
(6) Initial temperature of messenger before short circuit 70°C, final temperature of messenger after short circuit 135°C.

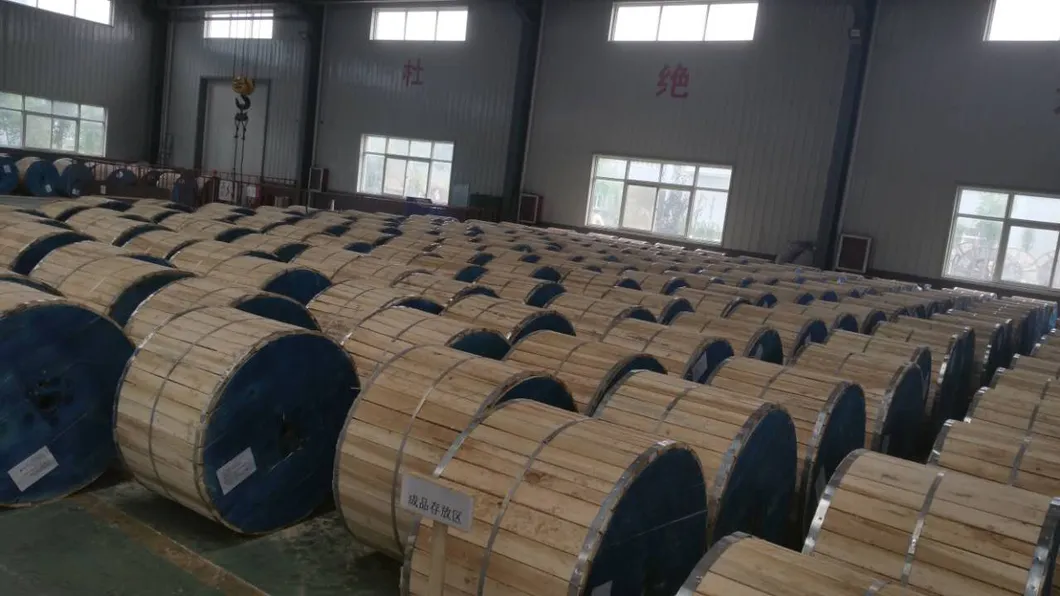

PACKAGE AND FACTORY:
