Cu/XLPE/PVC 4 Core LV Cables Riyadh Cable Prices 95mm2 120mm2 150mm2 185mm2 240mm2
Product Description10KV 15KV 22KV 33KV 35KV xlpe insulation steel wire armoured electric cable 70mm 95mm 120mm 150mm sizes picture Application:For power networks, underground, outdoors and in cable ducting of 35kV or below power distribution line. Construction:Conductor: Stranded round compacted c......
Send Inquiry
Product Description
10KV 15KV 22KV 33KV 35KV xlpe insulation steel wire armoured electric cable 70mm 95mm 120mm 150mm sizes picture
Application:
For power networks, underground, outdoors and in cable ducting of 35kV or below power distribution line.

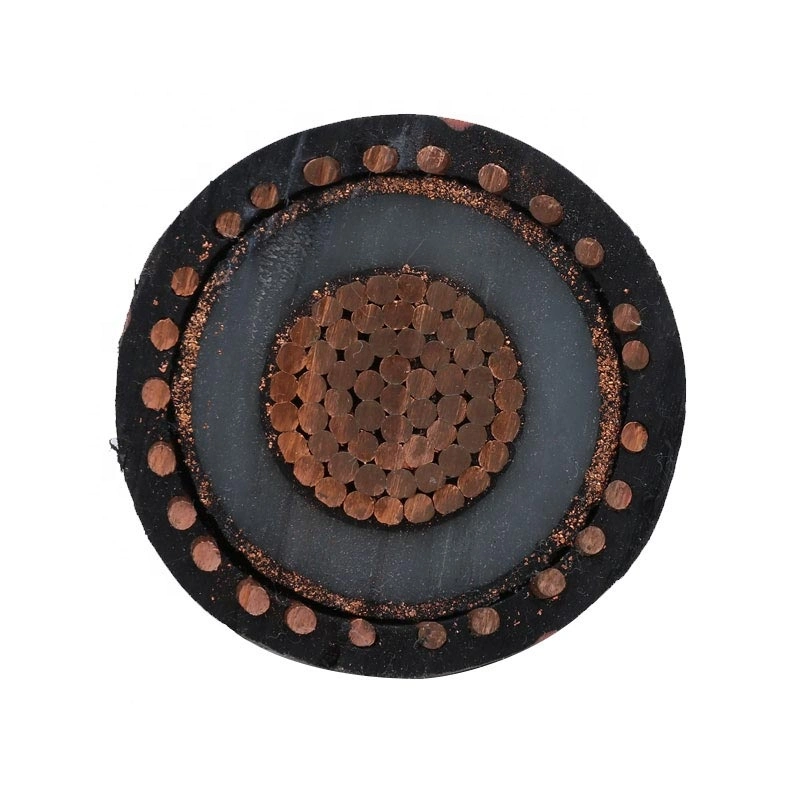

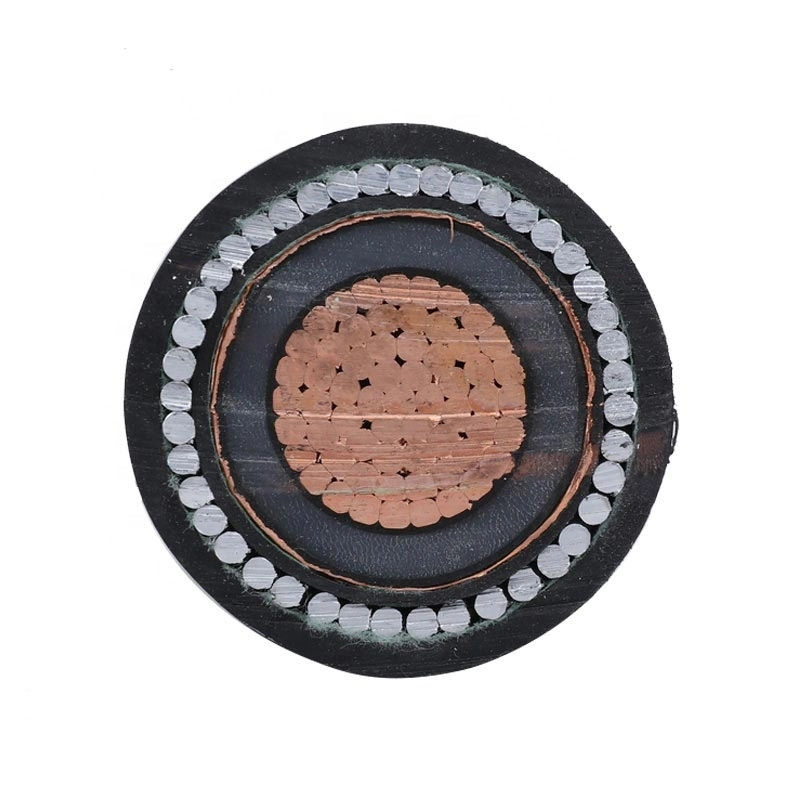

Construction:
Conductor: Stranded round compacted copper conductor (Cu), copper wire annealed.
Conductor Screen: Semi-conducting material
Insulation: XLPE (Cross-Linked Polyethylene)
Insulation Screen: Semi-conducting material
Metallic Screen:Copper tape screen or copper wire screen
Filler: PP rope
Separator: Binding tape
Bedding: PVC (Polyvinyl Chloride)
Armouring:Galvanized Steel Tape(STA) Armour;SWA;AWA
Sheath:PVC (Polyvinyl Chloride), flame retardant PVC, PE, LSOH, HFFR
Standards:
IEC60502-2; IEC60228; IEC60332-1/2/3; BS6622; BS7835; VDE0276; AS/NZS 1429.1;GB/T12706
Codes available:
N2XSRY, NA2XSRY, N2XSERY, NA2XSERY, N2XSEYRGbY, NA2XSEYRGbY, N2XSYRY, etc
YJV22,YJLV22,YJV32, YJLV32, YJSV32, YJLSV32
Available Dimensions:
25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2,630mm2,800mm2;1000mm2;1200mm2; 1500mm2;2000mm2;2500mm2
Q: Are you trading company or manufacturer ?
A: We are factory.Jinshui Cable Group, founded in 1983 and formerly known as Zhengzhou 2nd Cable Plant, is the largest cables and wire and electrical products R&D and production base, sales and export base, and CNC logistics distribution base in central China, as well as Top-10 of China in comprehensive cables and wire strength.
Q: How long is your delivery time?
A: according to order quantity.Normally delivery date is 25 days .
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge for you to check the cable quality but will not pay the cost of freight.
Q: What is your terms of payment ?
A:Normally 30% paid as prepayment, balance paid before delivery. Or 100% L/C at sight.
