64/110kV 123kV Copper Conductor, XLPE Insulated, Aluminium Corrugated Sheath, PVC/PE Cable
64/110 (123) kV Copper Conductor with Aluminium corrugated sheath Cable ConstructionStranded circular or segmental (Milliken) compacted copper conductor, extruded semi-conducting layer as a conductor screen, XLPE insulation, extruded semi-conducting layer as an insulation screen, semi-conductive swe......
Send Inquiry
Product Description

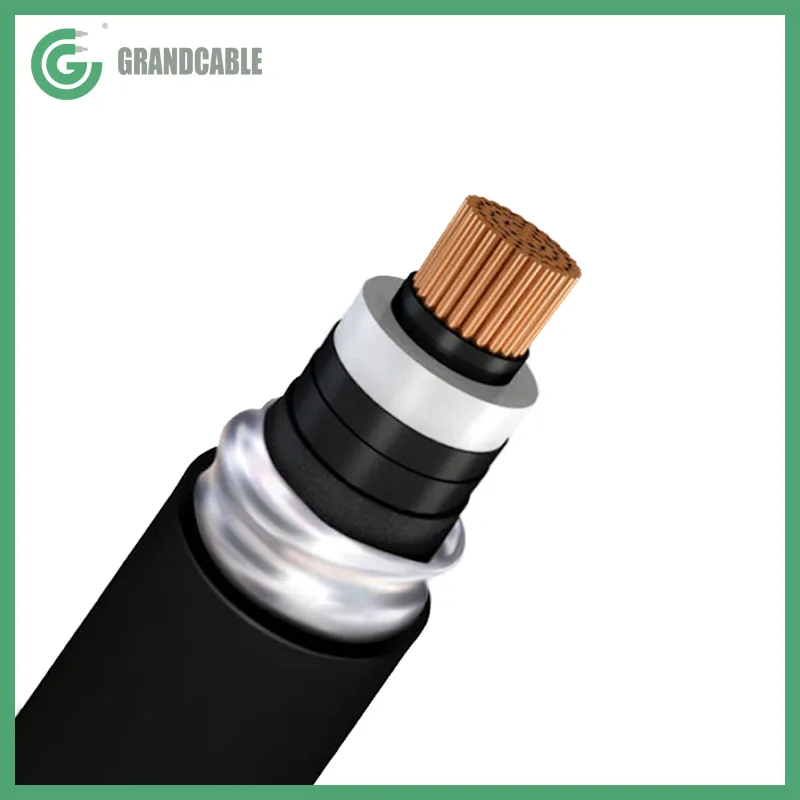

Stranded circular or segmental (Milliken) compacted copper conductor, extruded semi-conducting layer as a conductor screen, XLPE insulation, extruded semi-conducting layer as an insulation screen, semi-conductive swelling tape, Corrugated Aluminum Sheath, extruded layer of PVC/PE compound as an outer jacket and graphite coating or extruded semi-conducting layer as electrode for DC voltage sheath testing.
Standards
IEC 60840, IEC 62067, AS/NZS 1429.2…
Application
HV Cables are suitable for use in high voltage transmission networks, in systems of rated voltages from 132 kV grade up to and including 138 kV grade.
Dimension Characteriestics
| Cross-sectional area | Diameter of Conductor | Thickness of Conductor Screen | Thickness of Insulation | Thickness of Insulation Screen | Thickness of Aluminum Sheath | Thickness of Outer Sheath | Approx. Outer diameter of cable | Approx. Weight of cable | Max. D.C. Conductor Resistance at 20°C |
| mm² | mm | mm | mm | mm | mm | mm | mm | kg/m | ohm/km |
| 240 | 18.3 | 1.5 | 19.0 | 1.5 | 2.0 | 4.0 | 85.6 | 7.3 | 0.0754 |
| 300 | 20.4 | 1.5 | 18.5 | 1.5 | 2.0 | 4.0 | 86.9 | 7.9 | 0.0601 |
| 400 | 23.4 | 1.5 | 17.5 | 1.5 | 2.0 | 4.0 | 87.7 | 8.7 | 0.0470 |
| 500 | 26.3 | 1.5 | 17.0 | 1.5 | 2.0 | 4.0 | 90.3 | 9.8 | 0.0366 |
| 630 | 29.7 | 1.5 | 16.5 | 1.5 | 2.0 | 4.5 | 94.1 | 11.4 | 0.0283 |
| 800 | 33.3 | 1.5 | 16.0 | 1.5 | 2.3 | 4.5 | 99.8 | 13.3 | 0.0221 |
| 1000 | 39.7 | 1.5 | 16.0 | 1.5 | 2.3 | 4.5 | 106.4 | 16.3 | 0.0176 |
| 1200 | 42.7 | 1.5 | 16.0 | 1.5 | 2.3 | 5.0 | 109.8 | 18.3 | 0.0151 |

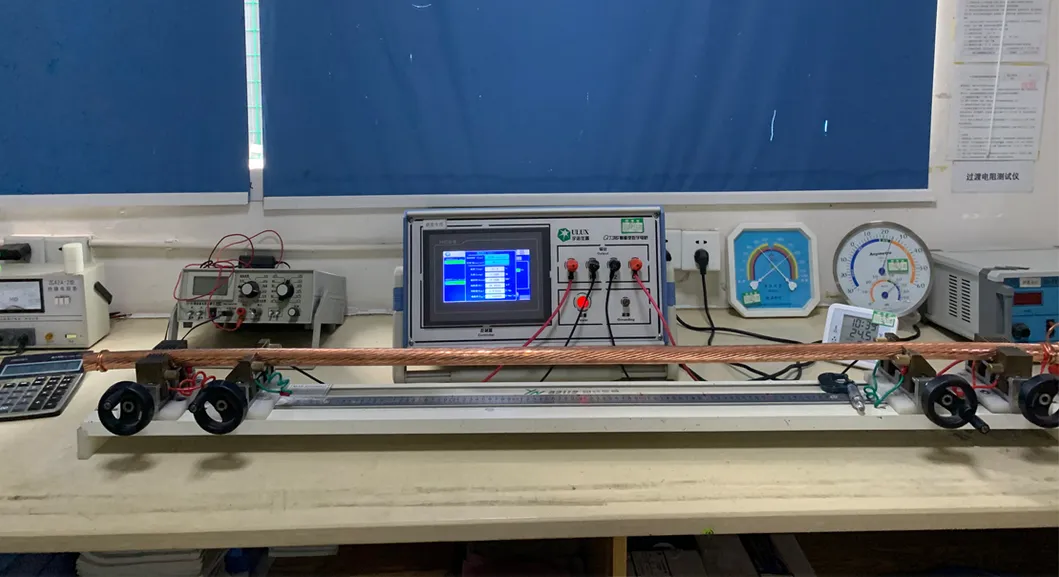

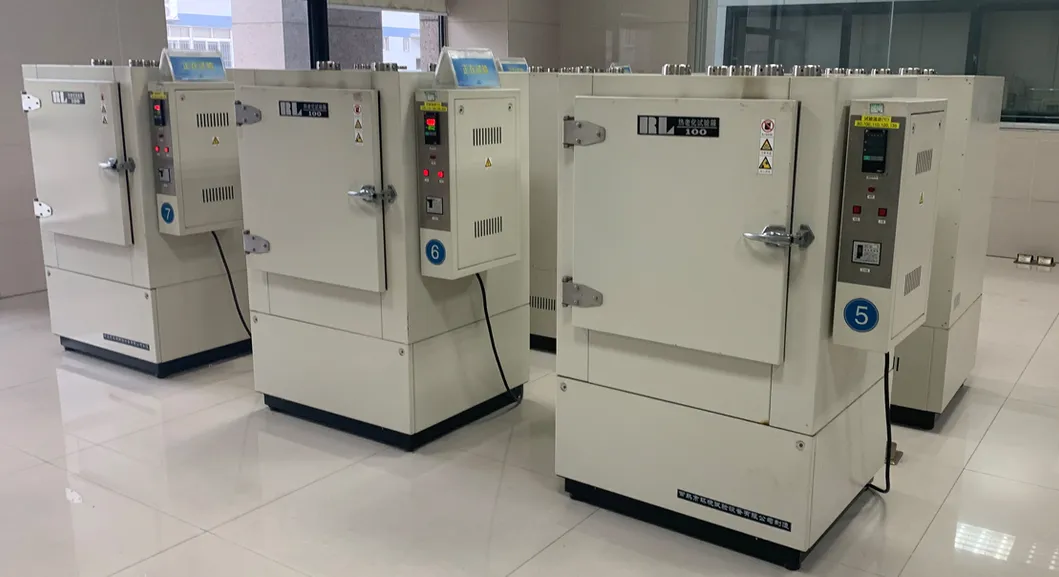

Testing Facilities:

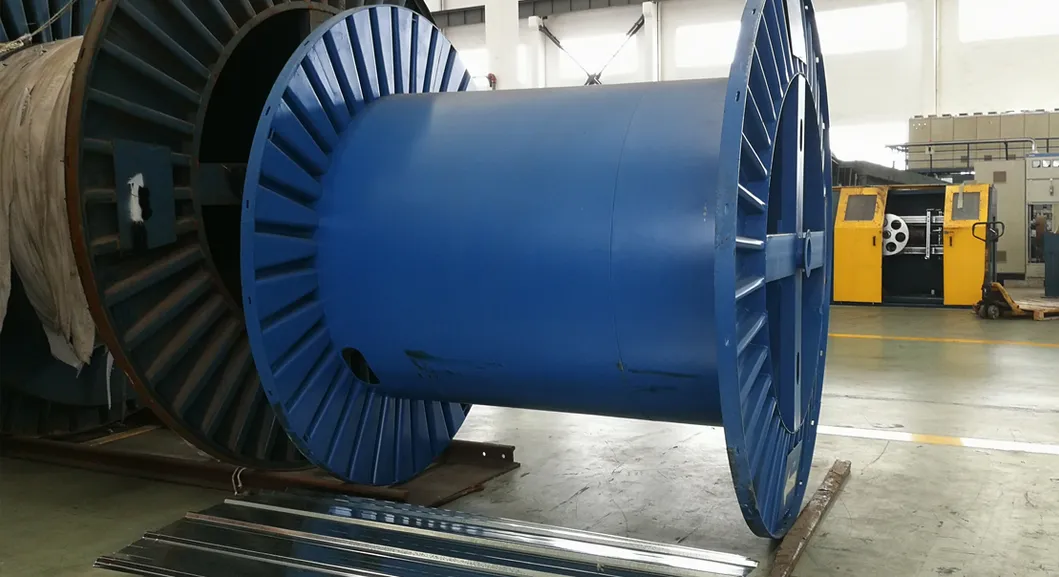

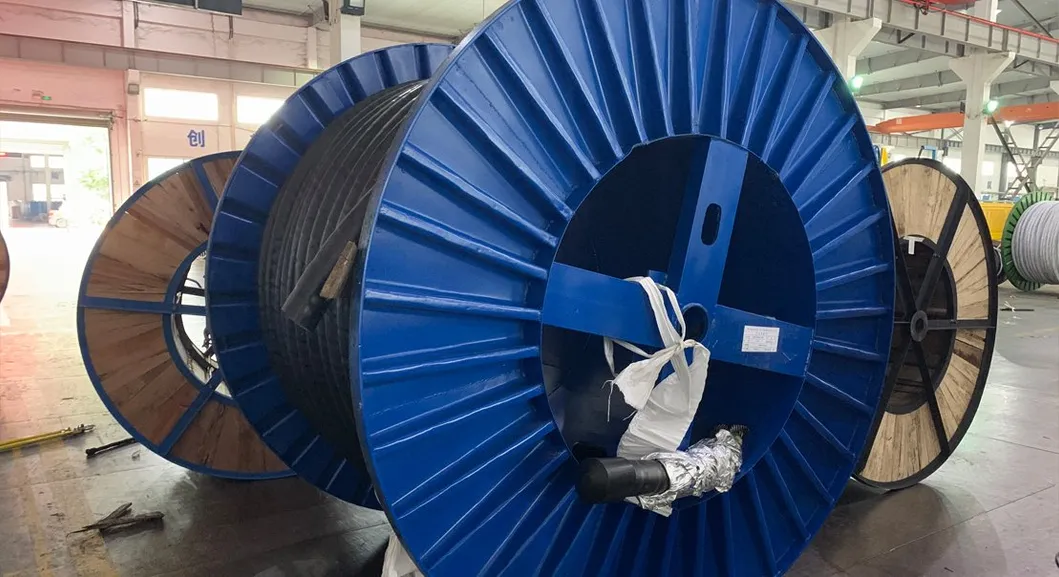

Packaging Photos:

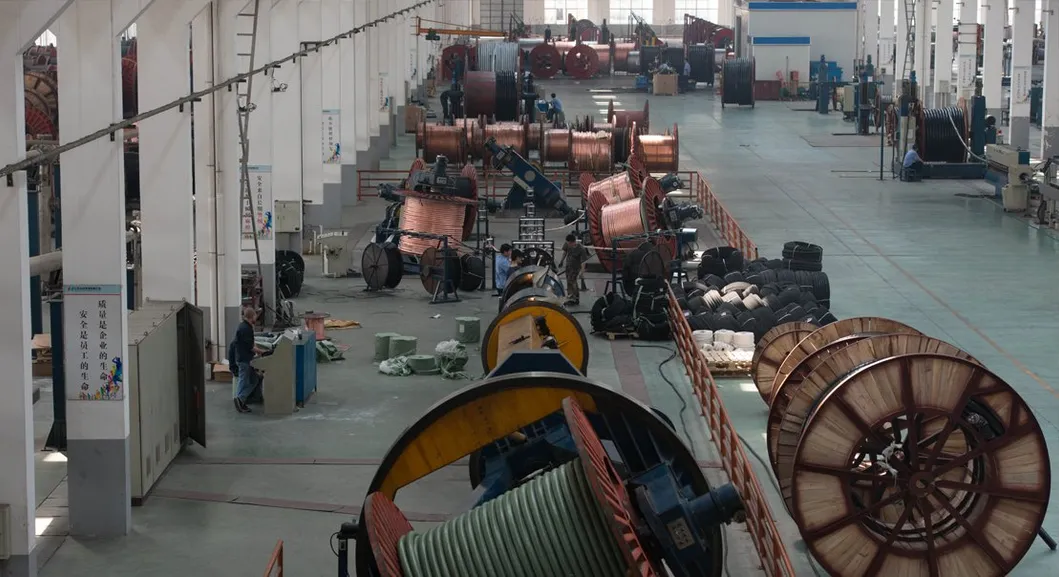

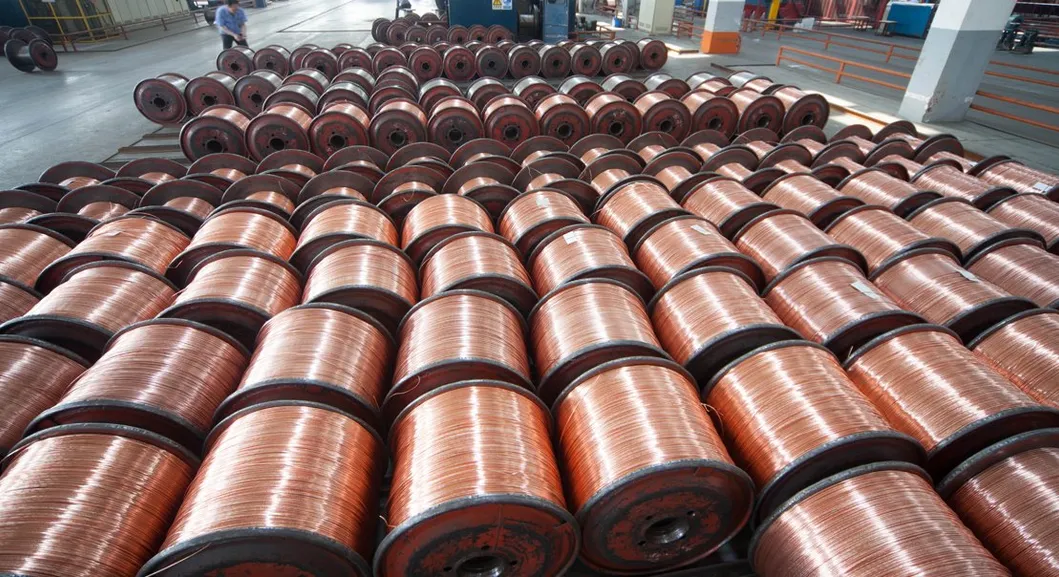

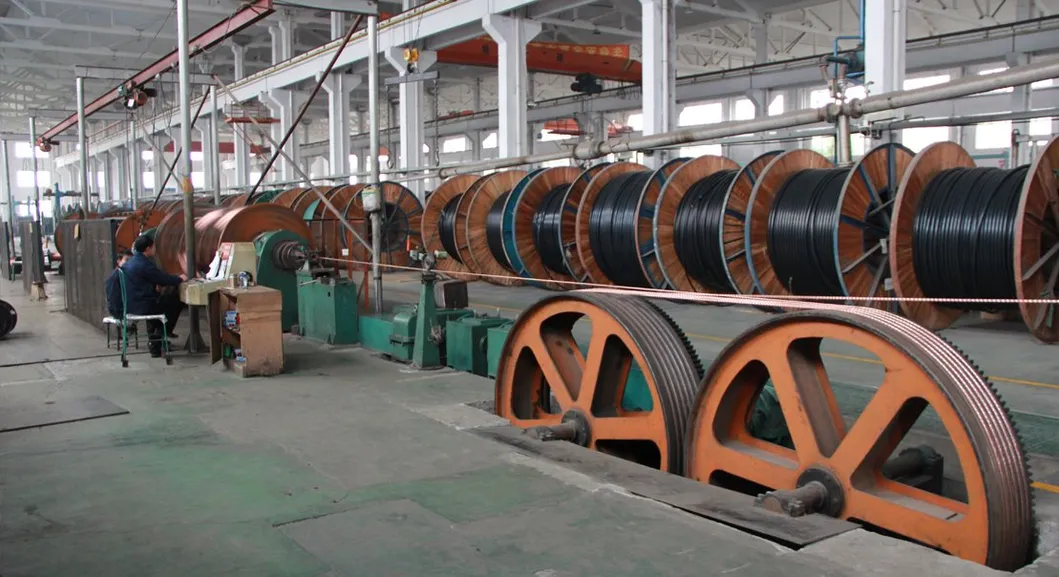

Workshop Views:
